Carl Zeiss Batis 18mm f/2.8 Lens

The Distagon Architecture of the Zeiss Batis 18mm f/2.8

The Carl Zeiss Batis 18mm f/2.8 Lens is a dedicated full-frame wide-angle prime designed specifically for the Sony E-mount ecosystem. It utilizes the legendary Distagon optical layout, a retrofocus design originally developed to allow wide-angle lenses to clear the mirror boxes of SLRs, but here optimized for the short flange distance of mirrorless cameras. This specific implementation consists of 11 elements arranged in 10 groups. By utilizing this complex arrangement, Zeiss achieves a 99-degree diagonal angle of view while maintaining a relatively compact form factor and a weight of just 330 grams.

Within the Batis lineup, this 18mm focal length serves as the widest rectilinear prime, sitting just below the 25mm f/2. It is engineered for photographers who require an expansive field of view without the fisheye distortion typical of shorter focal lengths. The lens is built with a focus on professional-grade reliability, featuring a dust and weather-sealed construction that is immediately identifiable by the signature blue gasket at the mount. The use of specialized glass, including aspherical elements and anomalous partial dispersion glass, ensures that the lens can resolve the high pixel densities found in modern high-resolution sensors like the Sony A7R series.

The optical formula also incorporates a floating elements design. This mechanism adjusts the distance between specific lens groups during focusing to compensate for aberrations that typically occur at different focus distances. This is particularly relevant for an 18mm lens, as it allows for consistent sharpness from the minimum focus distance of 25cm all the way to infinity. This makes the lens a versatile tool for both close-up environmental portraiture and expansive landscape photography.

Optical Precision and the T* Coating

The image quality of the Carl Zeiss Batis 18mm f/2.8 is defined by its high micro-contrast and the suppression of optical artifacts. Central to this performance is the Zeiss T* anti-reflective coating. This multi-layer coating is applied to every lens surface to minimize internal reflections, flare, and ghosting. In practice, this results in images with deep blacks and vibrant color saturation, even when shooting directly into light sources like the sun or high-intensity studio strobes. The coating is chemically bonded to the glass, ensuring long-term durability and consistent light transmission across the visible spectrum.

To combat chromatic aberration, the lens employs several elements made of special glass with anomalous partial dispersion. These elements ensure that different wavelengths of light converge at the same focal point, effectively eliminating the purple and green fringing that often plagues wide-angle lenses at high-contrast edges. Furthermore, the inclusion of aspherical surfaces helps to correct spherical aberration and field curvature. This ensures that the 18mm frame remains sharp from the center to the extreme corners, a critical requirement for architectural and interior photography where straight lines and fine details must be preserved across the entire composition.

The lens produces a distinct "Zeiss look," characterized by a three-dimensional pop. This is achieved through a combination of high MTF (Modulation Transfer Function) values and a specific color rendering that tends toward the cooler, more neutral side of the spectrum. The f/2.8 maximum aperture, while not as fast as some wide-angle primes, is sufficient for creating a shallow depth of field when focusing on subjects at the 25cm minimum distance, producing a smooth bokeh transition that does not distract from the primary subject.

Autofocus Performance and the OLED Display

The Carl Zeiss Batis 18mm f/2.8 utilizes a linear motor autofocus system designed for speed, silence, and precision. Unlike traditional screw-drive or gear-based systems, linear motors move the internal lens groups using electromagnetic force, allowing for near-instantaneous focus acquisition. This system is fully compatible with Sony’s advanced autofocus algorithms, including Real-time Eye AF, Animal Eye AF, and Fast Hybrid AF. On a modern Sony body, the lens tracks moving subjects with high accuracy, making it viable for dynamic environments where the distance between the camera and the subject is constantly changing.

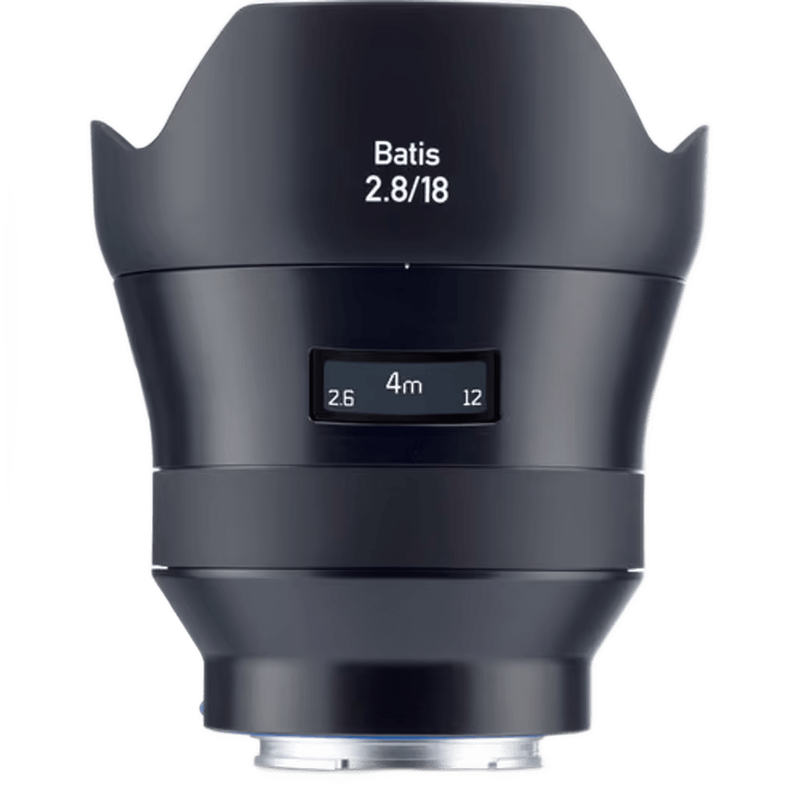

One of the most distinctive physical features of the Batis series is the integrated OLED display on the top of the lens barrel. This display provides real-time data on the focus distance and the depth of field range based on the current aperture setting. This is particularly useful for landscape and architectural photographers who utilize hyperfocal distance calculations to maximize sharpness across the frame. The display is easily readable in low-light conditions and can be configured to show distances in either meters or feet, or turned off entirely for a stealthier profile.

The handling of the lens is characterized by its smooth, rubberized focus ring. This ring is electronically coupled (focus-by-wire), providing a damped feel that mimics the tactile response of a mechanical manual focus lens. The lens barrel is constructed from a high-quality metal alloy, providing a robust feel without the excessive weight of older wide-angle designs. The 77mm filter thread is non-rotating, allowing for the easy use of circular polarizers and graduated neutral density filters, which are essential tools for the landscape photographers this lens targets.

Video Capability and Cinematographic Utility

For cinematographers, the Carl Zeiss Batis 18mm f/2.8 offers a unique set of advantages and a few specific limitations. The 18mm focal length on a full-frame sensor provides a wide, immersive perspective that is ideal for establishing shots, gimbal work, and vlogging. When used on a Sony camera in Super35 (APS-C) crop mode, the lens behaves like a 27mm equivalent, which is a classic focal length for documentary and narrative filmmaking. The silent linear motors are a significant benefit for video, as they do not introduce audible mechanical noise into the internal microphone recordings during focus pulls.

Focus breathing—the slight change in focal length when shifting focus from near to far—is well-controlled in this Distagon design. While not entirely eliminated, it is minimal enough that it does not distract the viewer during rack focus transitions. The lens’s lightweight 330g build makes it exceptionally well-suited for use on compact motorized gimbals like the DJI RS series. It balances easily without requiring heavy counterweights, allowing for extended shooting sessions without operator fatigue.

However, there are honest limitations for high-end cinema use. The focus-by-wire system, while precise, lacks the physical hard stops found on dedicated cinema lenses, making repeatable manual focus pulls more challenging without a follow-focus system that supports electronic calibration. Additionally, the f/2.8 aperture, while bright for a wide-angle, may require higher ISO settings when shooting in extremely low-light interiors compared to an f/1.4 or f/1.8 prime. Despite these factors, the lens remains a popular choice for "run-and-gun" videography where autofocus reliability and weight are the primary concerns.

On the Shoot: Indian Scenarios

In a Bengaluru wedding reception, the Zeiss Batis 18mm f/2.8 excels at capturing the sheer scale of the venue and the intricate floral decorations. When the couple enters a large hall, the 18mm perspective allows the photographer to include the entire stage, the guest seating, and the ceiling architecture in a single frame. The f/2.8 aperture is fast enough to handle the ambient lighting of a typical ballroom when paired with a modern high-ISO Sony sensor. The fast autofocus ensures that even as the couple moves through the crowd, the lens stays locked on their faces, capturing the energy of the event without hunting.

During a Goa travel shoot, particularly when exploring the churches of Old Goa or the rugged cliffs of the coastline, the lens’s weather sealing becomes a critical asset. The humidity and salt spray of the coastal environment are kept at bay by the internal seals. The 18mm focal length is perfect for capturing the towering facades of the Basilica of Bom Jesus from a close distance, where space is limited but the entire structure needs to be in the frame. Its light weight means it can be carried all day in a small shoulder bag while trekking to remote beaches like Butterfly Beach, where its ability to resolve fine textures in the sand and rocks shines.

In a Mumbai studio product session focused on large-scale items like furniture or interior design mock-ups, the lens’s low distortion is its greatest strength. When shooting a designer sofa or a kitchen layout, the Distagon optics ensure that vertical lines remain straight, reducing the need for extensive post-processing correction. The OLED display allows the photographer to precisely set the hyperfocal distance, ensuring that every element from the foreground texture to the background wall remains within the acceptable circle of confusion. The 25cm minimum focus distance also allows for "hero" shots where a specific detail of the product is emphasized while still showing the surrounding environment.

Pairing and Compatibility

The Carl Zeiss Batis 18mm f/2.8 is designed for the Sony E-mount and is fully compatible with both full-frame (FE) and APS-C bodies. On an APS-C sensor, such as the Sony A6000 series, it provides a 27mm equivalent field of view. To maximize the lens's resolving power, it is best paired with high-resolution bodies like the Sony A7R IV or A7R V, where the 61MP sensor can take full advantage of the Zeiss optics. For video-centric users, pairing it with the Sony A7S III or FX3 provides a stabilized, wide-angle setup capable of 4K 120p recording with reliable Eye-AF.

In terms of accessories, the lens uses a 77mm filter thread, which is a common size, allowing for the sharing of filters with other professional lenses like the 24-70mm f/2.8 GM. High-quality ND filters are recommended for maintaining the f/2.8 aperture in bright daylight, especially for video. The lens comes with a dedicated petal-shaped lens hood that is designed to integrate seamlessly with the lens barrel's aesthetics. For storage and transport, it fits into standard small-to-medium lens pouches. It is powered entirely by the camera body, drawing minimal current for its linear motors and OLED display.

Within the Batis family, this lens pairs logically with the Batis 40mm f/2 CF and the Batis 85mm f/1.8. This three-lens kit covers ultra-wide, standard, and portrait focal lengths with a consistent color science and handling experience. Because all Batis lenses share a similar design language and weather-sealing standards, they are often used together by travel and documentary photographers who need a reliable, lightweight prime kit.

Who Should Choose Something Else

While the Carl Zeiss Batis 18mm f/2.8 is a premium optic, it is not the right choice for every photographer. Those who require the absolute fastest aperture for astrophotography might find the f/2.8 limit restrictive. For capturing the Milky Way with minimal star trailing, a lens like the Sony FE 20mm f/1.8 G or the Sony FE 14mm f/1.8 GM offers significantly more light-gathering capability, allowing for lower ISO settings and cleaner images in pitch-black conditions.

Photographers who prefer the flexibility of a zoom lens may find the fixed 18mm focal length limiting. The Sony FE 16-35mm f/2.8 GM II covers the 18mm range while providing the ability to zoom in for tighter compositions, albeit at a significantly higher weight and larger physical footprint. If your work involves a mix of wide-angle landscapes and tighter street photography in quick succession, the zoom will be more practical than swapping primes.

Finally, for those on a strict budget or those who do not require the specific "Zeiss look" or the OLED display, there are more affordable alternatives. Lenses from Tamron or Samyang offer 18mm or 20mm focal lengths at a fraction of the cost. While they may lack the robust weather sealing, the T* coating, and the corner-to-corner sharpness of the Batis, they provide a similar field of view for casual use. The Batis 18mm is a specialized tool for professionals who prioritize optical perfection, lightweight construction, and the specific rendering characteristics that only Zeiss glass provides.
