The Engineering of the Carl Zeiss 6 Lens Kit

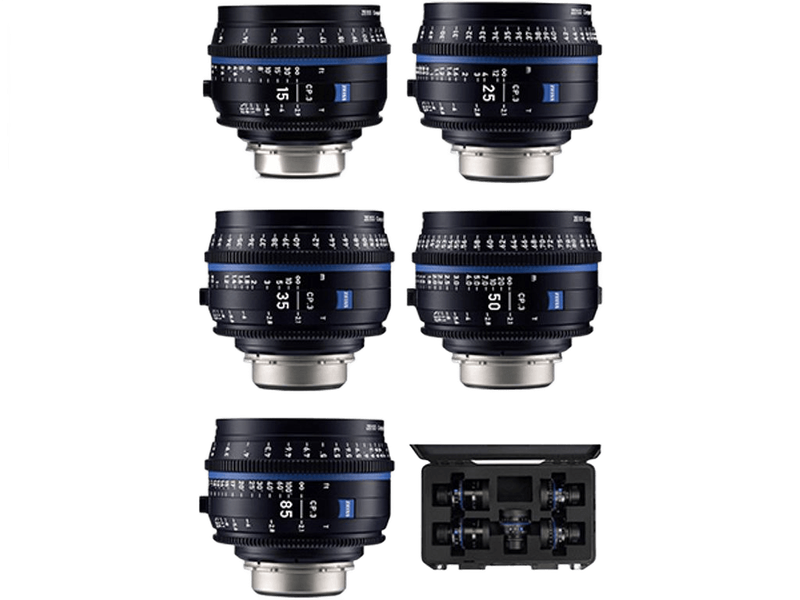

The Carl Zeiss 6 Lens Kit, specifically the Compact Prime CP.2 series, represents a significant milestone in the evolution of digital cinematography. These lenses were the first in the world to offer a dedicated cinema housing combined with full-frame coverage (36 x 24mm), making them compatible with both traditional Super 35 sensors and larger full-frame sensors like those found in the ARRI ALEXA LF or Sony VENICE. The kit typically comprises six core focal lengths: 21mm T2.9, 25mm T2.1, 35mm T2.1, 50mm T2.1, 85mm T2.1, and 100mm T2.1. This specific selection is designed to provide a comprehensive range for narrative filmmaking, covering everything from expansive wide-angle vistas to tight, compressed portraiture.

At the heart of this kit is the Interchangeable Mount System (IMS). Unlike traditional cinema lenses that are permanently fixed to a PL or EF mount, the CP.2 series allows technicians to switch between PL, EF, F, MFT, and E mounts. This flexibility ensures that the lenses remain future-proof as camera technologies evolve. The optical formulas used in these lenses are derived from the legendary Zeiss ZF and ZE stills lenses but are re-engineered for cinema. The 21mm and 25mm lenses utilize the Distagon design, characterized by a retrofocus layout that minimizes distortion and maintains sharpness across the entire frame. The 50mm and 85mm lenses employ the Planar design, which is symmetrical and provides exceptional correction for chromatic aberrations and field curvature. This combination of optical heritage and modern mechanical housing positions the kit as a workhorse for independent features, high-end commercials, and documentary productions.

Optical Performance and the Zeiss T* Coating

The image quality of the Carl Zeiss 6 Lens Kit is defined by high micro-contrast and a neutral color palette that Zeiss refers to as "color matched." This means that footage shot on the 21mm will have the exact same color temperature and rendition as footage shot on the 100mm, drastically reducing the time required for color grading in post-production. A critical component of this performance is the proprietary Zeiss T* anti-reflective coating. This multi-layer coating is vacuum-deposited onto the lens surfaces to increase light transmission and reduce internal reflections. In practice, this results in images with deep blacks and high contrast, even when shooting in challenging backlit conditions where other lenses might suffer from "veiling glare" or a loss of saturation.

Another defining feature of the CP.2 series is the 14-blade aperture. Most stills lenses use 7 or 9 blades, which can create polygonal bokeh shapes when the lens is stopped down. The 14-blade iris in the Zeiss kit maintains a near-perfect circle at all T-stops. This ensures that out-of-focus highlights remain round and natural, providing a "cinematic" look that avoids the distracting geometric shapes often seen in lower-end glass. Furthermore, the lenses are designed to resolve 4K and 8K resolutions, ensuring that the fine textures of skin, fabric, and landscapes are preserved without the digital harshness sometimes associated with modern aspherical designs.

Mechanical Build and Handling on Set

Handling the Carl Zeiss 6 Lens Kit on a professional set reveals the advantages of dedicated cinema housing. Each lens in the kit features a standardized 114mm front diameter (with the exception of some specialized focal lengths). This uniformity allows camera assistants to switch lenses without having to adjust the height or position of the matte box or move the follow focus motor. The focus and iris gears are also located in the same position relative to the mount across the entire set, facilitating rapid lens changes during time-sensitive shoots.

The focus throw on these lenses is 300 degrees. This long rotation allows for extremely precise focus pulls, which is essential when shooting at wide apertures like T2.1 on full-frame sensors where the depth of field is razor-thin. The mechanical movement is smooth and dampened, providing tactile feedback to the focus puller. Unlike stills lenses, which often use "focus-by-wire" systems or have short, loose focus rings, the CP.2s use a mechanical cam-driven system. This ensures that focus marks are repeatable; if a subject moves to a specific mark on the floor, the focus puller can return to the exact same spot on the lens barrel with 100% accuracy. The scales are clearly marked on both sides of the barrel in large, high-contrast numerals, making them legible even in low-light environments.

Video Capability and Sensor Integration

The Carl Zeiss 6 Lens Kit is engineered specifically for the demands of high-resolution digital sensors. One of the primary concerns in cinematography is "focus breathing"—the slight change in focal length that occurs when the focus is shifted from near to far. Zeiss has minimized breathing in the CP.2 series through internal focusing mechanisms, ensuring that the frame remains stable during dramatic rack focuses. This is a critical requirement for narrative storytelling where a shift in the frame's edges can distract the audience from the performance.

The lenses are also designed to handle the high dynamic range (HDR) of modern sensors. The internal baffling and the T* coating work together to prevent stray light from bouncing around inside the lens barrel, which preserves the sensor's ability to capture detail in the shadows. Because these lenses cover a full-frame image circle, they are particularly effective on cameras like the Sony FX9 or Canon C500 Mark II. When used on Super 35 sensors, such as the RED Komodo or Blackmagic 6K, the camera utilizes the "sweet spot" of the lens—the center of the glass—where sharpness is at its peak and vignetting is virtually non-existent.

On the Shoot: Real-World Scenarios in India

In a Bengaluru wedding reception held in a large, dimly lit banquet hall, the Carl Zeiss 6 Lens Kit proves its value through its consistent T2.1 aperture and superior flare control. When shooting toward decorative LED strings or high-intensity stage lights, the T* coating prevents the "ghosting" that often ruins shots on lesser glass. The 85mm T2.1 is particularly effective here for capturing candid portraits of guests from a distance, providing a shallow depth of field that isolates the subject from the busy background while maintaining a natural, round bokeh in the background lights.

For a travel documentary shoot in the bright, high-contrast environment of Goa’s beaches, the kit’s mechanical durability is paramount. The robust housing is designed to withstand humidity and dust, while the consistent color matching ensures that the vibrant blues of the ocean and the warm tones of the sand remain uniform across wide shots (21mm) and tight detail shots (50mm). The 300-degree focus throw allows the operator to track moving subjects, such as a fisherman pulling in a net, with a level of precision that autofocus systems often struggle to replicate in complex, high-glare environments.

In a Mumbai studio for a high-end product session involving jewelry or electronics, the 100mm T2.1 Close Focus lens becomes the star of the kit. Its ability to resolve fine detail and its high micro-contrast allow the camera to capture the intricate textures of gold or the sharp edges of a smartphone. Because the lenses are color-matched, the production team can swap from a wide shot of the studio setup to a macro detail of the product without worrying about shifts in the brand's specific color palette, ensuring a cohesive look across the entire commercial.

Compatibility and Pairing

The Carl Zeiss 6 Lens Kit is highly adaptable but requires specific accessories to maximize its potential. Because of the 114mm front diameter, a professional matte box with a 114mm bellows or step-down rings is necessary to manage light and hold filters. For mounting, the IMS system allows these lenses to be paired with almost any professional camera body. When using the PL mount, they are compatible with ARRI, RED, and Sony CineAlta systems. With the EF mount, they work seamlessly on the Canon C-series and Blackmagic Design cameras.

In terms of support gear, the weight of these lenses (averaging 1kg per lens) necessitates a sturdy tripod system and a 15mm or 19mm rail system for follow focus units. Wireless follow focus systems, such as the Tilta Nucleus-M or DJI Focus, pair exceptionally well with the standardized 0.8 mod gears on the focus and iris rings. For filtration, 4x5.65-inch ND filters are the standard choice for the matte boxes used with this kit. Since the lenses are manual, they do not require power from the camera body, making them compatible with any mount-compatible system regardless of electronic communication capabilities.

Who Should Choose Something Else

While the Carl Zeiss 6 Lens Kit is a versatile professional tool, it is not the right choice for every production. Filmmakers who require autofocus—such as solo event videographers or those using gimbals without a wireless follow focus—should look toward native E-mount or RF-mount lenses. The CP.2s are strictly manual focus, and their weight can make balancing a small gimbal a challenge. Additionally, while T2.1 is fast, it is not as fast as the Zeiss Master Primes (T1.3) or the Sigma High-Speed Primes (T1.5). If a shoot takes place in extremely low-light conditions where every stop of light is critical, a faster prime set would be more appropriate.

Furthermore, the "Zeiss Look" is characterized by its clinical sharpness and high contrast. Cinematographers seeking a "vintage" aesthetic with heavy character, lower contrast, and pronounced anamorphic-style flares might prefer the Cooke Panchro/i Classic or various vintage rehoused lenses. Finally, for fast-paced broadcast or sports environments where changing lenses is not feasible, a high-quality cinema zoom like the Zeiss CZ.2 70-200mm or the Fujinon MK series would be a more efficient choice than a 6-lens prime kit.
