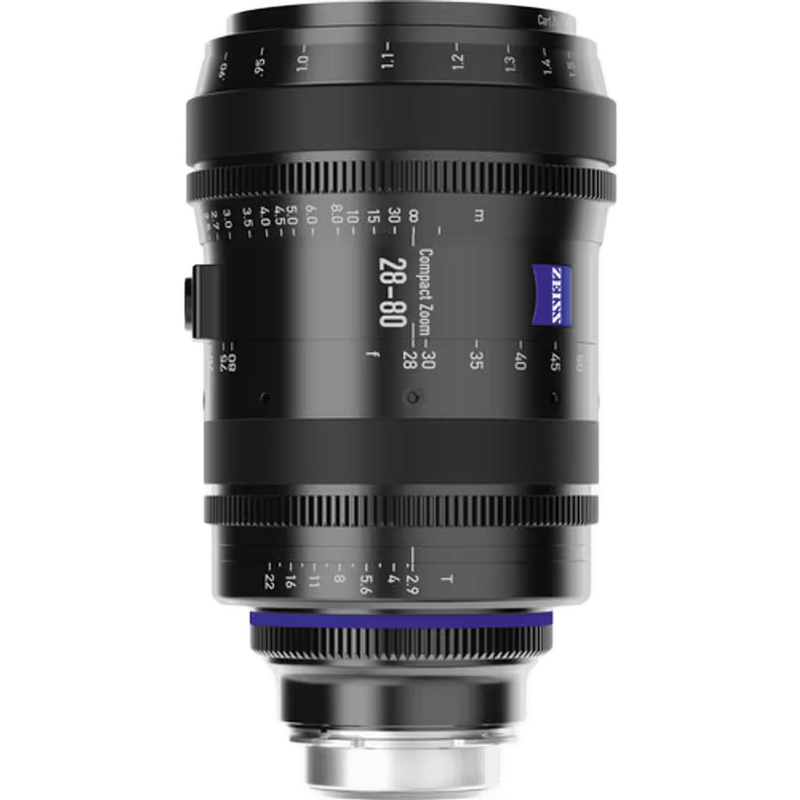

Carl Zeiss 28-80mm (MID ZOOM) T2.9

The Engineering and Purpose of the Zeiss Compact Zoom CZ.2 28-80mm T2.9

The Carl Zeiss 28-80mm (MID ZOOM) T2.9, officially known as the Compact Zoom CZ.2, is a high-performance cinema zoom lens designed to bridge the gap between high-end prime lenses and bulky, traditional studio zooms. It is part of the CZ.2 family, which was engineered specifically to provide full-frame coverage (36 x 24 mm) across its entire focal range. This makes it a rare commodity in the cinema world, where many vintage and modern cinema zooms are restricted to Super 35mm sensors. The optical formula consists of 18 elements arranged in 14 groups, a complex arrangement necessitated by the requirement for a constant T2.9 aperture and the elimination of focus shift during zooming. It occupies a premium position in the Zeiss lineup, sitting above the CP.3 prime series in terms of mechanical complexity while sharing the same color characteristics as the Ultra Primes and Master Primes, allowing for seamless intercutting in post-production.

Designed for professional cinematographers who require the flexibility of a zoom without the traditional optical compromises, this lens is built to handle resolutions of 4K, 8K, and beyond. The 28-80mm range serves as the "mid-range" workhorse, covering the most utilized focal lengths for narrative storytelling, from a moderately wide 28mm to a tight 80mm portrait length. Because it covers a full-frame image circle, it is future-proofed for large-format sensors like those found in the ARRI Alexa Mini LF, Sony Venice, and RED V-Raptor. The lens was developed to provide a "one-lens" solution for handheld, gimbal, and Steadicam work where frequent lens changes are impractical but image quality cannot be sacrificed.

Optical Performance and the Zeiss T* Coating

The image quality of the Carl Zeiss 28-80mm (MID ZOOM) T2.9 is defined by its high contrast, extreme sharpness from center to corner, and the legendary Zeiss T* anti-reflex coating. This coating is not merely a surface treatment but a sophisticated system that minimizes internal reflections, ghosting, and flare, ensuring that the black levels remain deep and saturated even when shooting into strong light sources. The color rendition is neutral and clinical, avoiding the warm or cool biases found in other cinema glass, which provides a clean slate for colorists. One of the most significant technical achievements of this lens is its 14-blade iris. Unlike photography zooms that often use 7 or 9 blades, the 14-blade construction ensures a perfectly circular aperture at every T-stop from T2.9 to T22. This results in smooth, organic bokeh and natural-looking out-of-focus highlights that do not take on polygonal shapes when stopped down.

Distortion is remarkably well-controlled for a zoom lens. At the 28mm end, there is minimal barrel distortion, and at the 80mm end, pincushioning is virtually non-existent. This geometric accuracy is critical for architectural shots or when filming subjects with straight lines in the frame. Furthermore, the lens exhibits almost zero chromatic aberration, even at the wide-open T2.9 setting. This means that high-contrast edges, such as a dark silhouette against a bright sky, will not show the purple or green fringing common in lesser optics. The resolving power of the glass is tuned for high-density sensors, ensuring that fine textures like skin pores, fabric weaves, and distant landscapes are rendered with micro-contrast that gives the footage a three-dimensional feel.

Mechanical Build and Interchangeable Mount System

The build quality of the Carl Zeiss 28-80mm (MID ZOOM) T2.9 is strictly industrial, featuring a full metal housing designed to withstand the rigors of professional film sets. It weighs approximately 2.5 kg (5.5 lbs) and has a length of 196mm, making it significantly more compact than traditional cinema zooms like the Angenieux Optimo or Zeiss Master Zooms. A standout feature is the Interchangeable Mount System (IMS). This allows the lens to be fitted with PL, EF, F, MFT, or E mounts using a simple shim-based system, ensuring perfect flange focal distance across different camera platforms. This versatility is a major advantage for rental environments and multi-camera productions using different brands.

The handling characteristics are optimized for precision manual control:

• Focus Rotation: The lens features a massive 300-degree focus throw, allowing for extremely fine adjustments, which is essential when working with the shallow depth of field provided by a full-frame sensor at T2.9.
• Standardized Gears: The focus, iris, and zoom rings all feature industry-standard 0.8 mod gears, positioned in the same relative locations as other CZ.2 and CP.2/CP.3 lenses to allow for quick swaps without moving follow-focus or lens motor accessories.
• Front Diameter: A consistent 95mm front diameter allows for the use of standard matte boxes and clamp-on rings without needing specialized adapters.
• Close Focus: The minimum object distance (MOD) is 0.83 meters (2 feet 8 inches) from the sensor plane, which is respectable for a cinema zoom of this range, allowing for tight medium-closeups.

The internal mechanics are designed to be "parfocal," meaning the focus remains locked on the subject even as the operator zooms from 80mm back to 28mm. This is a critical distinction from "varifocal" photography lenses, which lose focus during focal length changes.

Cinema-Specific Capabilities and Video Performance

In the context of high-end video production, the Carl Zeiss 28-80mm (MID ZOOM) T2.9 addresses the two biggest issues found in still-photography zooms: focus breathing and image shift. Focus breathing—the slight change in focal length when adjusting focus—is suppressed to near-zero levels in this lens. When racking focus from a foreground subject to a background subject, the frame edges do not "wobble" or expand, maintaining the integrity of the composition. Similarly, the lens is engineered to eliminate image shift during zooming. In many photography lenses, the center of the image may drift slightly as you zoom in or out; the CZ.2 mechanics ensure the optical center remains perfectly stationary.

The T2.9 aperture is a "true" light transmission rating, unlike the f-stops used in photography which only measure the physical geometry of the lens. A T2.9 rating ensures that the light hitting the sensor is consistent regardless of the focal length, which is vital for maintaining exposure during a zoom shot. The lens is also designed with a "floating elements" mechanism that maintains high image quality even at the minimum focus distance, a feature often omitted in cheaper zooms. This makes it a reliable tool for 8K acquisition, as it provides enough resolving power to utilize every pixel on high-resolution sensors without the "softness" that can plague older cinema glass.

On the Shoot: Practical Applications in India

In a Mumbai studio session for a high-end fashion commercial, the 28-80mm excels due to its color consistency. When shooting a model's garments, the neutral Zeiss color science ensures that the fabric colors are captured accurately, reducing the time spent in the grading suite. The ability to quickly zoom from a full-body shot at 28mm to a tight detail shot of jewelry or accessories at 80mm without changing lenses or re-balancing a tripod head saves hours over a production day. The 95mm front diameter also makes it easy to swap out specialized filters, such as Pro-Mist or Polarizers, which are frequently used in commercial beauty work.

During a Bengaluru wedding reception held in a large, dimly lit palace hall, the T2.9 aperture provides enough light gathering for modern high-ISO sensors while the 28-80mm range covers the entire event. The 28mm end is wide enough to capture the scale of the decor and the stage, while the 80mm end allows the cinematographer to capture candid emotional moments from a distance without intruding on the guests. The parfocal design is particularly useful here; a videographer can zoom in to check focus on the couple's eyes and then zoom out to frame the wider scene, knowing the focus will remain sharp.

For a Goa travel documentary or a high-end tourism film, the lens's robust build is a significant asset. The humidity and salt air of coastal environments require equipment with tight tolerances. The CZ.2's mechanical precision ensures that the focus and zoom rings remain smooth even in challenging outdoor conditions. On a run-and-gun shoot where the crew might be moving from a beach to a forest, having a single lens that covers the most essential focal lengths reduces the risk of getting dust or moisture on the sensor during lens changes. The 300-degree focus throw allows for smooth, cinematic focus pulls as a subject moves through the frame, providing a professional "film look" that is difficult to achieve with the short throws of autofocus lenses.

Compatibility and Pairing

The Carl Zeiss 28-80mm (MID ZOOM) T2.9 is designed to be part of a three-lens zoom set. It is most effectively paired with its siblings: the 15-30mm T2.9 for wide-angle requirements and the 70-200mm T2.9 for telephoto needs. Because all three lenses share the same T-stop, color characteristics, and gear positions, they form a comprehensive kit that can handle almost any production. In terms of camera bodies, it is a perfect match for the Sony FX9 or Venice, the RED V-Raptor, and the ARRI Alexa Mini LF. When using the EF mount version, it is fully compatible with the Canon C300 Mark III or C500 Mark II.

Essential accessories for this lens include a sturdy 15mm or 19mm rail support system, as the 2.5kg weight can put significant stress on a camera's lens mount if not properly supported. A follow-focus system (manual or wireless like the Tilta Nucleus-M) is highly recommended to take advantage of the 300-degree focus rotation. For power and media, the lens itself is purely manual and does not require battery power, but the cameras it is typically paired with will require V-mount or Gold-mount batteries to sustain long shooting days. Since it is a 4K+ capable lens, high-speed media like CFexpress Type B or Codex drives are recommended to capture the level of detail the glass provides.

Limitations and Alternative Choices

While the Carl Zeiss 28-80mm (MID ZOOM) T2.9 is a versatile tool, it is not the right choice for every scenario. Its primary limitation is its weight and size. At 2.5kg, it is significantly heavier than a set of Zeiss CP.3 primes. For long-duration handheld shooting or for use on smaller, consumer-grade gimbals (like the DJI RS3 Pro), the weight can become a factor that leads to operator fatigue or balance issues. In these cases, a set of lightweight primes might be more appropriate. Additionally, while T2.9 is fast for a zoom, it cannot compete with the T1.3 or T1.5 apertures of dedicated prime lenses. If a shoot requires extremely shallow depth of field or is taking place in an ultra-low-light environment without a lighting budget, the Zeiss Super Speeds or Master Primes would be better suited.

Another consideration is the minimum focus distance of 0.83m. While sufficient for most narrative work, it is not a macro lens. For extreme close-ups of small objects like watches or insects, a dedicated macro prime or the use of diopters would be necessary. Finally, the "Zeiss Look" is characterized by its clinical perfection and high contrast. If a project requires a "vintage" aesthetic with heavy flaring, lower contrast, and softer edges, cinematographers might prefer older glass like the Cookes or the Angenieux zooms, which offer a more "poetic" or "warm" rendition of the image. The CZ.2 is a lens for those who prioritize technical perfection and modern high-resolution performance.
