RF 70-200mm f/2.8 L

The Engineering of the Canon RF 70-200mm f/2.8 L IS USM

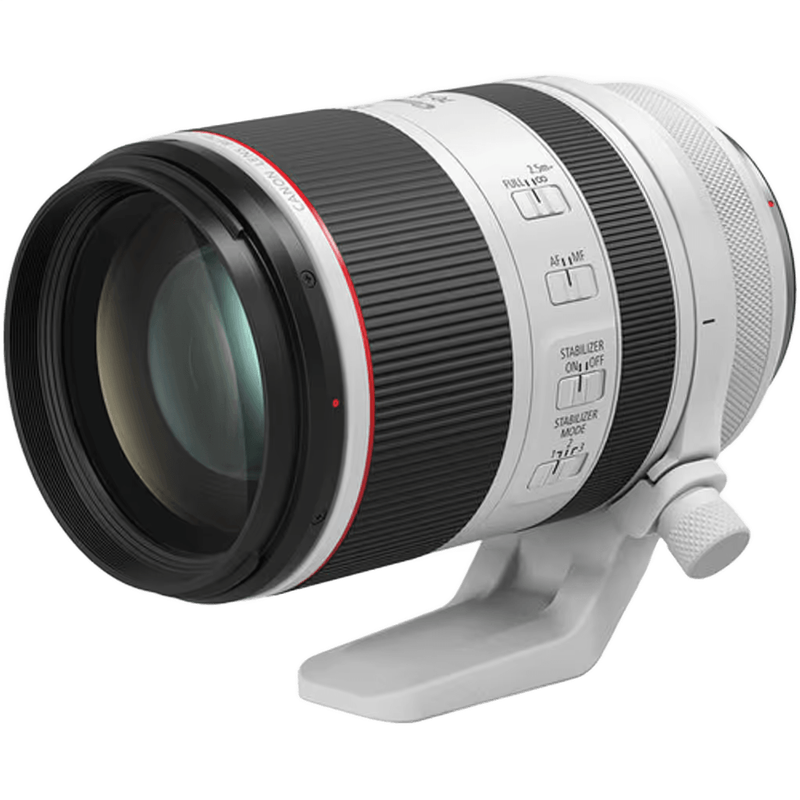

The Canon RF 70-200mm f/2.8 L IS USM is a fundamental departure from the internal-zoom architecture that defined professional telephoto lenses for decades. Built specifically for the RF mount's 20mm flange focal distance and 54mm internal diameter, this lens utilizes a telescoping design that allows it to retract to a length of just 146mm when not in use. This makes it approximately 27% shorter and 28% lighter than its EF-mount predecessor, the EF 70-200mm f/2.8L IS III USM. The optical formula consists of 17 elements arranged in 13 groups, a complex arrangement necessitated by the need to maintain edge-to-edge sharpness across the entire zoom range while significantly reducing the physical footprint. Within the Canon L-series ecosystem, this lens serves as the cornerstone of the "trinity" zoom set, providing the reach and aperture required for photojournalism, sports, and high-end portraiture. It is designed for professionals migrating to the EOS R system who require the f/2.8 light-gathering capability but prioritize a reduction in kit volume and weight without compromising on the mechanical durability expected of a red-ring lens.

Optical Technologies and Image Rendering

The image quality of the Canon RF 70-200mm f/2.8 L IS USM is driven by a combination of specialized glass elements and advanced coatings designed to minimize aberrations that typically plague high-speed telephoto zooms. It incorporates one Super UD (Ultra-low Dispersion) element and one UD element to significantly reduce secondary chromatic aberration, ensuring that color fringing is virtually non-existent even at the 200mm focal length when shooting wide open at f/2.8. To combat flare and ghosting, Canon has applied Air Sphere Coating (ASC), which uses a layer of air-filled spheres to create a low-refractive index, particularly effective when light enters the lens at a vertical angle. This is critical for maintaining contrast when shooting into backlighting or stage lights. The lens also features two aspherical elements to correct spherical aberration and distortion, resulting in high resolution from the center to the periphery of the frame. The 9-blade circular aperture diaphragm produces a smooth, rounded bokeh, which is essential for isolating subjects in busy environments. Furthermore, the front and rear elements are treated with a fluorine coating to repel water, oil, and fingerprints, facilitating easier cleaning in the field.

Autofocus Performance and Mechanical Handling

Handling on a professional shoot is defined by the lens's Dual Nano USM (Ultrasonic Motor) system. This is the first time Canon has utilized two Nano USM motors to drive different lens groups independently. One motor controls the focusing group, while the other manages the floating lens group, which adjusts the distance between elements to maintain image quality at close range. This electronic floating focus control allows the lens to achieve a minimum focusing distance of just 0.7 meters (2.3 feet) with a maximum magnification of 0.23x at the 200mm end—a significant improvement over previous generations. In practice, this means the autofocus is nearly silent and exceptionally fast, capable of tracking high-speed subjects with the precision required by high-resolution sensors like those in the EOS R5. The lens barrel features a dedicated Control Ring, which can be programmed to adjust ISO, aperture, shutter speed, or exposure compensation, providing tactile feedback through a clicking mechanism. The white heat-shielding paint on the exterior is not merely aesthetic; it is formulated to prevent the lens from overheating during prolonged use under direct sunlight, ensuring the internal optical alignment remains stable despite thermal expansion.

Video Capabilities and Motion Constraints

For cinematographers, the Canon RF 70-200mm f/2.8 L IS USM offers several advantages and a few notable limitations. The Dual Nano USM motors provide smooth, rack-focus transitions that are free from the "hunting" or jitter often seen in older ring-type USM lenses. Focus breathing is remarkably well-controlled for a lens of this class, though it is not entirely eliminated; there is a slight shift in magnification when racking from the minimum focus distance to infinity. The lens features a 5-stop Optical Image Stabilizer (IS) with three distinct modes: Mode 1 for stationary subjects, Mode 2 for panning, and Mode 3, which only activates the stabilizer during the actual exposure to conserve battery and provide a more natural viewfinder experience. When paired with a camera body featuring In-Body Image Stabilization (IBIS), the combined system can provide up to 8 stops of shake correction, which is transformative for handheld 4K or 8K video capture. However, the telescoping nature of the zoom means that the physical length of the lens changes as you focal-length shift. This makes it difficult to use with a matte box or a follow-focus system that relies on fixed gear positions, as the center of gravity shifts forward when zooming toward 200mm.

Performance in Indian Professional Scenarios

In a Bengaluru wedding reception, often characterized by low-ambient light and high-intensity LED stage lighting, the f/2.8 aperture and ASC coating become indispensable. The lens allows the photographer to maintain a fast enough shutter speed to freeze movement without pushing ISO to levels that degrade the image. The 70-200mm range is ideal for capturing candid emotions from the back of a large hall, while the 0.7m minimum focus distance allows for tight detail shots of jewelry or floral arrangements without needing to switch to a macro lens. On a Goa travel shoot, the compact retracted size is the primary advantage. It fits into a standard shoulder bag or a small hiking pack, making it feasible to carry during a trek to Chapora Fort or while navigating crowded markets. The weather sealing protects the internal electronics from the high humidity and salt spray of coastal environments. In a Mumbai-based fashion studio, the lens is frequently used for its compression characteristics. At 200mm, it flattens features in a way that is traditionally flattering for portraiture. The electronic floating focus ensures that even when shooting at the minimum distance for a tight headshot, the sharpness at the edges of the eyes remains tack-sharp, even at f/2.8.

Compatibility and System Integration

The Canon RF 70-200mm f/2.8 L IS USM is designed exclusively for the RF mount and cannot be used on EF-mount DSLR bodies. It is fully compatible with the entire EOS R series, including the R3, R5, R6 Mark II, and the APS-C R7 (where it provides an equivalent focal range of 112-320mm). The lens uses a 77mm front filter thread, which is a standard size shared with the RF 24-70mm f/2.8 L IS USM, allowing for the sharing of circular polarizers and ND filters. It comes with a removable, rotating tripod collar that features a locking knob and a standard 1/4"-20 mount. A critical compatibility note is that this lens is NOT compatible with the RF 1.4x or RF 2.0x Extenders. Because the rear element of the lens sits very close to the mount when retracted, there is no physical space for the protruding glass of a teleconverter. This is a significant departure from the EF version and a trade-off for the compact, telescoping design. The lens communicates with the camera via a 12-pin electronic contact system, which enables real-time Digital Lens Optimizer (DLO) data to be sent to the camera for in-camera correction of peripheral illumination and diffraction.

Limitations and Alternative Considerations

While the Canon RF 70-200mm f/2.8 L IS USM is a pinnacle of modern lens design, it is not the correct choice for every user. The most significant limitation is the aforementioned lack of teleconverter support. Photographers who frequently need to reach 400mm by adding a 2x extender will find this lens unsuitable and should instead consider the RF 100-500mm f/4.5-7.1 L IS USM or continue using the EF 70-200mm f/2.8L IS III USM with an EF-to-RF adapter. Additionally, the telescoping barrel, while great for portability, is a potential point of entry for dust and moisture over years of heavy use, despite the extensive weather sealing. For videographers working on a gimbal, the shifting weight distribution during zooming can throw off the balance of the setup; in these cases, an internal-zoom lens like the EF version or a dedicated cinema prime might be more appropriate. Finally, for those who do not strictly require the f/2.8 aperture for low light or shallow depth of field, the RF 70-200mm f/4 L IS USM offers an even smaller form factor and lighter weight at a lower price point, while maintaining the same L-series build quality and sharpness.
