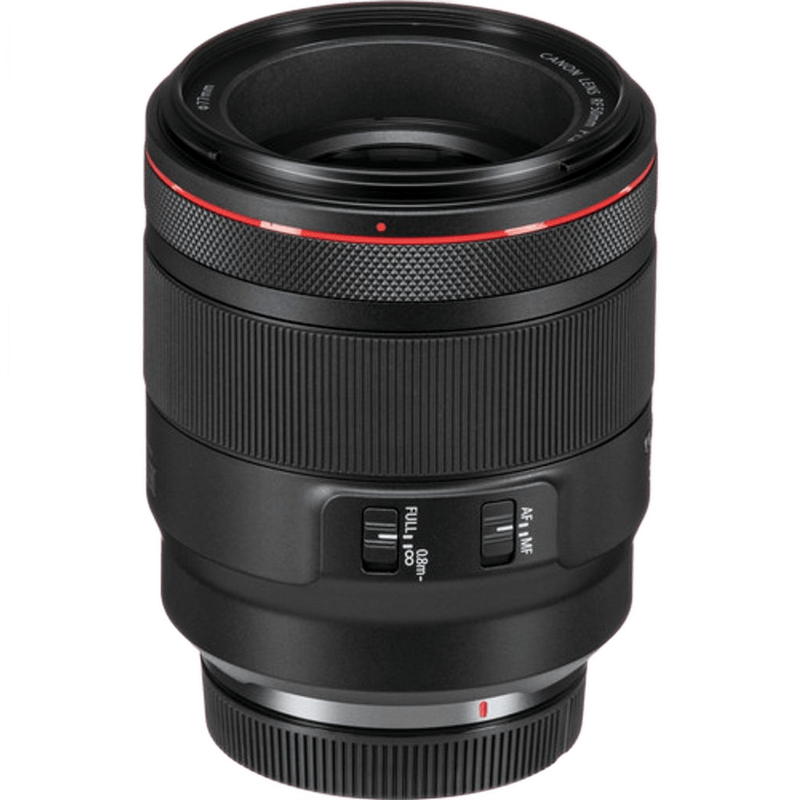

The Optical Architecture of the Canon RF 50mm f1.2L USM

The Canon RF 50mm f1.2L USM represents a fundamental shift in optical design made possible by the RF mount’s 54mm internal diameter and short 20mm flange focal distance. Unlike its EF predecessor, which was constrained by the physical dimensions of the DSLR mirror box, this lens utilizes a 15-element-in-9-groups formula that places large-diameter elements closer to the sensor plane. This configuration significantly reduces light fall-off at the corners and minimizes the need for heavy digital correction of vignetting. As a member of the L-series flagship line, it is engineered for professional use where maximum aperture and edge-to-edge sharpness are the primary requirements. The lens features a 10-blade circular diaphragm, which maintains a rounded aperture shape even when stopped down to f/2.8 or f/4, ensuring that out-of-focus highlights remain consistent across the frame.

The lens is designed for high-resolution full-frame sensors, capable of resolving detail that exceeds the requirements of 45-megapixel and 60-megapixel sensors. It sits at the top of the 50mm prime hierarchy for the EOS R system, positioned well above the RF 50mm f/1.8 STM in terms of both light-gathering capability and optical complexity. The inclusion of the 12-pin communication system allows for high-speed data transfer between the lens and the camera body, enabling real-time peripheral illumination correction and chromatic aberration correction data to be processed in-camera with minimal lag.

Advanced Coating and Element Technologies

The image quality of the Canon RF 50mm f1.2L USM is defined by its specialized glass elements. It incorporates one UD (Ultra-low Dispersion) element and two aspherical elements—one of which is a ground aspherical element and the other a glass-molded (GMo) aspherical element. These components work in tandem to correct spherical aberrations and minimize sagittal halo flare, which is the tendency for point light sources at the edge of the frame to appear smeared or "winged." This makes the lens particularly effective for astrophotography or night cityscapes where point lights are prevalent.

To combat internal reflections and ghosting, Canon has applied Air Sphere Coating (ASC). This technology uses a layer of sub-wavelength-sized air spheres over the traditional multi-layer coatings. This significantly reduces the refractive index of the coating, particularly for light entering at steep angles, which is common in a lens with such a large front element. Furthermore, the front and rear-most elements feature a fluorine coating. This is a non-stick surface that resists oil, water, and fingerprints, allowing for easier cleaning without scratching the glass surfaces. The result is a lens that maintains high contrast and color fidelity even when shooting directly into harsh backlighting or stage lights.

Autofocus Performance and Physical Handling

Focusing is driven by a ring-type Ultrasonic Motor (USM). Unlike the smaller Nano USM motors found in lighter lenses, the ring-type USM provides the high torque necessary to move the heavy, large-diameter glass groups required for an f/1.2 aperture. The autofocus is internal, meaning the overall length of the lens does not change during focusing, and the 77mm filter thread does not rotate. This is critical for users employing circular polarizers or variable ND filters. The minimum focusing distance is 0.40 meters (approximately 1.31 feet), providing a maximum magnification of 0.19x, which allows for tight headshots and detailed close-up work.

A defining feature of the handling is the customizable Control Ring located at the front of the lens barrel. This ring can be programmed to adjust shutter speed, aperture, ISO, or exposure compensation, providing a tactile interface that operates independently of the camera’s main dials. The ring features a clicking mechanism that provides physical feedback, though this can be "de-clicked" by a Canon service center for silent operation. The lens is physically substantial, weighing approximately 950 grams and measuring 89.8mm in diameter by 108mm in length. It features full weather sealing at the mount, rings, and switches, protecting the internal electronics from dust and moisture ingress during outdoor use.

Video Capabilities and Limitations

For cinematographers, the Canon RF 50mm f1.2L USM offers a specific set of advantages and challenges. The f/1.2 aperture allows for an extremely shallow depth of field, enabling subject isolation that is difficult to achieve with slower primes or zooms. When paired with EOS R-series bodies, the lens supports 1/8th stop aperture increments, allowing for much smoother exposure transitions during filming than the standard 1/3rd stop increments used in photography. The ring-type USM is quiet, though not entirely silent; in very quiet environments, an external microphone is recommended to avoid picking up the slight mechanical hum of the focus motor.

One honest limitation for video is focus breathing. Because of the large movement of heavy glass elements, there is a visible change in the effective focal length when racking focus from the minimum distance to infinity. While modern EOS R bodies with Focus Breathing Compensation can mitigate this digitally, it results in a slight crop of the field of view. The lens does not feature optical image stabilization (IS), relying instead on the In-Body Image Stabilization (IBIS) of cameras like the EOS R5 or R6. When used on a stabilized body, the lens can achieve up to 8 stops of coordinated IS, making handheld cinematic shots significantly more stable.

Performance in Professional Indian Shoot Scenarios

In a Bengaluru wedding reception held in a dimly lit heritage hall, the f/1.2 aperture becomes a functional necessity rather than a creative choice. The ability to shoot at f/1.2 allows the photographer to maintain a shutter speed of 1/200s to freeze movement while keeping the ISO at manageable levels (such as ISO 1600 instead of ISO 6400). The 10-blade diaphragm ensures that the "fairy lights" often used in Indian decor appear as perfectly circular orbs of light, rather than polygonal shapes, creating a clean, professional background blur that separates the couple from the guests.

During a high-end fashion shoot in a Mumbai studio, the lens excels at resolving the fine textures of embroidered textiles and jewelry. When used on a 45MP sensor, the sharpness at the center of the frame is high even at f/1.2, allowing for tight crops. The Eye-Detection AF of the R-series bodies works seamlessly with this lens, maintaining a lock on the model's iris even when the depth of field is only a few millimeters thick. The color rendering is neutral, which simplifies the post-production process when matching skin tones across different lighting setups.

For a lifestyle or travel shoot in the humid, bright conditions of Goa, the weather sealing and fluorine coating are vital. The lens can withstand the salt spray and high humidity of coastal environments without internal fogging, provided the camera body is also sealed. The ASC coating proves its worth here, as it prevents the "veiling glare" that often occurs when shooting portraits during the golden hour with the sun low in the frame. The weight of the lens, however, means that a sturdy neck strap or a gimbal with a high payload capacity (like a DJI RS3 or RS4) is necessary for extended shooting sessions.

Compatibility and Recommended Pairings

The Canon RF 50mm f1.2L USM is natively compatible with all Canon EOS R-series mirrorless cameras, including full-frame models like the R3, R5, R6 Mark II, and R8, as well as APS-C models like the R7 and R10 (where it provides an equivalent focal length of 80mm). It cannot be used on Canon EF-mount DSLRs or EOS M-series cameras. For optimal performance, it should be paired with high-speed UHS-II SD cards or CFexpress Type B cards, especially when shooting wide open at high burst rates, to ensure the camera can write the large files generated by the lens's high resolving power.

In terms of accessories, the lens uses a 77mm filter thread, making it compatible with standard professional filter kits. It is highly recommended to use the included ET-83B (WIII) lens hood to protect the large front element and further reduce flare. For video work, a high-quality Variable ND filter (2-6 stops) is essential if you intend to shoot at f/1.2 in daylight conditions, as even a 1/8000s shutter speed may not be fast enough to prevent overexposure at base ISO. The lens uses the standard LP-E6NH battery series found in most pro-sumer R-series bodies; while the USM motor is powerful, it does not significantly drain the battery faster than other L-series primes.

Limitations and Alternative Choices

While the Canon RF 50mm f1.2L USM is a benchmark for optical performance, it is not the ideal choice for every photographer. The most significant limitation is its physical weight and size. At nearly a kilogram, it can become fatiguing during a 12-hour wedding day or a long trek. Photographers who prioritize portability or who shoot primarily at f/5.6 or f/8 for landscapes may find the RF 50mm f/1.8 STM or a high-quality zoom like the RF 24-70mm f/2.8L IS USM more practical, as the f/1.2 lens's primary advantages are lost at narrower apertures.

Furthermore, the focus breathing mentioned previously may be a deal-breaker for narrative filmmakers who require precise, invisible focus pulls. In such cases, dedicated cinema primes or the RF 50mm f/1.4 VCM (if a hybrid focus system is preferred) might be more suitable. Finally, the cost and size of 77mm filters are higher than the 43mm or 52mm filters used on smaller primes. If your work does not strictly require the specific look of f/1.2 or the extreme low-light performance it provides, the weight-to-performance ratio of the f/1.8 version may be more efficient for general-purpose photography.
