RF 24-105mm f/4 L

The Foundation of the RF Mount System

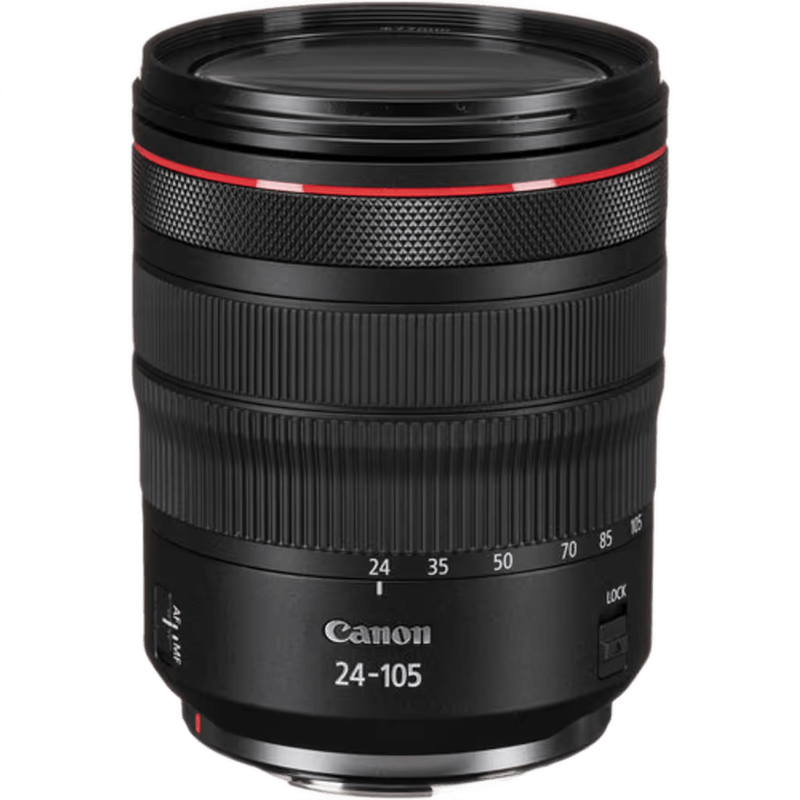

The Canon RF 24-105mm f/4 L IS USM serves as the versatile cornerstone of the EOS R mirrorless ecosystem. As an L-series optic, it is engineered for professional-grade durability and optical performance, bridging the gap between wide-angle landscapes and short-telephoto portraiture. The lens is constructed with 18 elements arranged in 14 groups, a complex optical formula designed specifically to take advantage of the short flange back distance and large 54mm diameter of the RF mount. This design allows for larger rear elements that sit closer to the sensor, reducing light refraction and improving corner-to-corner sharpness compared to its EF-mount predecessors. It is intended for photographers and cinematographers who require a single-lens solution that maintains a constant f/4 maximum aperture throughout the entire 4.3x zoom range, ensuring consistent exposure settings as the focal length changes.

Optical Precision and Light Management

Image quality in the Canon RF 24-105mm f/4 L IS USM is defined by its specialized glass elements and advanced coating technologies. The lens incorporates three aspherical elements—including glass-molded and plastic-molded varieties—to combat spherical aberration and distortion, which are common challenges in wide-to-telephoto zooms. Additionally, a single UD (Ultra-low Dispersion) element is utilized to significantly reduce chromatic aberration and color fringing, resulting in high-contrast images with accurate color rendering. To manage internal reflections and ghosting, Canon has applied Air Sphere Coating (ASC). This technology uses a layer of air-containing spheres over the lens elements to significantly reduce flare when shooting directly into light sources. The 9-blade circular aperture diaphragm produces smooth, rounded out-of-focus highlights, which is particularly noticeable when shooting at the 105mm focal length at f/4. For protection in harsh environments, the front and rear elements feature a fluorine coating that repels water, oil, and fingerprints, making it easier to clean without damaging the glass surface.

Nano USM Technology and Mechanical Handling

The autofocus system of the Canon RF 24-105mm f/4 L IS USM utilizes a Nano USM (Ultrasonic Motor) system. This technology combines the high-speed capabilities of a traditional Ring USM with the quiet, smooth characteristics of a Lead-screw type STM (Stepping Motor). In practice, this means the lens can snap to focus instantly for high-speed stills while providing nearly silent, fluid focus transitions during video recording. The lens features a minimum focusing distance of 0.45 meters (approximately 1.48 feet) across the entire zoom range, providing a maximum magnification of 0.24x at the 105mm end. A standout physical feature is the customizable Control Ring located at the front of the lens barrel. This ring can be programmed to adjust aperture, shutter speed, ISO, or exposure compensation directly from the lens, providing tactile feedback with a clicking mechanism. The lens also includes a built-in Optical Image Stabilizer (OIS) rated for 5 stops of shake correction according to CIPA standards. When mounted on EOS R-series bodies equipped with In-Body Image Stabilization (IBIS), such as the EOS R5 or R6 Mark II, this stabilization can reach up to 8 stops of coordinated control, allowing for handheld shutter speeds that would otherwise require a tripod.

Cinematic Utility and Video Performance

For video applications, the Canon RF 24-105mm f/4 L IS USM offers several advantages over variable-aperture zooms. The constant f/4 aperture allows videographers to zoom from 24mm to 105mm without the exposure shifting, which is critical for maintaining a consistent look during a take. The Nano USM motor is particularly effective here, as it supports Dual Pixel CMOS AF with high precision and minimal hunting. Focus breathing—the slight change in focal length when shifting focus—is well-controlled, making it suitable for focus pulls between foreground and background subjects. The lens is also compatible with the electronic distortion correction and peripheral illumination correction features found in EOS R cameras, ensuring that 4K and 8K footage remains clean and rectilinear even at the 24mm wide-angle setting. The 77mm filter thread is a standard size, allowing for the easy application of variable ND filters or circular polarizers, which are essential for maintaining 180-degree shutter angles in bright outdoor conditions.

On the Shoot: Real-World Scenarios in India

In a Bengaluru wedding environment, this lens excels during the daytime Muhurtham ceremonies. The 24mm wide end is sufficient to capture the scale of the decorated mandap and the gathered family, while the quick zoom to 105mm allows the photographer to capture intimate candid expressions of the couple from a distance without intruding on the ritual space. The 5-stop image stabilization is vital here, as indoor lighting in traditional halls can often be unpredictable, allowing for sharp shots at shutter speeds as low as 1/15th of a second. In a Goa travel shoot scenario, the weather-sealed construction of the L-series lens becomes a primary asset. The dust and moisture resistance protect the internal optics from the humidity of the coast and the sand of the beaches. The versatility of the focal range means a travel photographer can switch from a wide landscape of the Chapora Fort to a compressed portrait of a local artisan without changing lenses, reducing the risk of exposing the camera sensor to the elements. In a Mumbai-based studio product session, the lens provides the necessary sharpness for commercial work. When stopped down to f/8 or f/11, the lens reaches its peak resolving power, capturing fine textures in fabrics or jewelry. The 105mm focal length provides a flattering compression that prevents the "nose-heavy" distortion often seen in product photography when using wider lenses.

Compatibility and System Integration

The Canon RF 24-105mm f/4 L IS USM is designed exclusively for the RF mount and cannot be used on Canon EF or EF-S DSLR bodies. It is fully compatible with all EOS R-series cameras, from the entry-level EOS R100 (where it provides an equivalent focal length of approximately 38-168mm due to the 1.6x crop factor) to the professional EOS R3. It uses standard 77mm screw-in filters. For power, it draws from the camera's LP-E6N, LP-E6NH, or LP-E17 batteries, with the Nano USM motor being highly energy-efficient. In a professional kit, this lens is frequently paired with the RF 70-200mm f/2.8L IS USM to extend the reach or the RF 15-35mm f/2.8L IS USM for ultra-wide architecture and interior work. It is also compatible with the Canon EW-83N lens hood, which is designed to block stray light and protect the front element from impact.

Limitations and Alternative Choices

While the Canon RF 24-105mm f/4 L IS USM is a highly capable general-purpose lens, it has specific limitations that may lead a professional to choose a different optic. The f/4 maximum aperture, while constant, does not provide the same low-light performance or shallow depth-of-field as an f/2.8 lens. Photographers specializing in high-end indoor events or night-time sports may find the f/4 limit necessitates higher ISO settings, leading to more noise in the final image. In such cases, the RF 24-70mm f/2.8L IS USM is the superior choice, offering a full stop more light at the cost of the 70-105mm reach. For those seeking the absolute maximum in background separation and bokeh quality, prime lenses like the RF 50mm f/1.2L or RF 85mm f/1.2L are more appropriate. Additionally, while the lens is relatively compact for its class, users prioritizing a lightweight setup for casual hiking might look toward the RF 24-105mm f/4-7.1 IS STM, which is significantly lighter and smaller, though it lacks the constant aperture, weather sealing, and superior glass of the L-series version. Finally, for extreme wide-angle requirements such as tight interior real estate photography, the 24mm starting point may feel restrictive, making the RF 14-35mm f/4L IS USM a more functional alternative.
