The Optical Foundation of the Canon RF 100mm f/2.8 L IS Macro

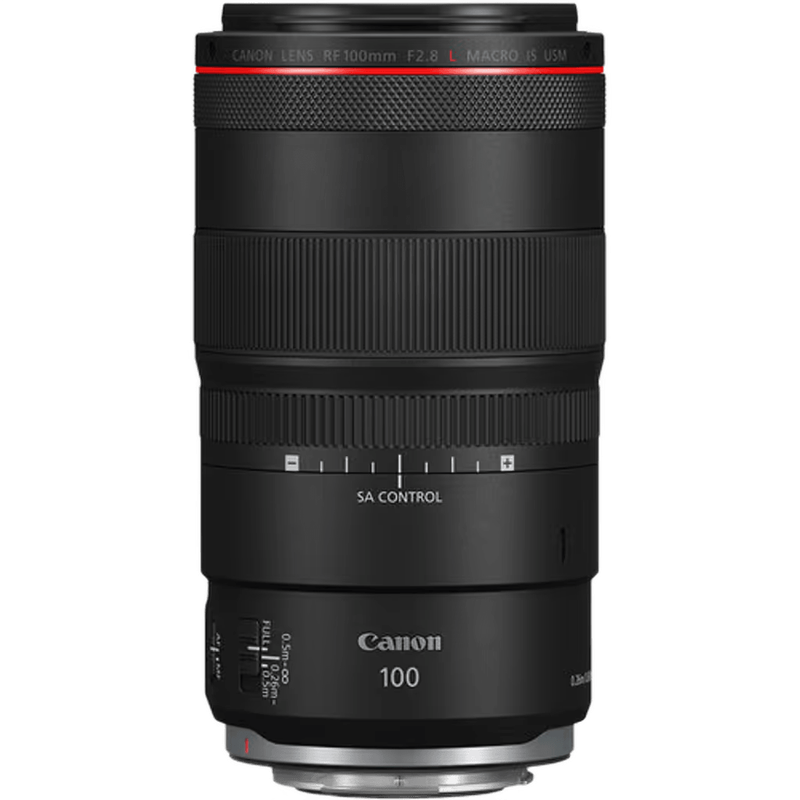

The Canon RF 100mm f/2.8 L IS Macro represents a significant evolution in the 100mm focal length, a staple for both portraiture and close-up photography. While its EF predecessor established the 1:1 magnification standard, this RF-mount iteration increases that capability to a 1.4x maximum magnification. This means an object measuring 24mm in reality will occupy approximately 33.6mm of the camera’s sensor, allowing for detail capture that exceeds life-size reproduction without the need for extension tubes. The optical formula consists of 17 elements arranged in 13 groups, a complex arrangement necessitated by the inclusion of a Spherical Aberration (SA) control ring and the dual-motor focusing system. As an L-series lens, it is positioned at the top of the manufacturer’s professional line, featuring a dust- and water-resistant construction designed for rigorous field use. It is engineered specifically for the EOS R-series full-frame mirrorless system, utilizing the short flange back and large diameter of the RF mount to maintain edge-to-edge sharpness even at its widest f/2.8 aperture.

Advanced Image Quality and the SA Control Ring

The defining characteristic of the Canon RF 100mm f/2.8 L IS Macro is its ability to manipulate the character of out-of-focus areas through the Spherical Aberration (SA) control ring. Unlike traditional lenses where spherical aberration is a defect to be corrected, this lens allows the user to intentionally introduce it. By rotating the SA control ring, the user can shift the look of the bokeh from a "hard" edge (resembling a soap-bubble effect) to a "soft" edge (a dreamy, diffused glow). This adjustment also impacts the sharpness of the in-focus area, providing a soft-focus effect that is highly valued in vintage-style portraiture. When the ring is set to the central "0" position, the lens operates as a high-resolution, modern prime with minimal aberrations. The lens utilizes Super Spectra Coating to suppress ghosting and flare, which is particularly critical when shooting in backlit macro environments. The 9-blade circular aperture diaphragm ensures that point light sources in the background remain rounded and pleasing even when the lens is stopped down to f/5.6 or f/8. At the minimum focusing distance of 0.26m, the lens maintains high contrast, a feat achieved through the use of floating lens elements that adjust their relative positions as the focus distance changes.

Autofocus Precision and Handling Dynamics

Focusing at 1.4x magnification requires extreme precision, as the depth of field at f/2.8 can be measured in fractions of a millimeter. To manage this, the lens employs a Dual Nano USM (Ultrasonic Motor) system. Two independent Nano USM motors drive different lens groups, allowing for high-speed, silent, and smooth autofocus. This dual-motor setup is essential for the lens to achieve its 1.4x magnification while maintaining a relatively compact form factor. The lens features a focus limiter switch with three settings: Full, 0.26m to 0.5m (for dedicated macro work), and 0.5m to infinity (for portraiture and general use). This prevents the lens from "hunting" through its entire focal range when the subject is known to be within a specific distance. The physical build includes a dedicated Control Ring, a hallmark of the RF series, which can be programmed to adjust ISO, shutter speed, or exposure compensation. The lens weighs approximately 730g and has a 67mm filter thread. It also features a Hybrid Image Stabilizer (IS) system. While standard IS compensates for angular camera shake, Hybrid IS also compensates for shift-type camera shake, which becomes significantly more pronounced during close-up photography. This system provides up to 5 stops of optical stabilization, which increases to 8 stops of Coordinated IS when paired with EOS R-series bodies featuring In-Body Image Stabilization (IBIS).

Video Performance and Cinematic Applications

For cinematographers, the Canon RF 100mm f/2.8 L IS Macro offers a unique set of tools for detail-oriented storytelling. The Nano USM motors provide the smooth, rack-focus transitions required for professional video, avoiding the jerky movements often associated with older macro lenses. However, users should note that the lens exhibits noticeable focus breathing when racking from the minimum focus distance to infinity, though this is partially mitigated by the "Focus Breathing Compensation" feature found in newer EOS R-series camera firmware. The SA control ring is a powerful creative tool for video, allowing for real-time adjustment of the "dreaminess" of a scene without changing filters. In a 4K or 8K workflow, the lens’s ability to resolve fine textures makes it ideal for "B-roll" shots of intricate objects. The Hybrid IS is particularly effective for handheld video work, smoothing out the micro-jitters that are typically magnified at a 100mm focal length. The lens does not have a manual aperture ring, so all iris adjustments are handled via the camera body or the programmable control ring, ensuring silent exposure changes during recording.

On the Shoot: Practical Indian Scenarios

In a Mumbai-based commercial studio session focusing on high-end jewelry, the 1.4x magnification is a decisive advantage. When photographing a diamond-encrusted watch, the lens allows the photographer to fill the frame with the watch face or even individual links of the strap, capturing the microscopic hallmarks and the precision of the setting that a standard 1:1 macro lens would miss. The 0.26m minimum focus distance allows for comfortable lighting setups without the lens barrel casting shadows on the subject.

During a wedding reception in Bengaluru, the lens transitions from a macro tool to a premier portrait lens. The 100mm focal length provides a flattering compression for bridal portraits, while the f/2.8 aperture creates a distinct separation from the often-cluttered backgrounds of a banquet hall. The SA control ring can be dialed toward the "minus" side to soften skin textures naturally, reducing the need for heavy post-processing. When it comes time for the "ring shot," the photographer can switch the focus limiter to the macro range and capture the intricate details of the jewelry and the texture of the silk saree in the background.

On a travel assignment in the humid environment of the Goa monsoon, the weather sealing of the L-series construction becomes vital. While capturing the macro details of tropical flora or insects, the lens’s internal seals protect against moisture and dust. The Hybrid IS allows the photographer to capture sharp images of forest-floor subjects at slower shutter speeds without a tripod, which is often necessary when navigating dense foliage where tripod placement is impractical.

Compatibility and Essential Pairings

The Canon RF 100mm f/2.8 L IS Macro is designed exclusively for the RF mount. It is fully compatible with the EOS R3, R5, R6 Mark II, R8, and the APS-C R7 and R10 (where it provides an effective focal length of 160mm). It is important to note that this lens is not compatible with Canon’s RF 1.4x or 2x extenders due to the rear lens element's position, which sits close to the mount to optimize optical performance. For stability in a studio environment, the lens is compatible with the optional Tripod Mount Ring E (with adapter), which allows for quick switching between horizontal and vertical orientations without adjusting the tripod head. It uses the E-67 II lens cap and the ET-73C lens hood, the latter of which is essential for preventing stray light from hitting the front element during high-magnification work. For power, it relies on the camera’s LP-E6NH or LP-E17 batteries; while the dual Nano USM motors are efficient, constant use of the IS and AF in macro mode will increase battery consumption compared to a standard prime lens.

Limitations and Alternative Considerations

While the Canon RF 100mm f/2.8 L IS Macro is a versatile professional tool, it has specific limitations that may lead a user to choose a different lens. The most significant trade-off for the 1.4x magnification and SA control is the lens's physical length and weight; at 148mm long, it is considerably larger than the RF 85mm f/2 Macro IS STM. If a photographer requires a more compact, lightweight lens for casual travel or street photography, the 85mm f/2 is a more portable alternative, though it only offers 0.5x magnification. Additionally, the SA control ring causes a slight shift in focal length and exposure when adjusted, meaning it is not a "set and forget" feature for those who need absolute consistency in framing while experimenting with bokeh. For cinematographers who require zero focus breathing, a dedicated cine-prime or a lens with less aggressive magnification capabilities might be preferable. Finally, those who already own the EF 100mm f/2.8L IS Macro and use it with an EF-to-RF adapter will find that the EF version is still optically excellent; the upgrade to the RF version is primarily justified by the 1.4x magnification, the SA control ring, and the superior stabilization of the Coordinated IS system.
