RF 100-500mm f/4.5-7

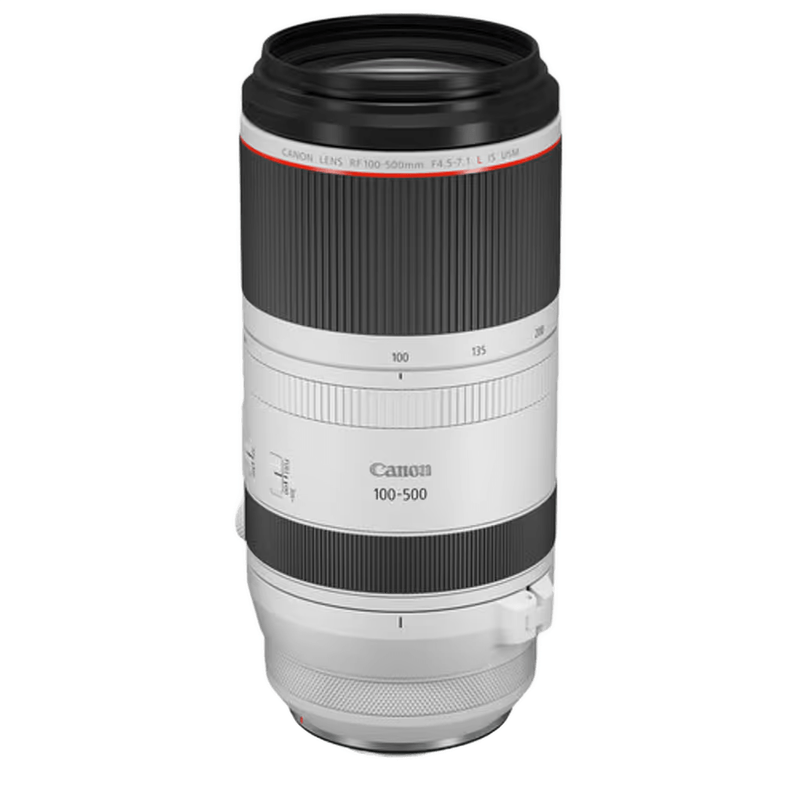

The Optical Foundation of the Canon RF 100-500mm f/4.5-7.1 L IS USM

The Canon RF 100-500mm f/4.5-7.1 L IS USM serves as the cornerstone super-telephoto zoom for the RF mount system, effectively succeeding the legacy of the EF 100-400mm L-series lenses. This lens is built upon an intricate optical formula consisting of 20 elements arranged in 14 groups. To manage the inherent challenges of a 5x zoom range, Canon has integrated one Super UD (Ultra-low Dispersion) element and six UD elements. This specific configuration is designed to suppress chromatic aberrations and color fringing, which typically become more pronounced at longer focal lengths. By utilizing these specialized glass elements, the lens maintains high contrast and edge-to-edge sharpness throughout its focal range, even when shooting wide open at the variable maximum apertures of f/4.5 at 100mm and f/7.1 at 500mm.

Positioned within the professional L-series lineup, this lens is engineered for users who require a balance between extreme reach and portability. While it offers 100mm more reach than its EF predecessor, it weighs approximately 1365 grams (without the tripod collar), making it roughly 200 grams lighter than the EF 100-400mm f/4.5-5.6L IS II USM when factoring in the necessary EF-to-RF adapter. The lens utilizes a rotation-type zoom mechanism rather than a push-pull design, allowing for precise focal length adjustments. It also features a zoom torque adjustment ring, which permits the photographer to change the resistance of the zoom ring or lock it entirely to prevent "lens creep" when the camera is pointed downward or stored in a bag.

Advanced Coating Technologies and Image Rendering

The image quality of the Canon RF 100-500mm f/4.5-7.1 L IS USM is heavily influenced by the application of Air Sphere Coating (ASC). This technology uses a layer of air-containing spheres on the lens elements to significantly reduce backlit flaring and ghosting. This is particularly critical for outdoor sports and wildlife photography where the sun may be positioned at difficult angles relative to the front element. Furthermore, the front and rear elements are treated with a fluorine coating, which repels water, oil, and fingerprints, facilitating easier cleaning in the field without damaging the underlying optical surfaces.

The aperture system employs a 9-blade circular diaphragm. This design ensures that out-of-focus highlights (bokeh) remain rounded and smooth, even when the lens is stopped down. While the maximum aperture of f/7.1 at the 500mm end is narrower than some prime alternatives, the lens compensates with its resolving power, which is optimized for high-resolution sensors like the 45-megapixel CMOS found in the EOS R5. The transition from f/4.5 to f/7.1 occurs gradually: it stays at f/4.5 until approximately 150mm, moves to f/5.0 around 175mm, f/5.6 at 250mm, and reaches f/7.1 at the 472mm mark. This predictable aperture curve allows photographers to manage their exposure settings effectively during a shoot.

Dual Nano USM Autofocus and Stabilization Mechanics

Autofocus in the Canon RF 100-500mm f/4.5-7.1 L IS USM is driven by a Dual Nano USM system. This involves two independent ultrasonic motors that move different lens groups simultaneously. This "floating" focus control allows the lens to achieve a minimum focusing distance of just 0.9 meters at the 100mm end and 1.2 meters at the 500mm end, providing a maximum magnification of 0.33x. In practice, this dual-motor setup results in near-instantaneous focus acquisition and silent operation, which is essential for tracking fast-moving subjects like birds in flight or athletes on a field. The electronic focus ring provides smooth manual override, and the lens also includes a customizable Control Ring that can be programmed to adjust ISO, aperture, or exposure compensation.

The Optical Image Stabilizer (OIS) is a critical component for a lens with a 500mm reach. It provides up to 5 stops of shake correction on its own. When mounted on an EOS R series body equipped with In-Body Image Stabilization (IBIS), such as the R3, R5, or R6 Mark II, the coordinated IS system provides up to 6 stops of correction. The lens features three distinct IS modes: Mode 1 for stationary subjects, Mode 2 for panning shots (where stabilization is only applied perpendicular to the direction of movement), and Mode 3, which only activates stabilization during the actual exposure. Mode 3 is particularly useful for tracking erratic subjects, as the viewfinder image remains natural and does not "fight" the photographer's movements during framing.

Video Performance and Cinematic Utility

For video professionals, the Canon RF 100-500mm f/4.5-7.1 L IS USM offers specific advantages inherent to the RF mount's high-speed communication. The Dual Nano USM motors provide exceptionally smooth focus pulls with minimal hunting, which is vital when recording in 4K or 8K resolutions where focus errors are highly visible. The lens exhibits well-controlled focus breathing, meaning the angle of view does not shift significantly when changing focus from a near subject to a far one. This makes it a viable option for documentary filmmaking and wildlife cinematography where rack focusing is a common narrative tool.

The stabilization system is equally effective for video, allowing for stable handheld "B-roll" shots at the 100mm to 300mm range that would otherwise require a tripod. However, at the 500mm end, the narrow f/7.1 aperture means that internal ND filters or high ISO settings may be required when shooting in Log profiles (like C-Log3) to maintain the 180-degree shutter rule in bright daylight. The lens's weather-sealed construction, including gaskets at the mount, switches, and rings, ensures that it can continue operating in humid or dusty environments often encountered during outdoor productions.

On the Shoot: Real-World Indian Scenarios

In a wildlife photography scenario at Ranthambore National Park, the Canon RF 100-500mm f/4.5-7.1 L IS USM proves its versatility. The 100mm wide end allows for "animal in landscape" shots, capturing a tiger within the context of the dry deciduous forest and ancient ruins. As the animal moves further away or into thick brush, the 500mm reach provides the tight framing necessary for detailed portraits. The heat-shielding white paint on the lens barrel is particularly effective here, reflecting solar radiation to prevent the internal optical elements from expanding and degrading image sharpness during a four-hour afternoon safari in the Rajasthan sun.

During a sports shoot at the Wankhede Stadium in Mumbai, the lens's autofocus speed is the primary asset. Tracking a fast bowler from the boundary requires the Dual Nano USM to keep pace with rapid movement toward the camera. The Mode 2 IS setting allows for smooth panning shots of a batsman's follow-through, blurring the background while keeping the subject sharp. The 77mm filter thread allows for the easy attachment of circular polarizers to cut through the glare of high-intensity stadium floodlights, ensuring that the colors of the team jerseys remain saturated and true to life.

For a birding expedition in the Western Ghats during the monsoon, the lens's weather sealing is put to the test. The gaskets protect the internal electronics from the high humidity and light drizzle common in the rainforest. The 1.2-meter minimum focus distance at 500mm is a significant advantage for photographing smaller endemic species like the Malabar Trogon from a relatively close distance, allowing for high-detail macro-style shots of plumage without needing to switch to a dedicated macro lens.

Compatibility and Pairing Essentials

The Canon RF 100-500mm f/4.5-7.1 L IS USM is designed exclusively for the RF mount and cannot be used on EF-mount DSLRs. It is most effectively paired with high-performance mirrorless bodies like the Canon EOS R5 or R3 to take full advantage of the 6-stop coordinated IS and the advanced subject-tracking algorithms (Eye, Face, and Animal AF). For media, using CFexpress Type B cards in the R5 is recommended to ensure the camera's buffer does not clear slowly when shooting high-speed bursts of 20fps or 30fps, which this lens easily supports.

This lens is compatible with the RF 1.4x and RF 2x extenders, but with a specific physical limitation: the extenders can only be mounted when the lens is zoomed out to at least the 300mm mark. This is due to the rear lens element protruding at the wider focal lengths. When the RF 1.4x is attached, the lens becomes a 420-700mm f/8-10; with the RF 2x, it becomes a 600-1000mm f/11-14. Despite the narrow apertures, the EOS R system's Dual Pixel CMOS AF II can still maintain focus across a large portion of the frame. For support, the lens comes with a removable tripod mount ring that features a locking knob and a standard 1/4"-20 thread, though many users may prefer to replace the foot with an Arca-Swiss compatible version for faster mounting to gimbal heads.

Limitations and Alternative Considerations

While the Canon RF 100-500mm f/4.5-7.1 L IS USM is a versatile tool, it has distinct limitations that may lead a photographer to choose a different lens. The most prominent is the f/7.1 maximum aperture at the 500mm end. In low-light conditions, such as the final minutes of a sunset safari or an indoor sports arena with poor lighting, this narrow aperture forces the user to significantly increase ISO, which can introduce noise and reduce dynamic range. In these specific instances, a prime lens like the RF 400mm f/2.8L IS USM or the RF 600mm f/4L IS USM would be superior, offering significantly more light-gathering capability at the cost of zoom flexibility and increased weight.

Another consideration is the physical design when using extenders. Because the lens cannot be fully retracted to 100mm with an extender attached, it becomes much more cumbersome to store in a bag without first removing the extender. For photographers who primarily need reach beyond 500mm and do not require the L-series weather sealing or the 100-300mm range, the RF 200-800mm f/6.3-9 IS USM might be a more practical choice for consistent long-range work. Additionally, for budget-conscious users who do not require the professional build quality or the extra 100mm of reach, the RF 100-400mm f/5.6-8 IS USM offers a much lighter and more compact alternative for casual daytime shooting.
