RF 100-400mm f/5.6-8

The Canon RF 100-400mm f/5.6-8 IS USM: Design and Purpose

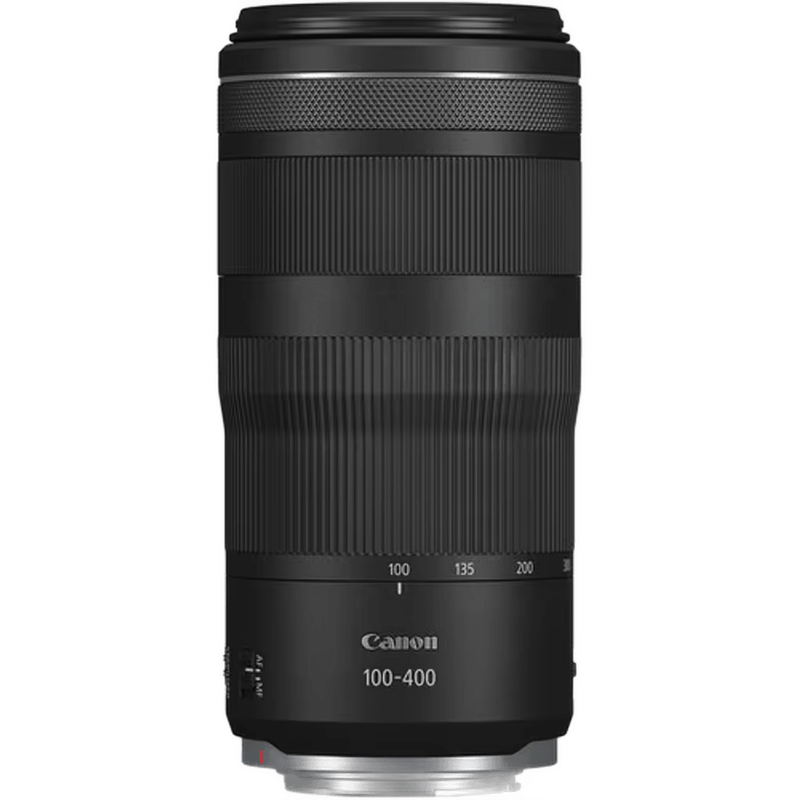

The Canon RF 100-400mm f/5.6-8 IS USM is a compact, long-reach telephoto zoom designed specifically for the RF mount ecosystem. It occupies a unique position in the lineup, sitting below the professional L-series optics like the RF 100-500mm, yet offering a significant reach advantage over standard telephoto zooms. This lens is engineered for users who require the 400mm focal length without the physical footprint or weight typically associated with super-telephoto glass. Weighing approximately 635 grams and measuring 164.7mm in length when retracted, it is significantly lighter than its EF-mount predecessors, making it a viable option for handheld operation over extended periods.

The optical formula consists of 12 elements in 9 groups. This includes one Ultra-low Dispersion (UD) element and one aspherical element. The inclusion of these specialized elements is intended to correct chromatic aberrations and maintain edge-to-edge sharpness across the zoom range. Unlike the heavier professional zooms that utilize a constant aperture or a faster f/4.5-7.1 range, this lens utilizes a variable maximum aperture of f/5.6 at the 100mm end, narrowing to f/8 at the 400mm end. This design choice is the primary driver behind the lens's portability, allowing it to use a 67mm front filter thread, which is standard for many mid-range lenses.

Optical Performance and Light Quality

The image quality of the Canon RF 100-400mm f/5.6-8 IS USM is defined by its ability to resolve high detail in well-lit environments. The UD element is strategically placed to minimize color fringing, a common issue in telephoto lenses where different wavelengths of light fail to converge at the same point. In practice, this results in cleaner high-contrast edges, such as a bird’s feathers against a bright sky or the metallic trim of a vehicle. The aspherical element works to reduce spherical aberration and distortion, ensuring that straight lines remain true even at the 100mm focal length.

The lens features a 9-blade circular aperture diaphragm. This configuration produces a smooth, rounded bokeh, which is particularly useful for subject separation when shooting at 400mm. While the f/8 maximum aperture at the long end limits the amount of physical background blur compared to an f/4 lens, the compression provided by the 400mm focal length compensates for this, allowing for effective isolation of subjects from their backgrounds. To combat flare and ghosting, Canon has applied Super Spectra Coating to the elements. This is especially relevant when shooting toward the sun or under harsh artificial lighting, as it maintains contrast and prevents internal reflections from washing out the image.

Autofocus and Handling on the Move

Focusing is handled by a rear-focusing Nano USM (Ultrasonic Motor) system. This technology is a hybrid that combines the high-speed capabilities of Ring USM with the smooth, silent operation of an STM (Stepping Motor). On a shoot, this translates to nearly instantaneous focus acquisition for stills and silent, rack-focus transitions for video. The Nano USM is particularly effective at tracking moving subjects, such as athletes or wildlife, when paired with the Dual Pixel CMOS AF systems found in EOS R-series bodies. The lens supports full-time manual focus override, allowing the user to fine-tune focus without switching out of AF mode.

Handling is further enhanced by the integrated Optical Image Stabilizer (OIS). On its own, the lens provides up to 5.5 stops of shake correction. When mounted on a camera body equipped with In-Body Image Stabilization (IBIS), such as the EOS R5 or R6 Mark II, this coordinated control increases the stabilization to 6.0 stops. This is a critical feature for a lens with an f/8 maximum aperture, as it allows for slower shutter speeds in lower light without the necessity of a tripod. The lens also features a customizable Control Ring, which can be programmed to adjust aperture, ISO, or exposure compensation, providing tactile control without the need to look away from the viewfinder.

Video Capabilities and Limitations

For videographers, the Canon RF 100-400mm f/5.6-8 IS USM offers a lightweight solution for capturing distant action. The Nano USM motor is the standout feature here, as it eliminates the mechanical "clicking" or whirring sounds that can be picked up by on-camera microphones during focus pulls. The lens exhibits minimal focus breathing, meaning the angle of view does not shift significantly when changing focus from a near subject to a far one. This is essential for maintaining a professional look in cinematic sequences.

However, there are honest limitations to consider for video work. The f/8 aperture at 400mm requires a significant amount of light. In indoor venues or during twilight, users will likely need to increase ISO levels, which can introduce noise depending on the camera sensor's performance. Additionally, while the OIS is excellent for static shots, it cannot fully replace a gimbal for aggressive panning or walking shots. The lens does not feature a dedicated AF/MF switch on the barrel (depending on the specific production batch/region, though most RF lenses move this to the body or a multi-function switch), requiring the user to rely on the camera menu or a programmed button for quick changes.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception held in a large outdoor garden during the late afternoon, this lens serves as an excellent tool for candid portraiture. The 100-400mm range allows the photographer to stay at the periphery of the event, capturing natural expressions without intruding on the guests' space. At 200mm and f/7.1, the lens provides enough reach to frame a couple on stage while the photographer is positioned at the back of the seating area. The OIS is vital here as the sun sets, allowing for sharp handheld shots at 1/60s or 1/80s even as the light fades.

During a Goa travel shoot focused on the Salim Ali Bird Sanctuary, the lens's weight becomes its greatest asset. Navigating mangroves or trekking through trails is significantly easier with a 635g lens compared to a 2kg professional telephoto. The 400mm reach is sufficient for capturing larger birds or those at moderate distances. The 0.41x maximum magnification at 400mm (with a minimum focusing distance of 1.05m) also allows for "tele-macro" photography, enabling detailed shots of butterflies or tropical flora without needing to switch to a dedicated macro lens.

In a Mumbai studio product session, the lens can be used for high-compression shots of small objects like watches or jewelry. By shooting from a distance at 400mm, the photographer can achieve a flat perspective that minimizes distortion of the product's proportions. The 67mm filter thread makes it easy to attach circular polarizers to manage reflections on metallic or glass surfaces. However, the studio must be large enough to accommodate the minimum focusing distance and the long focal length, and powerful strobes are necessary to compensate for the f/8 aperture if a deep depth of field is required.

Compatibility and Pairings

The Canon RF 100-400mm f/5.6-8 IS USM is compatible with all Canon EOS R-series mirrorless cameras, including full-frame models like the R3, R5, R6, and R8, as well as APS-C models like the R7 and R10. On an APS-C body, the effective focal length becomes 160-640mm due to the 1.6x crop factor, making it an extremely powerful tool for wildlife enthusiasts on a budget. It uses the standard LP-E6NH or LP-E17 batteries depending on the camera body, and it does not have any specialized power requirements.

This lens is also compatible with the Canon Extender RF 1.4x and Extender RF 2x. When used with the 1.4x extender, the focal range becomes 140-560mm with a maximum aperture of f/8-11. With the 2x extender, it reaches 200-800mm at f/11-16. While the autofocus remains functional on most modern R-series bodies even at f/16, the viewfinder may become dim, and the AF area may be restricted depending on the camera's processing power. For storage, it pairs well with high-speed UHS-II SD cards or CFexpress Type B cards, particularly when using the high-speed burst modes of the EOS R7 or R6 to capture action.

Who Should Choose Something Else

While the Canon RF 100-400mm f/5.6-8 IS USM is a versatile lens, it is not the correct choice for every scenario. Professional sports photographers shooting in indoor arenas or under stadium lights at night will find the f/8 aperture too restrictive. In these cases, the Canon RF 100-500mm f/4.5-7.1L IS USM or the RF 70-200mm f/2.8L IS USM are better choices, as they provide more light-gathering capability and superior weather sealing. This lens lacks the robust weather gaskets of the L-series, making it less suitable for use in heavy rain or extremely dusty environments without external protection.

Additionally, if the primary goal is maximum reach for small, distant birds, the RF 600mm f/11 or RF 800mm f/11 IS STM primes offer more magnification in a similarly lightweight package, though they lack the flexibility of a zoom. For those working in tight studio spaces where the 1.05m minimum focus distance is too long, a dedicated macro lens like the RF 100mm f/2.8L Macro IS USM would be more appropriate. Finally, users who demand the absolute highest level of peripheral sharpness and contrast for large-format printing may find the L-series telephotos more aligned with their requirements, as this lens is optimized for portability and value over uncompromising optical perfection.
