EF 70-200mm f/4L IS II USM Lens

The Engineering and Position of the Canon EF 70-200mm f/4L IS II USM Lens

The Canon EF 70-200mm f/4L IS II USM Lens represents a significant evolution in the manufacturer’s high-performance L-series telephoto lineup. Released as the successor to the highly regarded 2006 original, this lens was engineered to provide a professional-grade alternative to the heavier f/2.8 variants without compromising on optical resolution or build integrity. It utilizes an optical formula consisting of 20 elements arranged in 15 groups. Within this complex arrangement, Canon has integrated one Fluorite element and two Ultra-low Dispersion (UD) glass elements. The inclusion of Fluorite is a hallmark of high-end telephoto optics, as this material possesses a lower refractive index and lower dispersion than standard glass, which is critical for eliminating secondary chromatic aberrations that often plague long focal lengths.

Designed for photographers who prioritize mobility and hand-held operation, the lens weighs approximately 780g. This is a substantial reduction compared to the 1480g weight of the EF 70-200mm f/2.8L IS III USM, making it a preferred choice for photojournalists, travel photographers, and event shooters who must remain mobile over long durations. The lens maintains a constant f/4 maximum aperture throughout its zoom range, ensuring that exposure settings remain consistent as the focal length is adjusted. This constant aperture is particularly valuable when working with manual exposure settings or when recording video, as it prevents the darkening of the frame that occurs with variable-aperture consumer telephotos.

The lens sits in the lineup as the premium "lightweight" telephoto zoom, bridging the gap between the entry-level 70-300mm optics and the heavy-duty f/2.8 professional workhorses. It is built to the rigorous standards of the L-series, featuring a weather-sealed construction that resists dust and moisture. The exterior is finished in Canon’s signature heat-shielding white paint, which is designed to prevent internal thermal expansion when the lens is used under direct sunlight for extended periods. This specific model also introduced a 72mm filter thread, a change from the 67mm thread of its predecessor, allowing for better light transmission and compatibility with a wider range of professional filters.

Optical Technologies and Image Quality

The image quality of the Canon EF 70-200mm f/4L IS II USM Lens is defined by its ability to maintain high contrast and edge-to-edge sharpness even when shot wide open at f/4. The primary driver of this performance is the combination of Fluorite and UD elements, which work in tandem to correct for color fringing and axial chromatic aberration. In practice, this means that high-contrast edges—such as a white shirt against a dark background or tree branches against a bright sky—retain their definition without the purple or green halos often seen in lesser optics. The lens also features Super Spectra coatings, which are applied to individual elements to minimize internal reflections, ghosting, and flare. This is especially important for a telephoto lens where the large number of glass surfaces can otherwise lead to a loss of contrast when light sources are just outside the frame.

One of the most significant upgrades in this Mark II version is the 9-blade circular aperture diaphragm, an improvement over the 8-blade design of the previous model. This change results in smoother, more rounded out-of-focus highlights (bokeh), which is essential for portraiture and isolating subjects from busy backgrounds. Even when stopped down to f/5.6 or f/8, the aperture maintains a nearly circular shape, preventing the "polygonal" look in background highlights. The minimum focusing distance has also been reduced to 1 meter (3.3 feet), down from 1.2 meters in the original version. This allows for a maximum magnification of 0.27x at the 200mm end, enabling the lens to capture tight details of smaller subjects like flowers or product components with significant background compression.

The Image Stabilizer (IS) system in this lens is a standout feature, providing up to 5 stops of shake correction according to CIPA standards. This is a 2-stop improvement over the original model. The IS system is critical for a lens with an f/4 maximum aperture, as it allows the photographer to use slower shutter speeds in low-light environments without the need for a tripod. For example, at 200mm, where the traditional rule of thumb suggests a shutter speed of at least 1/200s, the 5-stop IS system theoretically allows for sharp handheld shots at speeds as low as 1/6s, provided the subject is stationary. This makes the lens exceptionally versatile for indoor events or twilight landscapes where a tripod is impractical.

Autofocus Performance and Handling

Autofocus on the Canon EF 70-200mm f/4L IS II USM Lens is driven by a ring-type Ultrasonic Motor (USM). This system is designed for high-speed, high-torque operation while remaining nearly silent, which is beneficial for both wildlife photography and candid event coverage. The lens employs an internal focusing system, meaning the front element does not rotate and the physical length of the lens does not change during focusing or zooming. This is a major advantage when using polarizing filters or graduated ND filters, as their orientation remains fixed. The USM system also supports full-time manual focus override, allowing the photographer to make fine adjustments using the dedicated focus ring without having to switch out of AF mode.

The lens features a focus limiter switch with two settings: Full (1m to infinity) and 3m to infinity. By restricting the search range when shooting distant subjects, the AF system can achieve lock-on faster, as it ignores potential foreground distractions. Additionally, the lens introduces three distinct IS modes. Mode 1 is for general stationary subjects, correcting for vibrations in all directions. Mode 2 is specifically calibrated for panning, where the system ignores movement in the direction of the pan to stabilize only the perpendicular axis. Mode 3 is a specialized setting that only activates the stabilization when the shutter button is fully pressed. This is particularly useful for sports photographers who need to track erratic movement through the viewfinder without the "floating" sensation that active stabilization can sometimes cause during composition.

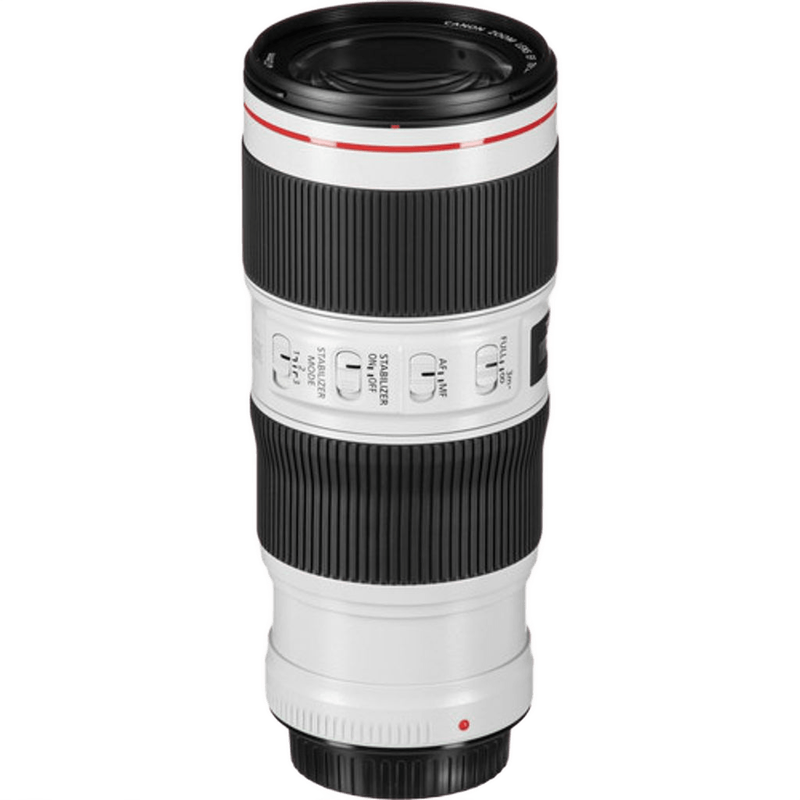

In terms of physical handling, the zoom and focus rings are covered in high-grip rubber textures that are easily operated even when wearing gloves. The zoom ring has a short throw, allowing the photographer to move from 70mm to 200mm with a quick flick of the wrist. The lens does not come with a tripod collar as standard, reflecting its design philosophy as a handheld optic, though a dedicated Tripod Mount Ring A II (W II) is available as an optional accessory for those who require balanced mounting on a tripod or monopod.

Video Capability and Limitations

While primarily designed as a stills lens, the Canon EF 70-200mm f/4L IS II USM Lens is a capable tool for videography, particularly when used on modern cinema cameras or stabilized mirrorless bodies. The constant f/4 aperture is its greatest asset for video, as it allows for zooming during a take without any shifts in exposure or depth of field. The 5-stop Image Stabilizer is remarkably smooth, effectively dampening the high-frequency micro-jitters that often ruin handheld telephoto footage. When used on a crop-sensor (APS-C) camera, the effective focal length becomes approximately 112-320mm, providing significant reach for capturing distant action or tight "B-roll" details.

However, there are honest limitations to consider for high-end cinema use. Like most photography-first lenses, this is not a truly parfocal lens; while it holds focus reasonably well during a zoom, critical focus may shift slightly, requiring a refocus after changing the focal length. The focus breathing—the change in effective focal length when shifting focus from near to far—is well-controlled but still present. For narrative filmmakers, the focus ring lacks hard stops, as it uses an electronic-clutch mechanism for the USM motor, which can make repeatable focus pulls with a follow-focus system more challenging than with dedicated cine glass. Despite these factors, for documentary, corporate, and event videography, the lens’s sharpness and stabilization make it a highly reliable choice.

On the Shoot: Real-World Scenarios

In a Bengaluru wedding reception held in a large, well-lit outdoor garden, this lens excels during the daytime ceremonies like the Mehendi or Haldi. The 70-200mm range allows the photographer to stay at a distance, capturing candid emotions without intruding on the guests' personal space. The f/4 aperture, combined with the 200mm focal length, provides enough subject separation to blur out cluttered backgrounds of tents and catering stalls. Because the lens is lightweight, a photographer can carry it on a dual-harness for a 10-hour day without the neck strain associated with the f/2.8 version. When the sun begins to set, the 5-stop IS system allows for continued handheld shooting as the light levels drop, maintaining sharp images of the couple on stage even as shutter speeds are forced down.

During a Goa travel and landscape shoot, the lens proves its worth in the varied environments of the Konkan coast. When shooting the architecture of Old Goa, the UD and Fluorite elements ensure that the intricate white details of the churches are rendered without color fringing against the deep blue sky. On the beach at sunrise, the 200mm compression can be used to "stack" layers of fishing boats against the rising sun. The weather sealing is a critical advantage here, providing peace of mind against the salt spray and humidity of the coastal air. The 780g weight makes it easy to pack into a hiking bag for a trek to Dudhsagar Falls, where a heavier lens might be left behind in the hotel room.

In a Mumbai studio product session, specifically for fashion or footwear, the lens is often used at f/8 or f/11 to ensure maximum depth of field. In this controlled lighting environment, the extra stop of light provided by an f/2.8 lens is unnecessary. The 70-200mm focal length is ideal for fashion lookbooks, as it avoids the wide-angle distortion that can make limbs look disproportionate. The 1-meter minimum focus distance allows the photographer to move in for tight shots of fabric textures or shoe stitching without needing to switch to a dedicated macro lens. The internal focusing ensures that the lens doesn't physically extend and bump into studio lights or reflectors positioned close to the subject.

Compatibility and Pairing

The Canon EF 70-200mm f/4L IS II USM Lens is natively compatible with all Canon EF-mount DSLR bodies, including the EOS 5D Mark IV, 6D Mark II, and the 1D X series. It is also fully compatible with the EOS R-series mirrorless cameras, such as the R5, R6, and R3, when used with the EF-EOS R Mount Adapter. On these mirrorless bodies, the lens benefits from enhanced autofocus features like Eye-Detection AF and, in some cases, coordinated Image Stabilization between the lens and the camera's In-Body Image Stabilization (IBIS) system.

For photographers needing extra reach, this lens is compatible with Canon’s EF 1.4x III and EF 2x III Extenders. When paired with the 1.4x extender, the lens becomes a 98-280mm f/5.6 optic. With the 2x extender, it becomes a 140-400mm f/8 lens. It is important to note that when using the 2x extender, the maximum aperture drops to f/8, which may limit the autofocus capabilities on older DSLR bodies that require f/5.6 or faster to utilize all AF points. However, on newer DSLRs and most mirrorless bodies, autofocus remains functional even at f/8. The lens uses 72mm filters, making it compatible with the same filter kits used for the EF 35mm f/1.4L II or the EF 50mm f/1.2L.

Who Should Choose Something Else

While the Canon EF 70-200mm f/4L IS II USM Lens is an exceptional performer, it is not the correct choice for every scenario. Photographers who specialize in indoor sports, such as basketball or badminton in poorly lit community halls, will find the f/4 aperture limiting. In these environments, the f/2.8 version of this lens is almost mandatory to maintain the high shutter speeds (1/500s or faster) required to freeze fast motion without pushing ISO to levels that degrade image quality. Similarly, for wedding photographers who frequently shoot in dark banquet halls or churches where flash is prohibited, the f/2.8 aperture provides a crucial advantage in both light gathering and background isolation.

For those who require extreme telephoto reach for bird photography or field sports, a 70-200mm lens—even with extenders—may feel short. In such cases, the Canon EF 100-400mm f/4.5-5.6L IS II USM or the RF 100-500mm would be more appropriate choices, offering significantly more magnification at the long end. Finally, if budget and weight are the absolute primary concerns and the professional-grade weather sealing and Fluorite optics are not required, the EF 70-300mm f/4-5.6 IS II USM offers more reach in a consumer-grade package, though it lacks the constant aperture and edge-to-edge sharpness of the L-series glass.
