EF 24mm f 1.4L II USM Lens

The Optical Architecture of the Canon EF 24mm f/1.4L II USM

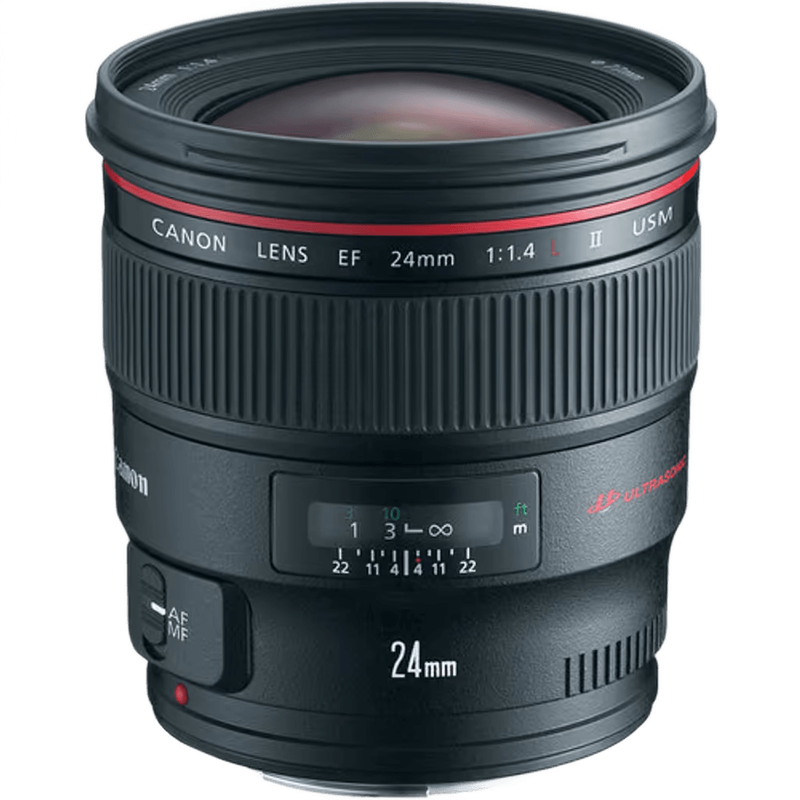

The Canon EF 24mm f/1.4L II USM Lens is a high-performance wide-angle prime lens designed for the EF mount, compatible with both full-frame and APS-C sensors. As a member of the L-series (Luxury) lineup, it represents the pinnacle of Canon’s optical engineering for wide-angle photography. The lens is constructed with 13 elements arranged in 10 groups. This complex optical formula was specifically engineered to address the challenges of wide-angle imaging, such as peripheral illumination drop-off and chromatic aberration, which are often more pronounced at wide apertures. The lens provides an 84-degree diagonal field of view on a full-frame sensor, making it a standard choice for photojournalism, landscape, and architectural photography where a wide perspective is required without the extreme distortion associated with ultra-wide or fisheye lenses.

In the manufacturer’s lineup, this lens serves as the successor to the original 24mm f/1.4L, featuring significant upgrades in coating technology and element quality to meet the demands of high-resolution digital sensors. It sits above the EF 24mm f/2.8 IS USM in terms of light-gathering capability and build quality, offering two full stops of additional light. The lens is designed for professionals who require a fast maximum aperture for low-light environments or for achieving a shallow depth of field that is uncharacteristic of most wide-angle optics. On an APS-C sensor, the focal length is equivalent to approximately 38.4mm, shifting its utility toward a slightly wide "normal" lens, often used for street photography and environmental portraiture.

Advanced Optical Technologies and Image Quality

The image quality of the Canon EF 24mm f/1.4L II USM is defined by its specialized glass elements and proprietary coatings. It incorporates two high-precision GMo (Glass Molded) aspherical elements. These elements are critical for correcting various forms of aberration, including spherical aberration and curvature of field. By using aspherical surfaces, the lens can maintain sharpness across the entire frame, from the center to the extreme corners, even when shooting at the maximum aperture of f/1.4. This is a significant technical achievement, as wide-angle lenses typically struggle with corner softness at wide apertures.

To combat chromatic aberration—the "color fringing" often seen at high-contrast edges—the lens utilizes two UD (Ultra-low Dispersion) elements. These elements have a low refractive index and low dispersion characteristics, which help to align different wavelengths of light at the same focal point. This results in images with high contrast and accurate color reproduction. Furthermore, this lens was the first in the Canon lineup to feature Subwavelength Structure Coating (SWC). Unlike traditional coatings that use thin layers of chemical films, SWC uses a microscopic structure smaller than the wavelength of visible light. This structure gradually changes the refractive index between the air and the glass, significantly reducing "flare" and "ghosting" caused by light reflecting off the internal lens surfaces. This is particularly effective when shooting into light sources, a common occurrence in wide-angle landscape and interior photography.

The lens features an 8-blade circular diaphragm. This design ensures that the aperture remains nearly circular even when stopped down, resulting in smooth, natural-looking out-of-focus highlights (bokeh). At f/1.4, the lens produces a distinct separation between the subject and the background, a rare quality for a 24mm lens, allowing for creative emphasis in environmental portraits.

Autofocus Performance and Mechanical Build

The Canon EF 24mm f/1.4L II USM utilizes a ring-type Ultrasonic Motor (USM) for its autofocus system. This motor converts ultrasonic vibrational energy into rotational force to move the heavy internal lens groups. The result is a focusing system that is fast, highly accurate, and nearly silent. The lens employs a rear-focusing system, meaning the front element does not rotate or extend during focusing. This is advantageous when using position-sensitive filters, such as circular polarizers or graduated neutral density filters, which are common in the 77mm filter thread size of this lens.

The lens supports full-time manual focus override, allowing the photographer to manually adjust the focus ring at any time without switching out of autofocus mode. The focus ring itself is wide, rubberized, and has a dampened feel, providing the tactile precision required for critical manual focusing. The minimum focusing distance is 0.25 meters (approximately 9.8 inches), which allows for a maximum magnification of 0.17x. This close-focusing capability, combined with the f/1.4 aperture, enables photographers to create dramatic perspectives with a sharp foreground subject and a heavily blurred background.

In terms of build, the lens is constructed to L-series standards, which includes comprehensive dust and moisture resistance. Rubber seals are located at the mount, the focus ring, and the switch panel. When paired with a weather-sealed Canon body and a front-mounted filter, the lens can be used in challenging environmental conditions, such as light rain or dusty locations. The lens weighs approximately 650 grams and has a physical length of 86.9mm, making it a substantial but balanced addition to professional DSLR bodies like the 5D or 1D series.

Video Capability and Cinematographic Use

In a video production context, the Canon EF 24mm f/1.4L II USM is valued for its light-gathering power and its ability to work in confined spaces. The f/1.4 aperture is a critical asset for videographers shooting in low-light environments without the need for high ISO settings that introduce noise. While the lens lacks Image Stabilization (IS), its wide focal length makes it naturally more forgiving of minor camera shakes than longer prime lenses. When used on a gimbal or a stabilized sensor, it produces smooth, cinematic wide shots with a shallow depth of field that helps direct the viewer's eye.

The manual focus ring has a generous throw, which is beneficial for pull-focus techniques, although it does not have the hard stops found on dedicated cinema lenses. Focus breathing—the slight change in focal length when adjusting focus—is present but well-controlled for a lens of this class. The 77mm filter thread is a standard size, making it easy to mount variable ND filters, which are essential for maintaining a 180-degree shutter angle when shooting at f/1.4 in daylight. For filmmakers using Super 35mm sensors (such as on the Canon C70 or C300 series), the lens behaves like a 35mm optic, which is a classic focal length for narrative filmmaking, offering a natural perspective that closely mimics human vision.

On the Shoot: Indian Photography Scenarios

In a Bengaluru wedding reception, typically held in large indoor halls with complex, often dim, ambient lighting, the f/1.4 aperture becomes the lens's most vital feature. It allows the photographer to capture the scale of the decor and the movement of the guests at shutter speeds fast enough to freeze action (such as 1/200s) without pushing the ISO to levels that degrade image quality. The 24mm focal length is wide enough to capture the entire stage (mandap) from a reasonable distance while still being able to move in for environmental portraits of the couple that include the surrounding floral arrangements.

During a Goa travel and landscape shoot, the lens excels at capturing the expansive coastlines and the intricate architecture of Old Goa's churches. The SWC coating is particularly useful here; when shooting during the "golden hour" with the sun low in the frame, the lens maintains high contrast and resists the internal reflections that often plague wide-angle shots. The weather sealing provides peace of mind when shooting near the humid, salty air of the Arabian Sea or in the dusty environments of inland trails. The 0.25m minimum focus distance allows for creative shots of local flora or textures with the beach blurred in the background.

In a Mumbai studio product session, specifically for "lifestyle" product photography where a product needs to be shown in a realistic environment (like a high-end watch on a desk or a kitchen appliance on a counter), the 24mm focal length provides the necessary context. In the tight confines of many urban studios, the wide angle allows the photographer to include the background elements that tell the product's story. The high resolution and edge-to-edge sharpness ensure that even if the product is placed off-center, the details remain crisp for large-format commercial printing.

Compatibility and Pairing

The Canon EF 24mm f/1.4L II USM is natively compatible with all Canon EF-mount DSLR cameras, including the EOS 5D Mark IV, 6D Mark II, and the 1DX series. It is also fully compatible with the Canon EOS R mirrorless system via the EF-EOS R Mount Adapter. When adapted, the lens retains its full autofocus speed and metadata communication. It can also be used on Sony E-mount or L-mount cameras using third-party electronic adapters (such as those from Sigma or Metabones), though autofocus performance may vary depending on the specific adapter and camera body.

For a complete kit, this lens is often paired with other L-series primes or zooms to cover a full range of focal lengths. Common pairings include:

• The EF 50mm f/1.2L USM: To provide a tighter, more flattering portrait focal length while maintaining the f/1.2-1.4 aperture aesthetic.
• The EF 85mm f/1.2L II or f/1.4L IS USM: For dedicated portraiture and compression.
• 77mm Neutral Density (ND) Filters: Essential for using the f/1.4 aperture in bright outdoor light, especially for video.
• Circular Polarizers: To manage reflections on water or glass and to deepen blue skies in landscape work.

The lens uses the E-77 II lens cap and the EW-83K petal-shaped lens hood, which is designed to block stray light without causing vignetting on full-frame sensors.

Limitations and Alternative Choices

While the Canon EF 24mm f/1.4L II USM is a premier optic, it has specific limitations that may lead a photographer to choose a different tool. The most significant limitation is the lack of optical Image Stabilization (IS). For photographers who primarily shoot handheld in low light or for videographers who do not use gimbals, the Canon EF 24mm f/2.8 IS USM might be a more practical choice. Although it is two stops slower, the IS system provides up to 4 stops of shake correction, which can be more effective for static subjects in low light than a wider aperture alone.

Another consideration is the inherent nature of a prime lens. In fast-moving environments like sports or certain types of event coverage, the Canon EF 24-70mm f/2.8L II USM offers significantly more versatility. While the zoom is one stop slower and cannot match the f/1.4 bokeh, the ability to instantly switch from wide-angle to portrait focal lengths is often more valuable than the extreme aperture of the prime. Additionally, for users of the newer RF mount system, the RF 24mm f/1.8 Macro IS STM provides a lighter, more compact native option with stabilization and macro capabilities, though it lacks the robust L-series build and the f/1.4 maximum aperture.

Finally, for those who find 24mm not quite wide enough for dramatic architectural or interior shots, the EF 16-35mm f/2.8L III USM or the EF 11-24mm f/4L USM provide much wider perspectives, albeit at the cost of the f/1.4 light-gathering capability. The 24mm f/1.4L II is a specialist tool; it is chosen specifically for its combination of a wide field of view and an extremely fast aperture, a combination that requires a trade-off in weight, size, and the lack of zoom flexibility.
