EF 100-400mm f/4.5-5.6L IS II USM Lens

The Evolution of the Professional Telephoto Zoom

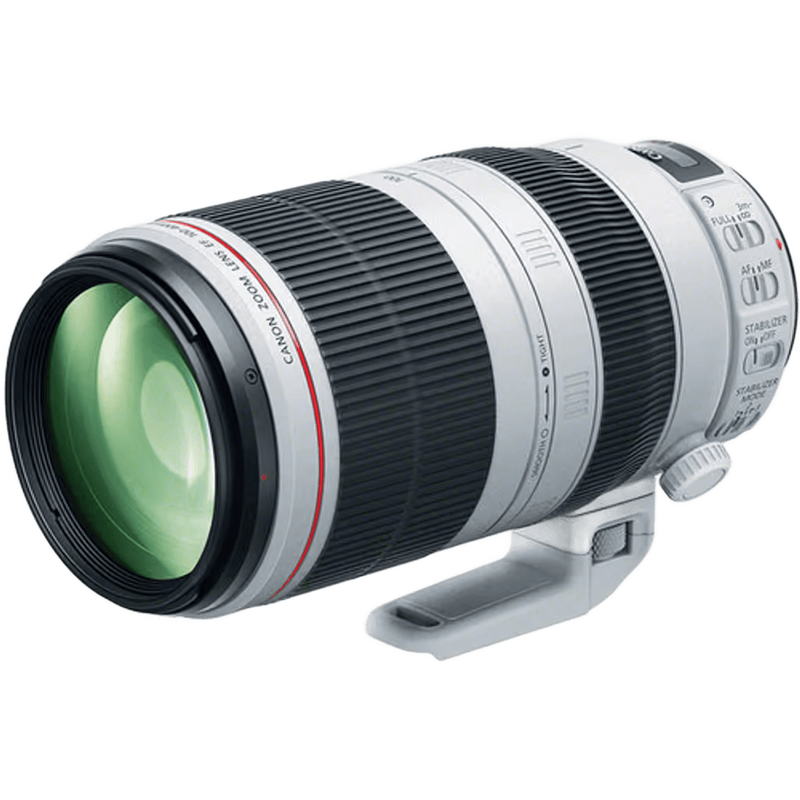

The Canon EF 100-400mm f/4.5-5.6L IS II USM Lens represents a significant mechanical and optical departure from its predecessor, moving away from the "push-pull" zoom design to a more traditional and precise rotation-type zoom mechanism. As a cornerstone of the L-series (Luxury) lineup, this lens is engineered for professional sports, wildlife, and photojournalism applications where versatility and reach are paramount. The optical formula consists of 21 elements arranged in 16 groups, a complex arrangement designed to maintain edge-to-edge sharpness across the entire 4x zoom range. It occupies a specific niche in the Canon ecosystem, sitting between the 70-200mm zooms and the high-end super-telephoto primes like the 400mm f/2.8L. It is designed for photographers who require the reach of a 400mm focal length but cannot be tethered to a tripod or restricted by the fixed field of view of a prime lens.

Advanced Optical Technologies and Image Quality

The image quality of this lens is defined by its ability to suppress chromatic aberrations and maintain high contrast even in challenging backlit conditions. To achieve this, Canon integrated one Fluorite element and one Super Ultra-Low Dispersion (UD) element into the optical path. These specialized glass types work to eliminate secondary spectrum aberrations, which often manifest as color fringing in high-contrast telephoto shots. A standout feature of this Mark II iteration is the application of Air Sphere Coating (ASC). This technology involves a layer of air and silicon dioxide applied over the traditional multi-layer coatings. ASC significantly reduces internal reflections and ghosting, particularly when shooting toward a light source, such as a setting sun or stadium floodlights. The lens also features a 9-blade circular aperture, which produces smooth, rounded out-of-focus highlights (bokeh), a critical factor for isolating subjects like wildlife or athletes against busy backgrounds.

The Image Stabilizer (IS) system provides up to 4 stops of shake correction, a substantial improvement over the 1.5 stops found in the original version. This system is not a one-size-fits-all solution; it offers three distinct modes to suit specific movement patterns:

• Mode 1: Designed for stationary subjects, correcting vibrations in all directions.
• Mode 2: Optimized for panning, where the system detects the direction of movement and only corrects vibrations perpendicular to the pan.
• Mode 3: Only activates the stabilization during the actual exposure. This is particularly useful for tracking erratic subjects, as it prevents the "jumping" sensation in the viewfinder that can occur when the IS system attempts to compensate for rapid frame adjustments.

Autofocus Performance and Mechanical Handling

The Canon EF 100-400mm f/4.5-5.6L IS II USM Lens utilizes a ring-type Ultrasonic Motor (USM) for autofocus, which provides high-speed, near-silent, and highly accurate focusing. The internal focusing system ensures that the front element does not rotate during focus, which is essential when using polarizing filters. A significant handling improvement is the Zoom Touch Adjustment Ring. This allows the photographer to customize the torque of the zoom ring, ranging from "Smooth" for rapid focal length changes to "Tight" for preventing "zoom creep" when the lens is pointed vertically or carried on a shoulder strap. The lens also boasts a remarkably short minimum focusing distance of 0.98 meters (3.2 feet) across the entire zoom range, providing a maximum magnification of 0.31x at the 400mm end. This capability allows for "tele-macro" photography, capturing detailed shots of insects or flowers from a comfortable distance.

The build quality is consistent with professional L-series standards, featuring extensive weather sealing at all joints and switches to protect against dust and moisture. The front and rear elements are treated with a fluorine coating, which repels water and oil, making it easier to clean fingerprints or raindrops without smearing. The tripod mount is also redesigned; the foot can be removed without detaching the entire lens from the camera, allowing for a more streamlined profile when shooting handheld.

Video Capabilities and Limitations

While primarily designed for stills, this lens is frequently used in cinematography for its reach and stabilization. The 4-stop IS is highly effective for handheld B-roll, particularly in Mode 1. The USM motor allows for smooth focus pulls, though it lacks the completely silent operation of STM (Stepping Motor) lenses. In video applications, the variable aperture (f/4.5 at 100mm to f/5.6 at 400mm) is a factor to consider. If a zoom is performed during a take, the exposure will shift by approximately 2/3 of a stop, which must be compensated for via ISO or shutter angle adjustments if the camera does not handle it automatically. The lens exhibits minimal focus breathing, meaning the field of view does not change drastically when shifting focus from the foreground to the background, a trait highly valued by filmmakers. When used on APS-C sensor cameras or in Super 35mm crop modes, the effective focal range becomes approximately 160-640mm, providing immense reach for documentary and nature filmmaking.

On the Shoot: Real-World Scenarios in India

In a wildlife scenario, such as a safari in Ranthambore National Park, the 100-400mm range is indispensable. A tiger may be resting deep in the brush (requiring 400mm) but then approach the safari vehicle (requiring a quick pull back to 100mm). The dust-sealed construction is vital here, as the fine silt of the Rajasthani tracks can easily penetrate non-sealed lenses. The Mode 3 IS allows the photographer to track the tiger's movement through the viewfinder without the stabilization system fighting against the natural movement of the vehicle.

During a day-night cricket match at the Wankhede Stadium in Mumbai, the lens excels under the high-intensity floodlights. The ASC coating prevents the large stadium lights from creating distracting flares when shooting toward the boundary. At the 400mm end, a photographer can capture tight action shots of the batsman from the stands, while the f/5.6 aperture is generally sufficient given the powerful lighting of modern international venues. The ability to tighten the zoom torque ensures that the lens stays at the desired focal length even when pointed up toward the stands for crowd shots.

For a birding expedition in Bharatpur (Keoladeo National Park), the 0.98m minimum focus distance is a game-changer. It allows for detailed portraits of smaller birds or amphibians in the wetlands that would be impossible with other telephoto lenses that have a 2-meter or 3-meter minimum focus. The lens is light enough (1640g) to be carried on a neck strap for a full day of walking through the sanctuary, unlike the 500mm or 600mm primes which typically require a gimbal head and tripod.

Compatibility and Pairing Options

The Canon EF 100-400mm f/4.5-5.6L IS II USM Lens is natively compatible with all EF-mount DSLRs, including the EOS 5D and 1D series. It is also highly effective when used on RF-mount mirrorless cameras (like the EOS R5 or R6) via the EF-EOS R Mount Adapter, where it retains full AF speed and IS functionality. It is compatible with Canon’s EF 1.4x III and 2x III Extenders. When used with the 1.4x III, the lens becomes a 140-560mm f/6.3-8 lens. On modern bodies like the 5D Mark IV or the EOS R series, autofocus remains functional even at f/8. With the 2x III extender, it becomes a 200-800mm f/9-11 lens, which typically limits autofocus to the central point on high-end DSLRs or remains functional across the frame on mirrorless bodies. The lens uses 77mm filters, a standard size that allows for easy sharing of circular polarizers or ND filters with other L-series glass like the 24-70mm f/2.8L II or the 70-200mm f/2.8L III.

Who Should Choose Something Else

While the Canon EF 100-400mm f/4.5-5.6L IS II USM Lens is a versatile workhorse, it is not the ideal choice for every situation. Photographers specializing in indoor sports, such as badminton or basketball in poorly lit gymnasiums, will find the f/5.6 maximum aperture at the long end restrictive. In these cases, a 70-200mm f/2.8L IS III, perhaps paired with a 1.4x extender, provides a full stop more light, allowing for faster shutter speeds to freeze action. Similarly, for dedicated bird photographers who frequently find 400mm insufficient, a lens like the Sigma or Tamron 150-600mm options, or the Canon RF 100-500mm (for mirrorless users), offers more reach, albeit often with a trade-off in weight or edge sharpness. Finally, for those who prioritize portability above all else, the RF 100-400mm f/5.6-8 IS USM is significantly lighter and smaller, though it lacks the professional-grade weather sealing, robust build, and light-gathering capabilities of this L-series lens.
