Small HD Dp4 Hdmi

The SmallHD DP4 HDMI Monitoring System

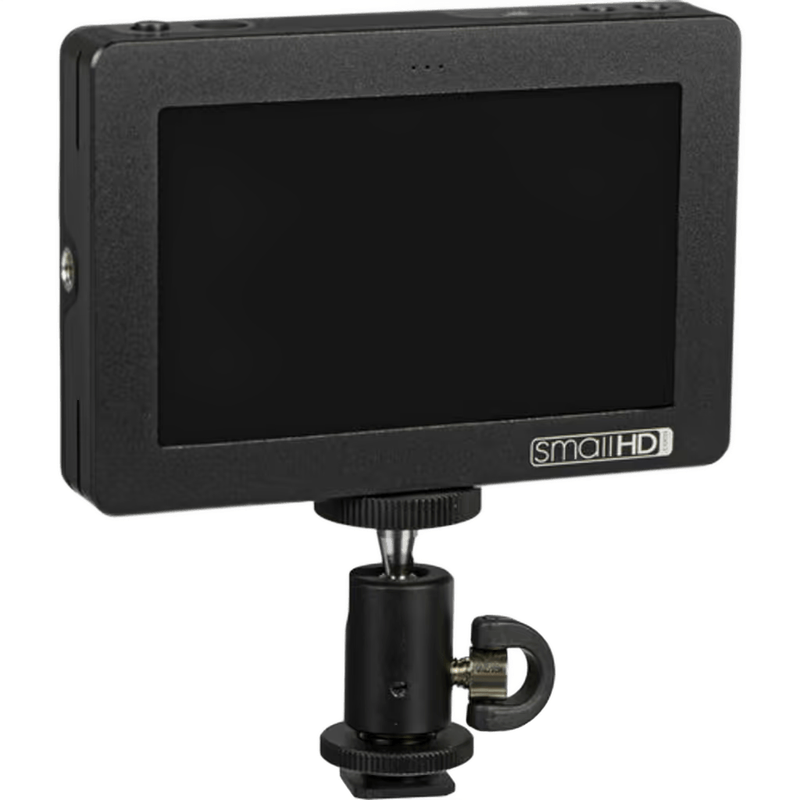

The SmallHD DP4 HDMI is a compact 4.3-inch field monitor designed to bridge the gap between a standard external display and a dedicated electronic viewfinder (EVF). At its core, the device features an 800 x 480 WVGA resolution LCD panel with a 16:7 aspect ratio, specifically engineered to accommodate the signal outputs of early-to-mid generation DSLR and mirrorless cameras. Within the manufacturer’s historical lineup, the DP4 was positioned as the highly portable, versatile alternative to the larger DP6, prioritizing a small footprint and low power consumption for handheld and gimbal-based cinematography. It was designed for operators who require a lightweight monitoring solution that does not compromise on professional software tools like peaking and false color, while offering the unique ability to be converted into an EVF via an optional optical loupe attachment.

The display utilizes an 8-bit panel capable of reproducing 16.7 million colors, providing a significant upgrade over the built-in screens found on most cameras of its era. While the 4.3-inch screen size may seem modest, the high pixel density of approximately 216 pixels per inch (PPI) ensures that the image remains sharp enough for critical focus when used at a standard viewing distance. The monitor is built around a milled aluminum frame, which serves as a heat sink for the internal processors, allowing the unit to operate without internal fans, thereby ensuring silent operation on sets where sync sound is being recorded.

Display Technology and Signal Processing

The image quality of the SmallHD DP4 HDMI is defined by its 800:1 contrast ratio and a maximum brightness of approximately 350 nits. While these figures are optimized for indoor or shaded environments, the monitor’s software engine includes several proprietary features that enhance the utility of the image. One of the most significant technologies included is the "DSLR Scale" function. During the era of the Canon 5D Mark II and 7D, many cameras would output a signal that did not fill the entire screen of an external monitor, often leaving large black borders or dropping resolution during recording. The DP4 includes preset scaling options that allow the user to expand these specific signals to fill the 4.3-inch area, maximizing the available screen real estate for the operator.

The monitor also features a 1:1 Pixel Mapping mode. Because the native resolution of the panel is 800 x 480, viewing a 1080p or 720p signal requires the monitor to downscale the image. By engaging 1:1 mapping, the operator can view a center-cut of the original signal at its native resolution, which is essential for verifying fine textures, skin details, or the exact point of focus in a shallow depth-of-field shot. This process bypasses the scaling artifacts that can sometimes occur when fitting a high-definition signal onto a sub-HD panel, providing a more honest representation of the sensor's output.

Build Quality and Physical Handling

The SmallHD DP4 HDMI is housed in a rugged, milled aluminum chassis that distinguishes it from the plastic-bodied monitors often found in this size class. This construction provides high torsional rigidity, protecting the LCD panel from the stresses of being mounted on a vibrating camera rig or a moving vehicle. The unit features three 1/4"-20 threaded mounting points—one on the bottom and one on each side—allowing for flexible orientation on friction arms, cold shoe mounts, or specialized EVF brackets. This multi-point mounting system is particularly useful for vertical shooting or when the monitor needs to be underslung on a gimbal.

Handling on a shoot is facilitated by a simple interface consisting of a clickable scroll wheel and a "Back" button located on the top of the unit. This allows for one-handed navigation through the menu system, which is critical when the operator’s other hand is occupied with a follow focus or a gimbal handle. The physical design also includes a recessed HDMI input and an HDMI pass-through (output), enabling the signal to be daisy-chained to a second monitor or a wireless transmitter without the need for an external HDMI splitter. This pass-through capability is a rare feature for a monitor of this size and significantly simplifies cable management on complex rigs.

Monitoring Features and Software Tools

Despite its compact size, the SmallHD DP4 HDMI includes a suite of professional monitoring tools that are typically reserved for larger production monitors. These tools are processed in real-time with minimal latency, ensuring that the operator sees an accurate representation of the frame as it happens. The primary tools include:

• Focus Assist (Peaking): This highlights the edges of objects in focus with a high-contrast color or a sharpening filter. The DP4 allows for the adjustment of the peaking intensity, helping operators distinguish focus even in low-contrast scenes.
• False Color (HLSD): This tool maps specific luminance values to distinct colors, allowing the cinematographer to visualize exposure levels across the frame. It is particularly useful for maintaining consistent skin tones (typically mapped to pink or green) and identifying blown-out highlights (mapped to red).
• Framing Guides: The monitor provides several overlay options, including 4:3, 1.85:1, and 2.35:1 aspect ratio guides, as well as safe action and safe title areas. These are essential for projects intended for multiple delivery formats.
• Monochrome Mode: By stripping away color information, this mode allows the operator to focus purely on the lighting ratios and composition of the shot.
• Image Flip: The software can horizontally and vertically flip the image, which is necessary when the monitor is mounted upside down or when using certain 35mm lens adapters that invert the image.

On the Shoot: Practical Scenarios in India

In a Mumbai-based studio environment for a high-end product shoot, the SmallHD DP4 HDMI excels as a dedicated focus-pulling aid. When capturing macro shots of jewelry or electronics, the 1:1 pixel mapping allows the assistant cameraman to verify the exact placement of the focal plane on a small, manageable screen that doesn't clutter the tight workspace of a tabletop set. The aluminum build ensures it can withstand the heat generated by high-intensity studio lights without the risk of thermal shutdown.

During a wedding cinematography assignment in a brightly lit outdoor venue in Jaipur, the DP4 is often utilized in its EVF configuration. By attaching the optical loupe, the monitor is shielded from the harsh Rajasthan sun, which would otherwise wash out any LCD screen. In this mode, the operator gains a third point of contact by pressing their eye against the loupe, significantly stabilizing handheld shots during the baraat or other moving processions. The ability to switch between a monitor and an EVF mid-shoot provides the flexibility needed for the fast-paced nature of Indian weddings.

For a documentary filmmaker traveling through the varied terrain of Himachal Pradesh, the DP4’s power versatility is a major asset. The monitor can be fitted with battery plates that accept common Canon LP-E6 or Sony L-Series (NP-F) batteries, which are widely available and often shared with the camera body itself. Its low power draw means a single high-capacity NP-F battery can power the monitor for an entire day of shooting, reducing the weight of the kit for long treks where every gram of gear matters.

Compatibility and Pairing

The SmallHD DP4 HDMI is highly compatible with a wide range of digital cinema and mirrorless cameras. It accepts signals via a standard HDMI Type A port and supports resolutions up to 1080p at 60fps, though it will downscale these to its native resolution for display. It is frequently paired with cameras like the Sony Alpha series, Canon EOS R series, and the Blackmagic Pocket Cinema Camera line. Because of its HDMI pass-through, it is an ideal companion for wireless video systems like the Teradek Bolt or Hollyland Mars series, allowing the operator to monitor locally while sending a feed to a director’s monitor or a client gallery.

In terms of power, the monitor is highly adaptable. It features a 5.5mm x 2.1mm DC barrel input (7-18V), allowing it to be powered from a D-Tap source on a V-Mount or Gold Mount battery plate. For smaller setups, the interchangeable backplates are the most common choice. It is also compatible with various sunhoods and the specific SmallHD DP4 loupe, which features a diopter adjustment for operators who wear glasses. For mounting, it pairs best with small ball heads or 3-inch friction arms, as its light weight (under 200g without battery) does not require heavy-duty support hardware.

Limitations and Alternative Choices

While the SmallHD DP4 HDMI is a versatile tool, it has clear limitations based on its age and technical specifications. The most prominent limitation is its native resolution of 800 x 480. In an era where 4K acquisition is standard, a sub-HD monitor may not provide enough detail for critical focus on wide-angle shots where the subject is small in the frame. For users requiring a true high-definition display, a 5-inch or 7-inch 1080p monitor like the SmallHD 502 or 702 Touch would be a more appropriate choice.

The monitor also lacks SDI connectivity. This makes it unsuitable for high-end cinema cameras like the ARRI Alexa or Sony VENICE, which primarily use BNC/SDI outputs for monitoring. While HDMI-to-SDI converters can be used, they add bulk and complexity to the rig. Furthermore, the DP4 does not support 3D LUTs (Look-Up Tables). If you are shooting in a Log profile (such as S-Log3 or V-Log) and need to see a corrected Rec.709 preview on the monitor, you would need a more modern monitor with internal LUT processing. Finally, with a brightness of 350 nits, the screen is not "daylight viewable" on its own; without the loupe or a deep sunhood, it will be difficult to use in direct midday sunlight compared to high-bright monitors that offer 1000 to 3000 nits of brightness.
