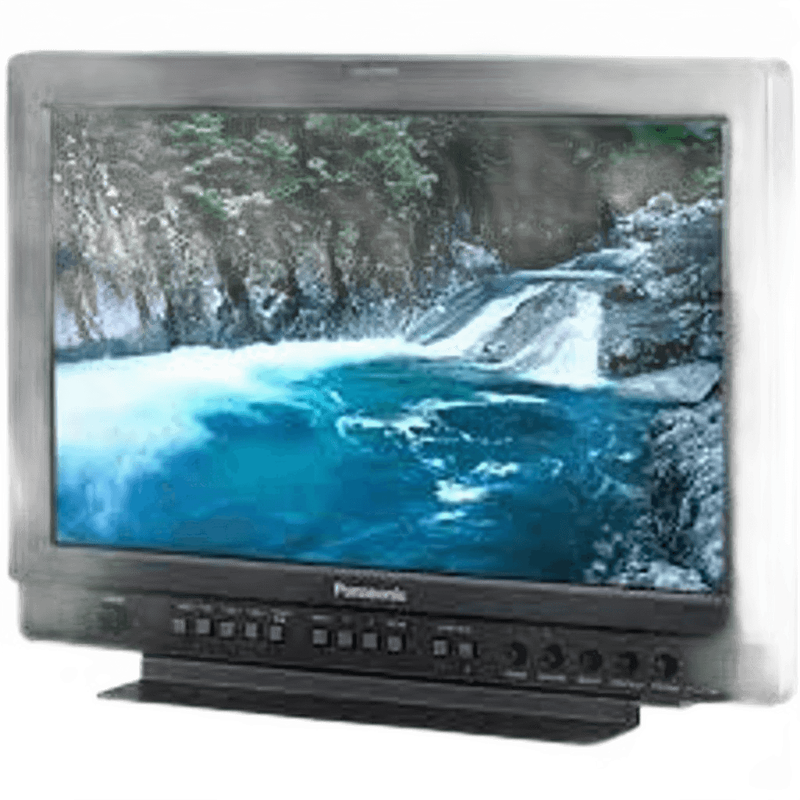

17" BT-LH 1710 Monitor

The Professional Standard in Production Monitoring

The Panasonic 17" BT-LH 1710 is a high-definition LCD production monitor designed to bridge the gap between field monitoring and studio color grading. It features a 17.1-inch diagonal wide-format display with a native resolution of 1280 x 768 pixels (WXGA). This 15:9 aspect ratio is intentional, providing extra vertical space to display critical signal data, such as waveform and vectorscope overlays, without obscuring the primary 16:9 or 4:3 video feed. Positioned as the successor to the industry-standard LH1700, the Panasonic 17" BT-LH 1710 introduced a 10-bit image processing engine, a significant upgrade over previous 8-bit models, allowing for smoother tonal gradations and more accurate color reproduction. It is engineered for cinematographers, DITs (Digital Imaging Technicians), and broadcast engineers who require a color-accurate reference that is rugged enough for travel while maintaining the precision of a rack-mounted studio unit.

Advanced 10-Bit Processing and Color Fidelity

The core of the Panasonic 17" BT-LH 1710 is its 10-bit image processing circuit. This hardware allows the monitor to process 1,024 levels of gray for each primary color, resulting in 1.07 billion possible colors. In practice, this eliminates the "banding" or contouring artifacts often seen in 8-bit displays when viewing subtle gradients, such as a clear blue sky or a dimly lit studio backdrop. The monitor utilizes a 3D Look-Up Table (LUT) for color management. Unlike traditional 1D LUTs that adjust gamma curves for Red, Green, and Blue independently, the 3D LUT in this unit maps colors within a cubic coordinate space. This ensures that cross-color saturation and hue remain accurate across the entire brightness range. The In-Plane Switching (IPS) panel provides a 176-degree viewing angle both horizontally and vertically, which is critical on a busy set where multiple crew members—such as the director, cinematographer, and focus puller—must view the monitor simultaneously without experiencing the color shifting or contrast loss typical of TN panels.

Industrial Build and On-Set Handling

The physical construction of the Panasonic 17" BT-LH 1710 reflects its role as a piece of heavy-duty production equipment. The chassis is housed in a durable aluminum frame, designed to withstand the vibrations of a moving camera vehicle or the rigors of frequent shipping in flight cases. It occupies 7U of rack space when mounted using the optional hardware. The front interface is populated with tactile buttons and rotary encoders, allowing for immediate adjustment of brightness, contrast, chroma, and volume without navigating deep menus. A dedicated "Function" button can be mapped to frequently used tools like the Waveform Monitor or Blue Only mode. For power, the unit is versatile; it features a standard 3-pin AC input (100-240V) for studio use and a 4-pin XLR DC input (12V) for field use, allowing it to be powered by high-capacity V-mount or Gold-mount batteries via a power distribution box. The integrated tally lamp on the front bezel makes it suitable for multi-camera live broadcast environments where "on-air" status must be visible to the operator.

Comprehensive Signal Monitoring and Video Tools

The Panasonic 17" BT-LH 1710 is equipped with a suite of professional monitoring tools that eliminate the need for external scopes in many scenarios. The built-in Waveform Monitor and Vectorscope can be displayed in any of the four corners of the screen, providing real-time analysis of luminance levels and color saturation. For focus critical work, the monitor includes a Focus Assist function, which applies a red-tinted peaking filter to the sharpest edges of the image, making it easier to pull focus on high-resolution sensors. The monitor supports a wide array of inputs, including two auto-switching HD-SDI/SDI inputs (BNC), one component input (Y/Pb/Pr), and one DVI-D input for connecting digital workstations or computers. It also features a composite video input for legacy monitoring. The audio capabilities include an embedded SDI audio de-embedder that can monitor up to eight channels of audio, with on-screen level meters and a built-in monaural speaker or a 3.5mm headphone jack for localized monitoring.

On the Shoot: Real-World Scenarios

In a Mumbai-based commercial studio session focusing on high-end product photography or tabletop cinematography, the Panasonic 17" BT-LH 1710 serves as the primary reference for the client and director. When connected via DVI-D to a capture station running Capture One or via SDI to a cinema camera, the 10-bit processing ensures that the subtle textures of fabrics or the precise highlights on jewelry are rendered accurately. The 3D LUT ensures that the color of the product on screen matches the physical item under the lights, reducing the time spent in post-production color correction.

During a multi-camera corporate event in Bengaluru, the monitor’s dual SDI inputs allow a technical director to toggle between the wide shot and the tight speaker shot instantly. The rugged build is essential here, as the monitor is often moved between the control room and the stage floor. The integrated tally system and the ability to display timecode and 8-channel audio meters allow the operator to monitor the health of the broadcast feed without looking away from the primary image.

For a documentary shoot in the varied lighting conditions of a Delhi outdoor market, the Panasonic 17" BT-LH 1710 is typically mounted on a DIT cart. Using the 12V DC XLR input, it runs off a block battery for hours. The Focus Assist and Waveform tools are indispensable in this high-glare environment, allowing the cinematographer to verify exposure and focus even when the ambient light makes the screen harder to see. The 176-degree viewing angle ensures that the director can stand to the side of the cart and still see an accurate representation of the frame.

Compatibility and Essential Pairings

The Panasonic 17" BT-LH 1710 is designed to integrate into a professional SDI ecosystem. It pairs natively with cinema cameras from ARRI, RED, Sony, and Panasonic’s own Varicam or Lumix lines via standard BNC cables. For power in the field, it requires a 4-pin XLR power cable connected to a 12V source; it does not have an integrated battery plate on the rear, so it is commonly paired with a V-mount battery plate adapter that screws into the VESA mount or sits on the DIT cart. For mounting, the monitor features a standard VESA 100 hole pattern, making it compatible with a wide range of C-stand mounts, desktop stands, and articulating arms. When used in a studio, it is often paired with a DVI-to-HDMI adapter to accept signals from laptops or playback devices, though it is important to note the monitor’s native resolution is 1280 x 768, so the source device should be set to output a compatible signal for the cleanest image scaling.

Limitations and Alternative Choices

While the Panasonic 17" BT-LH 1710 is a reliable workhorse, it has specific limitations dictated by its hardware generation. Its native resolution is 1280 x 768, which means it cannot display a 1920 x 1080 (Full HD) signal pixel-for-pixel. It uses internal scaling to fit 1080i or 1080p signals onto the screen. For productions that require a "pixel-perfect" 1:1 representation of a 1080p or 4K image, a monitor with a 1920 x 1080 or 3840 x 2160 native panel would be a more appropriate choice. Additionally, this monitor uses a CCFL (Cold Cathode Fluorescent Lamp) backlight rather than modern LEDs. This makes the unit significantly heavier (approximately 7.1 kg with the stand) and thicker than contemporary slimline monitors. It also lacks High Dynamic Range (HDR) support, as its peak brightness is rated for standard Rec. 709 workflows. If your shoot requires high-brightness "daylight viewable" screens for use in direct sunlight without a sun hood, or if you are mastering in HDR10 or HLG, a modern high-nit LED or OLED monitor would be required.
