LILIPUT 7" 4K HDMI

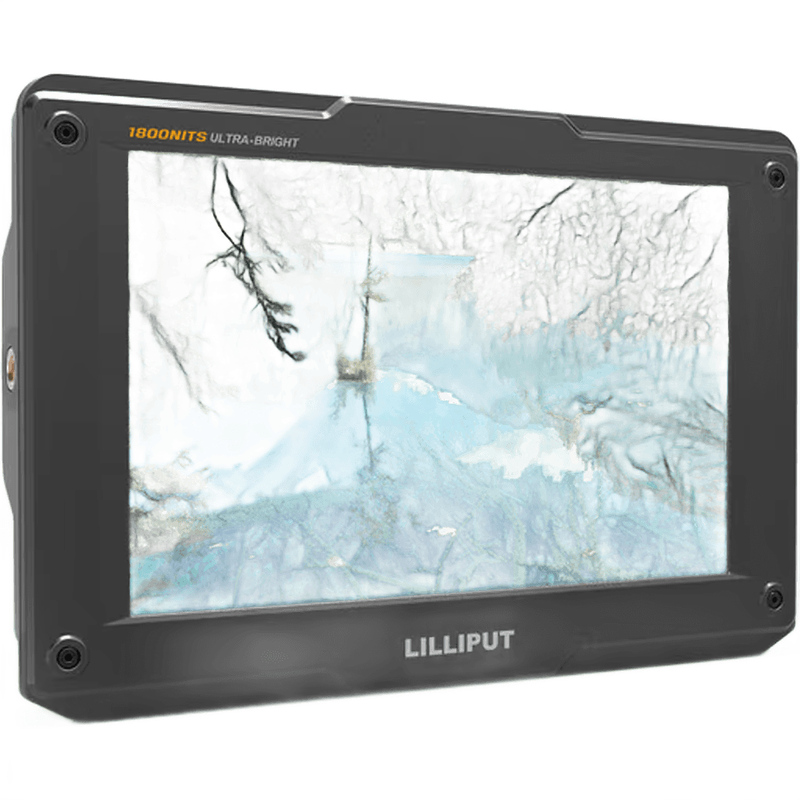

The Lilliput 7 Inch 4K HDMI Field Monitor

The Lilliput 7" 4K HDMI monitor, specifically the A7s model, is a high-resolution field monitor designed to bridge the gap between small, low-resolution on-camera LCDs and expensive production monitors. It features a 7-inch IPS (In-Plane Switching) panel with a native resolution of 1920x1200. This 16:10 aspect ratio provides extra vertical space for status overlays and metadata without obscuring the 16:9 video frame. While the panel is Full HD, the internal processing hardware is designed to accept and downscale 4K UHD signals (3840x2160) via its HDMI 1.4 input. In the Lilliput lineup, this device sits as a lightweight, entry-to-mid-level monitoring solution for mirrorless and DSLR shooters who require a larger screen for critical focus and composition. It was engineered for independent filmmakers, wedding videographers, and gimbal operators who need a balance between screen real estate and weight management, weighing approximately 320 grams without batteries.

Display Technology and Image Quality

The core of the Lilliput 7" 4K HDMI is its 8-bit IPS display, which offers a 170-degree horizontal and vertical viewing angle. This wide viewing angle is critical when the camera is mounted on a crane, jib, or gimbal, allowing the operator to maintain a clear view of the frame even when the monitor is not directly in front of them. The screen provides a brightness of 500 cd/m² (nits) and a contrast ratio of 1000:1. While 500 nits is standard for indoor environments, the high contrast ratio helps in distinguishing shadow detail in low-light scenes. The pixel density sits at 324 PPI (Pixels Per Inch), which ensures that the image remains sharp even when the operator is viewing the screen from a close distance. The monitor utilizes a matte finish on the screen surface to reduce specular reflections, though it relies on an included foldable sun hood for high-glare environments. The color reproduction covers a significant portion of the Rec.709 color space, providing a reliable reference for skin tones and color balance during the acquisition phase.

Build Quality and Mounting Configurations

The chassis of the Lilliput 7" 4K HDMI is constructed from a durable polycarbonate, reinforced by a removable silicon rubber sleeve. This sleeve provides a layer of impact protection against drops and bumps, which is a common occurrence on fast-moving sets. The monitor features two 1/4"-20 threaded mounting points: one on the bottom and one on the right side. This allows for both landscape and vertical mounting, the latter being useful for social media content creators shooting 9:16 video. The physical interface includes a scroll wheel for menu navigation and two customizable function buttons (F1 and F2) on the top edge. These buttons can be mapped to tools like Peaking or False Color for rapid access. For power, the monitor is equipped with a dual-purpose battery plate that accepts Sony NP-F series batteries (such as the F970, F750, or F550) or Canon LP-E6 batteries. It also features a DC 7-24V barrel input for continuous power from a D-Tap source or an AC adapter. The HDMI input and output ports are located on the side, supporting signal loop-through to a second monitor or a wireless transmitter.

Video Processing and Software Tools

The Lilliput 7" 4K HDMI supports 4K UHD input at 24Hz, 25Hz, and 30Hz. It also handles standard HD resolutions from 480i up to 1080p at 60fps. The software suite includes several essential exposure and focus aids. The Peaking filter highlights sharp edges in red, white, blue, or green, allowing the operator to confirm focus without relying on the small camera screen. The False Color tool maps specific luminance levels to different colors, providing a visual representation of the exposure across the frame (e.g., pink for skin tones, yellow for overexposure). Other tools include a Histogram for luminance distribution, Zebra patterns for overexposure warnings, and an Aspect Marker tool that can display 2.35:1, 1.85:1, or 4:3 frame guides. The Pixel-to-Pixel mode allows the user to view the center of the 4K or 1080p signal without scaling, which is the most accurate way to check critical focus on fine textures. The monitor also includes an on-screen audio level meter that monitors the two channels of embedded HDMI audio.

Practical Application in Indian Shoot Scenarios

In a Bengaluru wedding reception held in a dimly lit banquet hall, the Lilliput 7" 4K HDMI becomes essential for focus pulling. When using fast f/1.2 or f/1.4 prime lenses, the depth of field is razor-thin. The 7-inch screen allows the videographer to see the subject's eyes clearly, while the Peaking tool confirms the focus plane in real-time, preventing the soft footage often caused by relying on a 3-inch camera LCD. The dual battery plate is particularly useful here; an NP-F970 battery can power the monitor for several hours of continuous coverage through the long ceremonies.

During a travel shoot in the harsh midday sun of Goa, the monitor’s 500-nit brightness is supplemented by the included sun hood. While high-end high-bright monitors are often used in these conditions, the Lilliput’s hood provides enough shade to allow for accurate composition and exposure checking using the False Color tool. This ensures that the highlights on the sand and water are not clipped, even when the glare makes the camera's built-in screen unusable. The lightweight build is an advantage here, as it does not significantly overbalance a handheld mirrorless setup during long walks on the beach.

In a Mumbai-based studio product session, the HDMI loop-through capability is the primary feature. The monitor sits on the camera for the operator to frame the macro shots of jewelry or electronics, while the HDMI output sends the signal to a larger 24-inch director’s monitor via a long cable. This allows the client to see the exact frame and provide feedback without crowding the camera operator. The 1/4"-20 side mount allows the monitor to be attached to a friction arm on a C-stand, keeping the camera's hot shoe free for a flash trigger or a microphone.

Compatibility and Pairing

The Lilliput 7" 4K HDMI is compatible with any camera that outputs a standard HDMI signal. This includes the Sony A7 series (A7 III, A7 IV, A7S III), the Panasonic GH series (GH5, GH6), and the Blackmagic Pocket Cinema Camera 4K/6K. For mirrorless users, it is best paired with a high-quality Micro-HDMI to Full-HDMI or Mini-HDMI to Full-HDMI cable, preferably with a right-angle connector to reduce strain on the camera port. For power, the Sony NP-F970 is the recommended battery for maximum runtime, though the NP-F550 is preferred for gimbal use to keep the payload light. When mounting on a gimbal like the DJI RS3 or Zhiyun Crane, a dedicated monitor mount that attaches to the gimbal handle is recommended over a hot-shoe mount to maintain a lower center of gravity. For studio use, a 12V 2A DC power adapter ensures the monitor stays active during long shoots without battery swaps.

Limitations and Alternative Choices

While the Lilliput 7" 4K HDMI is a versatile tool, it has specific limitations that may necessitate a different choice. It does not feature SDI (Serial Digital Interface) inputs or outputs, making it unsuitable for high-end broadcast environments or long-distance cable runs where SDI is the standard. If your workflow requires SDI, the Lilliput FS7 or models from the 664 series would be more appropriate. Furthermore, this is a monitor only; it does not record video. If you require external recording to ProRes or DNxHR codecs to bypass internal camera compression, a monitor-recorder like the Atomos Ninja V is required. With a brightness of 500 nits, it is not a "daylight viewable" monitor in the same class as 1500-nit or 2000-nit displays; in direct, unshaded sunlight, the screen will be difficult to see even with the sun hood. Finally, it does not support 3D LUT (Look-Up Table) previews. If you are shooting in Log profiles (like S-Log3 or V-Log) and need to see a corrected image on the monitor, you would need to step up to a monitor that supports internal LUT loading, such as the Lilliput A7s's more advanced successors or professional offerings from SmallHD.
