Atomos Ninja V

The Core Functionality of the Atomos Ninja V

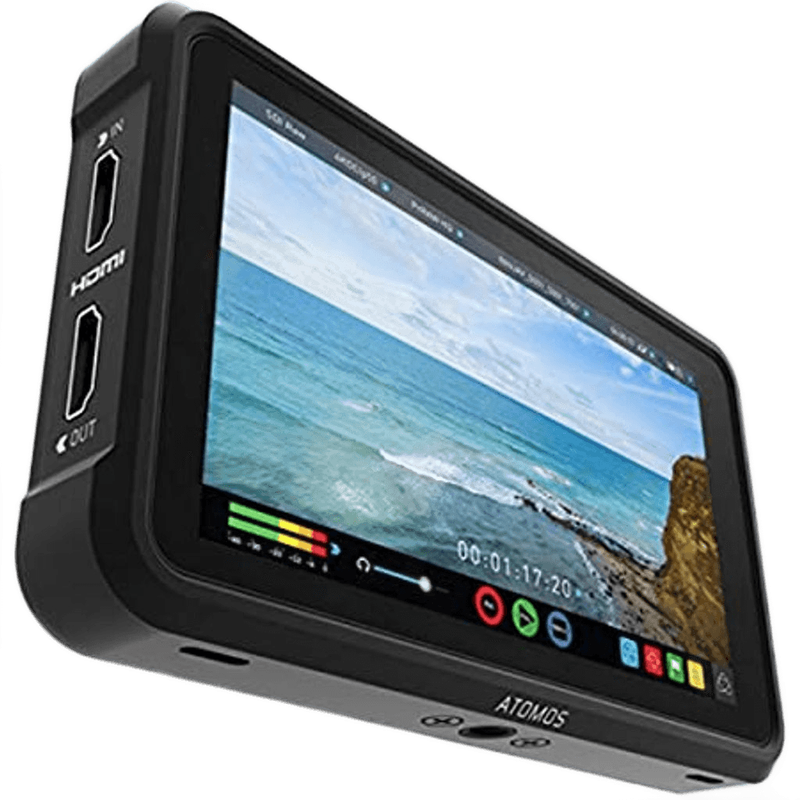

The Atomos Ninja V is a 5-inch, 10-bit HDR monitor and recorder designed to bridge the gap between mirrorless cameras and professional cinema workflows. It features a 1920 x 1080 resolution touchscreen display with a pixel density of 427 PPI. Positioned as the compact successor to the larger 7-inch Shogun and Ninja Inferno units, this device is engineered specifically for filmmakers who require high-quality external recording without the bulk of a full-sized production monitor. It utilizes an AtomHDR engine to display 10+ stops of dynamic range in real-time from Log or RAW signals. The device sits in the middle of the manufacturer’s lineup, offering a balance of portability and high-bitrate recording capabilities that internal camera hardware often cannot sustain due to thermal or processing limitations.

Display Technology and Image Processing

The display on the Atomos Ninja V is a calibrated 1000-nit panel, which allows for visibility in high-ambient light environments without a sun hood. It uses an 8+2 FRC (Frame Rate Control) processing method to simulate 10-bit color depth, ensuring that gradients in sky or skin tones are rendered without the banding artifacts common in 8-bit displays. The AtomHDR monitoring technology allows users to see the full dynamic range of their camera's Log output (such as S-Log3, V-Log, or C-Log) mapped directly to the screen. This is achieved through a selection of pre-loaded gamma curves and color gamuts. Users can also load custom 3D LUTs via the Sony Master Caddy II or AtomX SSDmini, allowing for a "creative look" preview while the underlying recording remains a clean Log or RAW file. The monitor covers 100% of the Rec.709 color space, providing a reliable reference for color grading and exposure management.

Build Quality and Physical Handling

Constructed from an aluminum alloy chassis with a polycarbonate back, the unit weighs 360g (12.7 oz) without batteries or media. This weight makes it suitable for mounting on a camera’s hot shoe or a gimbal without significantly upsetting the center of gravity. The device features two 1/4"-20 mounting points, one on the top and one on the bottom, which include ARRI-style anti-rotation pin holes to prevent the monitor from twisting during movement. Cooling is managed by an internal active fan system that draws heat away from the processor and the SSD slot. The user interface, AtomOS, is navigated entirely via the touchscreen, providing quick access to monitoring tools like focus peaking (with adjustable colors and intensity), 1:1 and 2:1 zoom, zebra stripes, false color, and waveform monitors. The physical design also includes a dedicated AtomX expansion port on the rear, which allows for the addition of modules for SDI connectivity, NDI networking, or wireless timecode synchronization.

Video Recording Capabilities and Codecs

The primary technical advantage of this device is its ability to record video signals via HDMI 2.0 at resolutions up to 4K (3840 x 2160) at 60p. It supports 10-bit 4:2:2 recording in Apple ProRes and Avid DNxHR codecs, which offer significantly higher bitrates (up to 1.8 Gbps) than the internal H.264 or H.265 compression found in most mirrorless cameras. For compatible cameras, it can also record 12-bit ProRes RAW, providing maximum flexibility in post-production for white balance and exposure adjustments. Frame rate support includes standard 23.98p, 24p, 25p, 29.97p, 30p, 50p, and 60p in 4K, while 1080p recording extends up to 120p for slow-motion capture. Because it records to standard 2.5-inch SATA SSDs or the smaller AtomX SSDmini, it bypasses the recording time limits and overheating issues often associated with internal SD card recording. It is important to note that the device is limited to HDMI 2.0 input and output unless an SDI expansion module is attached, and it does not support internal 8K recording.

Operational Performance in Indian Shoot Scenarios

In a wedding photography and cinematography context, such as a daytime ceremony at a Bengaluru outdoor venue, the 1000-nit brightness of the screen is a critical asset. While standard camera LCDs often wash out under the midday sun, the high-brightness panel allows the operator to accurately judge focus on the bride and groom’s expressions without needing a bulky sun hood. The focus peaking tool is particularly useful here for tracking subjects moving through the mandap, where depth of field is often shallow.

For a travel documentary shoot in the humid, high-contrast environments of Goa, the aluminum build provides the necessary durability against the elements. The ability to record to high-capacity 1TB or 2TB SSDs is a logistical advantage, as it allows for hours of continuous 4K footage without the need to swap small, easily lost SD cards in the field. The waveform monitor helps in managing the harsh highlights of the coastal sun, ensuring that detail in the sand and sky is not clipped beyond recovery.

In a Mumbai-based studio setting for product or food videography, the Ninja V acts as a bridge between the camera and the client. By applying a 3D LUT to the monitor output, the cinematographer can show the director or client a finished look on a larger screen while still recording a flat Log profile for the colorist. The HDMI loop-out allows the signal to be sent to a larger 24-inch production monitor simultaneously, ensuring that the entire crew can see the frame with the correct exposure and color representation.

Compatibility and Essential Pairings

The Atomos Ninja V is highly compatible with the Sony A7 series, Panasonic GH and S series, Nikon Z series, and Canon R series cameras. To achieve 4K 60p recording, a high-quality HDMI 2.0 cable capable of 18Gbps throughput is required; standard cables often fail to maintain a stable signal at these bitrates. Power is supplied via Sony NP-F (L-series) batteries, with an NP-F970 battery providing approximately 2 to 2.5 hours of continuous operation. For studio use, a DC battery eliminator is included to power the unit from a wall outlet. Media compatibility is centered on the Master Caddy II system, which accepts standard 2.5-inch SATA III SSDs from brands like Samsung (860/870 EVO) and Angelbird. The AtomX SSDmini is a smaller form factor drive designed specifically for this monitor, fitting flush into the drive slot without protruding. For professional audio, the unit features a 3.5mm mic/line input, allowing for the injection of analog audio directly into the digital video file, which simplifies synchronization in post-production.

Limitations and Alternative Choices

While the Atomos Ninja V is a versatile tool, it has specific limitations that may lead a user to choose a different model. The 5-inch screen, while portable, can be too small for critical focus pulling on wide-angle lenses or for complex multi-subject compositions; in these cases, the 7-inch Atomos Shogun Connect or a dedicated 7-inch Shinobi monitor may be more appropriate. The unit does not have native SDI ports, meaning users of professional cinema cameras like the Sony FX6 or Blackmagic URSA Mini would need to purchase the AtomX SDI module or opt for the Shogun series which includes SDI as standard. Additionally, the Ninja V is limited to 4K recording; those requiring 8K capture for cameras like the Nikon Z9 or Canon R5 will need the Ninja V+ or the newer Ninja Ultra models, which feature upgraded hardware to handle higher data rates. Finally, the internal fan, while necessary for cooling, can produce a low-level hum that might be picked up by sensitive microphones if they are mounted directly adjacent to the monitor in a quiet studio environment.
