Atmos Shogun Flame

The Atomos Shogun Flame Monitoring and Recording System

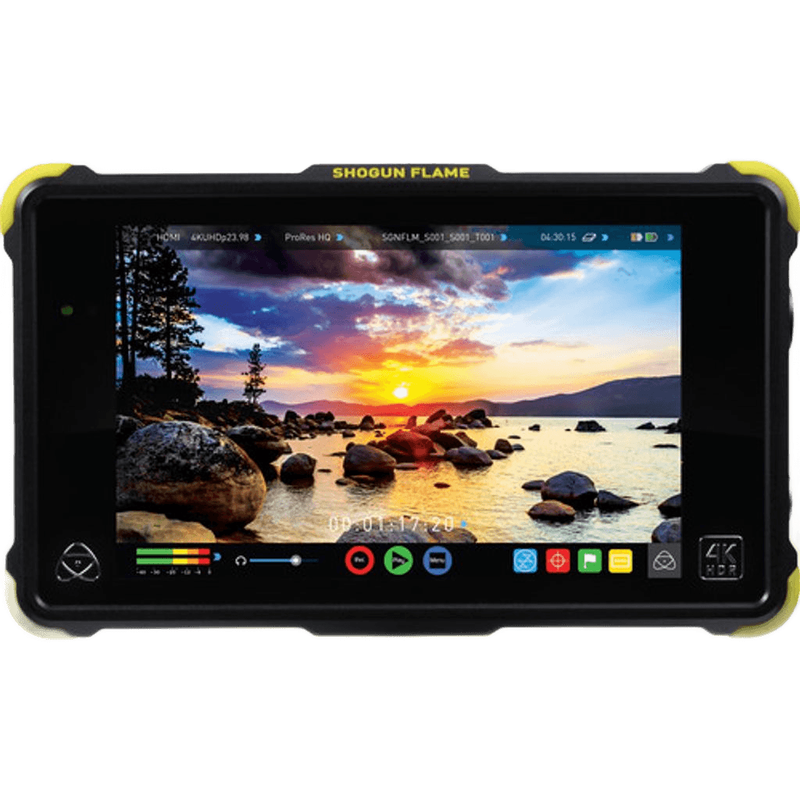

The Atomos Shogun Flame is a 7-inch, 1920 x 1200 resolution field monitor and external video recorder designed to bridge the gap between high-dynamic-range (HDR) production and on-set monitoring. It occupies a central position in the manufacturer’s legacy lineup, sitting above the Ninja series by offering both HDMI and 12G-SDI connectivity, making it compatible with both mirrorless cameras and professional cinema platforms. The device is built around a 10-bit (8+2 FRC) panel capable of reaching a peak brightness of 1500 nits, which is specifically engineered to display the wide latitude of Log signals without the need for a sun hood in most outdoor environments. It was designed for cinematographers and focus pullers who require a high-resolution, daylight-viewable interface that also serves as a high-bitrate recording deck, bypassing the internal compression limits of many camera sensors.

High-Brightness Display and the AtomHDR Engine

The core of the image quality in this device is the AtomHDR engine, a hardware-software integration that maps the logarithmic output of various camera sensors—including those from Sony, Canon, Panasonic, ARRI, RED, and JVC—directly to the monitor’s 10.5 stops of dynamic range. Unlike traditional monitors that simply apply a Look-Up Table (LUT) to "correct" the image, the Shogun Flame allows the user to see the full detail in the highlights and shadows as they are being captured. The 1500-nit panel is significantly brighter than standard 400-500 nit displays, which prevents the image from appearing washed out under direct sunlight. This brightness is paired with a 325 PPI (pixels per inch) density, ensuring that fine details are sharp enough for critical focus assessment. The 10-bit processing (8-bit plus 2-bit FRC) minimizes color banding in gradients, such as skies or skin tones, providing a more accurate representation of the final graded footage during the acquisition phase.

Build Quality and Field Handling

The physical construction of the Shogun Flame prioritizes durability in high-intensity production environments. It features a ruggedized chassis with built-in yellow "armor" or bumpers on the corners to absorb impact from accidental bumps or drops. For mounting, it provides 1/4"-20 threaded holes on both the top and bottom, allowing for flexible attachment to camera cages, friction arms, or light stands. One of its most significant handling features is the dual battery system. The device utilizes two Sony NP-F series battery slots and employs a continuous power system that automatically switches to the second battery when the first is depleted. This allows for hot-swapping batteries without interrupting a recording or losing the monitor feed. The unit also includes a built-in fan for thermal management, which is necessary given the heat generated by the high-brightness panel and the internal processing required for 4K recording. The touchscreen interface is responsive even when wearing thin gloves, and the AtomOS 7 firmware provides a suite of tools including 2:1/1:1 zoom for focus check, focus peaking, zebra stripes, false color, and waveform/vectorscope overlays.

Video Resolutions, Codecs, and Recording Limits

The Shogun Flame is a versatile recording deck that captures video directly from the camera's sensor to 2.5-inch SATA III SSDs or HDDs housed in Atomos Master Caddy II cases. It supports 4K (3840 x 2160) recording at 24, 25, and 30 frames per second. For high-speed work, it supports Full HD (1920 x 1080) at up to 120 frames per second, which is ideal for slow-motion sequences. The device records in professional-grade 10-bit 4:2:2 codecs, specifically Apple ProRes (HQ, 422, and LT) and Avid DNxHR (HQX, HQ, SQ, and LB). By recording externally, users can bypass the 8-bit internal compression and 30-minute recording limits found in many older mirrorless cameras. It also features the ability to convert a Raw signal from certain cameras, such as the Sony FS7 or FS700, into ProRes or DNxHR over the SDI connection. However, it is important to note that this specific model is limited to 4K at 30p; it does not support 4K 60p recording, which requires the later Inferno or Ninja V models. The recording time is limited only by the capacity of the inserted SSD, with a 1TB drive typically holding several hours of high-quality ProRes 422 footage.

On the Shoot: Practical Indian Scenarios

In a Bengaluru wedding reception held in an outdoor garden during the peak afternoon sun, the Shogun Flame becomes an essential tool for the cinematographer. While standard camera LCDs become nearly invisible under the harsh 2:00 PM light, the 1500-nit display remains clear, allowing the operator to accurately judge exposure on the bride’s white lehenga and the groom’s facial details without needing to drape a heavy cloth over their head. The AtomHDR engine ensures that the vibrant colors of the floral decor are monitored accurately, preventing the over-saturation that often occurs when viewing Log footage on a standard Rec.709 screen.

During a travel documentary shoot in the coastal humidity of Goa, the dual battery system proves its worth. When shooting long-form interviews on the beach where AC power is unavailable, the ability to hot-swap NP-F970 batteries ensures the recording never stops. The rugged armor protects the unit from the fine sand and the occasional knocks of a fast-moving documentary crew. Recording in ProRes 422 also provides the editor with much more latitude to grade the golden hour sunsets, avoiding the "macro-blocking" artifacts often seen in the 8-bit internal recordings of smaller cameras.

In a Mumbai-based studio product session for a jewelry brand, the Shogun Flame serves as a critical focus and calibration tool. Using the 2:1 zoom and focus peaking, the cinematographer can ensure the intricate details of a necklace are sharp. The SDI output allows the signal to be looped out to a larger 24-inch director’s monitor, while the Shogun Flame itself acts as the master recorder. The waveform and vectorscope tools are used here to ensure that the white background is perfectly even and that the gold tones of the jewelry fall within the correct legal broadcast limits.

Compatibility and Essential Pairings

The Shogun Flame is highly compatible with a wide range of cinema and stills equipment. It pairs naturally with cameras like the Sony A7S II, Panasonic GH4, or Canon EOS R via HDMI, and with professional bodies like the Blackmagic Ursa Mini or Sony FS5 via 12G-SDI. For storage, it requires 2.5-inch SSDs; high-performance drives from brands like Angelbird, Samsung (870 EVO), or SanDisk are recommended to handle the high data rates of 4K ProRes HQ. Powering the unit requires Sony NP-F style batteries, with the larger NP-F970 size being the most practical for extended shoots. It can also be powered via the included D-Tap to DC coiled cable when used with V-Mount or Gold Mount cinema batteries. For mounting, a heavy-duty articulating arm or a dedicated monitor mount with locating pins is recommended, as the unit weighs approximately 620g without batteries, which can stress smaller, cheaper ball heads.

Limitations and Alternative Choices

While the Shogun Flame is a powerful tool, it has specific limitations that may lead a professional to choose a different model. The most significant limitation is the 30fps cap on 4K recording. For sports, action, or any production requiring 4K at 50p or 60p, the Atomos Shogun Inferno or the Ninja V (with the SDI module) would be required. The physical size of the 7-inch screen, while excellent for visibility, makes the camera rig significantly bulkier; photographers or gimbal operators who need to keep their setup lightweight might prefer the 5-inch Ninja V. Additionally, the internal cooling fan, while necessary, produces a low audible hum that could be picked up by sensitive microphones if they are placed directly next to the monitor in a very quiet room. Finally, while the 1500-nit screen is daylight viewable, it consumes battery power much faster than standard monitors, necessitating a large supply of NP-F batteries for a full day of shooting. If a user only needs a monitor and does not require external recording capabilities, a dedicated high-brightness monitor like the SmallHD 702 Touch might offer a more streamlined software experience without the added weight of the recording hardware.
