Underwater Housing With Sony A7S III & 2 Lens

The Core Architecture of the Underwater Housing with Sony A7S III

The Underwater Housing With Sony A7S III & 2 Lens kit is a specialized imaging system designed for high-end cinematography and photography in aquatic environments. At the heart of this configuration is the Sony A7S III, a mirrorless camera featuring a 12.1-megapixel back-illuminated Exmor R CMOS sensor. Unlike high-resolution sensors designed for large-format printing, this sensor is engineered specifically for light sensitivity and readout speed. The 12.1MP count allows for larger individual pixels (8.4 microns), which significantly enhances the signal-to-noise ratio in the low-light conditions typically found at depth. This sensor is paired with the BIONZ XR processing engine, which provides eight times more processing power than previous generations, enabling the camera to handle high-bitrate video data and complex autofocus calculations simultaneously.

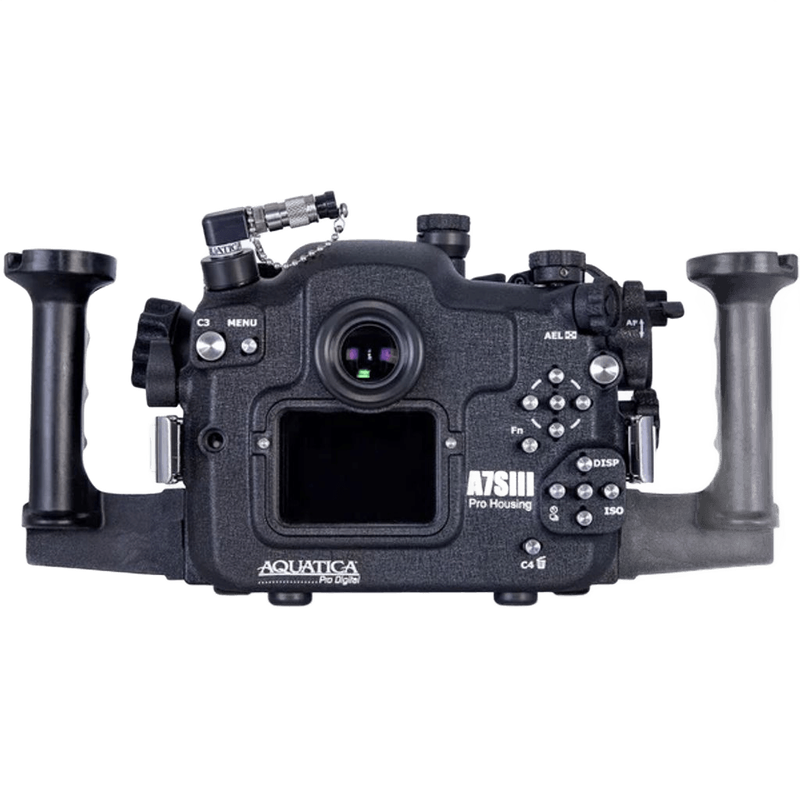

The housing itself is a precision-engineered enclosure, typically constructed from hard-anodized aluminum, designed to protect the camera body while providing external access to all critical controls. It is rated for depths up to 40 meters (130 feet) or 100 meters (330 feet) depending on the specific housing model provided, such as those from Nauticam or Ikelite. The system utilizes a modular port architecture, allowing the user to swap between a large-diameter optical glass dome port for wide-angle work and a flat port for macro photography. This kit includes two specific lenses: the Sony FE 16-35mm f/2.8 GM for expansive underwater landscapes and the Sony FE 90mm f/2.8 Macro G OSS for capturing minute marine life. This combination positions the kit as a professional-grade solution for documentary filmmakers, commercial photographers, and marine researchers who require uncompromised 4K video performance under the surface.

Image Quality and Optical Performance at Depth

The image quality of the Underwater Housing With Sony A7S III & 2 Lens is defined by its exceptional dynamic range and color science. The A7S III offers more than 15 stops of dynamic range when shooting in S-Log3, which is critical underwater where light fades rapidly and highlights from the surface can easily blow out. The camera’s native ISO range starts at 80 and extends to 102,400 (expandable to 409,600), but its true strength lies in its dual-base ISO architecture. In S-Log3, the second base ISO kicks in at 12,800, providing remarkably clean footage in dark crevices or during night dives where artificial lighting might be limited.

Underwater optics present unique challenges, specifically refraction and chromatic aberration. The 16-35mm f/2.8 GM lens, when used behind a corrected dome port, maintains its ultra-wide field of view by compensating for the magnification effect of water. The dome port helps to restore the lens's native angle of view and reduces corner softness. The 90mm f/2.8 Macro lens, conversely, is used with a flat port. In this configuration, the water acts as a magnifying glass, effectively increasing the 1:1 reproduction ratio of the lens, allowing for extreme close-ups of subjects like nudibranchs or pygmy seahorses. The S-Cinetone color profile, migrated from Sony’s Cinema Line cameras, provides a film-like color rendering with natural skin tones and soft highlights, which is particularly useful for capturing divers or marine mammals near the surface where sunlight is abundant.

Autofocus Precision and Underwater Handling

Autofocus performance is a critical factor when shooting through a housing, as manual focusing can be cumbersome with thick gloves or in heavy surge. The Sony A7S III utilizes a Fast Hybrid AF system with 759 phase-detection points covering approximately 92% of the image area. This system is highly effective underwater, where low contrast often causes other cameras to hunt. The Real-time Eye AF is capable of tracking human divers and, in many cases, can lock onto the eyes of larger marine animals, ensuring that the most critical part of the subject remains sharp even as it moves through the three-dimensional space of the water column.

The handling of the system is facilitated by the housing’s ergonomic design. Most professional housings feature mechanical levers and dials that align with the camera’s own controls. This includes a dedicated shutter lever, a record button, and dual command dials for aperture and shutter speed. A critical safety feature included in this kit is the vacuum leak detection system. Before entering the water, a manual pump is used to create a vacuum inside the housing. A built-in sensor monitors the internal pressure; a green LED indicates a secure seal, while a red light warns of a pressure change, preventing catastrophic floods. The housing also features adjustable handles (stays) that allow for the mounting of heavy-duty underwater strobes or video lights via ball-joint arms, providing the stability needed to counteract the buoyancy of the air-filled enclosure.

Video Specifications and Codec Performance

The video capabilities of the Underwater Housing With Sony A7S III & 2 Lens are among the most robust in the mirrorless class. It supports internal 4K recording at frame rates up to 120p. At 4K 120p, there is a slight 1.1x crop, but the footage remains incredibly detailed, allowing for 5x slow-motion playback when placed in a 24p timeline. For standard frame rates like 24p, 30p, or 60p, the camera uses the full width of the sensor with full pixel readout and no pixel binning, ensuring maximum clarity and minimal moiré.

Recording is available in 10-bit 4:2:2 depth across all formats, which is essential for underwater color grading. Water acts as a massive blue or green filter, and correcting these color shifts in post-production requires the high bit-depth provided by the XAVC S-I (All-Intra) or XAVC HS (H.265) codecs. The All-Intra codec records at bitrates up to 600 Mbps, providing the highest level of detail for complex textures like coral reefs. The camera also features a full-size HDMI Type-A port, which can output 16-bit RAW video to an external recorder, though this typically requires a specialized monitor housing. Heat management is handled by a unique passive cooling structure; even inside a sealed underwater housing, the A7S III can record 4K 60p for over an hour without overheating, a significant improvement over its predecessors.

On the Shoot: Indian Underwater Scenarios

In a practical shooting scenario, such as a documentary project in the clear waters of the Lakshadweep islands, the 16-35mm lens is the primary tool. The wide focal length allows the cinematographer to stay close to large subjects like manta rays or sea turtles, minimizing the amount of water (and suspended particles) between the lens and the subject. The A7S III’s high frame rate capability allows for capturing the fluid motion of these animals in 120fps, which can then be stabilized in post-production to create cinematic, dream-like sequences.

For a commercial fashion shoot in a controlled environment like a deep swimming pool in Mumbai, the kit behaves differently. The 16-35mm lens at the wider end can capture the entire scale of the pool and the model’s movement, while the f/2.8 aperture helps create a shallow depth of field that separates the model from the background. The housing’s ability to sync with external strobes via fiber optic cables allows the photographer to use high-speed sync to freeze the movement of water droplets and fabric. In the more turbid, nutrient-rich waters off the coast of Goa, the 90mm Macro lens becomes invaluable. By focusing on tiny crustaceans or coral polyps, the photographer can bypass the poor visibility of the open water, using the A7S III’s high ISO capabilities to maintain a fast shutter speed even when using small apertures (like f/11 or f/16) to gain depth of field.

Compatibility, Media, and Power Requirements

The Underwater Housing With Sony A7S III & 2 Lens requires specific accessories to function at its peak. For media, the camera features dual slots that accept both SD (UHS-II) cards and CFexpress Type A cards. To record in the highest quality All-Intra settings or 4K 120p, CFexpress Type A cards are mandatory due to their superior write speeds. The system is powered by the NP-FZ100 battery, which offers approximately 60 to 90 minutes of continuous video recording. Since opening the housing to change batteries is a time-consuming process that involves drying the unit and re-testing the vacuum seal, having multiple high-capacity batteries is essential for a full day of diving.

Lens compatibility within the housing is governed by the port system. The 16-35mm f/2.8 GM requires a specific extension ring and a large dome port to ensure the zoom gear can be reached by the housing’s external knobs. The 90mm Macro lens requires a different port setup, usually a flat port with a focus gear if manual override is needed. The housing is also compatible with various mounting systems, including 1-inch ball mounts for attaching lights like the Sola or BigBlue video lights, which are necessary for restoring red and orange spectrums that are lost at depths beyond 5 meters.

Considerations and Limitations

While the Underwater Housing With Sony A7S III & 2 Lens is a powerhouse for video, it has specific limitations that may lead some users to choose different equipment. The 12.1MP resolution, while ideal for 4K video and low-light performance, is relatively low for high-end commercial still photography. If the primary goal is to produce large-scale prints or if significant cropping is required in post-production, a high-resolution system like the Sony A7R V in a similar housing would be more appropriate, offering 61MP of detail.

Furthermore, the A7S III does not feature internal ND filters. In bright, shallow water (top 3 meters), the camera may struggle to maintain a wide aperture and a 180-degree shutter angle without overexposing, even at its lowest ISO. This requires the use of external color correction filters or screw-on ND filters on the lens before it is sealed in the housing. Additionally, the physical size and weight of an aluminum housing with a glass dome port can be significant, often exceeding 5kg to 8kg depending on the arms and lights attached. For travelers prioritizing a lightweight setup for snorkeling or casual diving, a compact camera system or a dedicated underwater point-and-shoot might be more manageable, albeit with a significant sacrifice in sensor size and video bit-depth.
