Time Lapse Pro 200

The Dedicated HDR Time-Lapse Solution

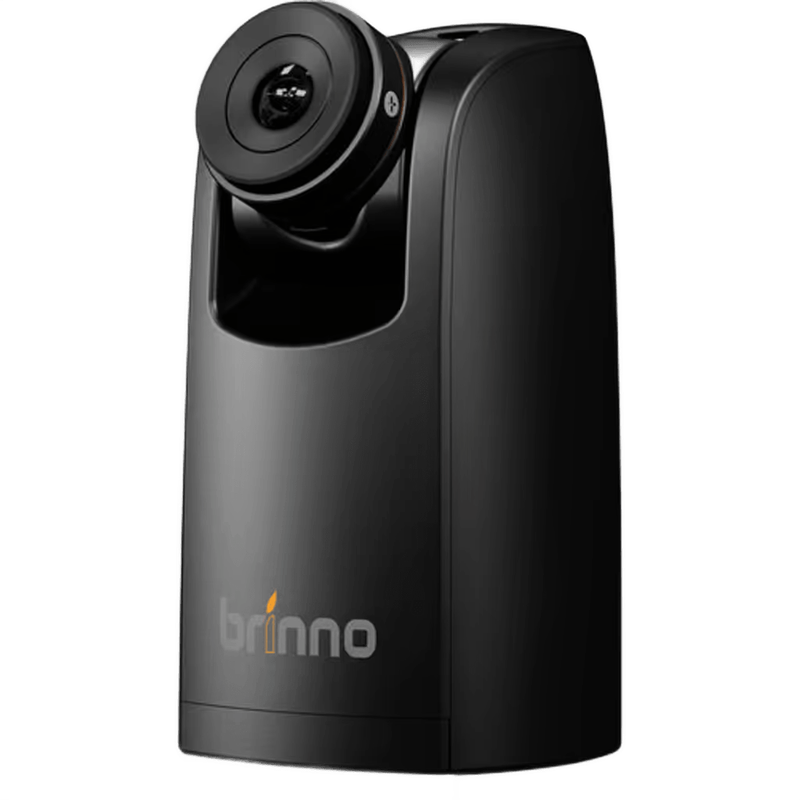

The Time Lapse Pro 200, manufactured by Brinno as the TLC200 Pro, is a purpose-built optical tool designed for the singular task of long-term interval photography with immediate video delivery. Unlike a standard DSLR or mirrorless camera that requires an external intervalometer and significant post-processing to stitch images into a sequence, this device utilizes an internal SoC (System on Chip) to process 1280 x 720 HD images into a finished AVI video file in-camera. At the heart of the unit is a 1/3-inch High Dynamic Range (HDR) sensor, which distinguishes it from consumer-grade time-lapse cameras. This sensor is engineered with a pixel size of 4.2 micrometers, a specification that allows for significantly better performance in high-contrast environments compared to the smaller pixels found in high-resolution smartphones or budget action cameras. It sits in the professional tier of dedicated time-lapse units, designed specifically for construction documentation, event setup monitoring, and long-form environmental studies where traditional camera power and storage constraints would be prohibitive.

Sensor Architecture and Optical Performance

The image quality of the Time Lapse Pro 200 is defined by its 115dB dynamic range. In practical terms, this allows the camera to capture details in both the deep shadows and the bright highlights of a frame simultaneously, which is critical for outdoor shoots where the sun moves across the sky over several hours. The sensor's 4.2µm pixels are optimized for light sensitivity, enabling the camera to continue recording usable footage during twilight or in poorly lit indoor environments without excessive digital noise. The device features an interchangeable lens system using the CS-mount standard. The stock lens provided is a 19mm (35mm equivalent) f/2.0 glass lens with an aspherical element to reduce distortion at the edges of its 112-degree field of view. Because the lens is an f/2.0 optic, it gathers significantly more light than the f/2.8 or f/4.0 lenses typically found on multi-purpose action cameras. Users can adjust image settings including sharpness, contrast, and saturation, as well as select from various white balance presets or a custom manual white balance to ensure color consistency across a multi-day shoot.

Build Quality, Mounting, and Power Management

The chassis of the Time Lapse Pro 200 is compact and functional, weighing approximately 140 grams without batteries. It features a standard 1/4"-20 tripod thread on the bottom, allowing it to be secured to any standard photographic support, from heavy-duty tripods to articulated friction arms. The rear of the unit houses a 1.44-inch TFT LCD screen, which is used for framing the shot and navigating the menu system. Handling this camera on a shoot is characterized by its "set and forget" philosophy. Once the interval is selected—ranging from 1 second to 24 hours—and the frame rate is set (from 1 to 30 frames per second for playback), the camera manages its own power cycles. It is powered by four AA batteries, which can sustain the camera for up to 40 days when capturing at 5-minute intervals. For permanent installations, it features a Micro USB port for external power. The lens housing is adjustable, allowing for a 120-degree tilt, which provides flexibility when the camera is mounted high on a pole or a wall bracket. The build is primarily high-impact plastic, designed to be used inside a weather-resistant housing (such as the ATH120) for outdoor or industrial applications.

Video Output and Technical Constraints

The output of the Time Lapse Pro 200 is a 720p (1280 x 720) video in AVI format. It does not record individual RAW or JPEG stills to the memory card; instead, it compiles the frames into a video file as the shoot progresses. This is a deliberate design choice to save storage space and eliminate the need for desktop video editing software. The camera supports SDHC cards up to 32GB. While 720p is lower than the 4K resolution offered by modern mirrorless cameras, the bitrate and compression are optimized for clarity in time-lapse motion. There are no recording limits in terms of file duration, other than the capacity of the SD card and the life of the batteries. However, it is important to note that the camera does not record audio, as the interval-based capture method makes audio synchronization impossible. The shutter speed is controlled automatically by the camera's metering system, but users can select "Low Light" modes to allow for longer exposures during night-time sequences, though it is not a dedicated long-exposure astro-camera.

Operational Scenarios in the Indian Context

On a construction site in Mumbai, the Time Lapse Pro 200 is frequently deployed to document the progress of high-rise developments over several months. In this environment, the 115dB dynamic range is essential for handling the harsh midday sun reflecting off glass and concrete while still capturing detail in the shadowed areas of the lower floors. When placed in a weather-resistant housing, the camera survives the high humidity and dust of the monsoon season, providing a continuous record that would be impossible with a standard camera requiring daily battery changes. In a different scenario, such as a large-scale wedding reception setup in Bengaluru, the camera can be mounted to a truss to capture the 12-hour transformation of a hall. The f/2.0 lens is particularly useful here, as it handles the fluctuating indoor lighting and the transition from natural light to artificial stage lights without losing clarity. For a travel photographer in the Western Ghats, the camera's light weight and AA battery power make it a viable tool for capturing mist rolling over the hills over a 24-hour period, where charging facilities are unavailable and a lightweight kit is mandatory for trekking.

Compatibility and System Integration

The Time Lapse Pro 200 is part of a modular ecosystem. Its most significant compatibility feature is the CS-mount, which allows the stock 19mm lens to be swapped for specialized optics. This includes the Brinno BCS 24-70mm lens, which provides a narrower field of view and a manual zoom capability for subjects that are further away. The camera uses standard SDHC cards, and for the most reliable performance, Class 10 cards are recommended to handle the write speeds required during short-interval captures. For power, while standard alkaline AA batteries work, lithium AA batteries are often used in extreme temperature environments to extend the operational life. The camera is also compatible with the Brinno Shutter Line (ATS110), which allows for stop-motion photography. For mounting, it integrates with any 1/4"-20 accessory, including wall mounts, magnetic mounts, and clamps. It does not feature Wi-Fi or Bluetooth; data transfer is handled exclusively by removing the SD card and inserting it into a computer, where the AVI file is immediately playable in standard media players like VLC or Windows Media Player.

Limitations and Alternative Recommendations

While the Time Lapse Pro 200 is a leader in its specific niche, it is not the correct tool for every time-lapse requirement. The primary limitation is the 720p resolution. For commercial productions requiring 4K or 8K delivery for large-screen displays or high-end broadcast, a full-frame mirrorless camera like the Sony A7R series or a Nikon Z9 paired with an external power supply would be necessary. These cameras also offer the ability to shoot in RAW, providing much greater latitude for color grading in post-production. Additionally, the 1/3-inch sensor, while excellent for its size, cannot compete with the low-light performance of a 35mm full-frame sensor; for high-detail Milky Way time-lapses, the Pro 200 will show significant limitations in star definition and noise floor. If the project requires "holy grail" transitions (smoothly moving from day to night with manual control over every exposure parameter), a dedicated DSLR with a ramped intervalometer is a better choice. Finally, because it produces a finished video file, you cannot go back and change the frame rate or the "look" of the individual images once they are captured; if you need that level of control, you should opt for a system that saves individual high-resolution stills.
