The Architecture of the DJI Osmo Action Series

The DJI Osmo Action 4 and its successor, the Action 5 Pro, represent a significant shift in the action camera market, moving away from the traditional small-sensor constraints toward a 1/1.3-inch CMOS sensor architecture. This sensor size provides a 2.4μm equivalent pixel size, which is substantially larger than the 1/1.9-inch or 1/2.3-inch sensors found in legacy action cameras. This specific hardware choice positions the device as a professional-grade B-cam or primary POV tool for high-dynamic-range environments. It sits at the top of the DJI handheld imaging lineup, designed specifically for cinematographers who require a ruggedized form factor without sacrificing the 10-bit color depth required for professional grading workflows. The optical stack features a fixed f/2.8 aperture and an ultra-wide 155-degree field of view, designed to capture immersive perspectives while maintaining edge-to-edge sharpness through a bespoke aspherical lens arrangement that minimizes spherical aberration.

Advanced Imaging Technologies and Color Science

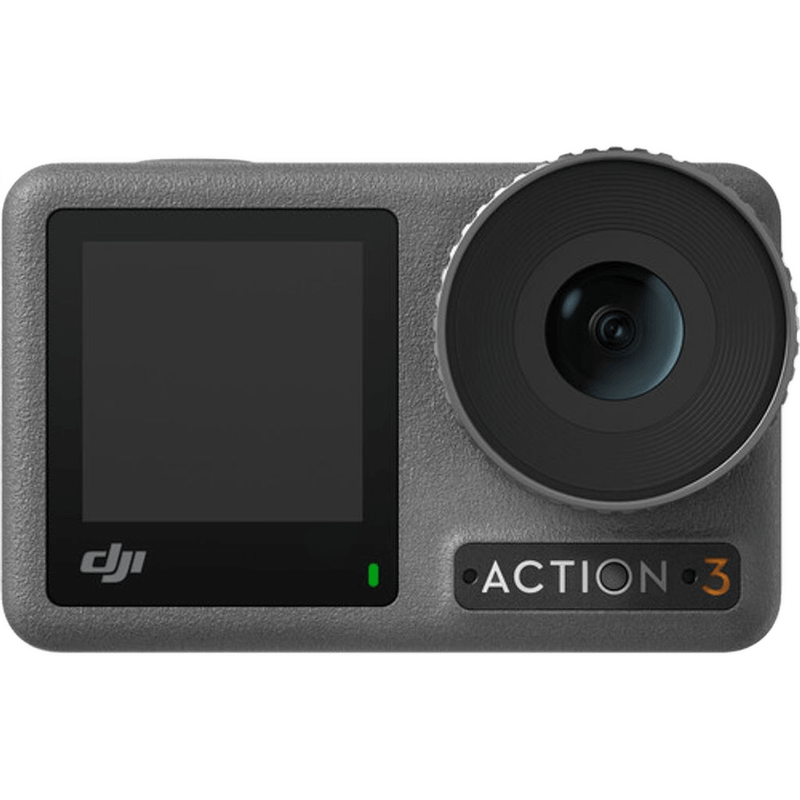

The core of the image quality lies in the integration of a dedicated 10-bit D-Log M color mode. Unlike standard 8-bit profiles that capture 256 shades per channel, 10-bit recording allows for 1,024 shades, totaling over one billion colors. This is critical for preventing banding in gradients, such as open skies or underwater scenes. The DJI Osmo Action 4 also incorporates a physical color temperature sensor located behind the "Action" logo on the front of the chassis. This sensor provides real-time metadata to the image processor, allowing the camera to adjust white balance dynamically in complex lighting environments, such as transitioning from bright sunlight into deep shade or when submerged in water where red light is absorbed rapidly. The camera utilizes a Cine-style color science that aligns closely with the DJI Mavic and Ronin ecosystems, ensuring that footage can be intercut with larger sensor cameras with minimal color matching in post-production. The high dynamic range is further supported by on-chip HDR technology at the sensor level, which preserves detail in highlights and shadows simultaneously without the "ghosting" artifacts often associated with multi-exposure software HDR.

Build Integrity and Mounting Mechanics

The physical handling of the device is centered around a magnetic quick-release system that utilizes two reinforced metal clips and a high-strength magnet. This allows for rapid transitions between horizontal and vertical mounting without the need for threaded screws or cages. The chassis is constructed from a high-strength composite material designed to withstand impacts and extreme temperatures ranging from -20 degrees to 45 degrees Celsius. For monitoring, the device features dual full-color touchscreens: a 1.4-inch front display with a 326 ppi pixel density and a 2.25-inch rear display. Both screens utilize a hydrophobic coating, allowing for touch control even when the surface is wet. The internal stabilization system, RockSteady 3.0+, uses an advanced Electronic Image Stabilization (EIS) algorithm that analyzes high-frequency vibrations in real-time to neutralize camera shake across all axes. Additionally, the 360-degree HorizonSteady feature uses the camera's internal IMU (Inertial Measurement Unit) to keep the horizon level even if the camera is rotated a full 360 degrees during the recording, a feature restricted to resolutions up to 2.7K.

Video Specifications and Codec Performance

The video capabilities are engineered for high-bitrate acquisition, supporting up to 130 Mbps in H.265 (HEVC) or H.264 formats. The primary recording modes include:

• 4K (4:3): 3840 x 2880 at 24, 25, 30, 48, 50, and 60 fps.
• 4K (16:9): 3840 x 2160 at up to 120 fps for 4x slow-motion playback.
• 2.7K (16:9): 2688 x 1512 at up to 120 fps.
• 1080p: 1920 x 1080 at up to 240 fps for 8x slow-motion.

The camera supports a 10-bit D-Log M profile across all resolutions and frame rates, ensuring maximum flexibility in the edit suite. Recording is saved to microSD cards with a maximum capacity of 512GB, requiring a UHS-I Speed Grade 3 rating to handle the sustained write speeds of 4K/120fps footage. Thermal management is handled via an internal heat dissipation structure that allows for extended recording times; in a controlled 25-degree Celsius environment, the camera can record 4K/60fps footage until the battery is depleted or the card is full, though high-frame-rate modes like 4K/120fps may trigger thermal protection after approximately 15 to 20 minutes of continuous use depending on ambient airflow.

Operational Performance in Indian Production Scenarios

In a high-humidity environment like a monsoon-season shoot in Mumbai, the DJI Osmo Action 4 operates without the need for an external housing, as it is natively waterproof down to 18 meters. The hydrophobic lens cover prevents water droplets from obscuring the frame, a common failure point in tropical outdoor shoots. During a Bengaluru wedding reception, the camera's 1/1.3-inch sensor proves its utility in low-light indoor environments. While traditional action cameras often struggle with noise in dimly lit banquet halls, the larger pixel pitch of this sensor maintains a cleaner signal-to-noise ratio at ISO 3200 and 6400. The magnetic mounting system allows a solo operator to quickly snap the camera onto a car hood for a "baraat" procession entry and then immediately move it to a handheld pole for high-angle crowd shots. In a Goa travel production involving water sports, the 10-bit color science is essential for capturing the specific turquoise hues of the Arabian Sea without the digital "blocking" often seen in 8-bit action footage. The camera's ability to withstand salt-water exposure (provided it is rinsed with fresh water afterward) and its high-frame-rate 4K/120fps capability make it the standard for capturing fast-moving surf or jet-ski sequences with cinematic clarity.

Ecosystem Compatibility and Power Management

The camera is powered by the DJI Extreme Battery, a 1770 mAh LiPo 1S unit that provides up to 160 minutes of operating time under standard conditions. This battery is specifically designed to maintain high voltage output in sub-zero temperatures, preventing the sudden shutdowns common in standard lithium-ion cells. For audio, the device features a three-mic array with advanced wind-noise reduction software, but for professional applications, it is designed to pair directly with the DJI Mic 2 via a USB-C digital connection or through the built-in Bluetooth audio protocol, which supports high-quality wireless recording without an external receiver. The camera is compatible with a wide range of mechanical accessories, including the 1.5m Extension Rod, the Suction Cup Mount, and the Bike Seat Rail Mount. For post-production, the camera records gyro metadata, which is fully compatible with Gyroflow and DaVinci Resolve, allowing editors to apply stabilization in post-production with more granular control than the internal EIS provides. Media is handled via the DJI Mimo app for quick proxies and firmware updates, while the physical USB-C port supports the UVC (USB Video Class) protocol, allowing the camera to function as a high-definition webcam for live-streaming without additional capture cards.

Limitations and Alternative Considerations

While the DJI Osmo Action 4 is a highly capable tool, it is not a universal solution for every production requirement. The fixed focal length and f/2.8 aperture mean there is no optical zoom; users requiring tight shots of distant subjects will experience significant resolution loss through digital cropping. In these instances, a mirrorless camera with a telephoto lens is required. Furthermore, while the 1/1.3-inch sensor is large for its class, it cannot compete with the shallow depth-of-field or the extreme low-light performance of a Full-Frame sensor like that found in the Sony A7S III or Canon R5. If a shoot requires a "bokeh" effect or background separation, an action camera is the wrong tool. The wide-angle lens also introduces barrel distortion, which, while correctable in-camera or in post, makes it unsuitable for architectural photography or product shots where geometric accuracy is paramount. Additionally, the lack of a dedicated 1/4"-20 threaded hole directly on the camera body (requiring the magnetic adapter instead) may be a hindrance for certain specialized industrial mounts. For productions that require a 1-inch sensor for even greater dynamic range, the DJI Pocket 3 or a dedicated 1-inch action camera may be more appropriate, though those options typically sacrifice the extreme ruggedness and waterproofing found here.
