C70

The Integration of Cinema EOS and RF Mount

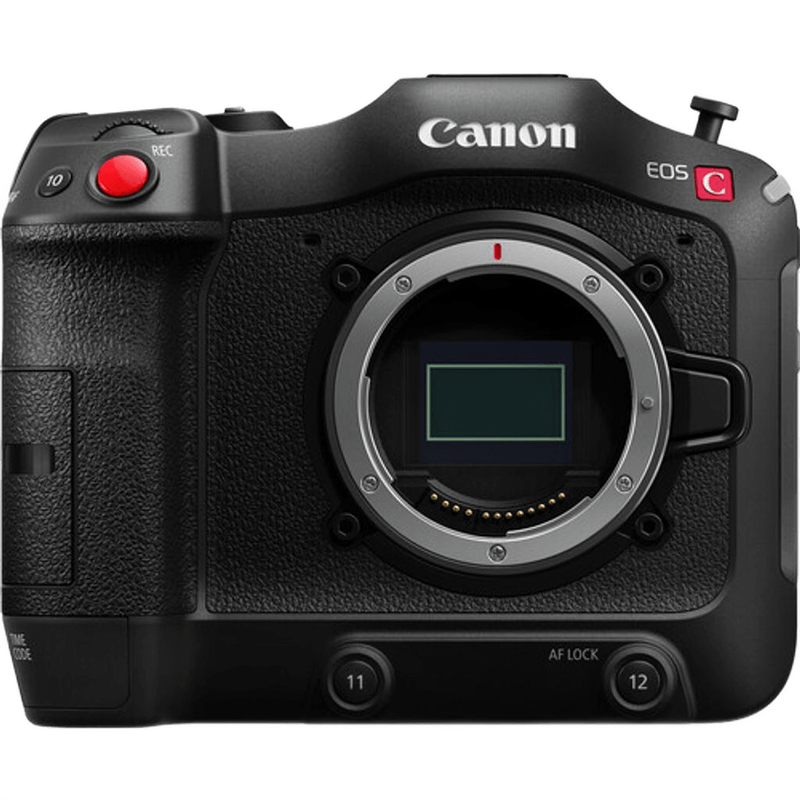

The Canon EOS C70 represents a significant pivot in the manufacturer’s cinema lineup, being the first dedicated cinema camera to utilize the RF mount system. It occupies a unique position between the high-end mirrorless EOS R5 and the modular C300 Mark III, offering a form factor that resembles a deep-bodied DSLR while housing a professional Super 35mm sensor. This camera was engineered specifically for solo operators, documentary filmmakers, and high-end event videographers who require the internal toolset of a cinema camera—such as built-in ND filters and XLR inputs—without the bulk of a traditional production rig. At its core is the 4K Super 35mm CMOS Dual Gain Output (DGO) sensor, a piece of imaging technology shared with the more expensive C300 Mark III, ensuring that the output remains consistent with Canon’s top-tier cinema systems.

The transition to the RF mount is not merely a physical change; it allows for a significantly shorter flange focal distance of 20mm, which enabled Canon to design a motorized ND filter unit that is remarkably thin. This design choice allows the camera to maintain a compact profile while offering professional-grade light control. The C70 is designed to be a "B-camera" for large productions using the C300 Mark III or C500 Mark II, or a primary "A-camera" for independent creators who need to move quickly between handheld, gimbal, and tripod setups. Its output is centered on 4K resolution, prioritizing color depth and dynamic range over raw pixel count, making it a specialized tool for motion rather than a hybrid stills-video device.

The Dual Gain Output (DGO) Sensor and Image Quality

The defining characteristic of the image produced by the Canon EOS C70 is the Dual Gain Output (DGO) technology. Unlike traditional sensors that use a single gain stage, the DGO sensor reads each pixel at two different amplification levels in real-time. One path prioritizes saturation in the highlight areas, while the other path is optimized for noise reduction in the shadows. These two signals are combined at the sensor level before any processing occurs, resulting in a claimed dynamic range of over 16 stops when shooting in Canon Log 2. This architecture effectively suppresses noise at the hardware level, providing a cleaner image in low-light environments compared to standard Super 35mm sensors.

In practice, this technology manifests as a high degree of flexibility in post-production. When shooting in high-contrast environments, the DGO sensor maintains detail in bright skies while preserving texture in deep shadows without the "muddy" look often associated with high-ISO digital capture. The camera utilizes the DIGIC DV7 image processor, which handles the high data rates required for 10-bit 4:2:2 recording. Color science is another critical factor; the C70 is tuned to match the colorimetry of the Cinema EOS family, ensuring that skin tones are rendered with the natural warmth and gradual tonal transitions that professional colorists expect. This makes it an ideal choice for projects where matching footage across multiple Canon cinema bodies is a requirement.

Autofocus Performance and Ergonomic Handling

The Canon EOS C70 utilizes Dual Pixel CMOS AF II, a system that covers approximately 80% of the sensor area both horizontally and vertically. This is paired with the EOS iTR AF X (Intelligent Tracking and Recognition) system, which uses deep-learning algorithms to identify and track human subjects. Specifically, the camera can maintain focus on a subject’s head even if they turn away from the lens or move erratically. For a solo operator, this level of automation is a significant advantage, as it allows for reliable focus tracking at wide apertures like f/1.2 or f/1.8 where manual pulling would be exceptionally difficult without a dedicated focus puller.

Physically, the camera is built for utility. Despite its compact size, it features a built-in motorized ND filter system offering 2, 4, 6, 8, and 10 stops of light reduction. These are controlled via dedicated buttons on the side of the body, allowing for instant exposure adjustments without changing the shutter angle or aperture. The body features 13 assignable buttons, allowing users to map specific functions like peaking, zebras, or magnification to their preferred locations. The handling is further enhanced by a multi-functional grip that houses a joystick for AF point selection and a scroll wheel for aperture control. Notably, the C70 includes a 1/4"-20 tripod thread on the side of the body, facilitating native vertical shooting for social media delivery without the need for complex L-brackets.

Video Specifications, Codecs, and Recording Limits

The video capabilities of the Canon EOS C70 are extensive, supporting internal recording up to 4K at 120 frames per second in 4:2:2 10-bit. When shooting at these high frame rates, the camera maintains autofocus and audio recording, which is a critical feature for documentary work. For even higher speeds, the camera can reach 180fps in 2K Crop mode. The camera supports a variety of codecs to suit different workflows, including XF-AVC (Intra-frame and Long GOP) and MP4 (HEVC or H.264). Following a significant firmware update, the C70 also supports internal Cinema RAW Light recording (LT, ST, and HQ versions), providing maximum latitude for high-end color grading while keeping file sizes manageable on SD media.

Data is recorded to dual UHS-II SD card slots. These slots can be configured for simultaneous recording (for instant backup), relay recording (for long-form events), or even recording different codecs to each card (such as RAW to Card A and an XF-AVC proxy to Card B). Unlike many mirrorless cameras, the C70 features an active cooling system with an internal fan and dedicated air intake/exhaust vents that are physically isolated from the internal electronics to maintain weather resistance. This design ensures that the camera has no recording time limits, even when shooting 4K 120p in high-temperature environments. The only honest limitation in the recording chain is the reliance on the HDMI Type-A port for external monitoring and recording, as the body lacks the more robust BNC/SDI connections found on larger cinema bodies.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception held in a large, dimly lit heritage hall, the C70 excels due to its DGO sensor. Wedding videographers often face the challenge of stage lights creating extreme highlights while the rest of the hall remains in deep shadow. The 16+ stops of dynamic range allow the operator to expose for the couple on stage without losing the ambient detail of the guests in the background. The Dual Pixel AF II is particularly useful here, as it can lock onto the bride or groom’s face amidst a crowded dance floor, even in low-light conditions where traditional contrast-detect systems would hunt.

For a travel documentary shoot in the humid, bright environment of Goa, the C70’s built-in ND filters are indispensable. Moving from a shaded forest area to a sun-drenched beach usually requires fumbling with screw-on filters or matte boxes; with the C70, the operator simply taps a button to engage 6 or 8 stops of ND, maintaining a shallow depth of field even in the midday sun. The active cooling system is a vital safeguard here, as the camera can run continuously for hours in 35°C heat without the risk of thermal shutdown that plagues many hybrid cameras.

In a Mumbai-based studio session for a high-end product commercial, the C70’s ability to record Cinema RAW Light internally allows the production to capture maximum detail for VFX and precise color matching. The camera can be mounted on a compact gimbal like the DJI RS3 Pro without the need for heavy counterweights, yet it provides the 10-bit 4:2:2 color depth required for professional grading. The inclusion of two mini-XLR inputs allows for high-quality scratch audio or professional lavalier feeds to be recorded directly to the video file, simplifying the sync process in post-production.

Compatibility: Lenses, Power, and Media

The RF mount is the gateway to Canon’s most modern optics, such as the RF 24-70mm f/2.8L IS USM or the RF 50mm f/1.2L. However, one of the most important accessories for the Canon EOS C70 is the EF-EOS R 0.71x Mount Adapter. This specialized adapter is designed specifically for the C70’s Super 35mm sensor; it uses a focal reducer to condense the full-frame image circle of EF lenses onto the S35 sensor. This effectively maintains the full-frame field of view of EF glass and increases the maximum aperture by one full stop (e.g., an f/2.8 lens becomes an f/2.0 lens). This makes the C70 highly compatible with the vast library of EF-mount cinema and stills glass already present in many rental kits.

Power is provided by the BP-A series batteries, the same used by the C300 and C500 lines. A BP-A30 battery typically provides around 170 minutes of recording time, while the larger BP-A60 can double that, making it much more efficient for long shoot days than the LP-E6NH batteries used in mirrorless cameras. For media, the camera requires high-speed SD cards; for 4K 120p or Cinema RAW Light recording, V90-rated UHS-II cards are mandatory to handle the sustained write speeds. The camera also features a full-sized HDMI port, a Timecode BNC terminal, and a 3.5mm mic jack in addition to the two mini-XLR ports, ensuring it fits into professional audio and multi-cam workflows.

Limitations and Alternative Choices

While the Canon EOS C70 is a versatile tool, it is not the correct choice for every production. The most prominent limitation for some users will be the Super 35mm sensor size. If a project requires the specific aesthetic of Full Frame depth-of-field and focal length characteristics without using a focal reducer, the Canon EOS R5C or the C500 Mark II would be more appropriate choices. Additionally, the C70 is a video-first machine; while it can capture still images, they are essentially 8.8MP frame grabs. Photographers needing a true hybrid for high-resolution stills should look toward the EOS R3 or R5.

The physical design also lacks an Electronic Viewfinder (EVF). Operators who prefer shooting with the camera pressed to their eye for stability or who work frequently in extremely bright outdoor conditions where an LCD is hard to see may find the lack of an integrated EVF frustrating. In such cases, the C300 Mark III, which offers an optional EVF and a more modular build with SDI outputs, is the better professional fit. Finally, the C70’s HDMI-only output can be a bottleneck in high-end broadcast environments where SDI is the standard for long cable runs and secure locking connections. If your workflow depends on a video village or heavy SDI infrastructure, the C70 will require external converters, which adds complexity to the rig.
