C300 M III

The Super 35mm DGO Architecture

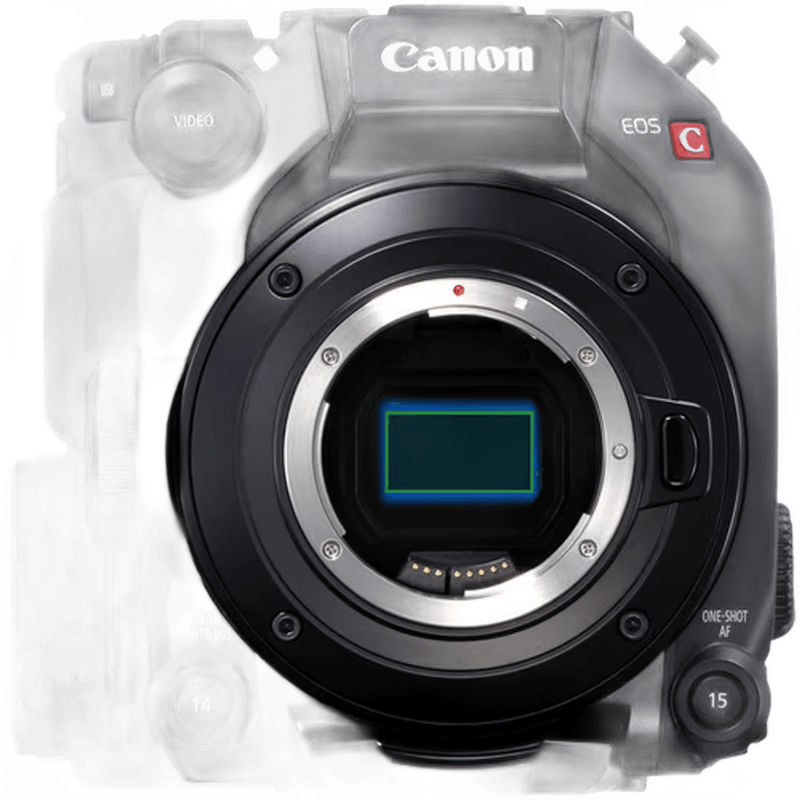

The Canon C300 Mark III is a professional cinema camera built around a Super 35mm Dual Gain Output (DGO) sensor. This sensor technology is the defining characteristic of the camera, positioning it as the mid-to-high-tier workhorse in Canon’s Cinema EOS lineup, situated between the compact C70 and the full-frame C500 Mark II. Unlike traditional sensors that capture an image at a single gain level, the DGO sensor reads each pixel at two different gain levels in real-time. One path prioritizes saturation in the highlight areas, while the other suppresses noise in the shadows. These two signals are combined at the sensor level before any processing occurs, resulting in a claimed dynamic range of over 16 stops. This makes the camera specifically suited for high-end documentary filmmaking, broadcast television, and independent cinema where lighting conditions are unpredictable and post-production flexibility is a requirement.

The physical design follows the modular "box" philosophy introduced with the C500 Mark II. It features a compact, magnesium alloy body weighing approximately 1,750g without a lens or battery. This modularity allows the camera to be stripped down for gimbal use or built up with extension units for multi-camera broadcast environments. The Super 35mm format remains a global standard for cinema, offering a balance between depth-of-field control and lens compatibility, particularly with vintage and modern PL-mount cinema glass via optional mount adapters.

Image Quality and Dual Gain Output Technology

The image quality of the Canon C300 Mark III is characterized by its 4K Super 35mm CMOS sensor and the DIGIC DV 7 image processor. The DGO system functions at frame rates up to 60fps, ensuring that the maximum dynamic range is available for the majority of standard shooting scenarios. When shooting in Canon Log 2 or Log 3, the camera produces a flat image profile that retains significant detail in high-contrast scenes, such as bright skies visible through interior windows. The DGO technology specifically targets the "bottom" of the exposure curve, significantly reducing noise in the shadows compared to the previous Mark II generation.

Color reproduction follows Canon’s established Cinema Gamut, which exceeds the BT.2020 color space. This provides a wide color palette that is particularly effective for skin tone reproduction, a known priority for the Cinema EOS line. The camera supports internal 4:2:2 10-bit recording, which provides the necessary color depth for heavy color grading and chroma keying. For high-sensitivity environments, the camera offers an ISO range from 100 to 102,400, with an expanded range reaching up to 800 to 12,800 in DGO mode for optimal signal-to-noise performance. The inclusion of a motorized ND filter unit provides 2, 4, 6, 8, and 10 stops of light reduction, allowing cinematographers to maintain a wide aperture and shallow depth of field even in direct midday sun.

Autofocus Performance and Professional Handling

The Canon C300 Mark III utilizes Dual Pixel CMOS AF (DAF) technology, covering approximately 80% of the sensor area both vertically and horizontally. This system provides smooth, rack-focus transitions and reliable subject tracking. The camera includes Face Detection AF and Eye Detection AF, which are critical for solo operators managing shallow depth of field on moving subjects. The AF speed and tracking sensitivity are adjustable within the menu, allowing the user to dictate how quickly the camera shifts focus between subjects. For manual focus enthusiasts, the Dual Pixel Focus Guide provides a visual UI element that indicates whether the focus point is in front of or behind the subject, utilizing the phase-detection data from the sensor.

Handling is designed for the rigors of a professional set. The body features 13 assignable buttons, allowing operators to map functions like Peaking, Zebra, Magnification, and One-Shot AF to their preferred locations. The included 4.3-inch LM-V2 LCD monitor is a touchscreen, enabling "Touch Focus" directly on the screen. The camera also features a robust cooling system using an internal fan that pulls air away from the sensor and processor, allowing for unlimited recording times in most environments. The audio section includes two XLR inputs on the body with 48V phantom power, plus a 3.5mm mic jack, supporting 4-channel audio recording when the extension units are utilized.

Video Resolutions, Codecs, and Recording Limits

The Canon C300 Mark III offers a versatile array of recording formats designed to bridge the gap between high-end cinema and fast-turnaround broadcast. It supports internal recording of 4K Cinema RAW Light, a compressed RAW format that retains the flexibility of a RAW workflow while keeping file sizes manageable. In this mode, the camera records 12-bit or 10-bit data at bitrates up to 1Gbps. For projects requiring faster workflows, the camera records XF-AVC in YCC 4:2:2 10-bit. This includes both Intra-frame (up to 810Mbps) and Long GOP (up to 260Mbps) options.

• 4K (4096 x 2160 / 3840 x 2160): Up to 120fps in Super 35mm mode without a crop.
• 2K / Full HD: Up to 180fps in Super 16mm crop mode.
• Bit Depth: 12-bit Cinema RAW Light, 10-bit XF-AVC.
• Media: Dual CFexpress Type B slots for high-bitrate recording, and one SD card slot for proxy recording or firmware updates.

The camera supports simultaneous recording of different formats. For example, you can record 4K Cinema RAW Light to one CFexpress card while recording an XF-AVC proxy to the SD card, facilitating an immediate start to the editing process. There are no artificial recording limits; the camera will record until the media is full or the power source is depleted. The 12G-SDI output allows for 4K 60p output over a single cable to external recorders or high-end monitors.

On the Shoot: Indian Production Scenarios

In a Udaipur palace wedding, the Canon C300 Mark III excels during the outdoor "Varmala" ceremony held under the harsh Rajasthani sun. The DGO sensor’s 16 stops of dynamic range allow the cinematographer to expose for the couple’s faces in the shadows of a mandap while retaining the detail in the white marble architecture and the bright, backlit sky. The internal 10-stop ND filter system is indispensable here, allowing the operator to switch from an indoor hallway to the bright courtyard in seconds without needing to screw on external filters or change the shutter angle, maintaining a consistent cinematic look at f/2.8.

For a documentary shoot in the monsoon streets of Mumbai, the camera’s weather sealing and robust build are vital. When filming handheld in the cramped interiors of a local train or a busy market, the Dual Pixel AF ensures that the subject remains sharp even as the operator navigates through crowds. The Eye AF is particularly useful for capturing candid interviews where the subject may be moving unpredictably. The compact body allows for low-profile operation, while the high ISO performance ensures clean footage in the dimly lit evening markets of Colaba or Dadar.

In a Bengaluru-based commercial studio, the camera is often used for high-speed product shots. Recording 4K at 120fps allows for smooth slow-motion footage of liquids or moving products without sacrificing resolution. The 12G-SDI output feeds a high-resolution director’s monitor with zero lag, while the Cinema RAW Light workflow provides the colorist with the latitude needed to match specific brand colors perfectly in the grade. The modularity means it can be easily mounted on a heavy-duty jib or a motorized slider for precise, repeatable movements.

Compatibility and Essential Pairings

The Canon C300 Mark III is natively equipped with an EF mount, making it compatible with the vast library of Canon L-series and EF-mount Cinema Primes (CN-E). The mount is user-interchangeable, meaning it can be swapped for a PL mount or an EF Cinema Lock mount depending on the production's needs. Electronic communication through the EF mount enables peripheral illumination correction, chromatic aberration correction, and full control over the lens aperture from the camera body.

Power is supplied via BP-A30 or BP-A60 batteries. The BP-A60 is the preferred choice for full-day shoots, providing approximately 125 minutes of continuous recording. For studio setups, the camera includes a DC-IN 12V terminal. Media requirements are strict due to the high bitrates; CFexpress Type B cards are mandatory for 4K RAW and high-frame-rate XF-AVC recording. For audio, the camera pairs naturally with top-handle mounted shotgun microphones or wireless lavalier systems via the dual XLR ports. The camera is also compatible with the EU-V1 and EU-V2 expansion units, which add ports like Genlock, Remote B (RS-422), and additional XLR inputs for broadcast or multi-cam configurations.

Limitations and Alternative Choices

While the Canon C300 Mark III is a highly capable tool, it has specific limitations that may lead a filmmaker to choose a different body. The most significant factor is the Super 35mm sensor size. If a project requires the specific aesthetic of full-frame optics—such as the wider field of view and distinct bokeh characteristics—the Canon C500 Mark II or the Sony FX9 would be more appropriate choices. Furthermore, while the C300 Mark III produces exceptional 4K imagery, it does not offer 6K or 8K resolution. Productions requiring higher pixel counts for large-scale VFX work or extreme cropping may find the Canon EOS R5 or the Sony A1 more suitable, despite their mirrorless form factors.

The camera’s weight and size, while modular, are still significantly greater than mirrorless alternatives. For solo travel vloggers or operators frequently using small, consumer-grade gimbals, the Canon EOS C70 offers the same DGO sensor in a much smaller, RF-mount body, albeit with fewer physical inputs and no internal RAW recording to CFexpress. Finally, the DGO system does not function at frame rates above 60fps; when shooting 4K 120fps, the camera reverts to a standard readout, which results in a slight reduction in dynamic range and a marginal increase in noise in the shadows compared to the 24fps or 60fps modes.
