C300 M II

The Super 35mm Foundation of the Canon C300 Mark II

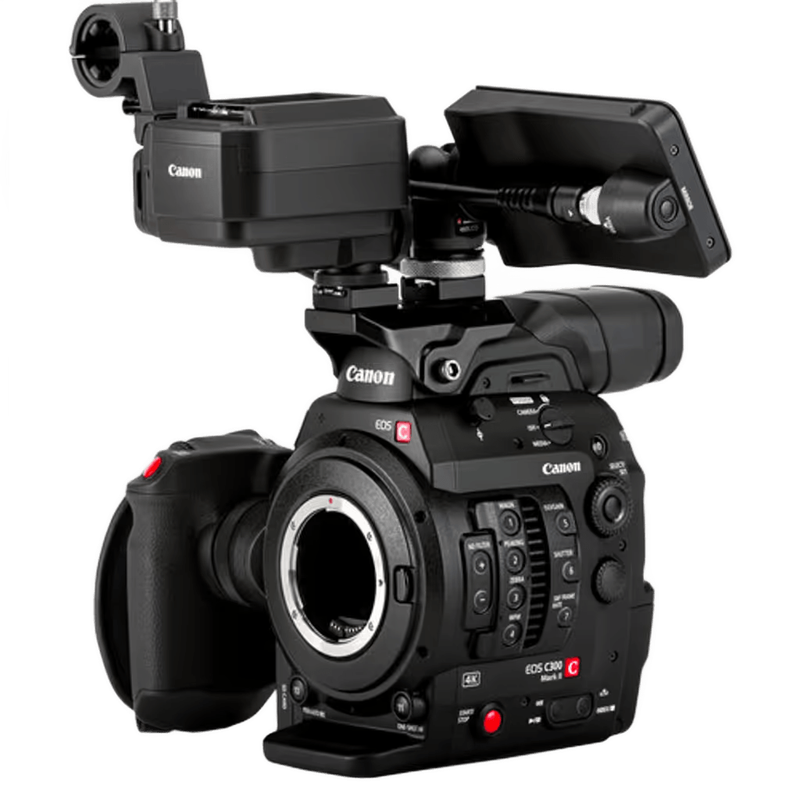

The Canon C300 Mark II is a professional cinema camera built around an 8.85-megapixel Super 35mm CMOS sensor. This sensor is specifically designed for motion picture acquisition, providing a native resolution of 4096 x 2160 for 4K DCI or 3840 x 2160 for Ultra HD. Positioned as the successor to the original C300, this camera was engineered to bridge the gap between independent documentary filmmaking and high-end broadcast production. It utilizes a Dual DIGIC DV 5 image processor architecture, which allows the camera to handle the significant data rates required for internal 4K recording while simultaneously processing complex autofocus algorithms and high-dynamic-range color science.

The physical design of the camera follows the modular Cinema EOS tradition. It features a compact, vertically oriented body that can be stripped down for use on gimbals and drones or built up with a top handle, monitor unit, and side grip for handheld operation. The sensor size is approximately 24.6 x 13.8 mm, which provides the shallow depth of field and aesthetic characteristics associated with traditional 35mm motion picture film. This makes it a primary choice for narrative filmmakers who require the EF mount's vast lens compatibility or the PL mount's industry-standard precision. The camera is designed to be a reliable "A-cam" for mid-budget features or a robust "B-cam" alongside larger systems like the C700 or Alexa platforms.

Color Science and Dynamic Range Capabilities

The image quality of the Canon C300 Mark II is defined by its ability to capture 15 stops of dynamic range when using the Canon Log 2 gamma curve. This wide latitude ensures that detail is preserved in both deep shadows and bright highlights, which is critical for high-contrast outdoor scenes or controlled studio environments. The camera also offers Canon Log 3, which provides 14 stops of dynamic range but is designed for a faster post-production workflow with easier noise management in the shadows. For projects requiring immediate turnaround, the camera includes Wide DR and EOS Standard picture styles, which provide a finished look directly out of the sensor.

Color reproduction is handled with 10-bit 4:2:2 sampling for internal 4K recording, while 2K and Full HD recording can be pushed to 12-bit 4:4:4 for maximum color fidelity. This 12-bit depth is particularly useful for green screen work and heavy color grading, as it minimizes banding and provides a more granular control over the RGB channels. The sensor uses a Bayer pattern that oversamples the image; it reads the 4K sensor to produce a high-fidelity 2K or HD image without the moiré and aliasing often found in cameras that use line-skipping. The ISO range extends from a base of 160 up to 102,400, though the camera maintains its cleanest signal-to-noise ratio at its native ISO of 800 when shooting in Log modes.

Dual Pixel CMOS AF and Professional Handling

One of the most significant technological inclusions in the Canon C300 Mark II is the Dual Pixel CMOS AF system. This phase-detection autofocus technology uses two photodiodes per pixel to calculate distance and focus direction simultaneously. It covers approximately 80% of the sensor area both vertically and horizontally. On a real shoot, this translates to smooth, rack-focus-style transitions that can be adjusted for speed and sensitivity. The system includes Face Detection AF, which is highly effective for solo operators tracking a moving subject. For manual focus pullers, the camera provides a Focus Guide tool that uses the Dual Pixel data to show exactly where the focus plane is relative to the subject, indicating whether the lens is front-focused or back-focused.

The handling of the camera is bolstered by a built-in motorized ND filter system. This internal unit offers 2, 4, and 6 stops of filtration in standard mode, which can be expanded to 8 and 10 stops in an extended mode. This allows cinematographers to maintain a wide aperture and shallow depth of field even in harsh midday light without needing external matte boxes. The body features two 3G-SDI outputs, a full-size HDMI port, and two XLR audio inputs on the removable monitor unit. The cooling system uses an internal fan to pull heat away from the sensor and processors, allowing for continuous recording without the thermal shutdowns common in smaller mirrorless bodies.

Internal Codecs and Video Specifications

The Canon C300 Mark II records internally to dual CFast 2.0 card slots using the XF-AVC codec. This is an H.264-based wrapper that supports both Intra-frame (ALL-I) and Long GOP compression. In 4K DCI or UHD at 24p, 25p, or 30p, the camera records at bitrates up to 410 Mbps. For high-speed recording, the camera can reach 100 fps or 120 fps in 2K or Full HD modes. It is important to note that when shooting at 100/120 fps, the camera applies a crop to the sensor, which changes the effective focal length of the attached lens. The camera does not support 4K at 60p internally; 60p is only available at 2K or HD resolutions.

For proxy workflows, there is an SD card slot that can record 8-bit 4:2:0 files simultaneously with the high-resolution CFast 2.0 files. This is useful for immediate editing or dailies. The camera also supports external RAW recording via the 3G-SDI outputs. When connected to a compatible external recorder, the camera can output 4K RAW data, providing the ultimate flexibility for high-end post-production. The audio recording capabilities are equally professional, supporting 4-channel 24-bit 48 kHz LPCM audio, allowing for two XLR inputs and the internal stereo mic or 3.5mm input to be used concurrently.

Operational Scenarios in the Indian Market

In a Bengaluru wedding reception scenario, the Canon C300 Mark II excels due to its color science and low-light performance. Wedding venues in India often feature complex LED lighting with varying color temperatures. The camera’s ability to handle skin tones naturally under these conditions, combined with the 10-bit internal recording, allows the editor to correct for mixed lighting without the image falling apart. The Dual Pixel AF is particularly useful here, as it allows a single operator to track the couple through a crowded hall while maintaining focus at f/2.8 or wider.

For a travel documentary shoot in Goa, the camera’s build quality and internal ND filters become essential. Moving from the bright, reflective sands of a beach into a dimly lit Portuguese-era church requires rapid exposure adjustments. The 10-stop ND system allows the filmmaker to make these changes internally without stopping to swap filters. The weather-sealed construction provides protection against the high humidity and salt air, while the BP-A60 batteries offer long run times, often lasting over two hours of active shooting, which is vital when charging opportunities are limited during a day of field production.

In a Mumbai studio setting for a product or fashion session, the camera’s connectivity is its primary asset. The dual SDI outputs allow for a clean feed to be sent to a director’s monitor while a second feed with overlays (zebras, peaking, and waveform) goes to the camera assistant. The 12-bit 4:4:4 2K mode is frequently used in these environments for high-end commercials where color accuracy for brand assets is paramount. The ability to mount the camera on a heavy-duty tripod via its 1/4"-20 and 3/8"-16 mounting points ensures a stable platform for precise product shots.

Lens Compatibility and Essential Accessories

The Canon C300 Mark II is most commonly found with an EF mount, making it compatible with the entire range of Canon L-series glass and EF-mount cinema lenses like the CN-E primes. The EF mount is electronic, allowing the camera to control the aperture of the lens and receive metadata such as focal length and focus distance. This metadata is recorded into the video files, which is helpful for VFX tracking. The camera can also be converted to a PL mount at authorized service centers, allowing the use of industry-standard cinema glass from Zeiss, Cooke, and Arri.

Media requirements are specific: 4K recording requires CFast 2.0 cards with high sustained write speeds. A 128GB card will typically hold about 40 minutes of 4K 410 Mbps footage. Power is supplied via the BP-A series batteries; the BP-A30 is the slim version that sits flush with the body, while the BP-A60 offers double the capacity for longer shoots. For studio power, the camera includes a 4-pin XLR DC input (16.7V). The top handle assembly includes the MA-400 microphone adapter, which is essential for professional audio, and the 4-inch LM-V1 LCD monitor, which provides a 1.23 million dot resolution for critical focus checking.

Limitations and Alternative Considerations

While the Canon C300 Mark II is a versatile tool, it has specific limitations that may lead a filmmaker to choose a different body. The most notable limitation is the lack of 4K recording at 60 frames per second. If a project requires high-frame-rate 4K for slow-motion playback, the newer C300 Mark III or the C500 Mark II would be more appropriate choices, as they offer 4K at 120p and 60p respectively. Additionally, the C300 Mark II is a relatively heavy camera when fully rigged, weighing approximately 3.3kg with the handle and monitor. For ultra-lightweight gimbal work or tight spaces, the Canon C70 offers a similar sensor in a much smaller, RF-mount form factor.

The XF-AVC codec, while robust, creates very large file sizes compared to modern HEVC (H.265) codecs found in newer cameras. This results in higher media costs and more storage requirements on set. Furthermore, the 100/120 fps high-speed mode in 2K incurs a significant sensor crop, which can make wide-angle slow-motion shots difficult to achieve without extremely wide lenses. Finally, while the Dual Pixel AF is excellent, it lacks the more advanced "Eye-Detection" and "Animal Detection" algorithms found in the latest mirrorless systems like the EOS R5 C. For productions that do not require the cinema-grade I/O and ND filters of the C300 series, those mirrorless alternatives may offer more modern autofocus features and higher resolution sensors.
