The Architecture of the Canon 5D M III

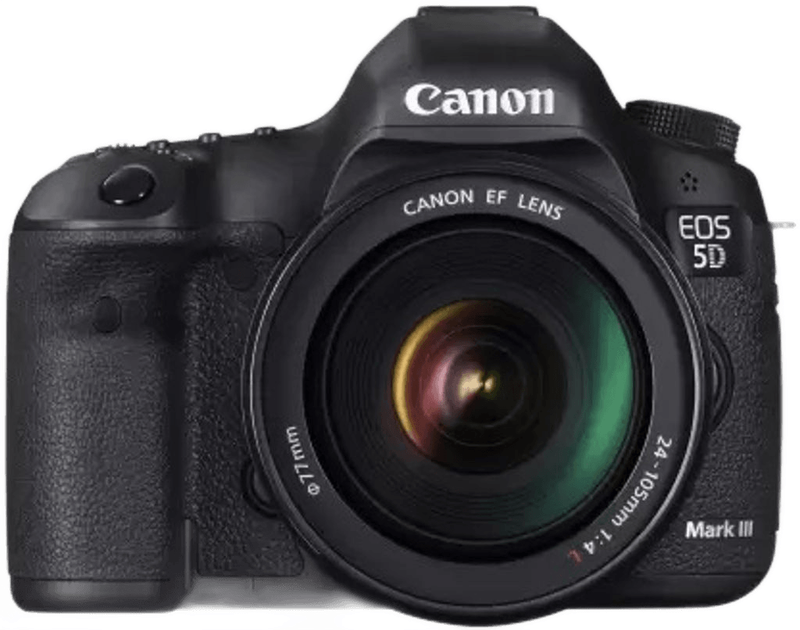

The Canon 5D M III is a full-frame digital single-lens reflex camera built around a 22.3-megapixel CMOS sensor. Measuring 36 x 24 mm, this sensor was designed to provide a balance between high-resolution output for print and manageable file sizes for high-volume workflows. It occupies a central position in the manufacturer’s EOS lineup, serving as the professional workhorse that bridged the gap between the high-speed 1D series and the entry-level full-frame 6D series. This body was engineered specifically for wedding, portrait, and event photographers who required a significant upgrade in autofocus reliability and low-light performance over its predecessor, the Mark II. The internal architecture is powered by the DIGIC 5+ image processor, which is approximately 17 times faster than the DIGIC 4 processor, allowing for complex in-camera processing and a continuous shooting speed of 6 frames per second at full resolution.

Sensor Technology and Image Quality

The 22.3MP sensor in the Canon 5D M III utilizes a gapless microlens array to maximize light-gathering efficiency. This design choice directly impacts the signal-to-noise ratio, enabling a native ISO range of 100 to 25,600, which can be expanded further to L (50), H1 (51,200), and H2 (102,400). The 14-bit A/D conversion ensures smooth tonal transitions and a broad color gamut, which is particularly evident in skin tone reproduction. The DIGIC 5+ processor handles real-time chromatic aberration and peripheral illumination correction, reducing the need for extensive post-processing when using wide-angle L-series glass. For photographers working in high-contrast environments, the camera includes a built-in High Dynamic Range (HDR) mode that merges three bracketed exposures, and a Multiple Exposure mode that allows for up to nine frames to be combined using Additive, Average, Bright, or Dark compositing methods.

Autofocus Precision and Body Ergonomics

The most significant technical leap in the Canon 5D M III is its 61-point High Density Reticular AF system. This array includes up to 41 cross-type AF points, depending on the lens aperture, and 5 dual cross-type points that are sensitive to f/2.8. This system is inherited from the flagship EOS-1D X, providing professional-grade tracking for moving subjects. The AF menu is divided into six "Cases" or presets, allowing the user to fine-tune tracking sensitivity, acceleration/deceleration tracking, and AF point auto-switching based on the specific movement patterns of the subject. The body is constructed from a magnesium alloy chassis with extensive weather sealing against dust and moisture. Handling is defined by a 100% coverage Intelligent Viewfinder that uses a transparent LCD overlay to display grid lines and AF points without obstructing the optical path. The 3.2-inch Clear View II LCD monitor features 1.04 million dots and a gapless design with a hardened glass cover to minimize reflections during outdoor use.

Video Specifications and Limitations

The Canon 5D M III introduced several critical video features to the EOS line, most notably the inclusion of a 3.5mm headphone jack for real-time audio monitoring. It records Full HD 1080p video at 24, 25, and 30 frames per second, and 720p video at 50 or 60 frames per second. Users can choose between ALL-I (intra-frame) compression for higher quality and easier editing, or IPB (inter-frame) compression for longer recording times on a single card. The camera utilizes the H.264/MPEG-4 AVC codec. While it significantly reduced the moiré and aliasing artifacts found in earlier models, it does not support 4K resolution. The maximum continuous recording time is 29 minutes and 59 seconds per clip, and the file system automatically splits files at the 4GB mark without interrupting the recording. A notable limitation for modern cinematographers is the lack of Dual Pixel CMOS AF; autofocus during video is contrast-based and generally too slow for professional tracking, necessitating manual focus for most cinema applications.

Performance in Indian Shoot Scenarios

In a Bengaluru wedding reception held in a dimly lit heritage hall, the Canon 5D M III excels due to its "Silent Control" touch-sensitive dial and its dedicated Silent Shutter mode. The silent drive setting allows the photographer to capture candid moments during quiet ceremonies without the mechanical "clack" of the mirror assembly. The 61-point AF system remains reliable under tungsten or LED stage lighting, where lesser systems often hunt. In a Goa travel or landscape shoot, the magnesium alloy build proves its worth. When shooting the coastline at sunset, the weather sealing protects the internal electronics from salt spray and humidity, while the 22.3MP sensor captures enough fine detail in the rocky textures and foliage for large-format prints. For a Mumbai-based studio product session, the camera’s dual card slots—one CompactFlash (UDMA 7) and one SD (SDHC/SDXC)—allow for immediate "backup" recording. A photographer can write RAW files to the CF card while simultaneously sending small JPEGs to the SD card for quick client previews on a tablet or laptop via a tethered connection.

Compatibility and Essential Pairings

The Canon 5D M III utilizes the EF lens mount, making it compatible with the entire catalog of EF lenses, though it cannot accept EF-S lenses designed for crop-sensor bodies. To maximize the resolution of the 22.3MP sensor, it is best paired with L-series optics such as the 24-70mm f/2.8L II USM or the 70-200mm f/2.8L IS II USM. Power is provided by the LP-E6 or LP-E6N lithium-ion battery packs; a single charge typically yields approximately 950 shots under standard CIPA conditions. For extended shoots, the BG-E11 battery grip allows for the use of two LP-E6 batteries or six AA batteries. Regarding media, the CF slot supports UDMA 7 speeds, which is necessary to clear the buffer quickly during 6 fps bursts. While the SD slot is convenient, it is limited to UHS-I speeds, meaning that using an SD card as the primary overflow for high-speed bursts may slow down the camera's overall write performance compared to using the CF slot alone.

Limitations and Alternative Recommendations

While the Canon 5D M III remains a highly capable tool, it has distinct technical boundaries. The lack of 4K video and the absence of a tilt-shift or articulating screen make it less ideal for modern content creators who require vlog-style monitoring or high-resolution video delivery. The autofocus system, while excellent through the viewfinder, is slow and prone to hunting when using Live View, as it lacks the Dual Pixel AF technology found in the 5D Mark IV or the R-series mirrorless cameras. If a shoot requires high-speed tracking of eyes or animals, the newer mirrorless EOS R6 or R5 would be a more appropriate choice due to their AI-based subject detection. Furthermore, for studio work requiring extreme cropping or massive commercial prints, the 50.6MP Canon 5DS or 5DSR offers more than double the linear resolution. Finally, the fixed rear LCD can be a hindrance for low-angle architectural photography or macro work, where a vari-angle screen would provide better visibility.
