The Architecture of the Zhiyun Crane 3 LAB

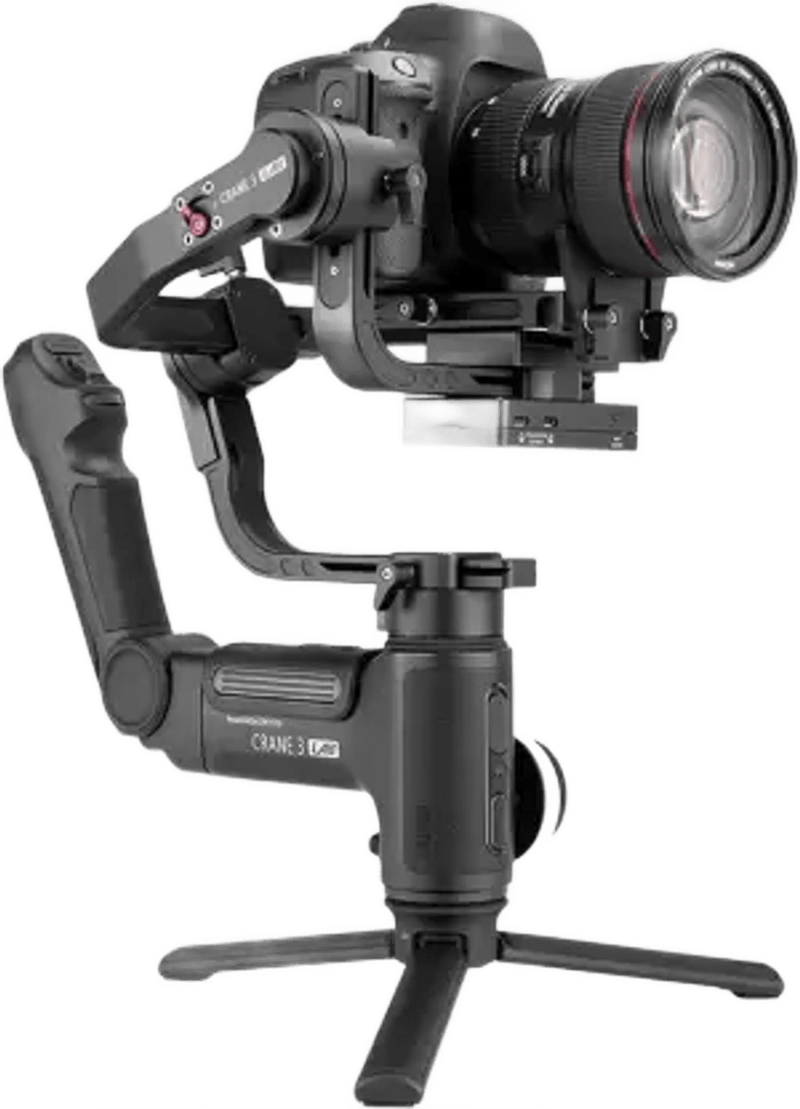

The Zhiyun Crane 3 LAB represents a fundamental departure from the traditional "flashlight" grip design that defined the first generation of handheld stabilizers. As the flagship entry in the LAB series, this gimbal introduced the "Sling Mode" ergonomics, characterized by a secondary handle extending from the rear of the main body. This structural shift was engineered to move the center of gravity closer to the user’s body, specifically to facilitate low-angle shots and reduce wrist fatigue during extended shoots. It occupies the professional tier of the manufacturer’s lineup, sitting above the Weebill series in terms of raw payload capacity and motor torque. Designed for cinematographers using full-frame mirrorless systems and mid-sized cinema cameras, it supports a maximum payload of 4.5kg (approximately 10 lbs). This capacity allows it to stabilize rigs that include heavy lenses, matte boxes, and follow-focus motors, which would typically overwhelm smaller stabilizers.

The core of the system is built around aviation-grade motor units. These motors provide a 100% increase in torque and a 50% reduction in noise compared to the previous generation Crane 2. The physical layout includes a dedicated control center on the primary handle, featuring an OLED status screen, a joystick, a dial for camera settings, and a mode switch. Unlike previous models where the camera was balanced and then left to swing freely during transport, this unit features individual locking latches on the pan, tilt, and roll axes. These mechanical locks allow the user to secure each axis independently, making it significantly easier to balance the camera one axis at a time and preventing the gimbal arms from flopping during transit between locations.

Stabilization Technology and Motor Response

The Zhiyun Crane 3 LAB utilizes the 8th Instune Algorithm, a software layer that coordinates the response of the three brushless motors to external movement. This algorithm is tuned to handle the high inertia of heavy camera setups, ensuring that micro-jitters are eliminated even when using longer focal lengths. The motor response is customizable through the onboard menu, allowing users to adjust the "Deadband" and "Follow Speed" for each axis. In practice, this means the gimbal can be set to a "Smooth" mode for slow, cinematic pans or a "PhoneGo" mode for maximum motor speed, which is necessary for fast-paced action sequences or whip-pans where the gimbal must track the operator's movement with zero latency.

A defining technical feature of this model is the integration of wireless image transmission directly into the gimbal's base. The stabilizer functions as a wireless transmitter, capable of streaming a 1080p video signal to a smartphone or tablet via the ZY Play app. This system eliminates the need for external wireless transmitters for basic monitoring, reducing the overall weight and power draw of the camera rig. The image transmission system supports real-time monitoring with minimal latency, allowing a director or focus puller to view the frame on a mobile device while the operator handles the physical movement of the gimbal.

Build Quality, Mounting, and Physical Handling

The chassis is constructed from a combination of aluminum alloy and high-strength polymers, weighing approximately 1.88kg without batteries or a camera. The mounting system uses a standard Manfrotto quick-release plate, which allows for rapid transitions between the gimbal and a tripod without needing to swap plates. The tilt axis is designed with a slight offset, ensuring that the camera’s rear LCD screen remains visible and unobstructed by the roll motor, a critical requirement for operators not using an external monitor.

Handling is centered around the dual-handle design. The main vertical grip houses the battery compartment, while the horizontal "Sling" handle contains the majority of the electronic controls. This secondary handle is fixed in place and features a rubberized grip for secure two-handed operation. The gimbal also includes two dedicated ports for external servo focus and zoom motors. These motors are controlled via a large focus wheel on the side of the main body and a zoom rocker on the rear handle, allowing the operator to manipulate the lens optics mechanically without touching the camera body. This dual-control system is essential for maintaining perfect balance, as manual lens adjustments during a shot would otherwise introduce unwanted vibrations.

Wireless Control and Integrated Video Features

The ViaTouch Control System is the primary software interface for the Zhiyun Crane 3 LAB. When connected to a compatible camera via the included proprietary cables (USB-C, Micro-USB, or Mini-USB), the gimbal allows for the adjustment of ISO, aperture, shutter speed, and exposure compensation directly from the handle or a connected smartphone. This integration extends to the "Object Tracking" feature; when using the wireless transmission system, a user can draw a box around a subject on their smartphone screen, and the gimbal will automatically pan and tilt to keep that subject centered in the frame.

The wireless transmission system operates on the 2.4GHz and 5GHz bands, providing a stable connection within a range of approximately 100 meters in open environments. The gimbal also features a dedicated phone holder that mounts to the side of the handle, turning the user's smartphone into a professional-grade monitor. For power, the unit utilizes three 18650-type lithium-ion batteries (2600mAh each), providing a theoretical runtime of up to 7.5 hours. Actual runtime varies based on the weight of the camera and how well the system is balanced; a perfectly balanced rig puts significantly less strain on the motors, extending battery life toward the upper limit of the specification.

On the Shoot: Practical Performance in India

In a Bengaluru wedding reception scenario, the "Sling Mode" of the Zhiyun Crane 3 LAB becomes its most valuable asset. During the *varmala* or the couple's entrance, the operator can drop the gimbal into a low-angle position to capture the grandeur of the stage and the floral decorations from a worm's-eye view. The 4.5kg payload is sufficient to carry a Sony A7S III paired with a heavy 24-70mm f/2.8 lens and a shotgun microphone, ensuring that the high-energy movement of the crowd is stabilized without the motors overheating in the crowded, often warm indoor environment.

For a travel shoot in the humid, coastal environment of Goa, the mechanical axis locks are a critical reliability feature. When moving between beach locations or boarding a boat, the ability to lock the arms prevents the camera from swinging and potentially striking the gimbal frame. The high torque motors are also capable of resisting moderate wind resistance, which is common during seaside filming. The 1080p wireless transmission allows a second person to monitor the frame on a tablet from the shade, ensuring that the bright sunlight hitting the camera's rear LCD doesn't lead to missed focus or poor framing.

In a Mumbai studio setting for a product commercial, the dual servo motors for focus and zoom allow for precise, repeatable movements. When filming a slow push-in on a stationary product, the operator can use the zoom rocker to create a "dolly zoom" effect or use the focus wheel to rack focus from the foreground to the background with mechanical precision. The ViaTouch system allows the cinematographer to change exposure settings as the lighting setup is adjusted, without having to touch the camera and risk shifting its position on the mounting plate.

Compatibility and Essential Pairings

The Zhiyun Crane 3 LAB is compatible with a wide range of professional camera systems. It is frequently paired with the Sony A7 series (A7R IV, A7S III), the Panasonic GH5 and S1 series, and the Canon EOS R and 5D Mark IV. For larger setups, it can accommodate the Blackmagic Pocket Cinema Camera 4K or 6K, though these wide-bodied cameras often require an offset plate or counterweights to clear the roll motor. The gimbal includes a variety of control cables, but users must ensure they use the specific cable designed for their camera brand to enable shutter control and settings adjustment.

Essential accessories for this gimbal include the TransMount Servo Zoom/Focus Controller (Max and Lite versions), which plug into the two dedicated ports on the gimbal's cradle. For power, it requires three 18650 batteries; it is recommended to use the manufacturer-provided batteries or high-discharge equivalents to ensure the motors receive consistent voltage. The gimbal also features a 1/4"-20 threaded hole on the bottom and several on the handles, allowing for the attachment of magic arms, external monitors, or microphones. It uses a standard HDMI input for the wireless transmission system, requiring a Mini-HDMI or Micro-HDMI to HDMI cable depending on the camera body used.

Limitations and Alternative Considerations

While the Zhiyun Crane 3 LAB is a powerful tool, it has distinct limitations that may lead some users to choose different equipment. The most significant factor is its physical weight and bulk. At nearly 2kg before adding a camera and batteries, the total operating weight can easily exceed 6kg. For solo operators filming long documentaries or events without breaks, this weight can become prohibitive. Those prioritizing portability and single-handed operation may find the Zhiyun Weebill 3S or the DJI RS 3 more suitable, as those models offer high payloads in a much smaller, lighter form factor.

The wireless transmission system, while integrated, is limited to 1080p and can experience interference in areas with heavy 2.4GHz/5GHz traffic, such as large trade shows or tech hubs. Professional productions requiring zero-latency, long-range monitoring may still need a dedicated Teradek or Hollyland system. Furthermore, the 4.5kg payload, while impressive, is not sufficient for fully rigged cinema cameras like the ARRI Alexa Mini or a fully kitted RED V-Raptor with large cinema primes. For those specific high-end cinema needs, the Zhiyun Crane 3S, which features a 6.5kg payload and an extendable arm, is the more appropriate choice. Finally, the proprietary nature of the control cables means that if a cable is lost or damaged on set, it cannot be easily replaced with a standard off-the-shelf USB cable, necessitating a backup kit for professional reliability.
