Vertical Plate 9:16

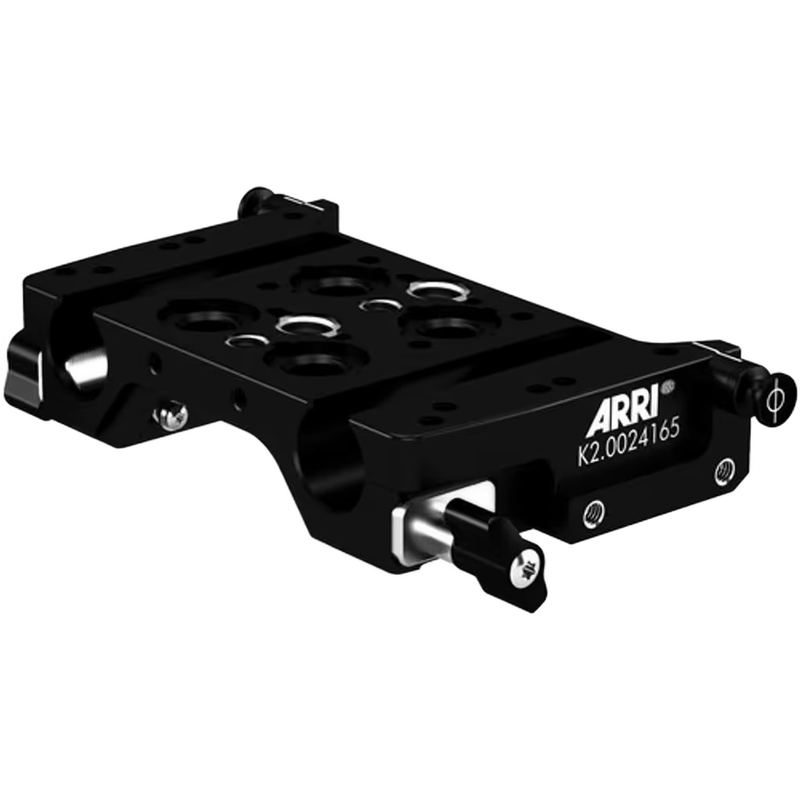

The Engineering and Purpose of the Vertical Plate 9:16

The Vertical Plate 9:16 is a precision-engineered mounting solution designed specifically for the DJI RS series gimbals, including the RS 2, RS 3, and RS 3 Pro. It serves as a structural replacement for the standard horizontal mounting bracket, allowing a camera to be positioned in a native portrait orientation. Unlike traditional L-brackets which are often designed for static tripod use, this plate is optimized for the dynamic torque and balance requirements of a three-axis stabilizer. It is constructed from a high-strength aluminum alloy, typically 6061-T6, which provides the necessary rigidity to support heavy cinema rigs while maintaining a low physical profile. The plate sits at the core of a vertical-first workflow, catering to the increasing demand for high-resolution social media content, digital signage, and mobile-first advertising. By rotating the camera 90 degrees on its optical axis, the plate enables the sensor to capture the full vertical height of the frame, utilizing the entire pixel array for 9:16 delivery rather than relying on a center-crop from a horizontal 16:9 capture.

In the manufacturer’s lineup, this component is classified as a specialized rigging accessory. It is designed for cinematographers and content creators who require the stabilization of a full-sized gimbal but need to deliver content in a vertical format without sacrificing image quality. The plate features a standard Arca-Swiss interface on its base, ensuring it can slide directly into the gimbal’s tilt axis arm. It often includes a series of 1/4"-20 and 3/8"-16 threaded holes, allowing for the attachment of counterweights or additional accessories like focus motor rods. The design focuses on minimizing the distance between the camera’s center of gravity and the gimbal’s tilt motor, which is critical for maintaining motor efficiency and preventing overheating during extended shoots.

Build Quality and Structural Integrity

The Vertical Plate 9:16 is defined by its CNC-machined construction, which ensures that all mounting surfaces are perfectly perpendicular. This precision is vital because even a one-degree deviation in the mounting angle can cause the gimbal motors to work harder to compensate for a "lopsided" load, leading to micro-vibrations in the footage. The plate typically weighs approximately 128 grams, a figure calculated to provide maximum support without adding unnecessary bulk to the gimbal’s payload. The surface is treated with a hard-anodized finish to resist scratches from repeated mounting and unmounting of camera cages. On the mounting surface, high-friction rubber pads are integrated to prevent the camera body from twisting, a common issue when cameras are mounted vertically and subjected to the centrifugal forces of rapid gimbal pans.

The mounting mechanism utilizes a dual-screw system or a safety-pin lock to ensure the camera remains secure. For cameras like the Sony A7S III or the Canon EOS R5, the plate provides enough clearance for the flip-out screens to be partially or fully articulated, depending on the specific cage used. The plate’s length is calibrated to allow for a wide range of fore-and-aft movement, which is necessary when balancing long lenses like a 24-70mm f/2.8 or a 16-35mm f/2.8. The inclusion of a laser-etched scale on the side of the plate allows for repeatable balancing; once a specific camera and lens combination is balanced, the user can note the millimeter mark and return to it instantly on future shoots, significantly reducing setup time.

Mounting Mechanics and Gimbal Balancing

Handling a camera on the Vertical Plate 9:16 requires a fundamental shift in how the gimbal is balanced. In a standard horizontal setup, the weight is distributed across the width of the tilt axis. With the vertical plate, the height of the camera becomes the primary factor in the tilt axis balance. This often moves the center of gravity higher, requiring the tilt arm to be adjusted to its lower limits. The plate is designed with a low-profile base to keep the camera as close to the roll motor as possible. This proximity is essential for the RS 3 Pro’s high-torque motors to function within their optimal power band. When properly balanced, the camera should remain stationary at any angle of tilt without the motors being engaged.

On a real-world shoot, the handling of the vertical rig is noticeably different. The "flashlight mode" of the gimbal becomes the primary operating position for low-angle vertical tracking shots. The plate’s design ensures that the camera’s ports—specifically the HDMI and USB-C ports used for monitoring and focus control—remain accessible, though cable management becomes more complex. Because the camera is turned on its side, cables now exit from the top or bottom of the rig, necessitating the use of right-angle adapters or specialized cable clamps to prevent the wires from snagging on the gimbal’s arms during a 360-degree roll or a steep tilt.

Video Capability and Sensor Utilization

The primary technical advantage of using the Vertical Plate 9:16 is the preservation of sensor resolution. When shooting 4K video (3840 x 2160) in a horizontal orientation and cropping for a 9:16 Reel or TikTok, the resulting vertical image is only 1215 x 2160 pixels. This represents a loss of over 60% of the sensor's data. By using the vertical plate, the camera captures a native 2160 x 3840 image. This allows for significantly more flexibility in post-production, including the ability to punch in or reframe the shot without dropping below 1080p delivery standards. Furthermore, the autofocus systems in modern mirrorless cameras, which rely on phase-detection points spread across the sensor, perform more predictably when the subject is framed natively within the vertical orientation.

There are, however, honest limitations to this setup. Many camera viewfinders and on-screen menus do not automatically rotate their UI elements to a vertical orientation, which can make changing settings or reading histograms difficult for the operator. Additionally, some sensors exhibit different rolling shutter characteristics when panned vertically versus horizontally. Because the sensor readout typically happens line-by-line from top to bottom, rotating the camera 90 degrees means that a horizontal pan now interacts with the sensor readout in a way that can exacerbate "jello" effects on vertical lines like pillars or trees. The Vertical Plate 9:16 does not solve these sensor-level issues, but it provides the stable mechanical platform necessary to minimize physical camera shake that would otherwise worsen the rolling shutter artifacts.

On the Shoot: Real-World Indian Scenarios

In a Mumbai fashion studio located in a space like Famous Studios, the Vertical Plate 9:16 is used to capture high-end editorial content for luxury brands. During a shoot involving a model walking toward the camera, the vertical orientation allows the cinematographer to capture the full outfit—from shoes to headwear—without having to stand back so far that the studio background is lost. The plate allows the DJI RS 3 Pro to execute smooth "push-in" shots where the model remains perfectly framed within the 9:16 aspect ratio, maintaining the high-resolution detail required for 4K vertical displays in retail environments.

At a Bengaluru wedding reception held in a large convention center like Palace Grounds, the plate is used by the social media team to create "same-day edit" Reels. The challenge here is the crowded environment and the need for speed. The vertical plate allows the operator to move through the crowd, capturing the bride and groom’s entrance with the gimbal in "Briefcase Mode." Because the camera is already in the 9:16 orientation, the footage can be transferred via Wi-Fi to a mobile device and posted immediately without the need for time-consuming cropping or rotation in a mobile editing app, ensuring the content goes live while the event is still trending.

During a travel shoot in the narrow streets of Fontainhas, Goa, the Vertical Plate 9:16 proves its value in architectural and street cinematography. The colorful, tall Portuguese-style houses are difficult to capture in a horizontal frame without losing the street-level detail or the rooflines. By mounting the camera vertically, the filmmaker can perform a vertical tilt-up that reveals the entire facade of the building in a single, stabilized motion. The compact nature of the plate ensures that the rig remains balanced even when the filmmaker is walking over uneven cobblestones, providing a level of stability that handheld vertical shooting cannot match.

Compatibility and Pairing

The Vertical Plate 9:16 is most effective when paired with specific ecosystem components. It is natively compatible with the DJI RS 2, RS 3, and RS 4 series gimbals. For the best results, it should be used in conjunction with a dedicated camera cage from brands like SmallRig or Tilta. These cages provide multiple mounting points that allow the plate to be secured more firmly than a single 1/4"-20 screw would allow. When choosing lenses, lightweight primes such as a 35mm or 50mm are ideal, as they keep the center of gravity close to the mount. However, if using heavier zooms, the plate is compatible with long-extended quick-release plates that provide more balancing runway.

In terms of monitoring, a secondary external monitor is almost mandatory when using this plate. Since the camera’s built-in screen is often blocked by the gimbal’s tilt motor when in a vertical position, mounting a 5-inch monitor like an Atomos Ninja V to the gimbal’s handle allows the operator to see the frame clearly. The monitor can be set to "rotate" the image, providing a comfortable viewing experience regardless of the camera's physical orientation. Powering the setup usually involves the standard gimbal battery grip, but for longer shoots, the plate’s mounting holes can be used to attach a small V-mount battery plate to the gimbal arm to provide power to both the camera and the monitor via D-Tap.

Who Should Choose Something Else

While the Vertical Plate 9:16 is the professional standard for vertical gimbal work, it is not the right tool for every scenario. If a shoot requires frequent switching between horizontal and vertical orientations—such as a wedding where both a traditional cinematic film and social media Reels are being produced—a 360-degree rotating mount or a "dual-mode" gimbal like the DJI RS 3 Mini might be more efficient. The Vertical Plate 9:16 requires a full re-balance of the gimbal every time you switch orientations, which can take several minutes and is not feasible in fast-paced, unscripted environments.

Furthermore, photographers who primarily shoot stills should opt for a standard L-bracket rather than this gimbal-specific plate. An L-bracket allows for much faster transitions on a tripod head and provides better access to the camera's side ports. Additionally, if the camera being used is particularly large—such as a Sony Venice or an Arri Alexa Mini—this plate may not provide enough clearance for the camera body to clear the gimbal’s roll motor. In those instances, a larger, dedicated vertical cage or a heavy-duty cinema gimbal like the DJI Ronin 2 with a specialized vertical kit would be required. Finally, if the delivery requirement is only 1080p, and you are shooting on a high-resolution 8K sensor, it may be more practical to shoot horizontally and crop in post, as the resolution loss will not be visible in the final output, and it preserves the option for a horizontal delivery if the client changes their mind.
