Universal Dslr Cage

The Architecture of the Universal Dslr Cage

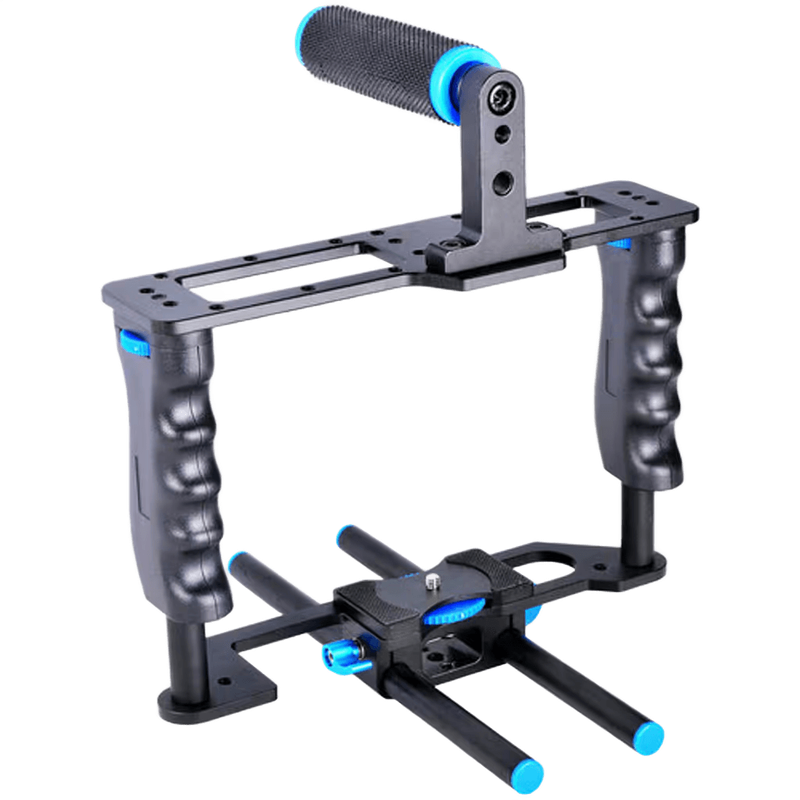

The Universal Dslr Cage is a modular, high-strength exoskeleton designed to provide a standardized mounting framework for a wide variety of camera bodies. Unlike camera-specific cages that are CNC-machined to the exact contours of a single model, this universal variant utilizes an adjustable vertical architecture. It typically consists of a baseplate, a top plate, and two adjustable side struts—often referred to as "pillars"—that can be expanded or contracted to accommodate camera heights ranging from approximately 100mm to 180mm. This makes it compatible with a broad spectrum of hardware, from compact mirrorless units like the Sony A7 series to larger professional DSLRs such as the Canon 5D Mark IV or the Nikon D850. Constructed primarily from 6061-T6 aluminum alloy, the cage serves as the structural foundation for a cinema rig, shifting the mechanical stress of heavy accessories away from the camera’s magnesium alloy chassis and onto the reinforced aluminum frame.

In the manufacturer’s lineup, the universal cage sits as the versatile alternative to dedicated "form-fitting" cages. It is engineered for production houses and independent cinematographers who rotate through different camera systems and require a single rigging solution that does not become obsolete when a camera body is upgraded. The design prioritizes utility over aesthetics; while it may not follow the sleek lines of a dedicated cage, it provides a significantly higher density of mounting points. The primary output of this equipment is not visual in the optical sense, but mechanical—it transforms a handheld stills camera into a production-ready cinema tool by providing the necessary real estate for monitors, wireless transmitters, and audio recorders.

Structural Integrity and Mechanical Protection

The Universal Dslr Cage functions as a protective shield and a heat management aid. The aluminum construction acts as a passive heat sink, particularly useful for mirrorless cameras prone to overheating during long 4K internal recording sessions. By providing a gap between the camera body and the cage frame, it allows for better airflow around the sensor housing compared to tight-fitting cages. The surface is typically finished with a Type III hard-anodized coating, which resists scratches and prevents the oxidation of the metal in high-humidity environments. This is critical for maintaining the integrity of the threaded holes, which are the primary interface for all external hardware.

Beyond protection, the cage changes the physical handling of the camera by expanding its footprint. This increased mass helps in dampening micro-jitters during handheld operation. The baseplate of the cage usually features multiple 1/4"-20 and 3/8"-16 threaded holes, allowing for the attachment of various quick-release plates (such as Arca-Swiss or Manfrotto 501PL) without blocking the camera's battery door. However, because the cage is universal, the alignment of the battery door and the side ports (HDMI, USB-C, Mic) must be manually checked during the initial setup by adjusting the position of the side struts. This mechanical flexibility ensures that even if a camera has an unconventional port layout, the cage can be configured to maintain access to essential inputs.

Mounting Infrastructure and Ergonomics

The defining characteristic of the Universal Dslr Cage is the sheer volume of mounting options it provides. A standard configuration includes dozens of 1/4"-20 threads and several 3/8"-16 threads with ARRI locating holes. These locating holes feature two small pins that prevent accessories like top handles or monitor arms from twisting or unscrewing under the weight of the gear. The top plate often incorporates a cold shoe mount, providing a secure point for a shotgun microphone or a compact LED light. The side struts frequently feature NATO rails, which allow for the quick attachment and removal of side grips without the need for Allen keys, facilitating a fast transition between different shooting styles.

On a real-world shoot, the handling of the cage is determined by how the weight is distributed across these points. By adding a top handle to the cage, the operator can achieve low-angle "underslung" shots that are physically impossible with a bare camera body. The cage also allows for the mounting of a 15mm rod system via an optional baseplate. These rods are essential for supporting a follow focus motor or a matte box. Because the cage is universal, the distance from the lens center to the rods may require adjustment using a height-adjustable riser, ensuring that the follow focus gear teeth align perfectly with the lens ring. This level of customization ensures that the ergonomics can be tailored to the specific physical requirements of the operator, whether they prefer a compact handheld setup or a shoulder-mounted configuration.

Video Rigging and Signal Integrity

For video production, the Universal Dslr Cage addresses one of the most significant weaknesses of DSLR and mirrorless systems: the fragility of the Micro-HDMI and USB-C ports. Most universal cages include or are compatible with an adjustable HDMI cable clamp. This clamp screws into the side of the cage and physically locks the cable in place, preventing accidental disconnections and, more importantly, protecting the camera’s internal port from being damaged by cable tugs. This is a critical feature when recording to external monitors like the Atomos Ninja V or Blackmagic Video Assist, where a lost connection can result in corrupted files or lost takes.

The cage also facilitates the use of professional audio solutions. By providing mounting points for XLR adapters (like the Sony XLR-K3M or Panasonic DMW-XLR1), the cage allows the camera to record high-quality audio directly into the video file, bypassing the need for external sync in post-production. Furthermore, the cage's frame allows for the attachment of SSD holders, which are necessary for cameras that support recording to external media via USB-C. The rigid frame ensures that the SSD remains secure even during vigorous camera movements, preventing data write errors. While the cage itself has no electronic components, its role in maintaining signal integrity through mechanical stability is vital for professional video workflows.

The Cage in Professional Indian Shoot Scenarios

In a Bengaluru wedding reception, the environment is often chaotic with rapidly changing lighting and high foot traffic. A cinematographer using the Universal Dslr Cage can quickly mount a top handle for low-angle shots of the couple entering the hall and then switch to a side handle for more stable eye-level coverage. The ability to mount a small on-camera light (like an Aputure MC) directly to the cage's cold shoe allows the operator to add a catchlight to the subjects' eyes without needing a dedicated light stand or an assistant. The cage’s robust build protects the camera body from the inevitable bumps and scrapes that occur in crowded banquet halls.

During a Goa travel shoot, the challenges are environmental. The salt-laden air and humidity can make camera bodies slippery and difficult to hold. The cage provides a more tactile, secure grip. When shooting on the beach, the cage allows for the attachment of a heavy-duty monitor/recorder, which is essential for viewing the screen under direct sunlight. The 1/4"-20 threads on the bottom of the cage allow the camera to be mounted vertically on a tripod, a common requirement for creating high-quality Instagram Reels or YouTube Shorts of the coastal landscape, without the need for a separate L-bracket.

In a Mumbai studio product session, the Universal Dslr Cage is used to build a "tethered" rig. The camera is often mounted on a heavy studio pedestal or a C-stand using the cage’s reinforced mounting points. The HDMI clamp is used to secure a long cable running to a 24-inch director's monitor, allowing the client to see the product shots in real-time. Because the cage is universal, the studio can swap between a high-resolution Sony A7R IV for stills and a Panasonic GH6 for video without changing the entire rigging setup, saving significant time during transitions between different media deliverables.

Compatibility and Essential Pairings

The Universal Dslr Cage is designed to be the center of an ecosystem. Its compatibility is defined by the industry-standard spacing of its mounting holes. It pairs naturally with:

• Top Handles: Both bolt-on and NATO-style handles for carrying and low-angle operation.
• Side Grips: Wooden or rubberized grips that provide a two-handed "cinema-style" hold for smoother panning.
• Monitor Arms: Articulating "magic arms" or tilt-adjustable mounts that hold 5-inch to 7-inch external monitors.
• 15mm Rod Systems: Baseplates that allow for the addition of follow focus units, lens supports, and matte boxes.
• Cable Clamps: Specifically designed to secure HDMI and USB-C cables to the side of the frame.
• Battery Solutions: V-mount or Gold-mount battery plates that can be attached to the back of the rig to power both the camera and accessories for extended periods.

The cage is compatible with almost any camera that has a standard 1/4"-20 tripod thread on the bottom and a hot shoe on top. However, users must ensure that the camera's height falls within the cage's adjustable range (typically 100mm to 180mm) to ensure the top plate can be secured properly.

Limitations and Alternative Choices

While the Universal Dslr Cage offers unmatched versatility, it has distinct limitations compared to dedicated cages. The primary drawback is the "universal" fit itself. Because it is designed to fit many cameras, it may partially obstruct certain buttons, dials, or battery compartments on specific models. For example, on very small mirrorless bodies, the side struts may sit too far from the body, making it difficult to reach the shutter button comfortably. In such cases, a dedicated form-fitting cage from brands like SmallRig or Tilta is a better choice, as these are designed to provide unobstructed access to every control and often include "anti-twist" features that lock into the camera's strap eyelets.

Another limitation is weight and bulk. A universal cage is inherently larger than a dedicated one to accommodate the sliding adjustment mechanisms. If the goal is to keep the camera as light as possible for use on a compact gimbal (like the DJI RS3 Mini), the extra weight of a universal cage might exceed the gimbal's payload capacity. In these scenarios, a simple L-bracket or a lightweight dedicated cage would be more appropriate. Finally, for high-end cinema cameras that already have built-in mounting points and professional I/O (like the Sony FX6 or Canon C70), a cage is often redundant or requires a specialized "top plate" rather than a full universal wrap-around frame. The universal cage is best suited for those using hybrid cameras who need to bridge the gap between photography and professional cinematography.
