Fx6 Cage

What it is

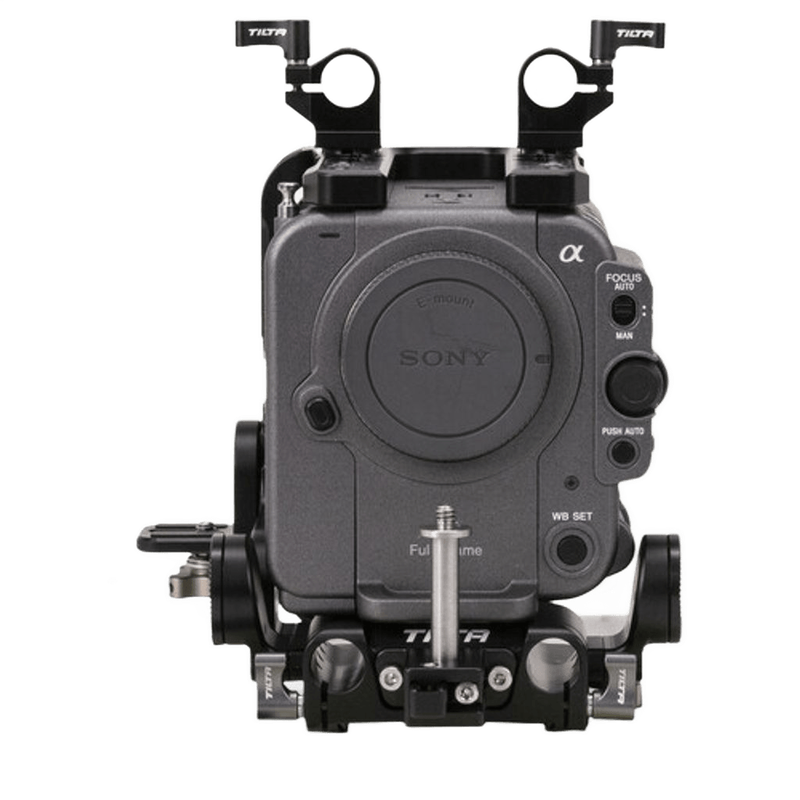

The Sony FX6 Cage is a modular, form-fitting exoskeleton designed specifically for the Sony ILME-FX6 cinema camera. Unlike universal cages, this system is engineered to accommodate the unique asymmetrical profile of the FX6, ensuring that all camera controls, the built-in electronic variable ND filter dial, and the cooling fan exhaust ports remain completely unobstructed. It sits at the core of a professional cinema workflow, transforming a compact handheld body into a fully rigged production unit. This system is designed for cinematographers who require additional mounting points for accessories that the bare magnesium alloy body cannot support, such as heavy V-mount batteries, wireless video transmitters, and follow focus motors. The cage typically follows a modular design philosophy, consisting of a top plate, a side arm, and a 15mm LWS (Light Weight Support) baseplate. By distributing the mechanical stress of heavy accessories across multiple 1/4"-20 and 3/8"-16 mounting points, the cage protects the camera's chassis from torque-induced damage during high-intensity shoots.

Structural Integrity and Heat Management

The Sony FX6 Cage is primarily constructed from 6061-T6 aluminum alloy, a material chosen for its high strength-to-weight ratio and thermal conductivity. While the FX6 features an internal active cooling system, the cage acts as a secondary heat sink, dissipating ambient heat away from the camera body during extended 4K 120p recording sessions. The top plate is specifically contoured to fit around the Sony original top handle, allowing users to retain the factory XLR inputs and audio control interface while gaining a series of ARRI-standard locating holes. These holes feature anti-twist pins that prevent monitors or wireless receivers from rotating or loosening when the camera is moved rapidly. The side arm provides a vertical mounting surface that reinforces the connection between the top and bottom plates, creating a rigid box structure that eliminates "micro-flex" when using heavy cinema glass or long zoom lenses. This structural rigidity is essential for maintaining the optical axis alignment when using a follow focus system on 15mm rods.

Build and Mounting

Handling a rigged Sony FX6 Cage involves managing multiple points of contact. The baseplate of the cage system typically adheres to the 15mm LWS standard, placing the rods at the correct 85mm distance from the lens center. This allows for the seamless integration of matte boxes and follow focus units. The baseplate often features a built-in Arri-standard dovetail or a Manfrotto-style quick-release plate, enabling rapid transitions between a tripod, a shoulder rig, or a gimbal. On the right side, the cage often incorporates an ARRI Rosette mount, which allows the relocation of the original Sony handgrip via an extension arm. This is a critical ergonomic feature for shoulder-mounted operation, as it places the start/stop trigger and the assignable buttons at a comfortable distance from the operator's body. Furthermore, the cage includes integrated NATO rails on the top and sides, providing a tool-less mounting solution for side handles or monitor arms. The inclusion of multiple cold shoe mounts provides additional real estate for shotgun microphones or compact LED on-camera lights without occupying the primary threaded holes.

Video Workflow Integration

The Sony FX6 Cage is designed to overcome the power and connectivity limitations of a bare camera body. One of its most significant components is the V-mount or Gold-mount battery plate, which usually attaches to the rear of the top plate or via the 15mm rods. This plate converts the 14.4V output of a professional cinema battery into a regulated DC feed for the camera’s barrel input, significantly extending runtimes compared to the standard BP-U series batteries. These battery plates often include multiple D-Tap ports and USB outputs, allowing the camera, a wireless video transmitter (like a Teradek), and a high-brightness monitor (like a SmallHD) to be powered from a single source. To protect the camera’s physical ports, the cage includes dedicated HDMI and SDI cable clamps. These clamps screw directly into the cage frame, securing the cables in place and preventing accidental disconnections or, more importantly, preventing the leverage of a heavy cable from snapping the camera's internal PCB connectors. This level of cable management is vital for maintaining a clean signal path to external recorders when capturing 16-bit RAW output via SDI.

On the Shoot

In a Bengaluru wedding reception scenario, the Sony FX6 Cage proves its utility by allowing for a "hybrid" build. During the fast-paced garland exchange, the operator can use the cage’s NATO rails to quickly slide off the heavy external monitor and V-mount battery, stripping the camera down to a lightweight handheld configuration for navigating through crowded guest areas. The integrated cold shoe on the top plate allows for the immediate mounting of a compact on-camera light to fill in shadows under the reception hall’s overhead LEDs. The cage ensures that even in this stripped-down state, the camera remains protected from the inevitable bumps of a crowded event.

For a travel documentary shoot in Goa, the cage’s 15mm rod support is indispensable. When filming on the beach at midday, a matte box is required to hold 4x5.65 ND filters or polarizers to manage the intense glare off the water. The cage provides the necessary mounting points for these rods, ensuring the matte box stays aligned even when the camera is tilted for low-angle shots of the surf. The side arm’s 1/4"-20 threads allow for the attachment of a wireless follow focus motor, enabling a solo operator to pull focus accurately while tracking a subject moving across the sand.

In a Mumbai studio product session, the Sony FX6 Cage facilitates a "studio mode" build. The camera is mounted on a heavy-duty tripod via the cage’s Arri dovetail baseplate. A large 7-inch director’s monitor is mounted to the top plate using an anti-twist 3/8"-16 arm, providing a clear view for the client. A V-mount battery on the rear of the cage acts as a counterweight, balancing the camera when a heavy 85mm or 100mm macro cinema prime lens is attached. The cage’s multiple mounting points allow for a wireless video transmitter to be tucked away on the side, sending a clean feed to the production gallery without cluttering the operator's workspace.

What it Pairs With

The Sony FX6 Cage is the foundation of a larger ecosystem. It is designed to pair perfectly with 15mm carbon fiber or stainless steel rods, which are necessary for mounting follow focus units like the Tilta Nucleus-M or manual matte boxes. For power, it is typically paired with V-mount batteries ranging from 98Wh (for flight compliance) to 150Wh or 190Wh for all-day studio use. The cage is compatible with the original Sony FX6 top handle and side grip, but it also allows for the use of third-party wooden side handles for improved tactile grip. In terms of monitoring, the cage supports any 5-inch to 7-inch monitor via Noga arms or specialized monitor mounts that utilize the ARRI locating pins. For media, while the cage does not directly interface with the CFexpress Type A cards, its design ensures the media slot door remains fully accessible for quick card swaps. It also pairs with various lens mount adapters, such as PL to E-mount pros, which often feature their own support foot that can be bolted directly to the cage’s baseplate to take the weight off the camera’s E-mount flange.

Who Should Choose Something Else

While the Sony FX6 Cage is essential for professional cinema builds, it may not be the right choice for every user. Operators who primarily use the FX6 on small handheld gimbals, such as the DJI RS3 Pro or RS4, might find a full cage adds unnecessary weight and bulk, potentially exceeding the gimbal's payload capacity or making balancing difficult. In these cases, a simple top plate or a "half-cage" might be more appropriate. Additionally, those who prioritize the smallest possible footprint for "run-and-gun" journalism may find the bare body, with its built-in handle, sufficient for their needs. The cage is also specific to the FX6; it will not fit the Sony FX3, which has a much smaller body, nor the Sony FX9, which has a significantly longer chassis and different mounting points. If you are using a different camera in the Cinema Line, you must select a cage specifically machined for that model's dimensions to ensure port access and structural safety.
