A7s Mark III Cage

The Structural Foundation of the Sony A7s Mark III Cage

The Sony A7s Mark III Cage is a precision-engineered exoskeleton designed specifically for the unique dimensions and thermal requirements of the Alpha 7S III mirrorless camera. Unlike universal cages that offer a loose fit, this dedicated cage is CNC-machined from a single block of 6061-T6 aluminum alloy, ensuring a form-fitting design that follows the contours of the camera body. Its primary function is to provide a rigid framework for mounting professional cinema accessories while protecting the magnesium alloy chassis of the camera from impact and abrasion. In the manufacturer’s ecosystem, this cage sits as the essential bridge between a consumer-style mirrorless body and a fully rigged cinema production unit. It is designed for cinematographers who require more than the standard handheld ergonomics of a mirrorless camera, allowing for the attachment of heavy lenses, external monitors, and audio interfaces without stressing the camera’s native mounts or 1/4"-20 tripod socket.

The design philosophy centers on maintaining the functionality of the camera while enhancing its durability. The cage incorporates multiple points of contact with the camera body to prevent "twisting" or "play" when using high-torque accessories like manual follow focus systems or wireless lens motors. By securing the camera via the bottom 1/4"-20 screw and a secondary M2.5 screw through the camera’s shoulder strap hole on the side, the cage achieves a level of torsional rigidity that a single-point mount cannot provide. This structural integrity is vital for maintaining optical alignment when using heavy PL-mount cinema glass via adapters, where any flex in the camera-to-cage connection could result in focus shifts or sensor misalignment.

Material Integrity and Thermal Management

The use of aircraft-grade aluminum in the Sony A7s Mark III Cage serves a dual purpose: physical protection and passive heat dissipation. The Sony A7S III is capable of recording 4K video at 120 frames per second in 10-bit 4:2:2 internally, a process that generates significant heat within the sensor and image processor. The cage acts as a secondary heat sink, drawing thermal energy away from the camera body and dissipating it into the surrounding air through its increased surface area. This is particularly important during long takes where the internal fan and thermal management systems of the camera are pushed to their limits. The anodized finish provides a non-reflective, scratch-resistant surface that maintains its grip even in humid or high-temperature environments, ensuring that the rig remains manageable throughout a production day.

Beyond thermal benefits, the cage provides a protective barrier for the camera’s most vulnerable components. The top plate and side rails shield the mode dials, shutter button, and custom function buttons from accidental knocks during transport or when the camera is mounted on a jib or crane. The bottom of the cage features integrated rubber pads that prevent the metal-on-metal contact between the camera and the cage, which eliminates the risk of scratching the camera’s baseplate and provides additional friction to lock the body into place. This attention to material detail ensures that the camera remains in pristine condition even after months of heavy field use in demanding production environments.

Mounting Points and Ergonomic Access

The Sony A7s Mark III Cage is defined by its density of mounting options, which are strategically placed to avoid obstructing the camera’s native controls. It typically features dozens of 1/4"-20 threaded holes and several 3/8"-16 threads with ARRI-style locating pins. These locating pins are critical for mounting top handles or monitor arms, as they feature two small protruding pins that lock into the cage, preventing the accessory from unscrewing or rotating during a shoot. The cage also incorporates a built-in NATO rail on the left side, allowing for the quick attachment and removal of side handles without the need for tools. This modularity allows a single camera body to transition from a compact handheld setup to a shoulder-mounted rig in seconds.

Ergonomics are prioritized through a design that ensures 100% access to all camera ports and compartments. The battery door on the bottom remains fully accessible, allowing for NP-FZ100 battery swaps without removing the cage. Similarly, the dual CFexpress Type A/SD card slots on the right side are unobstructed, and the full-size HDMI Type-A port, USB-C port, and audio jacks on the left side are easily reachable. The cage is specifically sculpted to allow the 3.0-inch side-opening vari-angle LCD screen of the A7S III to flip out and rotate through its full range of motion. This is a significant design challenge, as many generic cages block the screen's articulation, but the dedicated Sony A7s Mark III Cage maintains the screen's utility for high-angle and low-angle monitoring.

Video-Centric Utility and Cable Security

For professional video workflows, the Sony A7s Mark III Cage offers specialized features that address the specific weaknesses of mirrorless camera bodies. One of the most critical additions is the integrated HDMI cable clamp. The A7S III features a full-size HDMI port, which is more robust than micro-HDMI but still susceptible to damage if the cable is snagged or pulled. The cage’s dedicated clamp secures the HDMI cable (and often the USB-C cable) to the side of the cage, preventing accidental disconnection during a recording and protecting the camera’s internal port from expensive structural damage. This is an essential feature for those recording ProRes RAW or DNxHR to an external recorder like the Atomos Ninja V.

The top of the cage often includes one or two cold shoe mounts, which are positioned to avoid blocking the camera’s Multi Interface (MI) Shoe. This allows for the simultaneous use of the Sony XLR-K3M audio adapter on the camera’s hot shoe while mounting a wireless microphone receiver or an on-camera LED light on the cage’s cold shoe. Additionally, the base of the cage is frequently designed with an integrated Arca-Swiss quick-release plate. This allows the entire rig to slide directly into Arca-compatible tripod heads or gimbal stabilizers like the DJI RS series without the need for additional mounting plates, lowering the center of gravity and reducing the overall weight of the setup.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception, the Sony A7s Mark III Cage proves its worth during the transition from a brightly lit stage to a dimly lit dance floor. The cinematographer can mount a top handle with a start/stop trigger and a small LED panel on the cage’s cold shoe, creating a compact, mobile rig that can navigate crowded spaces. The added weight of the cage provides a stabilizing effect, dampening the micro-jitters common in handheld mirrorless shooting. As the night progresses and the camera is moved between a tripod for the ceremony and a gimbal for the reception, the integrated Arca-Swiss baseplate saves valuable time, ensuring the camera is always secure and balanced.

During a travel shoot in the humid, salt-heavy air of Goa, the cage acts as a primary layer of physical defense. When shooting on a boat or near the coast, the cage provides multiple secure points for a wrist strap or a safety tether, preventing the camera from being dropped into the water. The aluminum construction is resistant to the corrosive effects of salt spray compared to exposed plastic components. The ability to mount a side handle allows for a two-handed grip, which is essential for capturing stable footage of moving subjects while walking on uneven terrain like beaches or rocky outcrops. The cage’s thermal dissipation also helps manage the sensor temperature during long outdoor shoots in the afternoon sun.

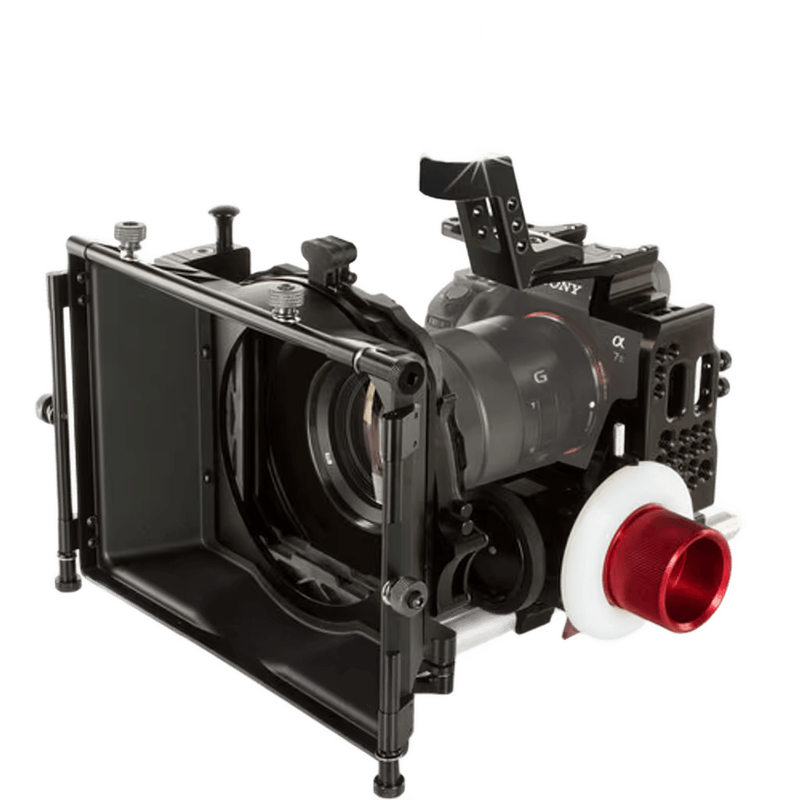

In a Mumbai studio session for a high-end product commercial, the cage transforms the A7S III into a cinema-grade tool. Mounted on a heavy-duty tripod, the cage supports a 15mm rod system attached to its base. These rods hold a follow focus for precise manual pulls on a macro lens and a matte box to control flares from studio lights. The HDMI clamp ensures that the feed to the director’s 24-inch monitor remains uninterrupted, even as the camera is repositioned for different angles. The cage allows the crew to build out a complex rig with a V-mount battery plate attached to the back, providing all-day power to both the camera and the external monitor, a necessity for the high-volume environment of a commercial studio.

Compatibility and Essential Pairings

The Sony A7s Mark III Cage is the center of a larger ecosystem of accessories. It is designed to be perfectly compatible with the Sony XLR-K3M and XLR-K2M audio adapters, ensuring that the cage does not interfere with the height or width of these units when they are mounted on the MI shoe. For power, the cage is compatible with various NP-F and V-mount battery plates that can be attached via the 1/4"-20 threads on the back or side. When it comes to media, the cage provides enough clearance for the easy removal of CFexpress Type A cards, which are essential for high-bitrate 4K 120p recording.

In terms of support, the cage is designed to pair seamlessly with the DJI RS 2, RS 3, and RS 3 Pro gimbals. Because the cage is form-fitting, it does not add significant bulk, allowing the camera to fit within the gimbal’s roll axis arms. It also pairs with a wide range of top handles, including those with ARRI locating pins or NATO clamps. For optics, the cage is compatible with all E-mount lenses, and its rigid structure is particularly beneficial when using heavy FE 24-70mm f/2.8 GM II or FE 70-200mm f/2.8 GM OSS II lenses, as it allows for the use of a lens support bracket that attaches directly to the front of the cage, taking the weight off the lens mount.

Limitations and Alternative Considerations

While the Sony A7s Mark III Cage is an essential tool for many, it is not without its trade-offs. The most immediate impact is the added weight; while 160g to 220g may seem negligible, it can become significant over a 12-hour shoot day, especially when combined with other accessories. For photographers who primarily shoot stills and only occasionally dabble in video, the added bulk may interfere with the natural grip of the camera and make it less comfortable for long periods of handheld photography. In such cases, a simple L-bracket might be a better choice, providing a vertical mounting option and some protection without the full-wrap design of a cage.

Furthermore, this cage is specifically designed for the A7S III. While it may physically fit the Sony A7 IV or the A1, the button placements and port locations on those cameras are slightly different. Using this cage on an A7 IV, for example, might result in a slightly obstructed dial or a port that is harder to access. Users of those cameras should seek out cages designed specifically for their models to ensure perfect alignment. Additionally, for those who exclusively use the camera on a gimbal and need to keep the setup as light as possible, a "half-cage" design might be preferable. A half-cage provides mounting points on one side and the top but leaves the right-hand grip of the camera exposed, reducing weight while still offering protection and accessory mounting for the most critical components.
