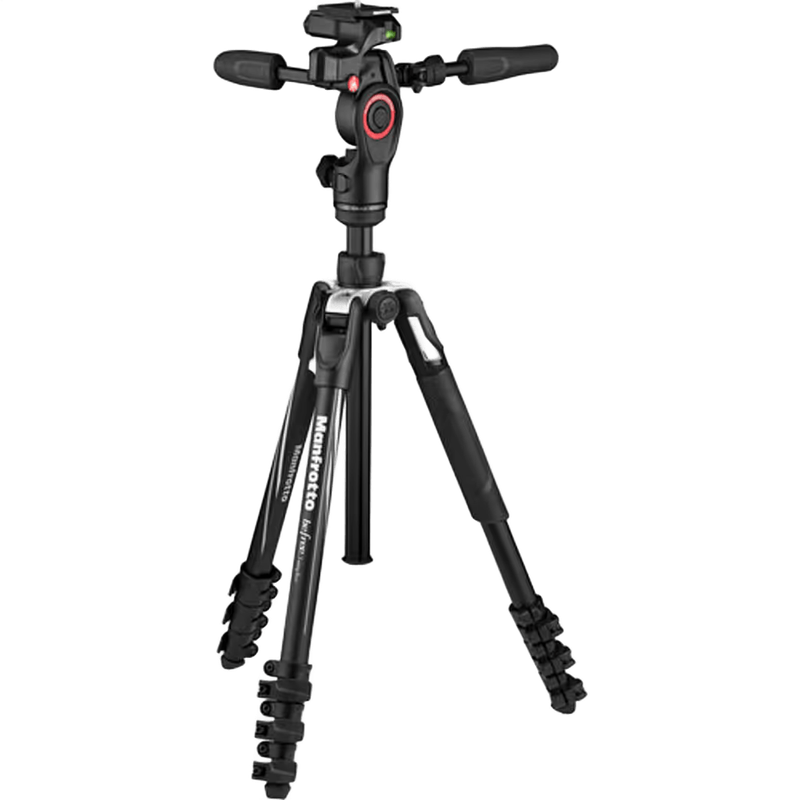

Photography 3way Tripod

The Engineering of the Photography 3way Tripod

The Photography 3way Tripod is a precision-engineered support system designed for photographers who prioritize compositional accuracy and independent axis control over the rapid, single-point adjustment of a ball head. In the hierarchy of camera supports, this system sits as the standard for architectural, studio, and landscape photography, where the camera must be leveled on one plane without disturbing the others. Unlike ball heads that release all tension at once, the 3-way head utilizes three distinct locking handles to control the panoramic pan (360 degrees), the front tilt (typically -30 to +90 degrees), and the lateral tilt (typically -30 to +90 degrees). This mechanical separation allows for micro-adjustments that are essential for technical photography. The legs are typically constructed from D-shaped aluminum tubing or carbon fiber, providing a high torsion-rigidity-to-weight ratio, ensuring that the frame remains static even when using heavy full-frame DSLR or mirrorless setups with telephoto lenses.

Designed for professionals who require a payload capacity ranging from 8kg to 12kg, this tripod system is the workhorse of the commercial industry. It is built to eliminate the "creep" often associated with ball heads when a heavy lens is tilted downward. The 3-way mechanism uses friction-based locking or spring-assisted counterbalances to hold the camera’s weight securely. The inclusion of retractable handles in modern iterations of the Photography 3way Tripod makes it more portable than its predecessors, allowing the handles to be pushed into the head body when the unit is stored in a bag. This specific equipment is the primary choice for any shoot where the horizon must be perfectly level and the vertical lines of a building or product must remain parallel to the sensor plane.

Stability, Precision, and Mechanical Alignment

The core value of the Photography 3way Tripod lies in its ability to isolate movement. Each of the three axes is governed by a dedicated locking lever. The panoramic base allows for a smooth 360-degree rotation, often marked with a degree scale at the base for precise panoramic stitching. The front tilt handle controls the pitch, allowing the photographer to point the camera directly at the ground for macro work or straight up for celestial or architectural ceiling shots. The lateral tilt handle is perhaps the most critical for technical work, allowing the camera to be flipped from landscape to portrait orientation (90 degrees) or to be leveled on uneven ground without adjusting the tripod legs. This independence means that if a photographer finds the perfect horizontal level but needs to tilt the camera slightly downward, they can do so without losing the horizontal axis—a feat nearly impossible with a standard ball head.

The head often incorporates multiple spirit levels (bubble levels) to assist in this alignment. Usually, one level is placed for the horizontal plane and another for the vertical tilt. The quick-release system, often utilizing the RC2 or Arca-Swiss standard, provides a secure interface between the camera and the head. The plates are typically made of machined aluminum with a rubberized grip surface to prevent "corkscrewing" or twisting when the camera is mounted vertically. The mechanical advantage provided by the long handles allows for very fine movements; a slight turn of the wrist can move the frame by a fraction of a millimeter, which is vital when aligning the edges of a product in a studio setting or matching the "rule of thirds" in a landscape composition.

Build Quality and Leg Mounting Mechanics

The legs of a professional Photography 3way Tripod are designed for maximum vibration dampening. Most models feature three or four sections, with the top section having a larger diameter (often 26mm to 30mm) to support the bulk of the weight. The locking mechanisms are typically either "Power Lock" flip levers or "Twist Locks." Flip levers allow for rapid deployment and provide a visual confirmation that the leg is locked, while twist locks offer a more streamlined profile that is less likely to snag on brush or cables. The leg angle selectors are a critical feature, allowing each leg to be set independently at various angles—typically 25, 46, 66, and 88 degrees. This allows the tripod to be "stabled" on stairs, rocky terrain, or even pressed against a wall.

The center column adds a final layer of versatility. Many professional 3-way systems include a 90-degree center column mechanism, allowing the column to be swung into a horizontal position without removing the head or disassembling the camera. This is particularly useful for top-down "flat lay" photography or for getting the camera extremely close to the ground for macro shots of flora or textures. The "spider" or the top casting of the tripod often includes an "Easy Link" or 3/8-inch attachment point, allowing photographers to mount an articulating arm for an external monitor, an LED light, or a reflector, turning the tripod into a mobile workstation. The feet are usually interchangeable, with rubber feet for indoor studio floors and spiked feet available for better grip on soft earth or ice.

Video Capability and Static Frame Performance

While the Photography 3way Tripod is fundamentally a stills-oriented tool, it serves a specific niche in video production. It lacks the fluid cartridges found in dedicated video heads, meaning it cannot produce the "silky" pans and tilts required for tracking a moving subject. Any attempt to pan or tilt while recording will likely result in a jerky, staggered motion as the friction plates grab and release. However, for static video shots, it is often superior to a cheap fluid head. In a high-resolution 4K or 8K environment, "drift" is a common problem where a head slowly sags under the weight of a cinema rig. The mechanical locks of a 3-way head are absolute; once tightened, the frame will not move a single pixel over the course of a long interview or a time-lapse sequence.

For videographers shooting architectural walk-throughs or real estate "plates," the 3-way head allows for perfectly leveled static shots that can be easily composited in post-production. The ability to lock the lateral tilt at exactly 0 degrees ensures that the vertical lines of a room do not converge, which is a common issue when using less precise heads. If a videographer needs to perform a simple 360-degree pan, they can do so by loosening the panoramic base, though they must be careful to maintain a steady hand as there is no adjustable drag. For most video applications, this tripod is used as a "lock-off" support rather than a motion tool.

On the Shoot: Real-World Indian Scenarios

In a Mumbai commercial studio, the Photography 3way Tripod is indispensable for high-end product photography, such as jewelry or electronics. When shooting a watch, the photographer must align the sensor plane perfectly parallel to the watch face to maximize the plane of focus. Using the independent axes, the photographer can adjust the tilt by a single degree to catch the light on the bezel without losing the overall composition. The stability of the aluminum legs ensures that when the photographer triggers the shutter—even at slow speeds of 1/10s or longer—there is zero mirror slap vibration or floor-borne interference from the busy city environment outside.

During a heritage architecture shoot at a palace in Jaipur or a temple in Hampi, the 3-way head’s precision becomes a necessity. These structures often feature intricate symmetries that are unforgiving to a tilted horizon. By using the lateral tilt handle, the photographer can compensate for the uneven stone floors of an ancient courtyard, ensuring the camera is perfectly level even if the tripod legs are at different heights. The 90-degree center column is particularly useful here for capturing detail shots of floor mosaics or low-angle perspectives of towering pillars that would be impossible with a standard vertical-only column.

For a corporate headshot session in a Bengaluru tech park, the tripod provides a consistent frame for multiple subjects. Once the height and level are set, the 3-way head can be locked down completely. As different employees of varying heights sit for their portraits, the photographer only needs to adjust the center column height or the front tilt, knowing that the lateral level remains perfect. This consistency saves hours of time in post-production, as the cropping and alignment will be identical across the entire set of images. The ability to attach an external monitor via the Easy Link connector allows the client to view the images in real-time without the photographer having to move the camera.

Compatibility and Essential Pairings

The Photography 3way Tripod is compatible with virtually any camera system that uses a standard 1/4"-20 or 3/8"-16 tripod thread. It is most commonly paired with full-frame mirrorless cameras like the Sony A7R series, Canon EOS R5, or Nikon Z9, where the high megapixel count demands absolute stillness to avoid motion blur at the pixel level. For landscape photographers, it is frequently used in conjunction with L-brackets. An L-bracket allows the photographer to switch from landscape to portrait orientation while keeping the weight of the camera directly over the center of the tripod, rather than hanging off to the side, which further enhances stability and makes leveling much faster.

In terms of lenses, this tripod is designed to handle everything from ultra-wide-angle primes used in architecture to heavy 70-200mm f/2.8 or 100-400mm telephotos. When using long lenses, it is highly recommended to use the lens's own tripod collar rather than mounting via the camera body; this balances the center of gravity and reduces strain on the camera’s lens mount. For macro photography, the 3-way head is often paired with a macro focusing rail, which sits between the head and the camera, allowing for minute forward and backward movements for focus stacking. The tripod is also compatible with various "feet" accessories; for shoots on the beaches of Goa or the snow of Himachal Pradesh, wide sand/snow shoes can be attached to prevent the legs from sinking.

Who Should Choose Something Else

Despite its precision, the Photography 3way Tripod is not the correct tool for every photographer. Sports and wildlife photographers will find the 3-way system frustratingly slow. When tracking a bird in flight or a football player on the move, the need to loosen and tighten multiple handles is a significant hindrance. These users should opt for a high-quality ball head or, better yet, a gimbal head, which allows for effortless tracking of heavy lenses with a single point of movement. The 3-way head is a "think first, act later" tool, whereas action photography requires "react as it happens" equipment.

Similarly, travel photographers who are hiking long distances or flying with strict weight limits may find the 3-way tripod too bulky. The protruding handles, even when retractable, take up more space in a backpack than a compact travel tripod with a ball head. For those trekking in the Western Ghats or the Himalayas, a dedicated carbon fiber travel tripod with a weight under 1.5kg would be a more practical choice, even if it sacrifices some of the fine-tuned control of the 3-way system. Finally, as mentioned, cinematographers requiring smooth cinematic movements must choose a fluid video head. A 3-way head is a mechanical lock, not a motion dampener, and it will not produce professional-grade pans or tilts for video.
