The Engineering and Purpose of the Metabones E to PL Adapter

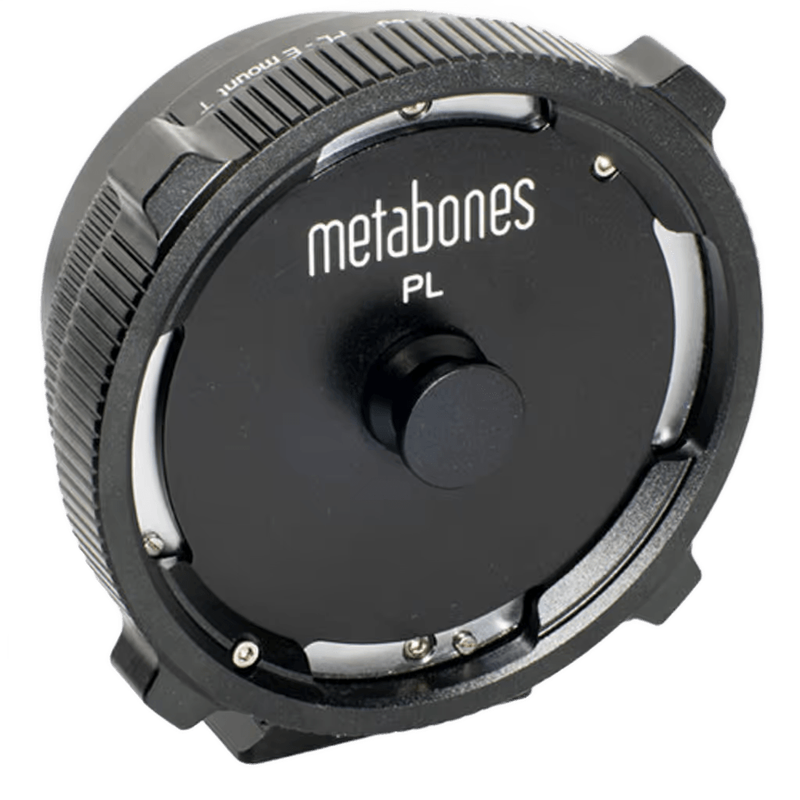

The Metabones PL to E-mount Adapter is a precision-engineered mechanical interface designed to bridge the gap between professional cinema optics and the Sony E-mount ecosystem. This adapter is specifically built for the "Cine" series, prioritizing mechanical stability and optical integrity over electronic automation. It allows cinematographers to mount PL (Positive Lock) mount lenses—the global standard for motion picture production—onto cameras like the Sony Venice, FX9, FX6, FX3, and the Alpha series of mirrorless bodies. Because the PL mount has a flange focal distance of 52mm and the Sony E-mount has a distance of 18mm, this adapter provides exactly 34mm of spacing to ensure that lenses achieve infinity focus while maintaining the optical center of the sensor.

Unlike consumer-grade adapters that rely on simple bayonet twists, this unit is designed for the heavy physical demands of cinema glass. It sits at the top of the Metabones lineup as a dedicated tool for high-end production, where the use of Arri, Zeiss, Cooke, or Angenieux glass is required on compact or modular Sony sensors. It is designed for cinematographers who require a zero-tolerance fit, ensuring that there is no "play" or "wobble" when pulling focus with high-torque wireless follow-focus motors. The adapter is constructed from solid brass with chromium plating on both the camera-side and lens-side mounts to prevent wear over thousands of lens changes.

Optical Integrity and Internal Light Management

While the Metabones PL to E-mount Adapter contains no glass elements and therefore does not change the focal length or aperture of the attached lens, it plays a critical role in maintaining image quality through internal light management. One of the primary challenges in adapting cinema lenses to mirrorless bodies is the potential for internal reflections. The adapter features advanced internal flocking—a felt-like, high-density matte black material—that coats the interior barrel. This flocking is designed to absorb stray light rays that would otherwise bounce off the metal interior of the adapter and strike the sensor, which would result in reduced contrast, "milky" shadows, or unwanted ghosting artifacts.

The physical aperture of the adapter is wide enough to accommodate full-frame 35mm sensors without vignetting, supporting the large image circles produced by modern cinema primes and zooms. By maintaining a strictly matte interior, the adapter ensures that the lens's native MTF (Modulation Transfer Function) and contrast characteristics are preserved. This is particularly important when shooting in high-contrast environments or with strong backlighting, where secondary reflections inside the mount could compromise the high dynamic range capabilities of modern Sony sensors.

Mechanical Build and the Positive-Lock Mechanism

The defining feature of the Metabones PL to E-mount Adapter is its Positive-Lock mechanism. In a standard E-mount or EF-mount system, the lens itself is rotated into the camera body until it clicks. In a PL system, the lens remains stationary, and a rotating collar on the adapter is turned to lock the lens lugs into place. This design is essential for cinema work because it eliminates any rotational play. When a follow-focus gear applies pressure to the lens barrel, a standard bayonet mount might shift by a fraction of a millimeter; the Metabones positive-lock system prevents this movement entirely, ensuring that focus marks remain consistent and the image does not "shift" during a pull.

The adapter's construction utilizes chromium-plated brass on both mounting surfaces. Brass is chosen for its durability and its ability to maintain precise tolerances under varying temperatures, which is vital for maintaining the correct flange focal distance. The adapter also includes a detachable tripod foot that is Arca-Swiss compatible. This foot features both 1/4"-20 and 3/8"-16 threaded holes, allowing the adapter to be bolted directly to a camera cage or a bridge plate. This transfers the weight of a heavy cinema lens directly to the camera's support system, protecting the relatively delicate Sony E-mount on the camera body from structural stress or warping.

Cinema-Specific Features and Back-Focus Calibration

Precision in cinematography is measured in microns, and the Metabones PL to E-mount Adapter addresses this through its shim-adjustable design. While the adapter is factory-calibrated to the standard 52mm PL flange depth, slight variations in camera sensor depth or lens manufacturing can lead to "back-focus" issues, where a zoom lens does not stay in focus throughout its range, or a prime lens fails to hit the infinity mark. This adapter allows users to unscrew the PL mount and add or remove ultra-thin shims to fine-tune the distance between the lens and the sensor.

The adapter is purely mechanical, meaning it does not have electronic pins. This is a deliberate design choice for the PL standard, which typically uses manual iris rings and manual focus. By removing electronics, Metabones has maximized the space for the internal flocking and the structural thickness of the brass walls. This results in a mount that can support lenses weighing several kilograms, such as long-range cinema zooms, provided that the adapter's tripod foot is properly integrated into a 15mm or 19mm rod support system.

On the Shoot: Real-World Indian Production Scenarios

In a Mumbai-based commercial studio session, the Metabones PL to E-mount Adapter is frequently used to mount Arri Master Primes onto a Sony FX6 or Venice. In this high-stakes environment, the positive-lock mechanism is vital. When the camera is mounted on a heavy-duty gimbal or a remote head for a product shot, the adapter ensures that the lens remains perfectly centered. The Arca-Swiss foot is often bolted to a cage, providing a secondary point of contact that prevents the micro-vibrations that can occur when using high-torque motors for rapid focus shifts on a macro lens.

During a wedding cinematography project in Bengaluru, a filmmaker might use the adapter to bring vintage PL-mount glass, such as Cooke Speed Panchros, to a Sony A7S III. The internal flocking of the Metabones adapter becomes essential here, as wedding receptions often involve heavy backlighting from LED panels and stage lights. The flocking prevents these light sources from creating "veiling glare" inside the adapter, allowing the vintage glass to maintain its characteristic "Cooke Look" and warm skin tones without the image washing out. The adapter's robust build also handles the fast-paced environment where lenses are swapped frequently under time pressure.

For a travel documentary shoot in the humid environment of Goa, the chromium-plated brass construction provides a level of corrosion resistance that is superior to aluminum adapters. When shooting near the coast, salt air can be highly abrasive to camera mounts. The Metabones adapter's tight tolerances and high-quality plating ensure that the mount does not seize or develop "crunchiness" over time. The ability to use a lightweight PL zoom, like an Angenieux Optimo, on a compact Sony FX3 body allows the filmmaker to maintain a small footprint while still utilizing industry-standard glass that produces a cinematic texture not found in native E-mount stills lenses.

Compatibility and Pairing

The Metabones PL to E-mount Adapter is compatible with a vast range of cinema equipment, but its utility depends on the specific pairing of lens and camera body. It is designed for:

• Camera Bodies: Sony Venice 1 and 2, Sony FX9, FX6, FX3, FX30, and the entire Alpha 7 and Alpha 9 series. It also fits the Sony NEX-FS700 and FS7.
• Lenses: Standard PL-mount lenses from Arri, Zeiss, Cooke, Angenieux, Leica/Leitz, and Canon (Cine-Servo). It accommodates both Super 35 and Full Frame PL glass.
• Support Systems: The detachable foot is compatible with Arca-Swiss quick-release clamps and can be mounted to 15mm rod support brackets via its 1/4"-20 or 3/8"-16 threads.
• Accessories: It works seamlessly with follow-focus units (manual or wireless) because the positive-lock eliminates lens rotation within the mount.

It is important to note that while the adapter fits the E-mount physically, the user must ensure the lens's rear element does not protrude so far that it strikes the camera's sensor or the internal baffles. Most modern PL lenses are designed with this clearance in mind, but certain vintage high-speed lenses or specialized wide-angle optics may require verification of the rear element depth before mounting.

Limitations and Alternative Choices

The Metabones PL to E-mount Adapter is a specialized tool, and there are several scenarios where a different product would be more appropriate. Because this is a purely mechanical adapter, it provides no electronic communication. This means there is no EXIF data (aperture, focal length) recorded in the video files, and features like Eye-Autofocus, Touch-to-Track, and in-camera iris control will not function. If a shoot requires the speed and convenience of modern Sony autofocus, native E-mount lenses or an EF-to-E electronic adapter with Canon glass would be a better choice.

Furthermore, this adapter does not contain any optical elements. For filmmakers using Super 35 PL lenses on a full-frame Sony sensor who wish to avoid a crop factor or gain an extra stop of light, a "Speed Booster" or focal reducer would be required instead. This standard adapter will result in a heavy crop if a Super 35 lens is used on a full-frame sensor in full-frame mode. Additionally, the weight and bulk of the adapter, while necessary for stability, may be overkill for users of very small, lightweight PL-mount "baby" primes or plastic-housed lenses, where a lighter, non-locking adapter might suffice for handheld, low-impact work. Finally, if the lens being used does not have a manual aperture ring, it cannot be used with this adapter, as there is no way to adjust the iris mechanically or electronically through the mount.
