The Engineering of the Manfrotto Nodal Head VR 360

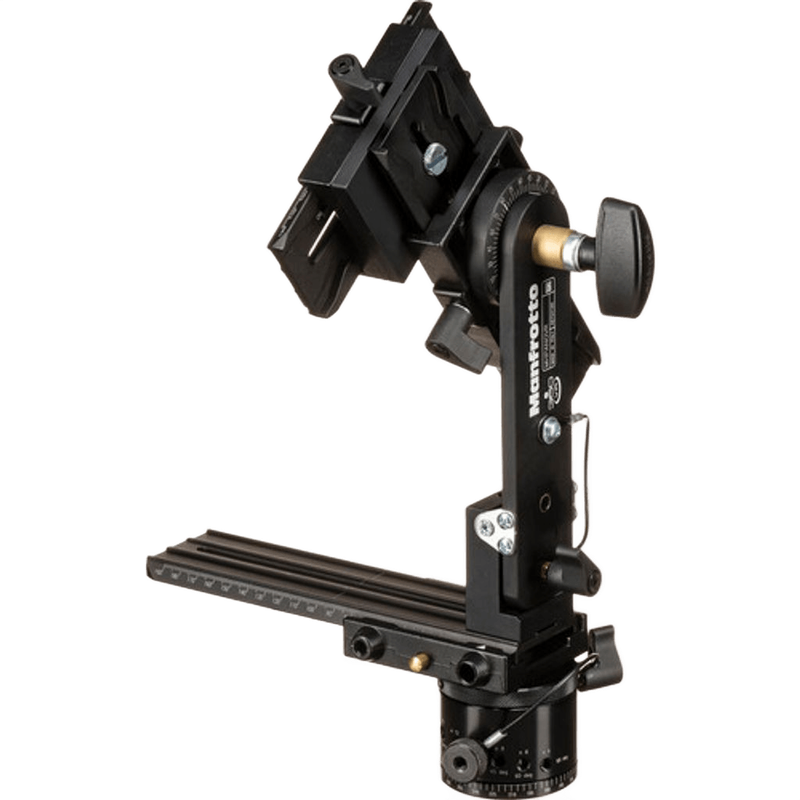

The Manfrotto Nodal Head VR 360, specifically the 303SPH Multi-Row Panoramic Head, is a high-precision mechanical support system designed to facilitate the capture of 360-degree spherical panoramas. Within the Manfrotto VR and panoramic ecosystem, this head sits as the most advanced manual solution, positioned above the single-row 303 and 303PLUS models. It is engineered for photographers who require the ability to rotate a camera around both its horizontal and vertical axes while maintaining the entrance pupil of the lens at a fixed point in space. This specific design is intended for high-resolution virtual reality (VR) content creation, architectural documentation, and large-scale landscape stitching where mathematical precision is required to eliminate parallax errors.

The unit is constructed primarily from machined aluminum, providing a balance between structural rigidity and a total weight of approximately 2.43kg. It is rated to support a safety payload of up to 4kg, making it compatible with professional DSLR and mirrorless systems equipped with wide-angle or fisheye lenses. The system is comprised of a series of sliding plates and a specialized rotation unit, the 300N, which allows for precise, repeatable increments of movement. By allowing the camera to be offset both fore-and-aft and laterally, the Manfrotto Nodal Head VR 360 ensures that the "no-parallax point" (NPP) of any given lens-camera combination can be perfectly aligned over the center of rotation.

Optical Precision and Parallax Elimination

The primary technical function of the Manfrotto Nodal Head VR 360 is the total elimination of parallax. In standard panoramic photography, rotating a camera on a traditional tripod head causes the lens's entrance pupil to move in an arc. This movement results in a shift in the relative position of foreground objects against the background, making it impossible for stitching software to align the images without "ghosting" or "stitching tears." This head solves this by utilizing three independent sliding axes. The lower sliding plate handles the lateral centering of the lens, while the upper sliding plate allows the camera to move forward or backward to find the exact nodal point of the glass elements.

Because the 303SPH is a multi-row head, it includes a vertical bracket that allows the camera to be tilted upward or downward in fixed increments. This is essential for capturing the "nadir" (the ground directly beneath the tripod) and the "zenith" (the sky directly above). The precision of these movements ensures that even when shooting with a 12mm or 14mm rectilinear lens, the overlap between frames remains consistent across the entire 360x180 degree sphere. This consistency is what allows for the creation of high-gigapixel images where every detail, from a blade of grass inches from the lens to a mountain on the horizon, remains perfectly aligned in the final stitch.

Build Quality, Mounting, and Mechanical Handling

The Manfrotto Nodal Head VR 360 is built for field durability and repeatable accuracy. The 300N rotation unit at the base of the head features a selector screw that allows the photographer to set the number of "click-stops" per full rotation. These detent intervals include 5, 10, 15, 20, 24, 30, 36, 45, 60, and 90 degrees, corresponding to 72, 36, 24, 18, 15, 12, 10, 8, 6, and 4 shots respectively. This mechanical feedback allows the operator to capture a full sequence without looking at the scales, which is critical when shooting in low-light environments or during rapidly changing golden hour conditions.

The sliding plates are equipped with engraved millimeter scales that are high-contrast and easy to read. These scales allow a photographer to record the exact coordinates for different lens and focal length combinations. Once the nodal point for a specific lens (such as an 8mm fisheye) is found, the settings can be noted and recreated in seconds on future shoots. The locking knobs are oversized and textured, designed to be operated with gloves. The vertical arm can be folded down, making the entire assembly more compact for transport in a standard lighting bag or dedicated hard case. The head mounts to any standard tripod via a 3/8"-16 female thread, though it is most stable when used on tripods without a center column or with a leveling base installed.

Video Capability and Limitations

While the Manfrotto Nodal Head VR 360 is primarily a tool for still photography and high-resolution VR stitching, it has specific applications in video. It is not a fluid head and cannot be used for smooth cinematic pans or tilts. However, it is an essential tool for "plate" photography in visual effects (VFX) workflows. For cinematographers shooting 360-degree video backgrounds or environment maps (HDRIs) for CGI integration, this head provides the necessary precision to capture the environment at multiple exposure values (bracketing) with zero parallax shift.

The honest limitation for video is the manual nature of the head. It does not feature motors or electronic control. If a production requires a moving 360-degree shot, this head must remain static. Its role in a video production is the creation of the "world" in which the video will live, rather than the capture of the video itself. For filmmakers using high-end 360 rigs that exceed the 4kg weight limit, such as multi-camera RED or Arri arrays, this head will not be sufficient; it is strictly designed for single-camera setups using wide-angle optics.

On the Shoot: Professional Scenarios in India

In a Bengaluru real estate shoot, specifically a luxury high-rise apartment in Indiranagar, the Manfrotto Nodal Head VR 360 is indispensable. In tight interior spaces like a modern kitchen or a walk-in closet, the distance between the lens and the nearest object (a countertop or cabinet) might be less than 50cm. Without the precise nodal alignment provided by the 303SPH, the lines of the cabinetry would never align with the distant windows in the stitching software. The head allows the photographer to capture a 12-shot sequence that perfectly maps the room, ensuring the final virtual tour is seamless and professional.

During a Goa heritage travel shoot at the Basilica of Bom Jesus, the head handles the complex geometry of the baroque architecture. To capture the massive scale of the interior from floor to ceiling, a multi-row approach is required. The photographer can set the 300N rotator to 30-degree increments, capture the middle row, then tilt the vertical arm up 45 degrees for the ceiling and down 45 degrees for the ornate flooring. The click-stops ensure that even in the hushed, low-light environment of the cathedral, the photographer can work quickly and accurately without needing to check a digital screen for every frame.

In a Mumbai studio product session for a high-end furniture brand, the head is used to create interactive 360-degree "spin" views of a designer sofa. By placing the sofa on a heavy-duty turntable and using the 303SPH to position the camera at a precise height and angle, the photographer ensures that the camera remains perfectly tangential to the product. The millimeter-accurate scales on the sliding plates allow the photographer to swap between a 24mm lens for detail shots and a 35mm lens for tighter crops while maintaining the exact same center of perspective, ensuring consistency across the entire product catalog.

Compatibility and Essential Pairings

To function effectively, the Manfrotto Nodal Head VR 360 must be paired with specific categories of equipment. The most critical pairing is a leveling base, such as the Manfrotto 438 or 338. Because 360-degree photography requires the rotation axis to be perfectly vertical, a leveling base allows the photographer to level the head in seconds without adjusting the individual legs of the tripod. Without a level base, the "horizon" of the 360-degree image will appear as a wave, making the stitching process significantly more difficult.

In terms of optics, this head is designed for use with:

• Fisheye Lenses: Such as an 8-15mm f/4L or a 12mm f/2.8. These allow for a full 360-degree sphere to be captured in as few as 4 to 6 shots.
• Ultra-Wide Rectilinear Lenses: Such as a 14mm or 16-35mm. These require more shots (often 12 to 18) but provide much higher total resolution for the final image.
• Sturdy Support: A tripod with a high load capacity and no center column, such as the Manfrotto 055 or 190 series, is recommended to minimize vibrations during long-exposure interior shots.

The head uses a standard 1/4"-20 screw to mount the camera to the upper plate. For users with heavy battery grips or large cinema-style cages, the clearance of the vertical arm should be checked to ensure the camera can rotate a full 180 degrees vertically without hitting the base.

Who Should Choose Something Else

The Manfrotto Nodal Head VR 360 is a specialized tool that is not suitable for every panoramic need. If a photographer only intends to shoot single-row panoramas of distant landscapes (where parallax is negligible), a much lighter and simpler panoramic panning base or a standard ball head with a panning scale would be more efficient. The 2.43kg weight of the 303SPH makes it a heavy addition to a hiking kit, and its complexity can be a hindrance for those who do not need multi-row capability.

For those shooting fast-paced events or journalism where a 360-degree image is needed instantly, a dedicated "one-shot" 360 camera (like those from Ricoh or Insta360) is a better choice. While those cameras offer significantly lower resolution and smaller sensors than a DSLR/Mirrorless setup on a 303SPH, they eliminate the need for manual rotation and post-production stitching. Additionally, if the total weight of the camera, lens, and accessories exceeds 4kg—common with medium format systems or rigged-out cinema cameras—the 303SPH may exhibit flex, and a heavy-duty motorized panoramic head would be required to maintain the necessary precision.
