CineEye 2S Pro 1000 Sdi/Hdmi

Professional Wireless Transmission with the CineEye 2S Pro

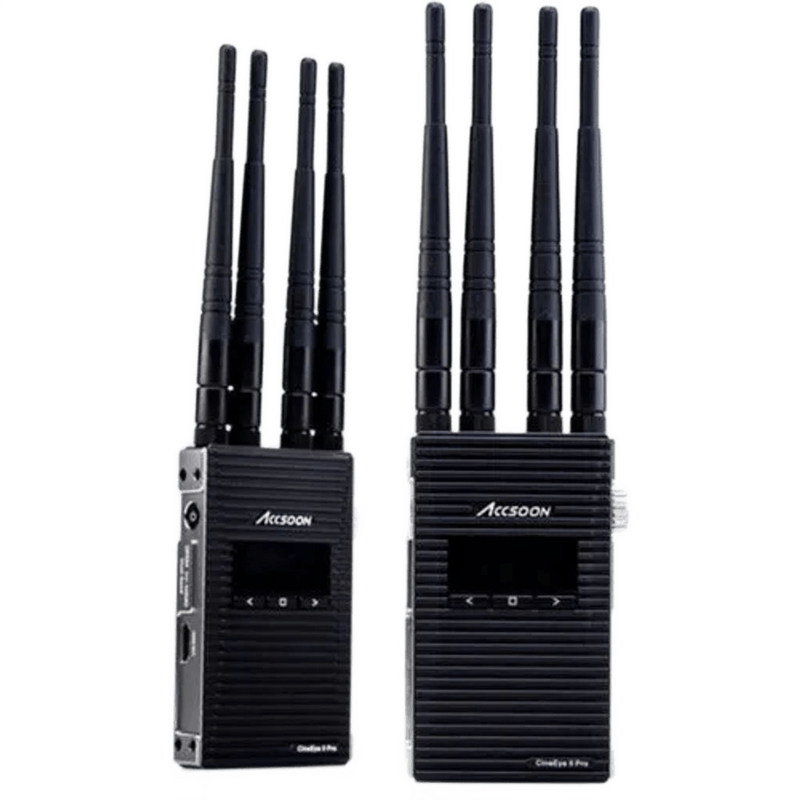

The Accsoon CineEye 2S Pro is a high-definition wireless video transmission system designed to bridge the gap between consumer-grade Wi-Fi transmitters and high-end zero-latency broadcast systems. It represents the professional evolution of the CineEye lineup, distinguished by its inclusion of both SDI and HDMI inputs and outputs, and a significant increase in transmission range to 1200 feet (approximately 350 meters) under line-of-sight conditions. This system is engineered for independent filmmakers, commercial production houses, and broadcast teams who require a robust signal that can penetrate interference-heavy environments while providing monitoring options for both dedicated receivers and mobile devices.

At its core, the CineEye 2S Pro utilizes a dual-band transmission technology that sends video data over 2.4GHz and 5GHz frequencies simultaneously. Unlike standard transmitters that switch between frequencies when interference is detected, this system combines the two streams into a single, more resilient data packet at the receiver. This redundancy is the primary differentiator for this model, placing it as a reliable mid-tier solution for sets where signal dropouts are not an option. It outputs a maximum resolution of 1080p at 60 frames per second, catering to the standard monitoring requirements of modern digital cinema cameras and mirrorless systems.

Dual-Band Technology and Signal Integrity

The signal quality of the CineEye 2S Pro is defined by its "Gemini" Dual-Band Transmission system. By transmitting on both 2.4GHz and 5GHz frequencies at once, the system effectively creates a fail-safe. If the 5GHz band encounters interference from high-speed Wi-Fi routers or other wireless equipment, the 2.4GHz stream maintains the connection, preventing the "black screen" or stuttering common in single-band systems. This process happens at the hardware level with a latency of less than 0.06 seconds (60ms), which is sufficient for most directing and framing tasks.

The video is compressed using a high-efficiency codec that supports bitrates up to 16Mbps. This ensures that the image viewed on the receiver or a mobile device retains critical detail, such as fine textures and color gradients, which are necessary for judging exposure and composition. The system also supports 44.1KHz/48KHz 16bit/24bit PCM audio transmission, ensuring that the scratch track or reference audio remains perfectly synced with the video feed. The inclusion of an SDI input on the transmitter allows it to take a professional feed directly from cameras like the Arri Alexa Mini or Sony FX9, while the HDMI port provides compatibility with the wider world of mirrorless cameras.

Build Quality and Thermal Management

The CineEye 2S Pro is constructed from aerospace-grade aluminum alloy, providing a balance between weight and durability. Each unit (Transmitter and Receiver) weighs approximately 225 grams without batteries, making them light enough to be mounted on a camera cage or a handheld director's monitor rig without significantly altering the center of gravity. A key design feature is the fanless cooling system. By using the aluminum chassis as a heat sink, the units operate in complete silence. This is a critical requirement for interior shoots where the transmitter is mounted close to a sensitive microphone, as it eliminates the risk of fan noise contaminating the audio recording.

On the front of each unit is a 1.3-inch OLED display. This screen provides real-time data on the connection status, current channel, battery voltage, and the video format being received (e.g., 1080p 59.94). The interface is controlled via a simple menu toggle, allowing users to manually select from 20 available channels or set the system to "Auto" mode, where it scans for the cleanest available frequency upon startup. The antennas are foldable and detachable, which simplifies packing and reduces the risk of damage during transport. Mounting is handled via a standard 1/4"-20 thread on the bottom, allowing for easy attachment to cold shoe adapters, magic arms, or specialized monitor brackets.

Video Transmission and App Integration

The CineEye 2S Pro supports a wide range of video inputs, including 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps. It also handles 720p and 576p signals. One of its most powerful features is the ability to transmit to a dedicated hardware receiver and up to four mobile devices (iOS or Android) simultaneously. This is achieved through the Accsoon Go app, which turns smartphones and tablets into fully-featured production monitors. Within the app, users have access to professional monitoring tools such as Focus Peaking, Zebras, False Color, Histograms, and the ability to load custom 3D LUTs (.cube files) for real-time color grading previews.

The system also features SDI/HDMI cross-conversion. If a signal is fed into the transmitter via SDI, it can be output from the receiver via both SDI and HDMI. This allows for flexible monitoring setups, such as sending an SDI signal to a professional production monitor while simultaneously sending an HDMI signal to a client television. The transmission range of 1200 feet is highly effective in open spaces, but the dual-band technology also improves performance in "congested" environments where walls and other electronic devices would typically limit the range of a standard 5GHz transmitter.

On the Shoot: Real-World Scenarios in India

In a high-pressure Bengaluru wedding reception, the CineEye 2S Pro manages the extreme RF interference caused by hundreds of guests with smartphones and the venue's own wireless infrastructure. The dual-band transmission ensures that the cinematographer can move freely through the crowd while the director or a live-stream operator receives a stable 1080p feed at the console. The SDI connection on the transmitter provides a secure, locking physical link to a Sony FX6, ensuring that the cable cannot be accidentally unplugged during fast-paced movement between the mandap and the dance floor.

During a travel shoot in the open landscapes of Goa, the 1200ft range allows a production team to monitor drone-like high-angle shots or wide tracking shots from a distance. If the camera is mounted on a gimbal inside a moving vehicle while the director follows in a separate car, the CineEye 2S Pro maintains the link across the road, provided there is a relatively clear line of sight. The fanless design is particularly useful here, as it prevents dust and sand from being sucked into the internal components, which is a common failure point for active-cooled transmitters in outdoor environments.

In a Mumbai-based commercial studio session for a product shoot, the system's ability to stream to four mobile devices is utilized to keep the crew socially distanced. The cinematographer uses the dedicated hardware receiver for a primary monitor, while the lighting designer, the makeup artist, and the client each monitor the feed on their own iPads. By using the Accsoon Go app, the client can view the shot with a preview LUT applied, seeing the final intended look of the product without needing to stand directly behind the camera operator or crowd around a single large monitor.

Power, Media, and Compatibility

The CineEye 2S Pro is powered via Sony NP-F style batteries (NP-F550, F750, F970). A single NP-F970 battery can power the unit for up to 8 hours, making it capable of lasting through a standard shooting day with minimal swaps. Additionally, both the transmitter and receiver feature a DC input (7.4V to 16.8V) with a barrel connector, allowing them to be powered from a V-Mount or Gold Mount battery via a D-Tap to DC cable. This is the preferred method for long studio days or when the transmitter is mounted on a large cinema camera rig already utilizing a centralized power solution.

Compatibility extends to almost any camera with an SDI or HDMI output. This includes professional cinema cameras (RED, Arri, Blackmagic URSA), mid-range cinema cameras (Sony FX series, Canon C-series), and high-end mirrorless cameras (Panasonic GH6, Sony A7S III, Nikon Z9). Because it uses standard Wi-Fi protocols for its mobile device transmission, it is compatible with most modern iPhones, iPads, and Android devices running recent operating system versions. The system does not require any proprietary media; however, the quality of the SDI and HDMI cables used is paramount to maintaining signal integrity before it even reaches the transmitter.

Limitations and Alternative Choices

While the CineEye 2S Pro is a highly capable system, it has specific limitations that may lead a professional to choose a different class of product. The most significant limitation is the 60ms latency. While this is very low for a Wi-Fi-based system, it is not "zero latency." For a professional focus puller working on high-speed action or using very shallow depth-of-field lenses, even a 60ms delay can be challenging. In those specific instances, a zero-latency system like a Teradek Bolt or a Vaxis Storm, which use different transmission protocols (WHDI), would be the more appropriate, albeit more expensive, choice.

Furthermore, the CineEye 2S Pro is limited to a maximum resolution of 1080p. If the production requires a 4K wireless feed for a 4K client monitor or high-resolution onset grading, this system will not suffice. It also lacks the ability to transmit metadata or timecode over the wireless link, which can be a drawback for complex multi-camera productions requiring synchronized logging. For users who only need to transmit to mobile devices and do not require a hardware receiver or SDI connectivity, the standard CineEye 2 or 2S models offer a more compact and cost-effective solution with the same app-based monitoring features.
