The Purpose and Design of the Canon 5D Mark III Cage

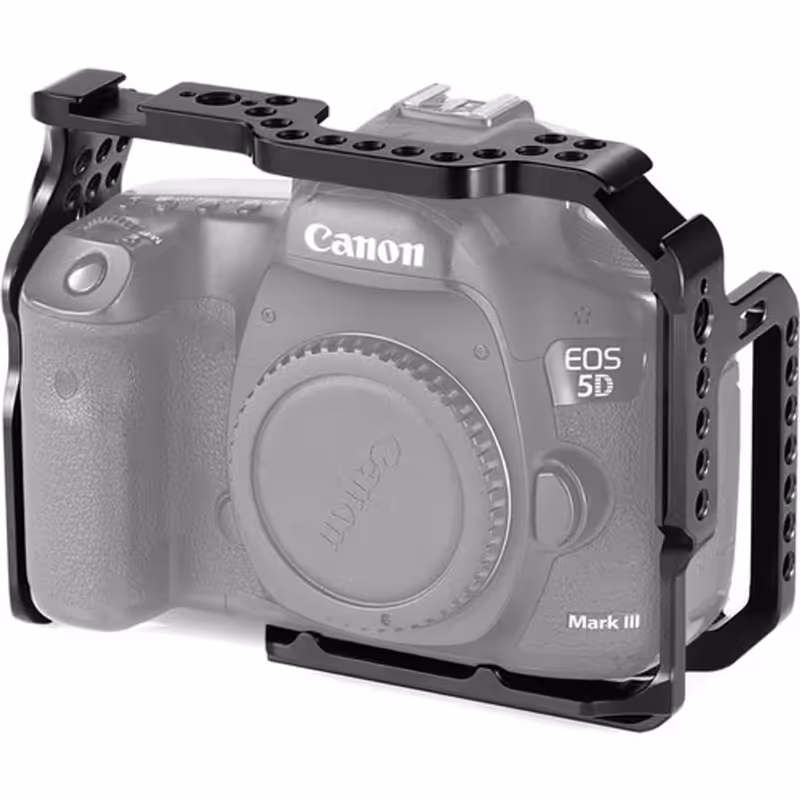

The Canon 5D Mark III Cage is a precision-engineered structural exoskeleton designed specifically for the Canon EOS 5D Mark III DSLR. At the time of its release, the 5D Mark III was a benchmark for full-frame digital photography and high-definition video, featuring a 22.3-megapixel CMOS sensor and the DIGIC 5+ image processor. However, the DSLR form factor was originally optimized for ergonomics in still photography, not for the complex rigging required in professional cinematography. This cage bridges that gap, transforming a handheld camera body into a modular production hub. It is constructed from high-strength, aircraft-grade aluminum alloy, providing a rigid frame that protects the magnesium alloy chassis of the camera while offering multiple mounting points for accessories that the camera body cannot natively support.

Designed for independent filmmakers, wedding videographers, and commercial photographers, this cage is a form-fitting solution. Unlike universal cages that may obstruct access to vital controls, this specific model is contoured to the 152 x 116 x 76 mm dimensions of the 5D Mark III. It ensures that the photographer can still access the mode dial, the shutter button, the depth-of-field preview button, and the dual card slots (CF and SD) without interference. By distributing the weight of heavy cinema lenses and external monitors across the cage rather than the camera’s lens mount or hot shoe, it preserves the mechanical integrity of the camera during high-intensity shoots.

Structural Integrity and Heat Management

The primary technical advantage of using the Canon 5D Mark III Cage lies in its ability to provide structural reinforcement. The 5D Mark III, while robustly built with weather sealing, features only a single 1/4"-20 tripod thread at its base. When mounting heavy accessories like a 7-inch field monitor, a wireless video transmitter, or a follow focus system, this single point of contact becomes a failure point, prone to twisting or stripping. The cage solves this by using a multi-point attachment system, often utilizing the tripod mount in conjunction with the camera's strap eyelets or a front-facing anti-twist block. This creates a zero-flex environment, which is critical when using geared follow focus systems where any movement between the lens and the camera body would result in focus slips.

Beyond physical protection, the aluminum construction of the cage acts as a passive heat sink. During extended video recording sessions—particularly when shooting in high ambient temperatures—the internal components of the 5D Mark III generate significant heat. While the camera does not have internal fans, the cage helps dissipate heat away from the body, potentially extending recording times before the thermal protection circuit is triggered. The open-air design ensures that the battery compartment remains ventilated, and the LP-E6 battery can be swapped out quickly without removing the camera from the rig, a vital feature for maintaining workflow continuity on a professional set.

Mounting Infrastructure and Handling

The Canon 5D Mark III Cage is defined by its array of industry-standard mounting points. It typically features dozens of 1/4"-20 threaded holes and several 3/8"-16 holes, often equipped with ARRI-style locating pins to prevent accessory rotation. These points are strategically placed along the top and sides of the frame. The top rail allows for the attachment of a NATO handle or a bolt-on top handle, which shifts the center of gravity for low-angle "underslung" shots. This is particularly useful when the camera is equipped with heavy L-series glass, such as the EF 70-200mm f/2.8L IS II USM, which can make the setup front-heavy.

Handling is further improved through the integration of side mounting options. The left side of the cage is frequently used to mount an HDMI cable clamp. The 5D Mark III utilizes a Mini-HDMI (Type C) port, which is notoriously fragile and prone to signal loss if the cable is tugged. The cage’s dedicated clamp secures the cable, preventing damage to the camera’s internal logic board. On the right side, the cage is designed to allow a full grip on the camera’s native rubberized handle, ensuring that the user can still operate the rear command dial and the multi-controller joystick with precision. For handheld work, the cage often includes integrated NATO rails or Rosette mounts, allowing for the addition of wooden or rubberized side grips to create a stable two-handed shooting platform.

Video Capability and Rigging for Cinema

While the 5D Mark III was revolutionary for its 1080p video at 24, 25, and 30 fps with ALL-I and IPB compression, its physical design lacked the mounting points necessary for a cinema workflow. The Canon 5D Mark III Cage enables the use of 15mm LWS (Light Weight Support) rod systems via an optional baseplate. These rods are essential for mounting matte boxes to control flare and hold ND filters, as well as manual or electronic follow focus units. By elevating the camera to the correct optical center height, the cage ensures compatibility with standard cinema accessories that require specific distances between the rods and the lens axis.

Furthermore, the cage facilitates the use of external recorders like the Atomos Ninja series. Following firmware update 1.2.1, the 5D Mark III became capable of outputting uncompressed 4:2:2 8-bit video via HDMI. To capture this high-quality signal, a recorder must be mounted securely to the camera. The cage provides the necessary cold shoe mounts or threaded holes to position the monitor at an optimal viewing angle for the focus puller or the operator. This setup transforms the DSLR into a much more capable video tool, allowing for better color grading flexibility in post-production while maintaining the shallow depth of field provided by the full-frame sensor.

On the Shoot: Real-World Indian Scenarios

In a high-pressure wedding environment in Udaipur, the Canon 5D Mark III Cage proves its worth during the long hours of a multi-day celebration. During a daytime outdoor ceremony under the intense Rajasthan sun, the cage allows for the mounting of a high-brightness monitor and a sun hood, which are essential because the 5D Mark III’s fixed rear LCD can be difficult to see in direct sunlight. The ability to attach a top handle allows the videographer to capture smooth, low-angle shots of the couple during the Pheras without the fatigue associated with holding a bare DSLR body for hours.

For a commercial product shoot in a Mumbai studio, the cage acts as the primary interface for tethering and monitoring. When shooting high-resolution stills of jewelry or fashion, the camera is often mounted on a heavy-duty tripod or a studio column stand. The cage’s multiple mounting points allow for a wireless transmitter (such as a Teradek) to be bolted directly to the frame, sending a live feed to a client monitor. The HDMI cable lock is indispensable here, ensuring that the tethered connection remains secure even as the camera is moved between different lighting setups. The rigidity of the cage ensures that there is no "micro-wiggle" when the shutter is triggered, preserving the sharpness of the 22.3MP sensor.

During a documentary shoot in the humid environment of Kerala, the cage provides a layer of physical protection against the elements and accidental impacts. When trekking through dense foliage or navigating backwaters on a boat, the aluminum frame shields the camera body from bumps against hard surfaces. The integrated strap holes allow for the use of heavy-duty climbing-rope style straps or multi-point harnesses, distributing the weight of the rigged-out camera across the operator's torso. This reduces physical strain during long days of "run-and-gun" filming where a tripod is impractical.

Compatibility and Essential Pairings

The Canon 5D Mark III Cage is designed to work in harmony with a specific ecosystem of hardware. Its primary compatibility is with the Canon EOS 5D Mark III, but it often fits the 5D Mark II due to their similar chassis designs, though button alignment may vary slightly. It is fully compatible with all EF-mount lenses, including the heavy "Holy Trinity" (16-35mm, 24-70mm, and 70-200mm f/2.8L series). When using particularly large lenses like the EF 85mm f/1.2L II USM, the cage provides the necessary clearance for the lens barrel and allows for the attachment of a lens support bracket to the 15mm rods, taking the strain off the EF mount.

Essential pairings for this cage include:

• Top Handles: Either NATO-style for quick release or threaded for a permanent, secure bond.
• HDMI Cable Clamps: Specifically designed for the 5D Mark III’s port layout to prevent signal interruption.
• Baseplates: 15mm LWS blocks that allow the cage to interface with standard tripod plates like the Manfrotto 501PL or Arca-Swiss.
• External Monitors: Such as the SmallHD or Atomos series, mounted via articulating arms or cold shoe adapters.
• Follow Focus Units: Both manual (like the Tilta FF-T03) and wireless (like the Nucleus-M), which require the stability of a caged system.

Limitations and Alternative Choices

While the Canon 5D Mark III Cage is an essential tool for many, it has specific limitations. The most notable is the added weight and bulk. A fully rigged cage can easily double the weight of the camera setup, which may not be ideal for travel photographers or those prioritizing a minimalist kit. Furthermore, while it fits the 5D Mark III perfectly, it is not fully compatible with the Canon EOS 5D Mark IV. The Mark IV has slightly different port placements and a different remote shutter release port, meaning a cage designed for the Mark III may block access to these features on the newer body.

For users who have migrated to mirrorless systems, such as the Canon EOS R5 or R6, this cage is entirely incompatible due to the significantly smaller dimensions of those cameras. Those users should seek out cages specifically designed for the R-series, which often include features like integrated Arca-Swiss plates in the base. Additionally, if the primary goal is only to provide a better grip rather than mounting professional cinema accessories, a simple L-bracket may be a more efficient and lightweight choice. For filmmakers who require internal ND filters and XLR audio inputs, moving to a dedicated cinema camera like the Canon EOS C100 Mark II or C70 would be a more appropriate step than rigging a 5D Mark III with an extensive cage system.
