Black Magic Multiviewer 16 input

What it is

The Blackmagic MultiView 16 is a high-density SDI monitoring solution designed to consolidate up to 16 independent SDI video sources onto a single Ultra HD or HD display. Occupying a 1RU (one rack unit) space, this hardware is engineered for high-pressure broadcast environments, live production hubs, and post-production facilities where space and visual oversight are critical. It sits as the flagship high-capacity option in the Blackmagic multiviewer lineup, offering significantly more density than the MultiView 4 or the Teranex Mini MultiView 4. The device is built around a 6G-SDI architecture, allowing it to handle SD, HD, and Ultra HD signals simultaneously across its 16 inputs. Each input features an independent frame re-synchronizer, which allows the unit to accept a mix of different video standards and frame rates without causing glitches or signal drops on the output display. This makes it an essential tool for technical directors and engineers who need to monitor a diverse array of sources, such as cameras, media players, and computer feeds, from a centralized location.

Signal and Processing Quality

The core strength of the Blackmagic MultiView 16 lies in its 6G-SDI processing engine. This technology supports 10-bit 4:2:2 and 4:4:4 color sampling, ensuring that the signal integrity of the source material is maintained through the monitoring chain. Because the device supports Ultra HD output, it can display 16 full-resolution 1080 HD sources on a single 4K monitor with no loss of detail. When the output is set to 2160p, each of the 16 views effectively becomes a 1920 x 1080 window, providing a "pixel-perfect" representation of HD sources. The internal processing handles the scaling of these signals with high precision, avoiding the aliasing and softening often associated with lower-quality multiviewers. The device supports a wide range of SMPTE standards, including SMPTE 259M, 292M, 296M, 424M-B, 425M, and ST-2081. This broad compatibility ensures that whether the source is an older SD-SDI deck or a modern 6G-SDI 4K camera, the MultiView 16 can process and display the image with accurate color reproduction and sharp edges.

Build and Handling

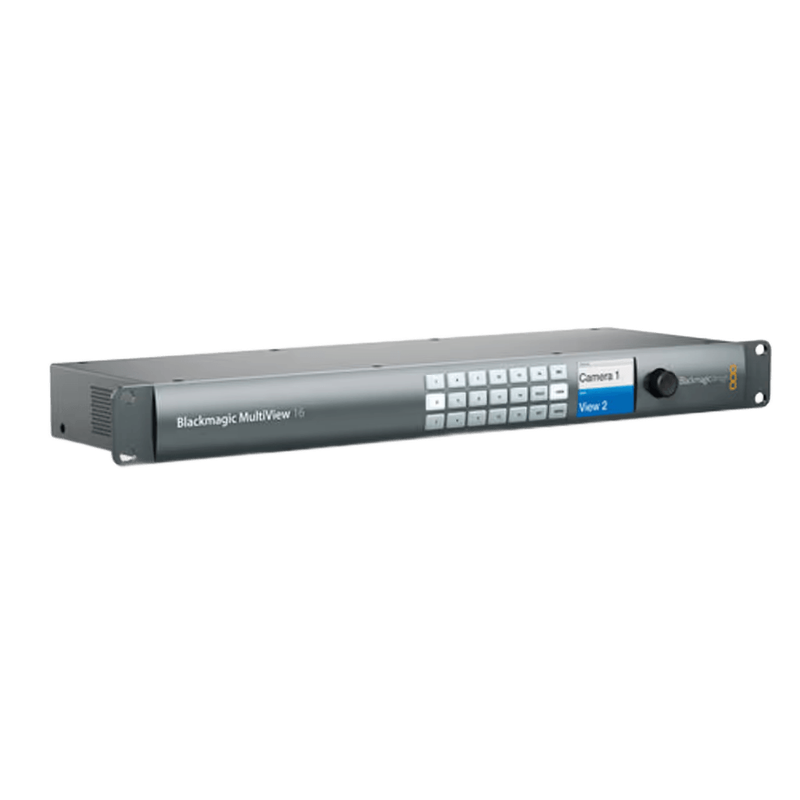

Constructed from machined metal, the Blackmagic MultiView 16 is designed for the rigors of 24/7 operation in server racks or fly-packs. The front panel is dominated by a 1.5-inch color LCD screen that provides a local preview of any selected input, along with critical status information and menu navigation. Control is handled via a set of 16 dedicated input buttons and a rotary search dial, allowing for rapid switching and configuration without the need for an external computer. For remote operation, the unit includes an Ethernet port that supports the Blackmagic MultiView Setup utility for Mac and Windows, as well as the Videohub Control protocol. This allows the device to be integrated into larger routing systems where layouts can be changed via a software interface or a hardware control panel like the Videohub Smart Control. The rear of the unit is densely packed with 16 BNC inputs and 16 corresponding BNC loop-through outputs. These loop-outs are essential for passing the clean, unprocessed signal to other devices like switchers or recorders. Power is provided via an internal 90-240V AC power supply, utilizing a standard IEC C14 connection, which eliminates the need for external power bricks that can be a point of failure in professional setups.

Video Capability and Layouts

The Blackmagic MultiView 16 offers flexible viewing configurations, allowing users to choose between 2x2 (4 views), 3x3 (9 views), or 4x4 (16 views) grid layouts. A "Solo" button on the front panel allows any single input to be instantly scaled to full screen for detailed inspection. The device supports Ultra HD output resolutions of 2160p at 23.98, 24, 25, 29.97, and 30 frames per second. In standard HD, it supports 1080p up to 60fps and 1080i up to 60fps. It is important to note that while the inputs are 6G-SDI, the device is limited to 30fps when outputting in Ultra HD; for 50p or 60p monitoring in 4K, a 12G-SDI solution would be required. The MultiView 16 also features advanced on-screen overlays for each view, including custom text labels, VU audio meters, and tally indicators. The tally system is compatible with the Blackmagic SDI Tally Protocol, which means that when used with ATEM switchers and compatible cameras, the borders of the individual windows will glow red for "on-air" or green for "preview," providing vital feedback to the production team.

On the Shoot

In a high-end Mumbai studio session for a television commercial, the Blackmagic MultiView 16 serves as the central monitoring hub for the director and client. In this scenario, the unit receives feeds from three primary cinema cameras, two witness cameras, a teleprompter return, and several playback channels from a DaVinci Resolve workstation. By outputting to a large 65-inch 4K OLED screen, the director can see all 16 feeds simultaneously. The 10-bit processing ensures that the colorists and cinematographers can accurately judge lighting and skin tones across multiple angles without needing to switch inputs on the monitor itself.

During a large-scale live event, such as a multi-day tech conference in Bengaluru, the MultiView 16 is integrated into a mobile production rack. The technical director uses the 3x3 layout to monitor six camera feeds from the main stage, two laptop presentation feeds, and a social media wall feed. Because the event involves long SDI cable runs, the loop-through outputs on the MultiView 16 are used to send the camera signals directly to the primary ATEM switcher, while the multiviewer provides the "birds-eye view" for the engineering team to monitor signal health and frame sync across the entire venue.

For a destination wedding in Udaipur, where a production team is managing a 12-camera setup across a palace courtyard, the MultiView 16 is used inside a temporary control room. The ability to handle mixed formats is crucial here, as the team may be using a combination of 4K cameras for the main ceremony and HD wireless links for roaming shots. The MultiView 16's internal re-synchronizers ensure that as wireless signals drop or reconnect, the rest of the monitoring grid remains stable, preventing the "blackout" of the entire display that can occur with less sophisticated equipment.

What it Pairs With

The Blackmagic MultiView 16 is designed to be the centerpiece of an SDI ecosystem. It pairs natively with the Blackmagic Design ATEM line of switchers, particularly the ATEM Production Studio 4K and ATEM Constellation models, which can utilize the MultiView 16 as an expanded monitoring bridge. For recording, it is frequently used alongside HyperDeck Studio Pro or HyperDeck Extreme recorders, where the loop-through outputs allow for ISO recording of every individual feed. In terms of monitoring, it is best paired with high-resolution displays like the Blackmagic SmartView 4K or professional-grade 4K television panels via the HDMI or SDI multiview outputs. To maintain 6G-SDI signal integrity over distance, it should be used with high-quality 75-ohm BNC cables rated for 6Gbps or higher. For remote control, it integrates with the Videohub Smart Control or Videohub Master Control Pro panels, allowing for tactile layout changes from a distance.

Who Should Choose Something Else

While the Blackmagic MultiView 16 is a versatile tool, it is not the correct choice for every production. If a shoot only requires the monitoring of four cameras or fewer, the Blackmagic MultiView 4 or the Teranex Mini MultiView 4 provides a more compact and cost-effective solution without the 1RU rack footprint. Furthermore, users who require 4K output at high frame rates (50p or 60p) will find the MultiView 16's 30fps limit in Ultra HD to be a bottleneck; such users should look toward 12G-SDI multiviewers. This device is also strictly SDI-based; if your workflow relies primarily on HDMI sources (such as mirrorless cameras or basic laptops) without the use of SDI converters, a native HDMI multiviewer or an ATEM Mini series switcher with built-in multiview would be more appropriate. Finally, for productions that require advanced HDR (High Dynamic Range) monitoring with specific LUT (Look-Up Table) support on a per-window basis, the MultiView 16 may be too limited, as its primary function is signal consolidation rather than advanced color management.
