Black Magic Atem Mini Pro 4 Input

The Architecture of the Blackmagic ATEM Mini Pro

The Blackmagic ATEM Mini Pro 4 Input is a compact, hardware-based live production switcher designed to bridge the gap between professional broadcast functionality and the accessibility required for modern streaming environments. Positioned as the intermediate tier in the ATEM Mini lineup, it builds upon the foundation of the standard ATEM Mini by adding dedicated hardware for direct streaming and recording, alongside a comprehensive multiview output. It features four independent HDMI Type A inputs, each equipped with a dedicated standards converter. This allows the switcher to accept various video formats—ranging from 720p to 1080p at various frame rates—and automatically convert them to the designated project format. The internal processing operates at 10-bit 4:2:2, ensuring high-fidelity color reproduction and signal integrity throughout the switching pipeline.

Designed for solo operators and small production teams, this device integrates a hardware streaming engine that supports RTMP streaming via its Ethernet port, removing the processing load from a connected computer. It also features a USB-C 3.1 Gen 1 port that serves a dual purpose: it can act as a high-definition webcam source for software like Zoom, OBS, or Microsoft Teams, or it can be used to record the program feed directly to external flash disks or SSDs in H.264 format. The physical interface is dominated by large, backlit silicone buttons that provide tactile feedback for switching, audio mixing, and transition control, making it a reliable centerpiece for high-stakes live environments where software-only switching might introduce latency or stability risks.

Signal Processing and Internal Image Quality

The core of the Blackmagic ATEM Mini Pro is its 10-bit 4:2:2 internal processing engine. This high bit-depth is critical for maintaining smooth gradients and preventing banding, especially when utilizing the internal Upstream Keyer for chroma keying. The switcher includes a professional-grade Fairlight audio mixer, which provides 6-band parametric equalization, compression, limiting, and noise gating on every input. This ensures that audio quality matches the video standard, even when using the two 3.5mm stereo analog inputs for external microphones or line-level feeds. The audio-follows-video (AFV) feature allows for seamless transitions where the audio source switches automatically with the corresponding video input.

For visual effects, the device utilizes a built-in DVE (Digital Video Effects) processor. This allows for picture-in-picture (PiP) layouts with customizable borders, shadows, and positioning. The transitions library includes standard cuts, dissolves, and wipes, as well as more complex DVE-based transitions like squeeze and push. The internal Media Pool can store up to 20 separate RGBA still images, which can be used for titles, lower thirds, and logos. These graphics are managed via the ATEM Software Control application, allowing for professional branding without the need for an external character generator. The inclusion of a dedicated Downstream Keyer (DSK) allows these graphics to be layered over the program feed independently of the primary switching transitions.

Physical Interface and Hardware Handling

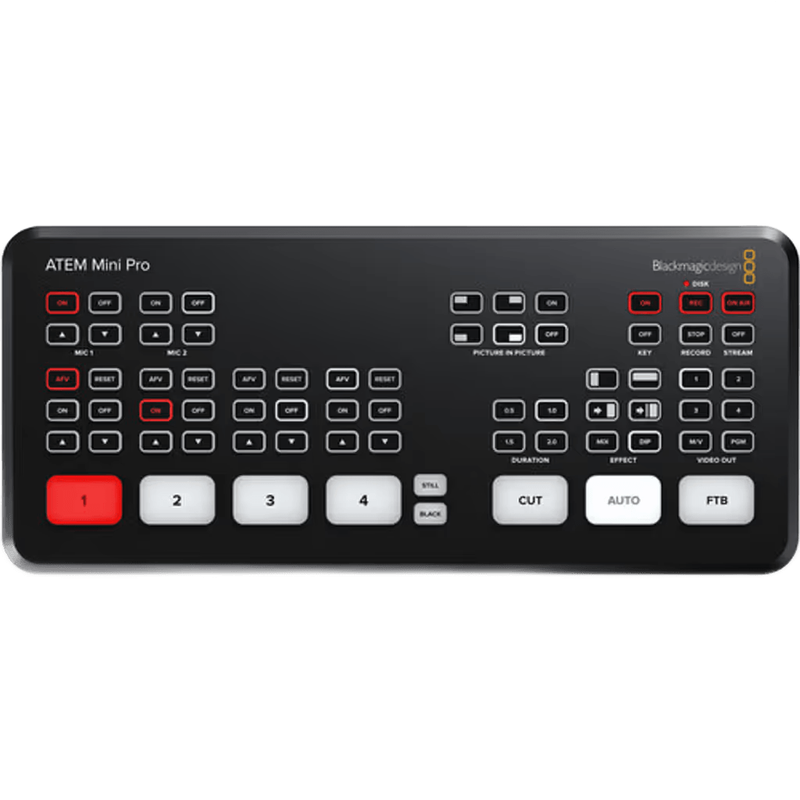

The hardware layout of the Blackmagic ATEM Mini Pro is optimized for "blind" operation, where the user can switch sources without looking away from the action. The four large input buttons are clearly numbered and illuminated, changing color from green (preview) to red (program) to indicate the current on-air status. Dedicated buttons for "Cut" and "Auto" allow for instant switching or timed transitions, the duration of which can be adjusted directly from the panel. The "Fade to Black" (FTB) button provides a safe way to end a broadcast, ensuring a clean exit for the viewer.

A significant hardware addition in the Pro model is the dedicated "Stream" and "Record" buttons. These allow the operator to start or stop a live broadcast and a local recording independently, with LED indicators providing immediate confirmation of the status. The "Duration" display on the multiview output keeps track of the recording time and stream health. The unit is housed in a lightweight but durable plastic chassis, featuring a passive cooling design that remains silent during operation—a critical factor for small studio setups where the switcher is placed near sensitive microphones. The rear panel is densely packed with four HDMI inputs, one HDMI output (which can be assigned to Program, Preview, or Multiview), two 3.5mm mic inputs, an Ethernet port, a USB-C port, and a locking 12V DC power input to prevent accidental disconnection.

Video Specifications and Streaming Capabilities

The Blackmagic ATEM Mini Pro supports a wide range of video standards. Input resolutions include 1080p, 1080i, and 720p at frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 frames per second. The internal project format can be set to match any of these standards, and the switcher will perform the necessary frame rate and resolution conversion on the fly. The HDMI output is capable of 10-bit 4:2:2 and supports the same range of resolutions and frame rates. For streaming, the hardware engine utilizes the H.264 codec, which is the industry standard for platforms like YouTube Live, Facebook Live, and Twitch. Users can select from several quality presets, ranging from "HyperDeck High" (up to 70 Mb/s) to "Streaming Low" (approx. 3 Mb/s), allowing for flexibility based on the available internet bandwidth.

Recording is handled via the USB-C port, which supports direct capture to external media formatted in ExFAT or HFS+. The files are saved as .mp4 containers with AAC audio, making them immediately compatible with non-linear editing systems like DaVinci Resolve, Adobe Premiere Pro, or Final Cut Pro. One limitation to note is that the Pro model records the "Program" feed only; it does not record individual camera inputs (ISO) separately. The Ethernet port supports 10/100/1000 BaseT, providing a stable connection for direct RTMP streaming without the jitter often associated with Wi-Fi-based setups. Furthermore, the Ethernet port allows for remote control of the switcher via a local area network using the ATEM Software Control on a Mac or PC.

On the Shoot: Real-World Scenarios in India

In a Bengaluru wedding reception, the Blackmagic ATEM Mini Pro serves as the central hub for a multi-camera live stream. A typical setup might involve two cameras on tripods at the back of the hall for wide and mid-shots, one roaming camera on a gimbal for close-ups of the couple, and a fourth input dedicated to a laptop for playing pre-recorded videos or photo montages. The operator uses the Multiview output on a 24-inch monitor to keep an eye on all four angles simultaneously, ensuring that no camera is out of focus or poorly framed before switching it to the live feed. The direct Ethernet connection to the venue's high-speed fiber line ensures a stable 1080p60 stream to the family's YouTube channel, while the USB-C port records the entire ceremony to a 1TB SSD for immediate delivery to the client after the event.

During a Mumbai-based corporate product launch, the switcher is utilized for its advanced keying capabilities. A presenter stands in front of a green screen in a small studio. Input 1 is the camera feed of the presenter, while Input 2 is a high-resolution slide deck from a MacBook. Using the Upstream Keyer, the operator removes the green background and replaces it with a branded virtual set or the slide deck itself. The DVE is used to create a picture-in-picture effect during the Q&A session, allowing the audience to see both the presenter and the product demonstration simultaneously. The Fairlight audio engine is used to clean up the audio from the presenter's lapel mic, applying a limiter to prevent clipping during enthusiastic segments of the presentation.

For a remote educational workshop conducted from a home studio in Delhi, the compact size of the device is its greatest asset. The instructor uses Input 1 for their main face camera, Input 2 for a top-down camera showing a physical demonstration, and Input 3 for a tablet used as a digital whiteboard. The "Audio Follows Video" feature is particularly useful here, as it ensures that the correct microphone (or the tablet's audio) is active depending on which camera is being shown. The instructor uses the USB-C "Webcam Out" mode to feed the switched program directly into a Zoom call, allowing students to see a professional, multi-camera production as if it were a simple webcam, while the hardware engine simultaneously records the session to a thumb drive for later distribution on an LMS platform.

Compatibility and Essential Pairings

The Blackmagic ATEM Mini Pro is highly optimized for use within the Blackmagic ecosystem, but it remains compatible with any standard HDMI source. When paired with Blackmagic Pocket Cinema Camera 4K, 6K, or 6K Pro models, the switcher can control camera settings such as iris, focus, gain, and shutter speed directly over the HDMI cable. This integration also enables a tally system, where the camera's record light turns red when it is "on-air," providing a clear signal to the talent. For audio, the 3.5mm inputs are compatible with wireless microphone systems like the Rode Wireless GO II or Sennheiser G4 sets, though a dedicated external mixer is often recommended for more complex audio requirements.

For recording, high-speed external media is essential. Drives such as the Samsung T5 or T7 SSDs are frequently used due to their sustained write speeds, which are necessary for the "HyperDeck High" recording preset. When it comes to monitoring, any HDMI monitor will work, but one that supports at least 1080p resolution is required to clearly see the 10-view Multiview layout, which includes the four inputs, preview, program, media player, and status indicators for streaming, recording, and audio levels. For power, while the unit comes with a 12V power supply, it can be powered in the field using a 12V V-mount battery plate with a D-tap to barrel adapter, provided the polarity and voltage are correctly matched.

Limitations and Alternative Choices

While the Blackmagic ATEM Mini Pro is a powerful tool, it has specific limitations that may necessitate a different model. The most significant limitation is the lack of 4K support; the entire ATEM Mini line is strictly 1080p. If your workflow requires 4K delivery, you would need to look toward the ATEM Production Studio 4K or higher-end Constellation models. Additionally, this specific model only records the final Program mix. If you require the ability to record all four camera inputs separately for post-production "re-switching," the ATEM Mini Pro ISO is the necessary upgrade, as it records five H.264 streams (4 inputs + 1 program) and generates a DaVinci Resolve project file.

The four-input limit is another factor to consider. For larger events like a multi-day conference or a complex theatrical production, four inputs can be exhausted quickly once you account for cameras, presentation laptops, and remote guest feeds. In these cases, the ATEM Mini Extreme, which offers eight HDMI inputs and two independent HDMI outputs, is a more suitable choice. Finally, the 3.5mm audio inputs are unbalanced and lack phantom power; professional productions using XLR microphones will require an external pre-amp or mixer to convert the signal before it reaches the switcher. If your production relies heavily on SDI infrastructure rather than HDMI, the ATEM SDI Pro ISO provides the same feature set as the Pro model but with 3G-SDI connectors, which are more secure and support much longer cable runs.
