8 Feet Jib Arm

The Role and Design of the 8 Feet Jib Arm

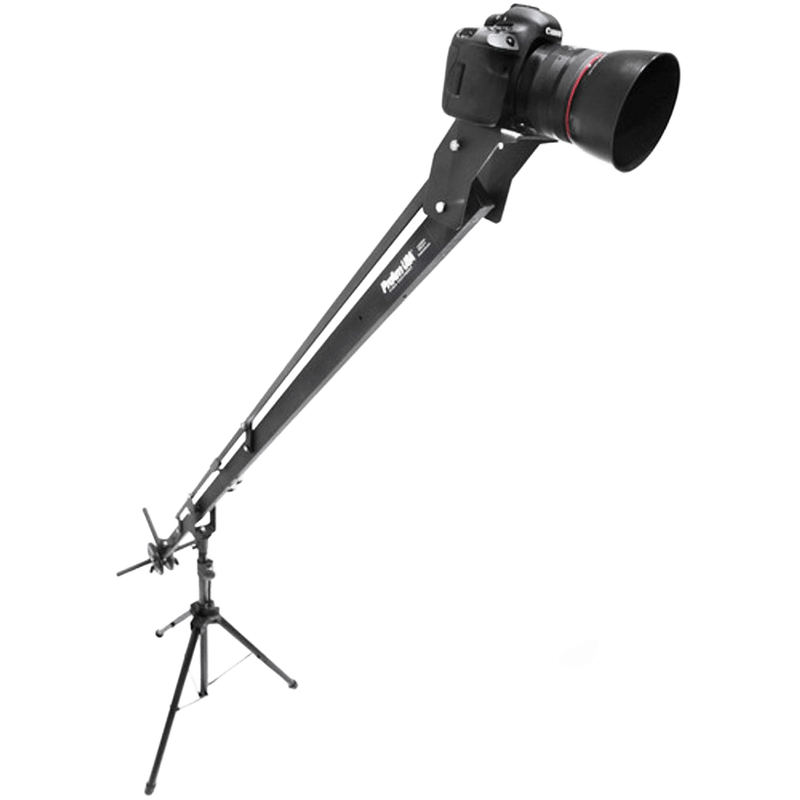

The 8 Feet Jib Arm is a mid-range camera crane designed to provide mechanical elevation and sweeping motion for cinema and video production. Positioned between compact handheld mini-jibs and large-scale telescopic cranes, this specific length is engineered for versatility in environments where ceiling height or floor space might be constrained. It functions on a dual-arm parallelogram design, which ensures the camera remains level throughout its vertical arc unless manual tilt is introduced. This equipment is primarily built for independent filmmakers, wedding videographers, and commercial production houses who require high-production-value movement without the logistical footprint of a 12-foot or 24-foot system. The 8-foot reach refers to the total length of the arm, typically providing a functional radius of approximately 5 to 6 feet from the central pivot point, depending on the extension and counterweight configuration.

In the hierarchy of camera support, the 8 Feet Jib Arm serves as a bridge between static tripod shots and high-angle aerial perspectives. It is manufactured using high-grade aluminum alloys or carbon fiber, balancing the need for structural rigidity with the requirement for portability. The design focuses on the physics of leverage, utilizing a central fulcrum point that allows an operator to move a camera payload of up to 10kg (depending on the specific model's rating) with minimal physical effort. This tool is essential for creating the "crane shot," a staple of cinematic language used to establish scale, follow subjects over uneven terrain, or transition smoothly between low-angle and high-angle viewpoints.

Mechanical Precision and Visual Impact

The primary technical advantage of the 8 Feet Jib Arm lies in its ability to execute three-dimensional movement that a standard tripod or slider cannot replicate. By moving the camera through a curved arc, it introduces a significant parallax effect. This means that objects in the foreground move across the frame faster than objects in the background, providing the viewer with a deep sense of spatial orientation and scale. The mechanical formula of the jib ensures that this movement is fluid and jitter-free, provided the system is correctly balanced. Unlike digital stabilization, the movement here is physical and organic, maintaining the full resolution and optical integrity of the lens without the artifacts sometimes introduced by electronic gimbals.

The "quality" of the movement is governed by the friction control systems located at the pivot points. High-quality bearings at the fulcrum allow for smooth starts and stops, which are critical for professional broadcast and cinema. The dual-arm structure is the key technology here; it creates a mechanical link that keeps the camera platform parallel to the ground. This allows the operator to focus entirely on the sweep and pan of the arm rather than constantly correcting the camera's horizon. When used with a fluid head on the camera platform, the jib allows for "underslung" or "overslung" mounting, giving the cinematographer the choice between maximum height or the ability to skim the camera just inches above the floor.

Build, Mounting, and Operational Handling

Constructing the 8 Feet Jib Arm on a set requires a systematic approach to balance and safety. The arm typically mounts onto a heavy-duty tripod with a 75mm or 100mm bowl base. It is essential that the supporting tripod is rated for at least twice the weight of the jib, camera, and counterweights combined. The build features a series of locking pins and tension knobs that allow the operator to adjust the "drag" or resistance of the movement. This is particularly useful when shooting in windy outdoor conditions or when performing very slow, dramatic reveals where any micro-tremor would be visible.

The counterweight system is the most critical aspect of handling. The rear of the arm features a weight bar designed to hold standard gym-style weights (usually 1-inch bore). Achieving a "perfect balance" means the camera stays in any position it is placed without drifting up or down. This state of neutral buoyancy allows the operator to control the 8 Feet Jib Arm with a single finger, facilitating complex diagonal movements that combine a vertical rise with a horizontal pan. The arm often includes dedicated mounting points for external monitors, which are necessary because the camera's built-in screen becomes inaccessible once the arm is raised above eye level. Handling this gear requires a clear "swing zone" on set to ensure the counterweights do not strike crew members or equipment during a fast pan.

Video Dynamics and Movement Capabilities

The 8 Feet Jib Arm is not limited by electronic frame rates or resolutions; its "specs" are defined by its range of motion. A standard 8-foot arm offers a vertical travel range of approximately 7 to 9 feet, depending on the height of the base tripod. This allows for a "ground-to-sky" shot that can start at a subject's feet and end in a wide-angle bird's-eye view. The horizontal reach allows the camera to "fly" over obstacles like tables, water features, or crowds, providing a perspective that is physically impossible for a standing operator. The limitation in video capability is often tied to the camera's autofocus and monitoring; since the operator is several feet away from the camera body, a remote follow-focus system or a wide-angle lens with a deep depth of field is often required to keep the subject sharp during the move.

One honest limitation of a manual jib of this size is the "arc" of the movement. Because the arm is a fixed length, the camera moves in a circular path rather than a straight line. If a straight-line move is required, the operator must simultaneously pan the tripod base while swinging the arm, a technique that requires significant practice. Additionally, without a motorized pan-tilt head at the end of the arm, the camera's tilt angle remains fixed relative to the ground. While the 8 Feet Jib Arm provides the "boom" and "swing," the "pan" and "tilt" of the camera itself must be handled by a secondary fluid head or a remote electronic head if the operator wants to track a subject dynamically during the crane move.

On the Shoot: Indian Production Scenarios

In a Bengaluru wedding reception held in a large convention hall, the 8 Feet Jib Arm is frequently deployed near the stage. During the varmala or the couple's first dance, the jib allows the videographer to rise above the heads of the guests and photographers, capturing a clear view of the couple with a sweeping motion that adds a cinematic "grandeur" to the wedding film. The 8-foot length is ideal here because it provides enough height to clear the crowd but is short enough to be moved quickly between the stage and the dining area without dismantling the entire rig.

For a Mumbai studio product session involving food cinematography, the jib is used for "top-down" or "flat lay" shots. A standard tripod cannot position a heavy cinema camera directly over a table without the legs appearing in the frame. The 8 Feet Jib Arm allows the camera to be cantilevered over the table. The operator can then perform a slow "push-in" or "pull-back" vertically, creating a dynamic reveal of the plated food that adds high-end production value to a commercial or social media reel.

During a Goa travel shoot on a beach or near a heritage structure, the jib is used to create "reveal" shots. The camera can start behind a rock or a palm frond at ground level and then rise up to reveal the vast coastline or the architecture of a church. In this outdoor scenario, the 8-foot length is manageable for a small crew to transport in a standard SUV. The mechanical nature of the jib is an advantage in the humid Goa climate, as it lacks the sensitive electronics of a drone or a high-end gimbal that might struggle with salt air or battery overheating during long outdoor shoots.

Compatibility and Essential Pairings

To function effectively, the 8 Feet Jib Arm must be paired with a heavy-duty cinema tripod. A standard stills tripod will likely collapse or tip under the off-center load of a jib. Look for tripods with a load capacity of at least 20-30kg and a 75mm or 100mm bowl mount. For the camera end, a fluid head is necessary to allow for manual tilting of the camera, though many users prefer to mount the camera directly to the jib's platform for maximum stability in simple "up-down" moves.

Monitoring is non-negotiable. A 7-inch high-brightness monitor should be mounted at the fulcrum (the pivot point) using a magic arm, connected to the camera via a long HDMI or SDI cable (at least 3-5 meters). This allows the operator to see the frame while standing at the back of the jib. If using a cinema camera like a Blackmagic URSA or a Sony FX6, a wireless follow focus is highly recommended, as manually touching the lens during a jib move will cause visible shaking. Lastly, a set of standard cast-iron weights (usually 5kg and 2kg increments) is required to balance the system; these are rarely included with the arm itself and must be sourced separately.

Who Should Choose Something Else

While the 8 Feet Jib Arm is a powerful tool, it is not the right choice for every production. If you are a solo operator shooting a fast-paced documentary where you need to move locations every 10 minutes, a 3-axis electronic gimbal is a better choice. The jib requires significant setup time (15-30 minutes) and a dedicated footprint on the floor. It cannot be "run and gun" in the traditional sense. If your shoot involves very tight indoor spaces, such as a small apartment or a narrow hallway, a 4-foot mini-jib or a camera slider would be more appropriate, as the 8-foot arm requires a large "swing" radius that will likely hit walls or furniture.

Furthermore, if you need shots from heights greater than 10 feet, this arm will fall short. For high-angle stadium shots or large-scale outdoor events, a 12-foot or 24-foot crane with a motorized remote head is necessary. Finally, if your camera setup is extremely light (such as a smartphone or a small mirrorless camera without accessories), a professional 8-foot jib might be overkill; the weight of the arm itself might make it difficult to achieve the delicate balance needed for very light payloads. In those cases, a lightweight carbon fiber travel jib would be more efficient.
