75mm Head with tripod

The 75mm Bowl System and Professional Support

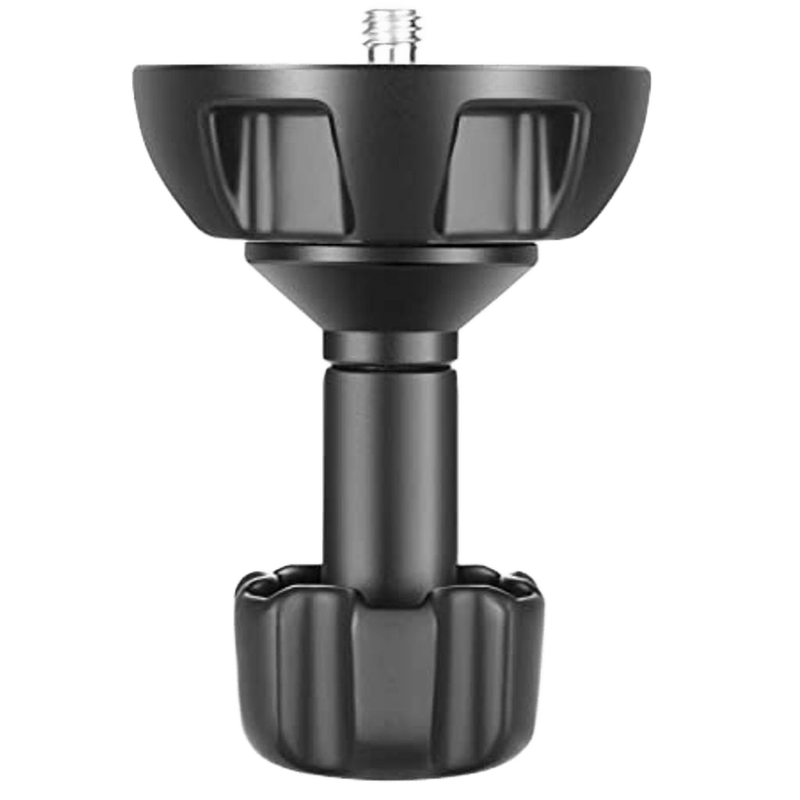

The 75mm Head with tripod represents the industry-standard bridge between lightweight photography supports and heavy-duty cinema platforms. In the hierarchy of camera support, the 75mm bowl diameter is the most versatile configuration for modern digital filmmaking, designed specifically to support payloads ranging from 2kg to approximately 8kg. This system is engineered for operators using mirrorless hybrids, mid-sized cinema cameras like the Sony FX6 or Canon C70, and fully rigged DSLR systems. Unlike flat-base heads that require precise leg adjustments to achieve a level horizon, the 75mm bowl allows the head to be leveled independently of the legs within a +15 to -15 degree range. This mechanical design is the primary differentiator for professional video work, where a perfectly level pan axis is mandatory for tracking shots and panoramic stitches.

The 75mm Head with tripod typically sits as the primary workhorse for documentary filmmakers, news gatherers, and high-end wedding cinematographers. It offers a significant increase in torsional rigidity compared to 60mm systems while remaining portable enough for single-operator transport. The tripod legs associated with this head size are usually two-stage, three-section designs, utilizing either aluminum or carbon fiber tubing with a diameter of 16mm to 22mm. This construction ensures that the "wind-up" or twisting of the legs during a fast pan is minimized, a critical factor when shooting at focal lengths beyond 50mm.

Fluid Drag Mechanics and Movement Precision

The core of the 75mm Head with tripod is its fluid drag system. Unlike friction-based heads which use simple tension to create resistance, a true fluid head utilizes high-viscosity silicone grease or specialized fluid cartridges sandwiched between internal plates. This design ensures that the movement starts and stops without a "jerk" or "stiction," providing a smooth ramp-up in speed. Most 75mm heads feature stepped drag settings, often ranging from 0 (no drag) to 3 or 4 levels of resistance for both pan and tilt axes. This allows the operator to calibrate the resistance based on the weight of the camera and the focal length of the lens; a 200mm telephoto shot requires significantly higher drag to maintain stability than a 24mm wide-angle shot.

Precision in the 75mm system is also defined by its counterbalance mechanism. This is a spring-loaded system designed to offset the weight of the camera when it is tilted forward or backward. A properly calibrated 75mm head will allow a camera to remain stationary at any angle of tilt without the operator holding the pan handle. This prevents the "nose-dive" effect that can damage equipment or ruin a shot. The counterbalance is typically rated in kilograms and is optimized for a specific center of gravity (COG) height, usually around 55mm to 75mm above the camera plate. This mechanical synergy between fluid drag and counterbalance is what enables the slow, cinematic tilts and pans that define professional production quality.

Build Integrity and Mounting Architecture

The structural build of the 75mm Head with tripod is focused on durability in high-cadence production environments. The head itself is usually constructed from die-cast aluminum or magnesium alloy, providing a balance between thermal stability and weight. The mounting interface typically utilizes a long sliding quick-release plate, often compatible with the Manfrotto 501PL or Sachtler Sideload standards. This sliding range (often up to 120mm) is vital for balancing cameras that are front-heavy due to large lenses or back-heavy due to V-mount batteries. The locking levers are oversized and often made of reinforced polymer or metal to allow for operation while wearing gloves.

The tripod legs accompanying the 75mm head are designed for rapid deployment. Most professional 75mm systems utilize a "twin-leg" design for the upper stages, which significantly increases the payload capacity and reduces vibration. The locking mechanisms are typically flip-locks or twist-locks; flip-locks provide a visual confirmation of security, while twist-locks are often preferred in sandy or wet environments to prevent debris ingress. The system also includes a spreader—either a ground spreader for flat studio floors or a mid-level spreader for uneven terrain. The mid-level spreader is particularly important for 75mm systems as it allows the legs to be set at different angles and heights while maintaining the structural integrity of the tripod footprint.

Counterbalance and Payload Dynamics

Understanding the payload dynamics of the 75mm Head with tripod is essential for equipment safety. While the maximum weight capacity might be rated at 8kg or 10kg, the "effective" payload is determined by the counterbalance steps. A 75mm head with a 4-step counterbalance allows for more precise tuning than a single-step or "continuous" friction system. If the camera rig is too light (under 2kg), the counterbalance may push the camera back to a level position aggressively; if it is too heavy (over 8kg), the head may struggle to hold the tilt position even at the highest setting. This makes the 75mm system the "Goldilocks" zone for modern digital cinema packages.

The tilt range on these heads is typically +90 degrees to -75 degrees, allowing for straight-down overhead shots, which are common in product photography and culinary videography. The pan range is a full 360 degrees. Both axes feature independent locks, which are not meant to be used for drag, but rather to secure the camera during transport or when changing lenses. The inclusion of a bubble level—often illuminated via a small battery—ensures that the 75mm bowl can be leveled in low-light environments, ensuring that the pan remains perfectly horizontal across the entire 360-degree rotation.

On the Shoot: Real-World Indian Scenarios

In a Bengaluru wedding reception, the 75mm Head with tripod is indispensable for capturing the couple's entry and stage performances. The crowded, often dimly lit environment requires a tripod that can be leveled instantly as the operator moves between the carpeted stage and the marble flooring of the banquet hall. The 75mm bowl allows the cinematographer to adjust for floor irregularities in seconds without fumbling with leg locks. The fluid drag is set to a medium level to allow for smooth tracking of the couple as they move through the crowd, ensuring that the 85mm or 135mm "bokeh" shots remain stable and free of micro-jitters.

During a travel documentary shoot in the rugged terrain of Goa, from the sandy beaches of Palolem to the rocky outcrops of Chapora Fort, the 75mm system proves its worth through its mid-level spreader. When one leg must be placed on a rock and the other two on shifting sand, the mid-level spreader keeps the tripod from collapsing outward while the 75mm bowl corrects for the steep incline. The aluminum construction of the legs provides the necessary weight to remain stable against coastal winds, while the fluid head ensures that the slow pans across the Arabian Sea are executed with professional resistance, even when using a lightweight mirrorless setup.

In a Mumbai studio session for a high-end jewelry brand, the 75mm Head with tripod provides the precision required for macro videography. When shooting a 100mm macro lens, even a vibration of a fraction of a millimeter is visible. The 75mm head’s ability to lock the pan axis while allowing a micro-tilt, or vice versa, allows the operator to frame the jewelry with extreme accuracy. The sliding plate is used to find the exact center of gravity for the camera, ensuring that the delicate "reveal" pans of a diamond necklace are consistent and repeatable across multiple takes.

Compatibility and Integration

The 75mm Head with tripod is designed to integrate with a wide array of professional accessories. The head often features one or two 3/8" or 1/4" threaded "Easy Link" or accessory ports on the side. These are used to mount external monitors, recorders like the Atomos Ninja V, or magic arms for lights and microphones, offloading the weight from the camera's hot shoe directly onto the tripod. This keeps the camera rig compact and improves the overall balance of the fluid head.

In terms of camera compatibility, the 75mm system is the native partner for the Sony FX series (FX3, FX6), the Canon EOS C series (C70, C100, C300 Mark II), and the Blackmagic Design Pocket Cinema Camera 4K/6K/6K Pro. It also supports professional broadcast camcorders and fully rigged mirrorless cameras like the Panasonic GH6 or Sony A7S III equipped with cages, matte boxes, and follow-focus systems. The tripod feet are usually "dual-purpose," featuring rubber overshoes for indoor floors that can be removed to reveal stainless steel spikes for grip on grass, dirt, or ice.

Limitations and Alternative Selections

While the 75mm Head with tripod is exceptionally versatile, it has definitive mechanical limits. It is not designed for heavy-duty cinema cameras such as the Arri Alexa 35, Sony Venice, or RED V-Raptor when equipped with large anamorphic lenses and 1000ft film magazines or large V-mount blocks. For these configurations, the 75mm bowl lacks the surface area to prevent "top-heavy" instability, and the fluid cartridges are not rated for the 15kg+ payloads these rigs often reach. In such cases, a 100mm or 150mm bowl system, or a Mitchell mount head, is required to provide the necessary structural support and higher counterbalance ranges.

Conversely, for solo creators who prioritize extreme portability for hiking or vlogging, the 75mm system may be considered too heavy. A 75mm tripod system typically weighs between 4kg and 6kg, which can be cumbersome for long-distance foot travel. For these users, a 60mm bowl or a high-quality flat-base photo-video hybrid tripod may be more appropriate, though they will sacrifice the professional-grade fluid drag and the rapid leveling capabilities of the 75mm bowl. Additionally, the 75mm head is not a replacement for a dedicated gimbal; while it excels at smooth pans and tilts, it cannot compensate for the operator's walking motion or provide the 3-axis stabilization required for dynamic tracking shots.
