2ft Slider

The Engineering of the 2ft Slider

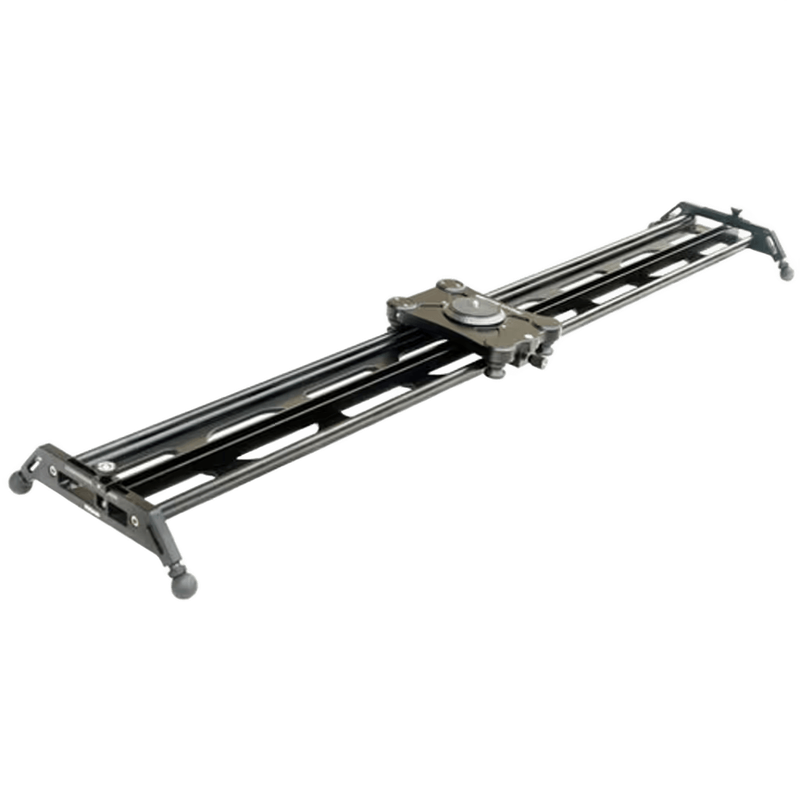

The 2ft Slider, typically measuring 60cm in total rail length, represents the primary intersection between portability and cinematic production value. In the hierarchy of camera support, this specific length is designed to provide enough travel for a meaningful parallax shift while remaining compact enough to be operated by a single person without a dedicated grip crew. Unlike longer 4ft or 5ft variants that require dual-tripod support to prevent rail flex, the 2ft model is engineered for center-mounting on a single heavy-duty tripod. This makes it the standard choice for documentary filmmakers, corporate videographers, and wedding cinematographers who need to add high-end movement to their shots without the logistical footprint of a full dolly system. The mechanical design usually centers on a carriage that glides across twin rails—often constructed from either high-grade carbon fiber for weight reduction or stainless steel for maximum rigidity and inertia.

Mechanical Precision and Movement Quality

The quality of a 2ft Slider is defined by its coefficient of friction and the consistency of its glide. Professional models utilize a series of high-precision ball bearings, often arranged in a configuration that grips the rails from multiple angles to eliminate "play" or "slop" in the carriage. This ensures that as the camera moves, there is no micro-jitter or lateral shifting that would be magnified when using longer focal lengths. Many sliders in this class incorporate a flywheel mechanism; this weighted disc uses centrifugal force to smooth out the manual input from the operator’s hand, masking the slight inconsistencies in speed that occur during a manual push or pull. The rails themselves are often extruded with a tolerance of less than 0.05mm, ensuring that the carriage does not encounter "dead spots" or resistance changes mid-travel. For macro photography or high-frame-rate videography, this mechanical consistency is the difference between a usable shot and one that requires post-production stabilization.

Build, Mounting, and Structural Integrity

The utility of the 2ft Slider is found in its mounting versatility. The baseplate of the slider typically features a central 3/8"-16 threaded port for mounting to professional tripod legs, flanked by 1/4"-20 ports for accessory arms or light stands. At each end of the rails, adjustable outrigger feet allow the slider to be leveled on uneven ground, such as rocky terrain or carpeted floors. These feet are usually tipped with non-slip rubber or spikes, providing a stable platform for "low-mode" shots where the camera is positioned just inches above the surface. The carriage itself is equipped with a 3/8"-16 screw to accept a fluid head, and a friction brake is standard, allowing the operator to lock the camera in place for transport or for static shots. Because the rails are only 24 inches long, the leverage exerted on the central mounting point is significantly lower than on longer sliders, allowing for a payload capacity that often exceeds 10kg to 15kg depending on the specific rail material and diameter.

Motion Control and Video Dynamics

While often used manually, the 2ft Slider is the ideal candidate for motorization and motion control integration. The 60cm travel distance is sufficient for the majority of "reveal" shots and "push-ins" used in commercial video. When paired with a stepper motor and a drive belt, the slider can execute repeatable, sub-millimeter movements required for time-lapse photography or complex visual effects plates. In a video context, the 2ft length allows for a complete parallax shift—where the background moves at a different perceived speed than the foreground—provided the subject is within 3 to 8 feet of the lens. This length is also optimal for vertical "jib-style" moves; because it is short, it can be mounted vertically on a tripod without the top-heavy instability that plagues longer rails. The carriage often includes a bubble level to ensure the horizon remains perfectly flat across the entire duration of the slide, a critical requirement for architectural and interior videography.

On the Shoot: Indian Production Scenarios

In a Bengaluru wedding reception, the 2ft Slider becomes an essential tool for capturing the "detail" reel. In the cramped environment of a decorated banquet hall, a 4ft slider would be a tripping hazard and difficult to reposition. The 2ft version can be placed directly on a guest table or center-mounted on a tripod to capture smooth, sliding shots of the floral arrangements, the wedding cake, or the jewelry. The 60cm travel is exactly enough to move from a close-up of a ring to a soft-focus background of the mandap, providing a sense of scale that a static shot lacks.

During a Mumbai studio product session involving high-end electronics or cosmetics, the slider is used for macro "hero" shots. When filming a smartphone or a watch, a move of just 5 or 10 centimeters is often all that is required to catch the light across the glass surface. The 2ft Slider provides the stability needed for these micro-moves, especially when using a 100mm macro lens where every vibration is visible. The ability to lock the carriage and use the outrigger feet on a studio table allows the cinematographer to work at eye-level with the product without needing a full-sized tripod setup.

For a travel documentary shoot in the humid, sandy environments of Goa, the 2ft Slider’s portability is its primary asset. A carbon fiber model can be strapped to the side of a camera backpack and carried to remote beach locations or through narrow forest trails. The sealed bearing systems found in professional sliders prevent sand and salt spray from entering the mechanical drive, ensuring that the movement remains smooth even after exposure to the elements. In this scenario, the slider is often used for "foreground wipes," where the camera moves behind a palm tree or a rock to reveal the ocean, a classic cinematic technique that is easily executed with 24 inches of travel.

Compatibility and Essential Pairings

To maximize the effectiveness of the 2ft Slider, it must be paired with a compatible fluid head. A Manfrotto 502AH or a Benro S8 head is typically used on top of the carriage to allow for simultaneous panning and tilting during the slide. The slider itself should be mounted on "Baby Legs" or a heavy-duty video tripod with a 75mm or 100mm bowl, using a half-ball adapter to ensure the rails are perfectly level. For those using mirrorless systems like the Sony A7S III or Canon EOS R5, the slider’s weight capacity is more than sufficient, even when rigged with a cage, follow focus, and external monitor. If the shoot requires vertical moves, a counterweight system or a high-torque motor is recommended to maintain a constant speed against gravity. For media and power, the slider is a passive mechanical device, but if motorized, it typically requires NP-F style batteries or a 12V DC input to power the drive controller.

Limitations and Alternative Choices

The 2ft Slider is not a universal solution for every motion requirement. Its primary limitation is the total travel distance; for wide-angle landscape shots where the foreground is far from the lens, 60cm of movement may not produce a noticeable parallax effect. In these instances, a 4ft or 60-inch slider, or even a localized dolly track, would be necessary to achieve the desired visual impact. Furthermore, while the 2ft length is manageable on a single tripod, it still requires a very sturdy set of legs; mounting this slider on a lightweight travel tripod will result in "dipping" at the ends of the rails as the camera’s center of gravity shifts.

For filmmakers who need to move the camera through three-dimensional space—such as following a subject through a doorway or around a corner—a 3-axis gimbal like the DJI RS3 Pro is a more appropriate tool. The slider is restricted to a linear path, whereas a gimbal offers total freedom of movement. Additionally, if the production involves heavy cinema cameras like an Arri Alexa or a fully rigged RED V-Raptor, a 2ft Slider with thin carbon fiber rails may exhibit slight bowing; in such cases, a heavy-duty stainless steel slider or a floor-mounted skater dolly would be the safer and more stable professional choice.
