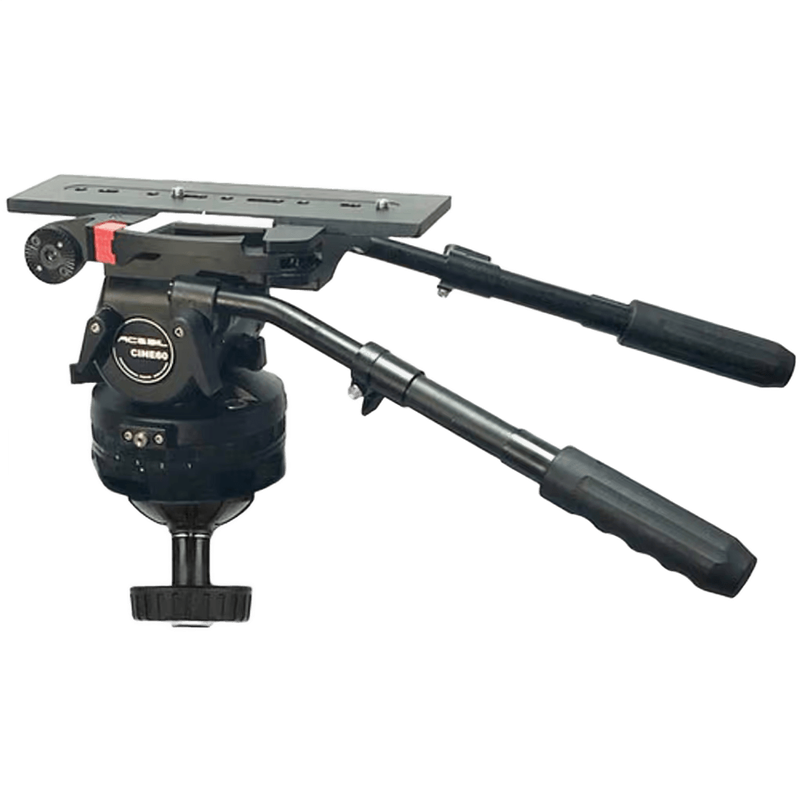

150mm Head with tripod

The 150mm Head and Heavy-Duty Support System

The 150mm Head with tripod represents the industry standard for heavy-duty cinematography, sitting at the apex of camera support systems before moving into specialized gear like geared heads or remote heads. In the hierarchy of camera support, the 150mm bowl diameter distinguishes this system from the 75mm and 100mm systems commonly used in electronic news gathering (ENG) and independent production. This specific class of equipment is designed to support fully built cinema packages, typically ranging from 20kg to 50kg, including cameras like the Arri Alexa 35, Sony Venice 2, or RED V-Raptor XL equipped with large anamorphic lenses, 1000-foot film magazines, or heavy zoom optics like the Optimo 24-290mm. While 100mm heads prioritize a balance between portability and stability, the 150mm system prioritizes absolute torsional rigidity and the elimination of micro-vibrations that occur when using long focal lengths or heavy payloads.

The 150mm bowl mount provides a significantly larger surface area for the head to interface with the tripod legs compared to smaller standards. This increased diameter allows for a more robust tie-down mechanism and a wider base of support, which is critical when the camera's center of gravity shifts during extreme tilts. Manufacturers design these systems for high-end feature film sets, commercial studios, and broadcast environments where the weight of the camera rig necessitates a support system that will not "creep" or flex under load. The 150mm standard is the gateway to using professional accessories like heavy-duty sliders, dollies, and jib arms, as it provides the necessary structural integrity to maintain a level horizon even when the camera is offset from the central axis.

Fluid Drag Mechanics and Precision Movement

The primary technological advantage of a 150mm Head lies in its sophisticated fluid drag system. Unlike cheaper friction-based heads, these professional units utilize a series of concentric rings or vanes submerged in specialized silicone-based fluid. This design ensures that the resistance remains consistent throughout the entire range of motion, regardless of the speed of the pan or tilt. In a 150mm system, the drag modules are physically larger, allowing for more steps of adjustment—often up to 10 or 12 distinct levels of drag for both pan and tilt. This granularity allows a camera operator to fine-tune the resistance to match the exact weight of the rig and the focal length of the lens. At the highest drag settings, the head provides enough resistance to allow for slow, cinematic "creeping" pans even with a 300mm lens, where the slightest tremor would otherwise be magnified.

Counterbalance is the second pillar of performance in this category. High-end 150mm heads feature a continuously variable or multi-step sinusoidal counterbalance system. This mechanism uses a heavy-duty spring or torsion bar to offset the weight of the camera as it tilts away from the horizontal plane. When properly calibrated, a 150mm head achieves "perfect balance," meaning the camera will remain stationary at any angle of tilt—from +90 degrees to -90 degrees—without the operator needing to hold the pan handle or engage the tilt lock. This is achieved through a precise adjustment knob that moves the internal spring mechanism to match the camera's center of gravity height. The physics of a 150mm head allow it to handle a much higher center of gravity than 100mm heads, which is essential when using top-mounted accessories like rain covers, wireless transmitters, and large on-board monitors.

Build Quality, Mounting, and Structural Integrity

The construction of a 150mm tripod system typically involves high-grade carbon fiber or heavy-duty aluminum alloy. Carbon fiber legs in this class are engineered with a larger tube diameter and multi-layered weaving to maximize torsional stiffness, which prevents the legs from "twisting" during a fast pan. The leg locks are usually oversized, designed to be operated with heavy gloves, and provide a clamping force capable of supporting over 90kg of vertical pressure. The tripod feet are often "dual-spike" designs for outdoor terrain, which can be covered with rubber "boots" or attached to a ground spreader or mid-level spreader for indoor studio use. The spreader is a critical component of the 150mm system, as it prevents the legs from splaying outward under the immense weight of a cinema rig.

Mounting a camera to a 150mm head involves a large-format quick-release plate, often following the "Touch & Go" or "Sideload" standard. These plates provide several inches of fore-and-aft travel, allowing the operator to find the physical balance point of the camera rig before engaging the electronic or mechanical counterbalance. The head itself features an illuminated bubble level, powered by a small battery, which is essential for leveling the 150mm bowl in low-light environments. The pan handles (often telescopic) are thicker and more rigid than those found on smaller heads, ensuring that the operator's input is transmitted directly to the fluid modules without any handle-flex. Furthermore, 150mm heads often include multiple 1/4"-20 and 3/8"-16 mounting points on the "ears" of the head for attaching additional monitors or Cine-motto motors without stressing the camera's cage.

Payload Capacity and Operational Limits

The operational capacity of a 150mm Head is defined by its payload range, which typically starts where 100mm heads peak. A standard 150mm head might have a minimum payload requirement of 10kg; anything lighter may result in the counterbalance "pushing" the camera back to center even at the lowest setting. The upper limit is often 35kg to 50kg. This capacity is not just about the weight the head can hold without breaking, but the weight it can move smoothly. When a rig approaches the maximum payload, the fluid drag remains consistent, and the brakes (locks) are designed to hold the tilt securely even if the camera is front-heavy due to a large zoom lens. The tilt range is typically +90° to -75° or -90°, depending on the specific model and the height of the camera's baseplate.

Environmental resilience is a hallmark of this equipment class. The fluid used in 150mm heads is engineered to maintain its viscosity across a wide temperature range, typically from -40°C to +60°C. This prevents the "stiffening" of the drag in cold weather or the "thinning" of the fluid in extreme heat, both of which would ruin the consistency of a shot. The mechanical tolerances within the 150mm bowl are extremely tight, ensuring that once the tie-down is tightened, there is zero play between the head and the legs. This is essential for high-resolution sensors (8K and above), where a movement of even a fraction of a millimeter can result in a perceptible shift in the frame.

The 150mm System on the Indian Film Set

In the context of a high-budget Mumbai studio session for a feature film, the 150mm Head with tripod is the baseline requirement. When shooting on a soundstage with a Sony Venice 2 and a set of heavy anamorphic primes, the 150mm system allows the operator to execute precise, repeatable movements for complex dialogue scenes. The stability of the 150mm base is particularly useful when the camera is mounted on a "hi-hat" for low-angle shots or on a studio dolly. The rigidity of the system ensures that when the focus puller engages a heavy lens motor for a rapid rack focus, the torque of the motor does not cause the camera to jitter—a common issue with 100mm or 75mm systems under heavy load.

For a large-scale wedding production in a palace in Udaipur, the 150mm system is often deployed at the back of the hall with a "box lens" or a long telephoto like a 50-1000mm zoom. In this scenario, the camera is hundreds of feet away from the stage. The 150mm head’s superior drag allows the operator to track the couple with smooth, fluid motion that would be impossible on a lighter tripod, where the wind or even the operator's heartbeat could cause visible shake at the long end of the lens. The heavy-duty legs provide a stable platform even on the uneven stone floors of historical venues, and the mid-level spreader allows the tripod to be set up over furniture or architectural obstacles.

In a wildlife cinematography context, such as a shoot in the Ranthambore National Park, the 150mm head is essential for supporting long focal length lenses used to film tigers from a distance. The heat of the Rajasthan sun can reach 45°C, but the high-grade fluid in a 150mm head ensures the drag does not become "watery." The ability to lock the tilt securely while waiting for an animal to move, and then instantly release it for a smooth pan, is the difference between capturing a usable shot and losing the subject. The carbon fiber version of the 150mm legs is often preferred here to reduce the overall weight for transport in a safari vehicle, while maintaining the necessary stiffness to combat the vibrations of the vehicle's engine if it remains running.

Compatibility and Integration

The 150mm Head with tripod is part of a broader ecosystem of professional cinema tools. The 150mm bowl is compatible with a wide range of industry-standard accessories, including Mitchell-to-150mm adapters, which allow the head to be mounted on heavy-duty cinema dollies like the Chapman-Leonard or Fisher. It also pairs seamlessly with 150mm "hi-hats" and "low-hats" for mounting the camera near the ground. The tripod legs themselves often feature a "V-mount" or "Mitchell" top option, but the 150mm bowl remains the most versatile for quick leveling on uneven terrain.

In terms of camera plates, most 150mm heads utilize the Arri-standard dovetail system via an adapter plate. This allows the camera to slide back and forth over a 12-inch or 15-inch range to achieve perfect balance. The pan handles are compatible with various extensions and "rosette" attachments, allowing for the integration of zoom controllers or focus wheels directly onto the handle. For power, while the head itself is mechanical, the illuminated bubble level usually requires a standard CR2032 or similar button cell battery. The system is designed to be "agnostic" to the camera brand, provided the total weight falls within the 10kg to 50kg window and the mounting plate is properly secured to the camera's baseplate or cage.

Limitations and Alternative Recommendations

The primary limitation of the 150mm Head with tripod is its physical weight and bulk. A complete system, including the head, legs, and spreader, can easily weigh between 15kg and 25kg. This makes it unsuitable for solo operators, "run-and-gun" documentary filmmaking, or any shoot requiring significant hiking or air travel with limited baggage. For filmmakers using mirrorless cameras like the Sony A7S III or small cinema cameras like the Canon EOS C70, a 150mm system is counterproductive; the camera is too light for the counterbalance to function, and the sheer size of the head makes accessing the camera's controls difficult. In these cases, a 75mm or 100mm system, such as the Sachtler Aktiv or Miller Compass series, is a more appropriate and portable choice.

Additionally, the 150mm bowl system, while excellent for quick leveling, does not offer the same absolute "locking" strength as a Mitchell mount (a flat-base mount with a threaded center post). For extreme stunts, vehicle mounts, or high-speed pursuits where the camera is subjected to intense G-forces, a Mitchell-base head is often preferred for its mechanical "bolt-through" security. Finally, for shots requiring perfectly linear vertical and horizontal moves—such as architectural photography or precise visual effects plates—a fluid head may be less desirable than a geared head, which uses handwheels to control movement with mathematical precision, albeit at the cost of the intuitive "feel" that a 150mm fluid head provides.
