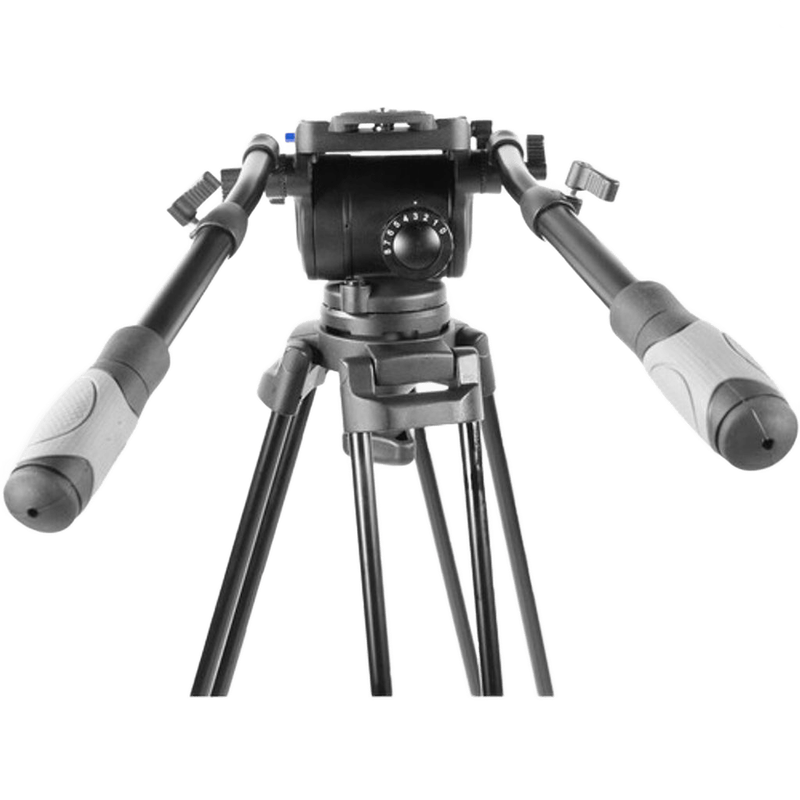

100mm Head with tripod

The Professional 100mm Head with Tripod System

The 100mm Head with tripod represents the industry-standard support tier for mid-to-heavyweight cinema and broadcast camera packages. Positioned significantly above the 75mm bowl systems used for mirrorless setups and below the 150mm or Mitchell-base systems used for full-scale studio cameras, this 100mm system is designed for payloads ranging from 2kg to approximately 25kg, depending on the specific fluid head model. It serves as the primary support for digital cinema cameras such as the Sony FX9, Canon C300 Mark III, and RED V-Raptor, especially when these bodies are built out with cinema zooms, matte boxes, and V-mount batteries. The 100mm bowl diameter provides a wider surface area for leveling than smaller systems, which translates directly to increased lateral stability and a reduction in torsional "wind-up" during high-speed pans.

The system typically consists of a fluid head featuring a 100mm half-ball and a set of two-stage legs with a matching 100mm bowl. In the professional hierarchy, this equipment is the baseline for any production where long focal lengths or heavy accessories are utilized. The engineering focuses on repeatable, predictable movement, utilizing internal pressurized fluid modules to create resistance. This resistance is essential for neutralizing the jerky movements of a human operator, allowing for the "invisible" camera work required in narrative filmmaking and high-end commercial production.

Mechanical Fluidity and Counterbalance Precision

The core of the 100mm Head with tripod is its fluid drag system. Unlike friction-based heads that rely on simple tension, a professional 100mm head uses multiple stages of fluid modules. These modules contain high-viscosity silicone oil that remains stable across a wide temperature range, typically from -40°C to +60°C. This ensures that a pan or tilt started in a climate-controlled studio will feel identical to one performed in direct sunlight. Most heads in this class offer between 5 and 10 discrete steps of drag for both pan and tilt axes, allowing the operator to dial in the exact amount of resistance needed for the lens's focal length. A 24mm wide-angle shot might require minimal drag for quick movements, whereas a 200mm telephoto shot requires maximum drag to prevent micro-jitters from being amplified by the sensor.

Counterbalance is the second critical technology within the head. Professional 100mm systems utilize a sophisticated spring-loaded mechanism that offsets the weight of the camera rig. When properly calibrated, the camera should remain stationary at any angle of tilt without the operator holding the handle and without the tilt lock being engaged. This is achieved through a multi-step counterbalance dial (often featuring 12 to 16 steps) that adjusts the tension of the internal springs. This precision is vital for safety; it prevents a heavy cinema rig from "flopping" forward and damaging the lens or the operator's hands. The sliding plate on top of the head provides an additional 50mm to 100mm of travel to find the fore-and-aft center of gravity, accommodating heavy front-mounted lenses or rear-mounted battery plates.

Build Quality, Mounting, and Structural Integrity

The tripod legs accompanying a 100mm head are engineered for torsional rigidity—the ability of the legs to resist twisting when the head is panned forcefully. These legs are usually constructed from high-grade carbon fiber or aluminum alloy. Carbon fiber variants are preferred for field work due to their vibration-dampening properties and lower weight (typically around 3kg to 4kg for the legs alone), while aluminum is often favored in studio environments for its sheer mass and durability. The two-stage design allows for a massive height range, often extending from a minimum height of 50cm to a maximum of 170cm or more.

Mounting is handled via the 100mm bowl interface, which allows for rapid leveling without adjusting the individual leg lengths. By loosening the tie-down handle beneath the bowl, the operator can tilt the head within the bowl to find the horizon, a process that takes seconds compared to the minutes required for flat-base tripods. The system also includes a spreader—either a ground spreader for flat studio floors or a mid-level spreader for uneven terrain. The mid-level spreader is particularly important for outdoor shoots, as it allows the tripod to be set up on stairs or rocky ground while maintaining structural integrity. The feet are typically "dual" style, featuring rubber covers for delicate flooring and spiked metal tips for gripping into soft earth or grass.

Stability for High-Resolution Video Capture

While the 100mm Head with tripod does not have electronic "features" like a camera, its impact on video quality is measurable in pixels. At 4K, 6K, or 8K resolutions, the slightest vibration is visible as "shutter shock" or "rolling shutter jiggle." The 100mm system provides the mass and dampening necessary to eliminate these artifacts. In high-frame-rate cinematography (120fps or higher), the smoothness of the start and stop of a pan is critical; any "stiction" (static friction) at the beginning of a move will be painfully obvious when played back in slow motion. The fluid modules in a 100mm head are designed to have zero stiction, providing a seamless transition from a standstill to a move.

For broadcast applications, the 100mm system supports the use of heavy zoom demands and focus pullers mounted to the pan bars. The structural strength of the 100mm bowl ensures that the act of pulling focus or zooming does not introduce lateral movement into the frame. This is a common failure point in 75mm systems, where the torque of a focus motor or a manual hand can cause the camera to shift slightly. The 100mm system is the minimum requirement for using "studio" configurations where the camera is encased in a full cage with multiple monitors, wireless transmitters, and large matte boxes with three or more filters.

On the Shoot: Indian Production Scenarios

In a Mumbai studio product session, the 100mm Head with tripod is indispensable for macro cinematography. When filming a luxury watch or a pouring liquid at 100fps, the camera must be perfectly level and capable of extremely slow, incremental tilts. The 100mm head’s fine-tuned drag allows the operator to move the camera just a few millimeters over several seconds without the "jumpiness" associated with cheaper supports. The ground spreader ensures the tripod remains locked in place on the polished studio floor, preventing any drift between takes.

During a Bengaluru wedding reception, the environment is often crowded and the lighting is dynamic. A cinematographer using a 70-200mm lens from the back of the hall needs to track the couple through the crowd. The 100mm system provides the stability to shoot at the 200mm end of the lens without the "micro-shakes" that occur when an operator is tired. The quick-leveling bowl is essential here, as the tripod may need to be moved frequently to different parts of the venue; the operator can re-level the head in five seconds and be ready for the next sequence of the ceremony.

On a travel documentary shoot in the rugged terrain of Ladakh, the carbon fiber version of the 100mm system proves its worth. The mid-level spreader allows the legs to be braced against uneven rocks, while the spiked feet dig into the loose soil. Despite the thin air and freezing temperatures, the fluid in the head maintains its viscosity, ensuring that a panoramic shot of the Himalayan landscape is smooth and consistent. The weight of the 100mm system, while heavier than a photo tripod, provides the necessary ballast to prevent the wind from vibrating the camera during long-exposure time-lapses or telephoto wildlife shots.

Compatibility and Essential Pairings

The 100mm Head with tripod is a modular component that requires specific compatibility checks. The most common mounting plate is the Sachtler-style "Touch & Go" plate (16 or 35) or the Manfrotto 501/504PL long plate. These plates are the interface between the camera and the head. For cinema use, many operators pair the head with an ARRI-standard dovetail plate and bridge plate (15mm or 19mm studio). This allows the entire camera rig to slide much further back or forward than a standard plate allows, which is necessary when using exceptionally long lenses like a 50-100mm T2.0 or a 24-290mm zoom.

In terms of camera bodies, this system is the perfect match for the Sony FX6, FX9, Arri Alexa Mini LF, and RED Komodo-X. It is also compatible with heavy-duty accessories such as the SmallHD 7-inch or 13-inch monitors, which add significant top-heavy weight that 75mm heads cannot counterbalance. For power, the system easily supports rigs utilizing 150Wh or 290Wh V-mount batteries. If using a teleprompter for a corporate shoot, the 100mm head is the minimum requirement to handle the forward-leaning weight of the glass and the monitor without the tilt lock slipping.

Limitations and Alternative Choices

The primary limitation of the 100mm Head with tripod is its physical weight and bulk. For a solo operator traveling via public transport or hiking long distances, a 100mm system (which can weigh between 7kg and 12kg including the bag) may be prohibitive. In these cases, a 75mm system like the Sachtler FSB series or Manfrotto Nitrotech is a more appropriate choice, provided the camera rig stays under 7kg. The 100mm head is also "overkill" for lightweight mirrorless setups; if you are shooting on a bare Sony A7IV or Canon R5 with a small prime lens, the minimum counterbalance of a 100mm head may be too strong, causing the camera to "spring back" to a level position because it doesn't have enough mass to engage the fluid modules.

Conversely, for ultra-heavy configurations—such as a fully rigged Arri Alexa 35 with a Panavision anamorphic zoom and a large studio matte box—the 100mm system may reach its payload limit. In these professional studio or high-budget narrative environments, a 150mm bowl or a Mitchell-base head (like the OConnor 2575D) is required. These larger systems offer even higher payload capacities (up to 40kg or more) and even more granular control over drag, but they require a dedicated camera assistant to transport and set up. The 100mm system remains the ceiling for what a single operator can reasonably manage while providing professional-grade stability.
