Hdmi to USB

The Function and Architecture of HDMI to USB Conversion

The HDMI to USB video capture card serves as a hardware bridge between professional imaging equipment and computing environments. At its core, this device is a signal converter that transforms the uncompressed, high-bandwidth Transition-Minimized Differential Signaling (TMDS) of an HDMI output into a data format compatible with the Universal Serial Bus (USB) standard. Specifically, these devices utilize the USB Video Class (UVC) and USB Audio Class (UAC) protocols. This standardization is critical because it allows the host computer—whether running Windows, macOS, or Linux—to recognize the connected camera not as a storage device or a complex peripheral, but as a standard imaging device, identical in software behavior to a built-in webcam.

The internal architecture typically consists of an HDMI receiver chip, a video processor for scaling and color space conversion, and a USB controller. These components work in tandem to ingest signals that can reach up to 4K resolution at 30 frames per second (3840 x 2160) and output a digitized stream, usually capped at 1080p at 30 or 60 frames per second depending on the USB bus version. This device sits in the manufacturer’s lineup as the essential entry point for live streaming, remote monitoring, and high-fidelity video conferencing, designed for creators who need to move beyond the optical limitations of integrated laptop cameras without the overhead of internal PCIe capture cards.

Signal Processing and Visual Fidelity

The image quality provided by an HDMI to USB adapter is determined by its ability to handle color sampling and compression algorithms. Most entry-to-mid-tier converters utilize the MJPEG (Motion JPEG) or YUY2 color formats. In a USB 2.0 configuration, the 480 Mbps bandwidth limitation often necessitates MJPEG compression to maintain a 1080p resolution at 30fps. This results in a slight loss of fine detail and potential macroblocking in high-motion scenes, as each frame is compressed individually. However, when utilizing a USB 3.0 or 3.1 Gen 1 interface, the 5 Gbps bandwidth allows for YUY2 or NV12 uncompressed video streams, which preserve a 4:2:2 or 4:2:0 chroma subsampling ratio. This is vital for maintaining accurate skin tones and sharp edges, particularly when the footage is intended for further processing or chroma keying (green screen) in software like OBS Studio or vMix.

The device also manages the "handshake" between the camera and the computer. It must communicate the supported resolutions and frame rates via Extended Display Identification Data (EDID). A high-quality converter ensures that the camera outputs its native resolution rather than defaulting to a lower 720p or 480p safety mode. Furthermore, the conversion process involves a hardware-level downscaling engine. If a photographer feeds a 4K 30fps signal into a 1080p-rated USB capture card, the internal processor must perform a bicubic or bilinear downsample. This often results in a 1080p image that appears sharper than a native 1080p capture because it is derived from a higher-density pixel map, effectively reducing aliasing and moiré patterns.

Build Standards and Thermal Management

In a professional shoot environment, the physical handling of the HDMI to USB converter is as important as its digital throughput. Most professional-grade units are housed in anodized aluminum enclosures. This choice is not aesthetic; it is thermal. The process of converting high-definition video signals generates significant heat within the processing chipset. Aluminum acts as a passive heat sink, dissipating thermal energy away from the internal components to prevent frame dropping or device disconnection during long-duration streams. Plastic-housed units are generally restricted to shorter sessions, as they may suffer from thermal throttling after 60 to 90 minutes of continuous use.

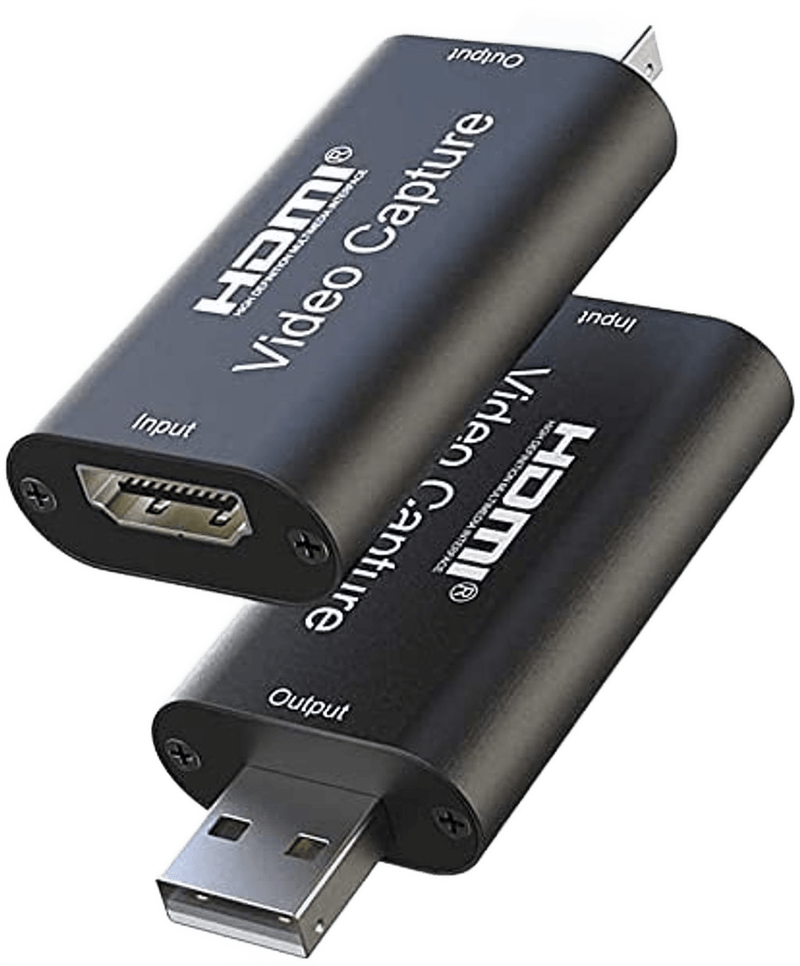

The mounting and physical footprint are designed for "inline" use. The device typically features a female HDMI Type-A port on one end and a male USB Type-A or Type-C connector on the other, or a short pigtail cable to reduce strain on the computer’s USB port. On a rig, these are often secured using hook-and-loop fasteners or small cages to prevent the weight of a heavy HDMI cable from damaging the USB connection. The lack of external power requirements—drawing the necessary 5V directly from the USB bus—makes it a highly portable tool, though it places a premium on the stability of the host computer’s power delivery system.

Video Specifications and Technical Constraints

The technical capabilities of the HDMI to USB interface are strictly governed by the HDMI version and the USB bus speed.

• Input Support: Most modern units support HDMI 1.4b, allowing for 4K input at 30Hz or 1080p at up to 120Hz.
• Output Resolution: The standard output is 1920 x 1080 (Full HD). While some units claim 4K output, these often require USB 3.2 Gen 2 bandwidth and are significantly larger in form factor.
• Frame Rates: Standard conversion supports 24, 25, 30, 50, and 60 fps. It is critical to match the camera’s output frame rate to the capture software’s project rate to avoid "judder" caused by frame-rate mismatching.
• Audio Sampling: The device captures embedded HDMI audio, typically at 16-bit or 24-bit depths with a 48kHz sampling rate, conforming to the LPCM (Linear Pulse Code Modulation) standard.
• Latency: There is an inherent processing delay, usually ranging from 30ms to 100ms. While negligible for most live streams, this latency must be compensated for in software if the audio is being recorded through a separate USB microphone or audio interface to ensure lip-sync accuracy.

On the Shoot: Practical Indian Scenarios

In a Bengaluru wedding reception, the HDMI to USB converter is frequently used to bridge a Sony Alpha or Panasonic GH series camera to a laptop for a "Live Zoom" feed for relatives abroad. In this high-interference environment with multiple wireless signals and LED stage lighting, the converter must maintain a stable connection over a long HDMI run (often 10-15 meters via an active optical cable). The converter’s ability to handle the 1080p 50i or 50p signal common in Indian broadcast standards is essential here. The technician must ensure the camera is set to "Clean HDMI" to prevent the focus boxes and battery icons from appearing on the guest’s screens.

During a Mumbai studio product session, a photographer might use the converter to provide a "Live View" to a client sitting remotely. By connecting the camera’s HDMI out to the converter and then into a MacBook, the photographer can share their screen via Google Meet. This allows the client to see the exact composition, lighting, and focus in real-time, rather than waiting for test shots to be uploaded to a cloud drive. The converter’s UVC compliance ensures it works instantly without the client needing to install proprietary drivers, which is often a barrier in corporate IT environments.

For a Goa travel vlogger conducting a live Q&A from a beach-side cafe, the HDMI to USB device allows for the use of a fast prime lens (like a 24mm f/1.4) to create a blurred background that a standard webcam cannot replicate. In this scenario, the device’s bus-powered nature is vital, as it doesn't require an extra wall outlet. However, the vlogger must be mindful of the high ambient temperature; if the converter is left in direct sunlight, the heat from the internal processing combined with the tropical sun can lead to a signal cutout. Keeping the converter in the shade of the laptop is a standard field practice.

Compatibility and Essential Pairings

The HDMI to USB converter is a single link in a larger chain, and its performance is dependent on the surrounding hardware.

• Cameras: It is compatible with any camera that offers a "Clean HDMI" output. This includes the Sony A7 series, Canon EOS R series, Nikon Z series, and Blackmagic Pocket Cinema Cameras. Some older DSLRs (like the Canon 5D Mark III) may output a cropped signal or include UI elements that cannot be turned off, which the converter will faithfully—and unfortunately—reproduce.
• Cables: High-speed HDMI cables (Category 2) are required for 4K input. For the USB side, if the converter is USB 3.0, using a USB 2.0 extension cable will force the device into a lower bandwidth mode, often resulting in a resolution drop to 720p or a frame rate cap of 10fps.
• Software: The device is natively compatible with OBS Studio, Streamlabs, vMix, Wirecast, Zoom, Microsoft Teams, and Skype. It also works with browser-based studios like Restream or Riverside.fm.
• Power: Since it draws power from the host, it should be connected directly to a laptop port or a powered USB hub. Non-powered passive hubs often fail to provide the 0.5A to 0.9A required for stable video conversion.

Limitations and Alternative Selections

While the HDMI to USB converter is a versatile tool, it has distinct limitations that may necessitate different equipment. First, it cannot bypass HDCP (High-bandwidth Digital Content Protection). If you attempt to plug in a Blu-ray player or certain gaming consoles, the converter will likely output a black screen or a "protected content" error. For these uses, an HDCP-compliant splitter or a specialized gaming capture card is required.

Second, this is a single-channel device. If a shoot requires switching between three different camera angles, using three separate HDMI to USB converters can saturate the computer’s USB bus bandwidth, leading to system crashes or dropped frames. In such cases, a dedicated multi-input hardware switcher, like the Blackmagic ATEM Mini, is a superior choice as it handles the switching and scaling in dedicated hardware before sending a single USB stream to the computer. Finally, for high-end cinema applications requiring 10-bit or 12-bit Log recording to a computer, these standard UVC converters are insufficient as they typically truncate the signal to 8-bit. For those needs, a Thunderbolt-based capture device or an SDI-to-PCIe card is the professional standard.
