Hdmi To Sdi Converter

The Role of the HDMI to SDI Converter in Professional Workflows

The HDMI to SDI Converter serves as the essential hardware bridge between consumer-grade or prosumer video sources and professional broadcast infrastructure. In the hierarchy of video production, HDMI is the standard for short-range connectivity, found on mirrorless cameras, laptops, and gaming consoles. However, HDMI is limited by signal degradation over distances exceeding 5 to 10 meters and lacks the locking mechanism required for high-stakes environments. This converter transforms that HDMI signal into a Serial Digital Interface (SDI) format, specifically 3G-SDI in most modern compact units, allowing the video feed to travel over 100 meters via high-quality BNC cabling without loss of integrity. Designed for DITs (Digital Imaging Technicians), live stream engineers, and broadcast professionals, this device is the standard solution for integrating a Sony Alpha, Canon EOS, or Panasonic Lumix camera into a professional switcher or video village setup.

Signal Integrity and 10-Bit Processing

The internal processing of a high-quality HDMI to SDI Converter is designed to maintain the highest possible fidelity of the original source. Unlike passive adapters, this is an active electronic device that performs a full reconstruction of the video signal. It typically supports 10-bit video processing, which is critical for maintaining smooth color gradients and preventing "banding" in high-contrast scenes. By supporting YUV 4:2:2 color sampling, the converter ensures that the chroma and luma information remains accurate to the source, which is vital when the signal is being sent to a professional monitor for color grading or a broadcast switcher for live keying. A key technical feature of these units is SDI re-clocking. This technology identifies the incoming digital signal, removes the "jitter" or timing errors accumulated over the HDMI cable, and regenerates the signal before it exits the SDI port. This ensures that the downstream equipment, such as a Blackmagic ATEM switcher or a Teradek wireless transmitter, receives a clean, stable signal that meets SMPTE standards.

Build Quality and Power Management

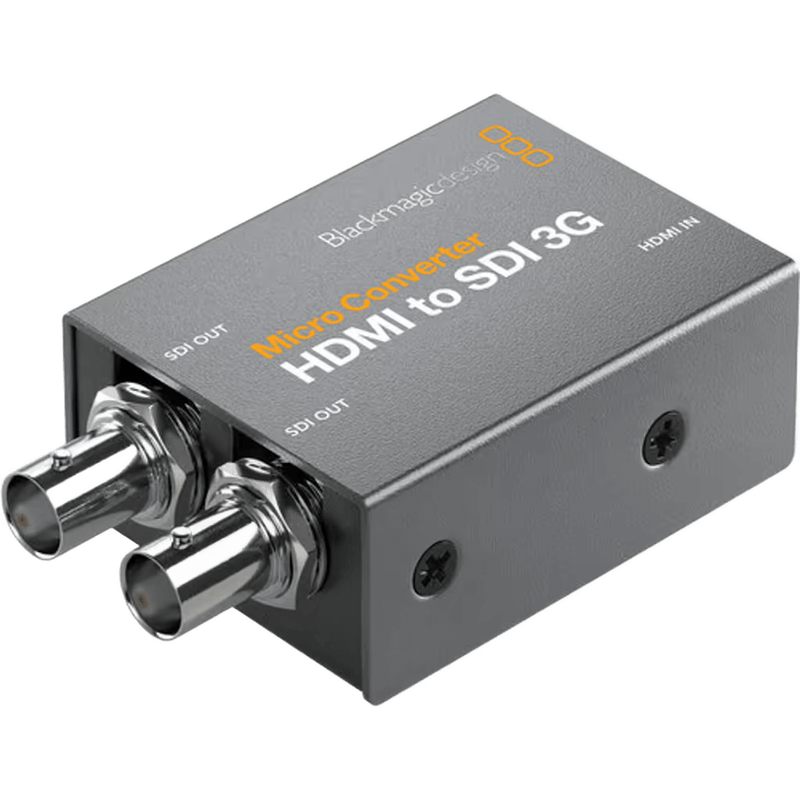

The physical construction of the HDMI to SDI Converter is optimized for the rigors of a film set. Most professional units are housed in a rugged, CNC-machined metal chassis that acts as a heat sink, dissipating the thermal energy generated by the high-speed processing chips inside. This is a critical feature for continuous 24/7 operation in environments where plastic consumer gear might overheat and fail. The device features a full-sized HDMI Type A input and, in many professional configurations, dual SDI outputs. These dual outputs function as a built-in distribution amplifier, allowing the user to send the same signal to two different destinations—such as a director’s monitor and a recording deck—simultaneously without needing additional hardware. Power is typically delivered via a 5V micro-USB or USB-C port. This allows the converter to be powered by a standard wall adapter, a laptop USB port, or a portable power bank, making it highly versatile for both studio and field use. The inclusion of LED indicators provides immediate visual confirmation of power status and signal lock, which is essential for rapid troubleshooting during a live production.

Technical Specifications and Video Standards

The HDMI to SDI Converter is built to handle a wide array of broadcast and cinema frame rates. It supports SD and HD formats, including 525i59.94 NTSC and 625i50 PAL. In the high-definition realm, it processes 720p at 50, 59.94, and 60 fps, as well as 1080i at 50, 59.94, and 60 fps. For progressive workflows, it supports 1080p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 fps. It adheres to multiple SMPTE standards, including SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M Level A and B. The support for both Level A and Level B SDI is particularly important for compatibility with older broadcast gear that may only recognize one of these mapping standards. Furthermore, the converter automatically detects the input format and switches its internal processing to match, eliminating the need for manual configuration. It also embeds the HDMI audio signal—up to 8 channels—directly into the SDI output, ensuring that audio and video remain perfectly synced throughout the signal chain.

On the Shoot: Real-World Indian Production Scenarios

In a Bengaluru wedding reception held in a large convention center, the videography team often needs to send a live feed from a camera mounted on a gimbal at the stage to a series of LED walls located 60 meters away at the back of the hall. An HDMI cable would fail at this distance, and wireless systems might face interference from the hundreds of mobile devices in the room. By mounting the HDMI to SDI Converter to the gimbal’s accessory shoe and powering it via a small power bank, the operator can run a thin, flexible SDI cable along the perimeter of the room. The converter ensures the 1080p60 feed remains stable and lag-free, providing a crisp image for the guests on the large screens.

During a Mumbai studio product session, a photographer might be using a mirrorless camera to capture high-speed video of liquid splashes. The director and client need to view the high-frame-rate playback on a calibrated 24-inch SDI monitor. Since the camera only outputs HDMI, the converter is used to bridge the gap. The dual SDI outputs are utilized here: one line goes to the director’s monitor, while the second line goes to a dedicated external recorder. This setup allows the crew to review the 10-bit 4:2:2 footage with professional-grade color accuracy, ensuring the product's branding colors are represented correctly before the shoot moves to the next setup.

On a Goa travel documentary shoot, the crew may be filming in high-humidity outdoor environments. The converter’s metal housing and lack of internal fans (which could suck in salt air or moisture) make it a reliable choice for field work. When the crew returns to the production vehicle to ingest footage, the converter allows them to plug the camera directly into a broadcast-grade deck or a laptop via an SDI capture card, facilitating a fast and professional data management workflow even in remote locations.

Compatibility and Essential Pairings

The HDMI to SDI Converter is a universal tool, but its performance is dependent on the quality of the connected peripherals. For the input side, high-speed HDMI 2.0 cables are recommended to ensure stable 1080p60 transmission. On the output side, the converter should be paired with 75-ohm RG6 BNC cables for long runs. If the run exceeds 100 meters, high-quality Belden or Canare cables are necessary to maintain signal integrity. For mounting, many professionals use dual-lock Velcro or small "cheese plates" to secure the converter to camera cages or tripod legs. In terms of power, pairing the converter with a V-mount battery that has a USB-out port is a common practice on professional sets, as it allows the converter to run for days on a single charge. It is fully compatible with all major broadcast switchers, including the Blackmagic ATEM series, Ross Video Carbonite, and NewTek TriCaster systems, as well as professional monitors from brands like SmallHD, Atomos (via SDI input), and Flanders Scientific.

Limitations and Alternative Choices

While the standard 3G-SDI HDMI to SDI Converter is a workhorse, it has specific limitations that may require a different tool. The most significant limitation is resolution; a 3G-SDI unit is capped at 1080p60. If your production requires a 4K workflow (2160p), you must instead choose a 12G-SDI HDMI to SDI Converter, which handles the much higher data rates required for Ultra HD. Additionally, this device is strictly one-way. It cannot take an SDI signal and turn it into HDMI; for that, you would need an SDI to HDMI Converter. For users who need to do both frequently, a BiDirectional SDI/HDMI Converter is a more efficient choice, as it can convert in both directions simultaneously, often even using different standards on each path. Finally, this converter does not perform "scaling." If you input a 1080p signal, it outputs a 1080p signal. If your switcher requires a 720p signal but your camera only outputs 1080p, you would need a Streaming or Up/Down/Cross Converter, which can change the resolution and frame rate of the video signal rather than just the physical connection type.
