BlackMagic · Monitors
Rent Black Magic Multiviewer 16 input in Mumbai
from ₹4000/day
1 rental offer in Mumbai

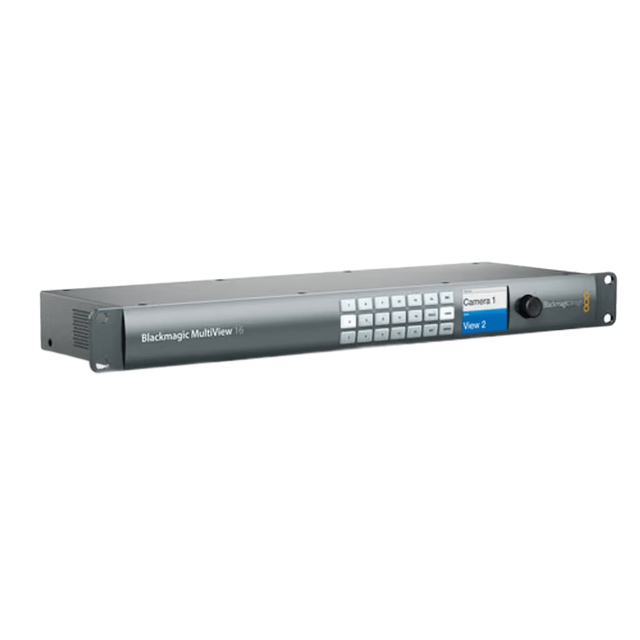

The Blackmagic MultiView 16 is a professional-grade monitoring solution that allows 16 different SDI video sources to be viewed on a single Ultra HD display.
Rental offers in Mumbai
Highlights
Input Capacity
16 independent 6G-SDI inputs allowing for SD, HD, and Ultra HD sources.
Output Resolution
Supports Ultra HD monitoring via HDMI or SDI for maximum clarity on large screens.
Layout Options
Flexible view configurations including 2x2 (4 views), 3x3 (9 views), and 4x4 (16 views).
Processing
Built-in Teranex resynchronization on every input for mixing different video standards.
Control
Front panel buttons, LCD screen, and Ethernet software control for remote management.
Specifications
| SDI Video Inputs | 16 x 10-bit SD/HD/6G-SDI |
| SDI Video Outputs | 16 x 10-bit SD/HD/6G-SDI loop out; 2 x 10-bit 6G-SDI MultiView outputs |
| HDMI Video Outputs | 1 x HDMI type A connector (supports Ultra HD 4K) |
| SDI Rates | 270Mb, 1.5G, 3G, 6G |
| Rack Space | 1RU (Rack Unit) height, full width |
| Power Supply | Internal 90 - 240V AC |
Frequently asked questions
Does the Blackmagic MultiView 16 support 4K output?
Yes, it supports Ultra HD (3840 x 2160) output via both HDMI and 6G-SDI, allowing you to see four full HD views on a single 4K monitor in 2x2 mode.
Can I mix different frame rates and resolutions?
Yes, the MultiView 16 features full resynchronization on every input, allowing you to mix SD, HD, and Ultra HD formats and frame rates simultaneously.
How do I control the MultiView 16 remotely?
It can be controlled via the included Blackmagic MultiView software utility over Ethernet, or via the front panel hardware buttons and rotary knob.
