Samyang 14mm F2.8 Autofocus Lens for Canon EF

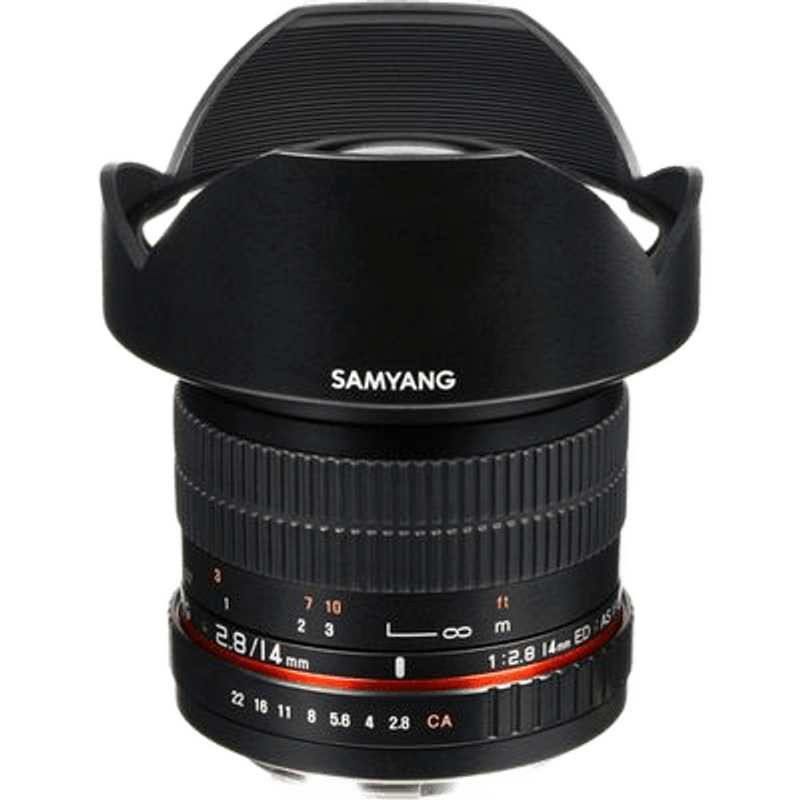

The Samyang 14mm f/2.8 ED AS IF UMC for Canon EF

The Samyang 14mm f/2.8 ED AS IF UMC is a dedicated ultra-wide-angle prime lens designed for full-frame Canon EF-mount cameras. It occupies a specific niche in the manufacturer’s lineup as a manual-focus professional tool that prioritizes optical performance and expansive field-of-view over electronic automation. With a rectilinear projection that maintains straight lines rather than the curved distortion of a fisheye, this lens provides a 115.7-degree diagonal angle of view on a 35mm full-frame sensor. On APS-C sensor bodies, such as the Canon EOS 90D or 7D series, the lens offers a focal length equivalent of approximately 22.4mm, providing a 89.9-degree field of view. The optical construction is complex, featuring 14 elements arranged in 10 groups, a design necessitated by the extreme angles at which light enters the front element. This lens is engineered for photographers and cinematographers who require the widest possible perspective without moving into specialized architectural tilt-shift or fisheye glass.

Optical Engineering and Image Quality

The image quality of the Samyang 14mm lens is defined by its sophisticated use of specialized glass elements to manage the inherent difficulties of ultra-wide-angle photography. The optical path includes two Extra-low Dispersion (ED) elements, which are critical for reducing chromatic aberrations—the "color fringing" often seen at the edges of high-contrast subjects like tree branches against a bright sky. To maintain sharpness across the entire 115.7-degree frame, Samyang integrates two aspherical elements (one standard aspherical and one hybrid aspherical) and three High Refractive Index (HR) elements. These components work in tandem to minimize spherical aberrations and coma, a feature that makes this lens particularly effective for astrophotography where stars must remain pin-sharp points of light rather than blurred shapes at the corners of the frame.

The lens utilizes Ultra Multi-Coating (UMC) to suppress internal reflections, ghosting, and flare. This is particularly important for a 14mm lens because the massive front element often catches stray light from outside the immediate composition. In terms of rendering, the lens produces a distinct "mustache" distortion pattern—a complex combination of barrel distortion in the center and pincushion distortion toward the edges. While this is a physical characteristic of the 14/10 optical formula, it is predictable and can be corrected in post-processing using specific lens profiles. The aperture system consists of 6 diaphragm blades, which, when stopped down to f/8 or f/11, produce distinct 6-pointed sunstars on bright light sources. Sharpness is highest in the center from f/2.8, with edge-to-edge resolution peaking between f/5.6 and f/8.

Build, Handling, and Manual Control

The Samyang 14mm f/2.8 is a manual-focus-only lens, which dictates its physical handling and on-set behavior. The lens barrel is constructed from a combination of high-grade plastics and a metal mount, weighing approximately 552 grams. The focus ring is wide, rubberized, and features a long, dampened throw of approximately 250 degrees. This long rotation allows for precise adjustments, which is vital given that the depth of field at 14mm is exceptionally deep; at f/8, almost everything from 1 meter to infinity stays in focus. The lens features a distance scale in both meters and feet, along with a depth-of-field scale, allowing for "zone focusing" or setting the lens to its hyperfocal distance without looking through the viewfinder.

The front of the lens features a built-in, non-removable petal-shaped lens hood. This hood serves two purposes: protecting the bulbous front element from physical impact and shielding it from oblique light. Because of this protruding front element and fixed hood, the lens does not support standard screw-on filters. Users requiring Neutral Density (ND) or Circular Polarizer (CPL) filters must use specialized third-party 150mm square filter holder systems that clamp onto the exterior of the hood. The lens utilizes an Internal Focusing (IF) mechanism, meaning the physical length of the lens does not change during focusing, and the front element does not rotate, which is beneficial when using those external filter rigs.

Video Capability and Cinematography

For video applications on Canon EF-mount cinema cameras like the C70 or C300 Mark III, the Samyang 14mm f/2.8 offers a unique set of advantages and limitations. The manual focus ring is geared with a smooth resistance that is conducive to manual pulling, though it lacks the "de-clicked" aperture ring found on the Samyang Cine (VDSLR) version of this lens. In the standard version, the aperture ring moves in half-stop clicks from f/2.8 to f/22. The 14mm focal length is a favorite for gimbal work (such as on a DJI RS3) because the wide field of view masks small vibrations and the deep depth of field reduces the need for a follow-focus system during dynamic movement.

When shooting 4K video on cameras with a crop factor, such as the EOS R5 in certain high-frame-rate modes or the EOS 5D Mark IV in 4K, the 14mm focal length becomes an essential tool to regain the wide perspective lost to the sensor crop. Focus breathing—the slight change in focal length when shifting focus from the minimum distance of 0.28m to infinity—is present but relatively well-controlled for a lens in this class. The lack of electronic communication in the basic version means that focal length and aperture data (EXIF) are not transmitted to the camera body, requiring the operator to manually input the focal length for In-Body Image Stabilization (IBIS) systems to function correctly.

On the Shoot: Real-World Scenarios

In a professional Indian wedding context, specifically during a Sangeet or reception in a crowded Mumbai banquet hall, the Samyang 14mm f/2.8 excels at capturing the scale of the environment. When the dance floor is packed and space is limited, the 115.7-degree angle allows the photographer to stand just two meters from the stage and still capture the entire decor, the performers, and the overhead floral arrangements. The f/2.8 aperture is fast enough to handle the ambient lighting of most luxury venues without requiring excessive ISO increases, provided the manual focus is set to the hyperfocal point to keep the moving crowd sharp.

For a travel shoot in the Spiti Valley or Ladakh, this lens is primarily used for astrophotography and expansive landscapes. The 14mm width is sufficient to capture the arc of the Milky Way along with a terrestrial foreground element, such as a monastery or a parked expedition vehicle. Because it is a manual lens, it does not suffer from "focus hunting" in the dark; a photographer can simply set the ring to the infinity mark (or slightly before it, depending on the specific copy's calibration) and lock it down with gaffer tape for consistent long exposures throughout the night. The 0.28m minimum focus distance also allows for "big head" foreground compositions, where a local flower or rock formation is placed very close to the lens to create a dramatic sense of depth against the Himalayan peaks.

In a Mumbai real estate or architectural shoot, the lens is used to make small apartment interiors appear spacious. When shooting a 1BHK in a tight urban complex, the 14mm perspective captures three walls of a room in a single frame, which is often impossible with a standard 24mm lens. However, the photographer must be careful to keep the camera perfectly level to avoid "keystoning," where vertical lines appear to lean inward or outward. The mustache distortion mentioned earlier will be visible on the ceiling-to-wall junctions, necessitating the use of a lens correction profile in software to ensure the architectural lines remain straight and professional.

Compatibility and Pairings

The Samyang 14mm f/2.8 is natively compatible with all Canon EF-mount DSLRs, including the 5D, 6D, and 1D series. It is also fully compatible with the Canon EOS R system (R5, R6, R7, R10, R3) when used with the EF-EOS R Mount Adapter. On mirrorless bodies, the lens benefits significantly from "Focus Peaking" and "Focus Magnification" features, which make hitting critical focus at f/2.8 much easier than through a traditional DSLR optical viewfinder. It can also be adapted to Sony E-mount or Nikon Z-mount cameras using appropriate "smart" or "dumb" adapters, though it remains a manual lens regardless of the adapter used.

In terms of accessories, this lens pairs well with high-payload gimbals due to its internal focusing and fixed length, which keeps the center of gravity stable. For storage, it requires a deep lens pouch or a dedicated hard case slot, as the fixed hood makes it wider than a standard 50mm or 85mm prime. It is often paired in a kit with a 35mm and an 85mm prime, filling the "ultra-wide" gap that those lenses cannot cover. For power, it draws no significant current from the camera body as it has no autofocus motors or image stabilization elements to drive.

Limitations and Alternative Choices

The Samyang 14mm f/2.8 is not a universal tool and has distinct limitations that may lead a professional to choose a different lens. The most significant hurdle is the lack of autofocus. For fast-moving sports, wildlife, or candid journalism where the subject distance changes rapidly, manual focusing at 14mm can be challenging, especially if the subject is close to the lens where the depth of field is thinnest. In these cases, a Canon EF 16-35mm f/2.8L III USM would be a more appropriate, albeit much larger, choice for its high-speed Ring USM autofocus.

The inability to use standard 77mm or 82mm screw-on filters is a major drawback for landscape photographers who rely on Circular Polarizers to cut glare on water or Neutral Density filters for long-exposure waterfalls. While 150mm filter systems exist, they are bulky and expensive. If filter use is a primary requirement, the Canon EF 17-40mm f/4L USM offers a standard 77mm thread, though it is significantly narrower and a full stop slower. Finally, the "mustache" distortion makes this lens less than ideal for high-end architectural work where absolute geometric precision is required out-of-camera. For those specific needs, a Canon TS-E 17mm f/4L Tilt-Shift lens is the industry standard, as it allows for physical perspective correction that no 14mm prime can emulate.

• Quiet, fast and accurate autofocus system
• Minimised weight for portability
• Ultra wide angle in 116.6 degree
• Weather-sealing and Starburst effects made with 7 blades
• Country of Origin: Republic of Korea

The optical formula of the new lens consists of 15 lens elements in 10 groups, including 2 aspherical elements, 4 high-refractive elements, and 1 extra-low dispersion element to ensure the best possible image quality "from center to corner of the wide 116.6° angle of view."

The lens is also very light, weighing in at 485g (without the lens cap), compared to Canon's own 14mm F2.8L II IS USM, which clocks in at nearly 650g.

Here's how Samyang describes its new lens:

This first EF mount autofocus lens from Samyang encapsulates the brand's universally respected optical technology, especially in the wide angle lens category. From a total of 15 lenses in 10 groups, 7 special optic lenses have been chosen in the production of this lens, to maximize the image quality.

The use of 2 aspherical lenses, 4 high-refractive lenses, and 1 extra-low dispersion lens minimizes distortion and various aberrations while producing crystal clear resolution. The remarkably even image quality from centre to corner of the wide 116.6-degree angle of view appears distinctly on its MTF chart.
