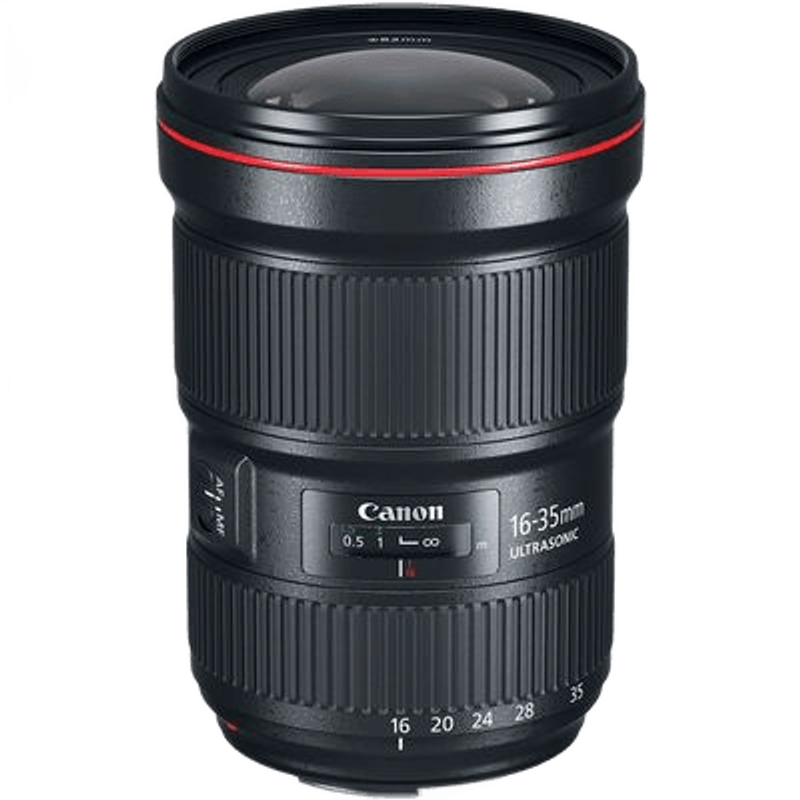

EF 16-35mm f/2.8L III USM Lens

The Professional Ultra-Wide Standard

The Canon EF 16-35mm f/2.8L III USM Lens represents the third generation of Canon’s flagship ultra-wide-angle zoom for the EF mount. It is a high-performance L-series lens designed primarily for full-frame DSLR bodies, though it is frequently adapted to mirrorless systems. This lens occupies a critical position in the "holy trinity" of professional zooms, sitting alongside the 24-70mm and 70-200mm f/2.8 variants. While its predecessors were noted for their versatility, this iteration was engineered specifically to address the demands of high-resolution sensors exceeding 30 and 50 megapixels. The optical formula consists of 16 elements arranged in 11 groups, a significant departure from the Mark II version, aimed at providing edge-to-edge sharpness that remains consistent across the entire focal range. It is built for photojournalists, architectural photographers, and landscape specialists who require a fast, constant f/2.8 aperture combined with a wide field of view.

Optical Engineering and Image Fidelity

The primary advancement in the Canon EF 16-35mm f/2.8L III USM Lens is its sophisticated glass composition. It incorporates two large-diameter double-surface Glass Molded (GMo) aspherical elements and a single ground aspherical element. These components work in tandem to minimize distortions such as curvature of field and spherical aberration, which are common challenges in wide-angle optics. To combat chromatic aberration and color fringing, Canon integrated two Ultra-low Dispersion (UD) elements. These elements ensure that different wavelengths of light are focused at the same point, resulting in high-contrast images with accurate color reproduction even at the 16mm periphery.

Light transmission is managed through two specialized coating technologies: Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC). SWC utilizes a wedge-shaped structure smaller than the wavelength of visible light to significantly reduce flare and ghosting caused by light entering the lens at steep angles—a frequent occurrence in landscape and architectural photography. ASC adds a layer of air-spheres over the traditional multi-layer coatings to further suppress reflections. The result is a lens that maintains high contrast when shooting toward the sun or under harsh artificial lighting. Furthermore, the 9-blade circular aperture diaphragm produces smooth, rounded out-of-focus highlights, which is particularly effective when capturing close-up subjects at 35mm with the f/2.8 aperture wide open.

Autofocus Mechanism and Mechanical Build

Focusing is driven by a ring-type Ultrasonic Motor (USM), which provides high-speed, near-silent autofocus. The system utilizes an internal focusing design, meaning the physical length of the lens does not change during focus adjustments, and the front element does not rotate. This is a critical feature for photographers using graduated neutral density filters or circular polarizers. The lens supports full-time manual focus override, allowing the user to make fine adjustments by turning the focus ring even while the AF mode is active. The minimum focusing distance is 0.28 meters across the entire zoom range, providing a maximum magnification of 0.25x at the 35mm end, which allows for dramatic wide-angle close-ups with significant background separation.

As an L-series optic, the build quality is designed for rigorous professional use. The lens barrel is constructed from high-grade materials that resist thermal expansion and contraction. It features extensive weather sealing at the mount, switch panel, zoom ring, and focus ring to protect against dust and moisture. The front and rear lens surfaces are treated with a fluorine coating, which repels water and oil, making it easier to clean smudges or fingerprints without damaging the underlying optical coatings. The lens uses an 82mm filter thread, which is a standard size for professional wide-angle zooms but requires larger, more specific filters than the 77mm standard found on many other EF lenses.

Performance in Motion and Video Applications

For cinematographers, the Canon EF 16-35mm f/2.8L III USM Lens offers a constant f/2.8 aperture, which is essential for maintaining consistent exposure while zooming during a take. On Super 35mm sensors, the focal length behaves approximately like a 25.6-56mm lens, making it a highly effective "walking" lens for documentary and gimbal work. While the USM motor is optimized for the rapid acquisition required in stills, it provides smooth tracking when used with Dual Pixel CMOS AF on compatible Canon bodies. Focus breathing—the slight change in focal length when shifting focus—is better controlled in this version compared to the Mark II, though it is not entirely eliminated.

The lens lacks optical image stabilization (IS). This is a deliberate design choice to prioritize optical purity and maximum aperture size within a manageable weight of 790 grams. For handheld video, users typically rely on the in-body image stabilization (IBIS) of modern mirrorless cameras via an adapter or external stabilization such as a motorized gimbal. The 16-35mm range is particularly popular for real estate walkthroughs and immersive POV shots where a wide field of view is necessary to make interior spaces feel expansive and open.

On the Shoot: Indian Production Scenarios

In a wedding environment, such as a large-scale reception in a Bengaluru palace hall, this lens is often the primary choice for capturing the scale of the venue. At 16mm, it allows the photographer to document the entire stage, the floral arrangements, and the guest seating in a single frame, even in cramped quarters. The f/2.8 aperture is vital here, as these venues often rely on ambient mood lighting that can be quite dim. The improved corner sharpness of the Mark III ensures that family members standing at the edges of a large group portrait remain as clear as those in the center.

For a travel assignment in Goa, the lens handles the high-contrast environment of white-sand beaches and bright midday sun. The SWC and ASC coatings are particularly effective here, preventing the sun from washing out the details of the coastline or the architecture of Old Goa’s cathedrals. The weather sealing provides peace of mind when shooting near the ocean, where salt spray and humidity are constant factors. The 35mm end of the zoom serves as a natural-looking focal length for environmental portraits of local artisans or street scenes in Fontainhas.

In a Mumbai-based interior photography session for a high-end apartment in Bandra, the lens’s control over distortion is its greatest asset. While all wide-angle lenses exhibit some perspective distortion, the ground aspherical elements in this lens keep straight lines—like walls, window frames, and ceiling beams—remarkably true. This reduces the amount of post-processing required to correct "barrel" or "pincushion" effects. The 0.28m minimum focus distance allows the photographer to get close to furniture details or decor elements while still showing the context of the room behind them.

Compatibility and System Integration

The Canon EF 16-35mm f/2.8L III USM Lens is natively compatible with all Canon EOS DSLR cameras featuring an EF mount. When used on APS-C sensor bodies, such as the EOS 90D or 7D Mark II, the effective focal length becomes 25.6-56mm due to the 1.6x crop factor. It is also a staple for users of the EOS R mirrorless system, where it performs seamlessly via the EF-EOS R Mount Adapter, retaining full autofocus speed and metadata communication. It is frequently paired with the 5D Mark IV or the 1DX Mark III for high-end stills work.

In terms of accessories, the lens requires an 82mm front cap and the EW-88D petal-type lens hood, which is designed to block stray light without causing vignetting at 16mm. For power, the lens draws from the camera body’s battery (such as the LP-E6NH or LP-E19), and because it lacks an IS module, its power draw is relatively low compared to stabilized lenses. It is often carried in a kit alongside the EF 24-70mm f/2.8L II USM and the EF 70-200mm f/2.8L IS III USM to cover the entire professional focal range from 16mm to 200mm at a constant f/2.8.

Considerations and Alternative Options

While the Canon EF 16-35mm f/2.8L III USM Lens is an optical benchmark, it has specific limitations that may lead some users to choose different equipment. The most notable omission is Optical Image Stabilization. Photographers who primarily shoot handheld landscapes at narrow apertures (like f/11) or videographers without gimbals may find the EF 16-35mm f/4L IS USM a more practical choice; while it is one stop slower, its built-in stabilization helps maintain sharpness at slower shutter speeds. Additionally, the f/4 version is lighter and uses a more common 77mm filter thread.

For those requiring an even wider perspective, the EF 11-24mm f/4L USM offers a significantly broader field of view, though it is much heavier and cannot easily accept front-mounted filters. Mirrorless users may also consider the RF 15-35mm f/2.8L IS USM, which is the native evolution of this lens for the R-mount, adding image stabilization and a slightly wider 15mm starting point. Finally, the 82mm filter size of the Mark III version means that users upgrading from the f/4 version or the original Mark I (which used 77mm) will need to invest in a new set of filters, which is a significant consideration for long-exposure landscape photographers.

The EF 16-35mm f/2.8L III USM is an indispensable ultra wide-angle zoom lens for professional and enthusiast photographers who demand superlative operation and performance, in virtually any condition. Its 16-35mm focal range provides superb control of perspective, helping you capture pictures and movies with amazing, dramatic compositions limited only by your imagination. Combining outstanding image quality, a fast, constant aperture and a rugged design, the EF 16-35mm f/2.8L III USM delivers eye-catching results whether capturing detailed, nuanced landscapes, dramatic interiors and much more. Both still and moving images can be captured with consistent edge-to-edge sharpness, improved peripheral illumination and reduced distortion at extreme wide angles - especially important when using SLR cameras with full-frame sensors. Engineered with high-resolution photography and videography in mind, the EF 16-35mm f/2.8L III USM provides the optical performance necessary for critical applications, while delivering the renowned function and feel you've come to expect from Canon's celebrated L-series lenses.

• High performance L-series ultra-wide-angle zoom lens with constant f/2.8 maximum aperture.
• All-new optical design for significant improvements in outer and corner sharpness.
• Sub wave length Coating (SWC) and Air Sphere Coating (ASC) help to significantly reduce flare and ghosting.
• Highly resistant to dust and water intrusion, enabling shooting even in harsh conditions.
• Circular aperture (9 blades) helps deliver beautiful, soft backgrounds.
