Tokina 11-16mm f/2.8 Digital Zoom Lens for Nikon DSLR Cameras

The Technical Foundation of the Tokina 11-16mm f/2.8 AT-X116 Pro DX II

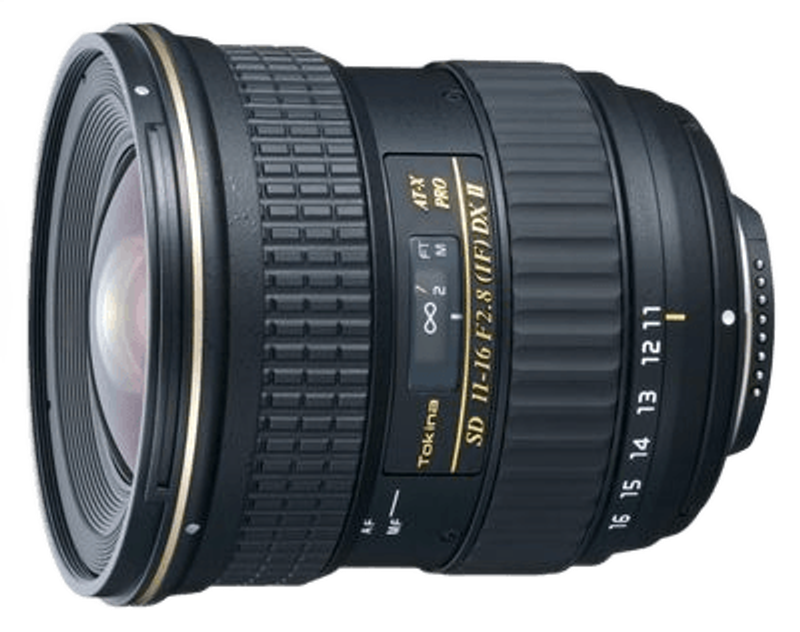

The Tokina 11-16mm f/2.8 AT-X116 Pro DX II Digital Zoom Lens for Nikon is a specialized ultra-wide-angle zoom engineered specifically for Nikon DX-format (APS-C) digital SLR cameras. It occupies a unique position in the market as one of the few wide-angle zooms for cropped sensors that maintains a constant f/2.8 maximum aperture throughout its entire focal range. This lens is the successor to the original AT-X 116 PRO DX, with the primary technical advancement being the inclusion of an internal silent DC focusing motor. This addition allows the lens to autofocus on Nikon’s entry-level and mid-range bodies that lack an internal screw-drive motor, such as the D3000 and D5000 series, while remaining fully compatible with professional-grade DX bodies like the D500.

The optical formula consists of 13 elements arranged in 11 groups. To manage the inherent distortions and aberrations associated with an 11mm focal length, Tokina utilizes two SD (Super-low Dispersion) glass elements and two aspheric glass elements. This combination is designed to minimize chromatic aberration and ensure that light reaches the sensor with high peripheral brightness. The lens provides an equivalent focal length of approximately 16.5-24mm when calculated for the 1.5x crop factor of Nikon DX sensors. This range is intentionally narrow, focusing on providing a fast aperture and high optical performance rather than a broad, compromised zoom range.

Optical Performance and Light Management

The standout feature of this lens is the constant f/2.8 aperture. In the context of wide-angle photography, this large aperture serves two primary functions: it allows for significantly faster shutter speeds in low-light environments and provides a brighter viewfinder image for easier composition. The lens utilizes a 9-blade diaphragm, which contributes to a more circular aperture shape, affecting the rendering of out-of-focus highlights and sunstars. When stopped down, the lens produces distinct 18-point sunstars, a characteristic often sought after in architectural and landscape photography.

The "Pro DX II" designation indicates an updated multi-coating process compared to the first-generation model. This coating is specifically formulated to reduce ghosting and flare, which are common challenges for ultra-wide lenses due to the large, bulbous front elements that often catch stray light from the periphery. The SD glass elements are critical for correcting "color fringe" or lateral chromatic aberration, which typically appears as purple or green outlines around high-contrast edges at the corners of the frame. By using these specialized glass types, the lens maintains higher contrast and resolution across the 11mm to 16mm range, even when shooting wide open at f/2.8.

Autofocus Mechanism and Physical Handling

The Tokina 11-16mm f/2.8 AT-X116 Pro DX II features Tokina’s proprietary One-Touch Focus Clutch Mechanism. This design allows the photographer to switch between autofocus and manual focus by snapping the focus ring forward for AF and back toward the camera body for MF. This mechanical shift provides a tactile, physical engagement of the focus gears, offering a more traditional manual focus feel with hard stops at infinity and the minimum focusing distance of 0.3 meters (11.8 inches). This is particularly useful for precision work where electronic "focus-by-wire" systems may lack the necessary feedback.

The build quality is robust, utilizing a mix of high-grade plastics and metallic components, resulting in a total weight of approximately 550 grams. The lens does not extend or retract during zooming or focusing; all movement is internal. This internal zoom design is beneficial for balance on gimbals and prevents the lens from sucking in dust or moisture through moving barrels. The front filter thread is 77mm, a standard size that allows for the use of circular polarizers and ND filters without the need for specialized, oversized filter holders often required by ultra-wide lenses with protruding front elements.

Video Capabilities and Cinematographic Utility

For videographers, the constant f/2.8 aperture is a critical asset. It allows for consistent exposure settings while zooming from 11mm to 16mm, eliminating the need to adjust ISO or shutter angle mid-shot. The internal focusing motor, while quieter than previous screw-drive versions, is audible to on-camera microphones, making it better suited for shoots using off-camera audio or manual focus techniques. The 11-16mm range is highly effective for capturing establishing shots, gimbal-mounted tracking shots, and working in confined interior spaces where a standard zoom would be too narrow.

The manual focus clutch is particularly advantageous for video, as it allows for repeatable focus pulls. While the focus throw is relatively short, the mechanical engagement provides a level of precision that is often missing in modern AF-centric lenses. The lack of an external moving barrel means that the center of gravity remains constant, which is essential for maintaining the balance of a motorized gimbal or a weighted steadicam rig. Additionally, the 77mm filter thread facilitates the use of variable ND filters, which are necessary for maintaining a 180-degree shutter angle when filming in bright Indian daylight conditions.

On the Shoot: Practical Indian Scenarios

In a Bengaluru wedding reception held in a dimly lit heritage hall, the f/2.8 aperture becomes the lens's most valuable asset. While other wide-angle zooms might force the ISO to 6400 or higher, this lens allows the photographer to stay at ISO 1600 or 3200, preserving detail in the intricate silk textures of the wedding attire. The 11mm focal length is wide enough to capture the entire stage and the surrounding decor in a single frame, even when the photographer is restricted by the placement of the guest seating. The clutch mechanism allows for a quick switch to manual focus if the AF hunts in the low-contrast, atmospheric lighting of the venue.

For a travel shoot in the narrow streets of Old Goa or the expansive beaches of the coast, the lens handles the high-contrast environment effectively. The improved multi-coating helps manage the harsh midday sun, preventing flare from washing out the deep blues of the Arabian Sea or the textures of the laterite stone churches. At 11mm, the lens can capture the towering height of a cathedral from across a narrow plaza, while the 16mm end is useful for environmental portraits that include the subject’s surroundings without the extreme perspective distortion found at the wider end.

In a Mumbai-based real estate or interior shoot, the lens’s ability to keep lines relatively straight is essential. While all ultra-wide lenses exhibit some perspective distortion, the optical design of the Tokina minimizes barrel distortion at the 16mm end. In tight apartment spaces where backing up is not an option, the 11mm focal length makes a 10x10 room appear spacious and well-documented. The 0.3m minimum focus distance also allows for detail shots of interior finishes or fixtures while still maintaining a wide view of the room in the background.

Compatibility and Pairing Recommendations

The Tokina 11-16mm f/2.8 AT-X116 Pro DX II is designed for Nikon F-mount DX cameras. It is fully compatible with the Nikon D500, D7500, and the D5600/D3500 series. It can also be used on Nikon Z-series mirrorless cameras, such as the Z50 or Z fc, via the FTZ or FTZ II mount adapter, where it retains full autofocus and aperture control. When used on full-frame (FX) Nikon bodies, the lens will automatically trigger the "DX Crop Mode" on most modern cameras. If used in FX mode, significant vignetting (a circular black border) will be visible from 11mm to 14mm, though the image clears up significantly at 15mm and 16mm.

Recommended pairings include:

• Filters: A high-quality 77mm Slim Circular Polarizer to manage reflections and enhance sky contrast without causing corner shading.
• Support: A motorized gimbal like the DJI Ronin-S or Zhiyun Crane series, as the internal zoom prevents the need for re-balancing.
• Secondary Lens: A Nikon 17-55mm f/2.8 or a 16-80mm f/2.8-4E VR to cover the standard focal lengths immediately following the 16mm limit of this lens.
• Media: High-speed SDXC (UHS-I or II) cards, as the wide-angle perspective often encourages high-frame-rate burst shooting for action or street photography.

Limitations and Alternative Considerations

While the Tokina 11-16mm f/2.8 AT-X116 Pro DX II is a high-performer in its class, it has specific limitations that may lead a user to choose a different lens. The most prominent limitation is the zoom range itself. At only 5mm of travel (11mm to 16mm), it functions almost like a variable prime lens. Users who require more versatility for general-purpose shooting might prefer the Tokina 11-20mm f/2.8, which offers a more useful long end for portraits and street scenes. Furthermore, this lens lacks Vibration Reduction (VR). While wide-angle lenses are less susceptible to camera shake, photographers shooting handheld video or very slow shutter speeds in low light may find the lack of stabilization a drawback compared to Nikon’s own 10-20mm AF-P VR lens.

Another consideration is chromatic aberration. Despite the SD glass, purple fringing can still occur in the extreme corners when shooting at f/2.8 against very bright backgrounds (such as tree branches against a white sky). This usually requires post-processing correction. Finally, full-frame users should generally avoid this lens in favor of the Tokina 16-28mm f/2.8 or the Nikon 14-24mm f/2.8, as using a DX lens on an FX body results in a significant loss of resolution (often dropping a 24MP sensor down to approximately 10MP). If the primary goal is architectural perfection with zero distortion, a dedicated perspective-control (tilt-shift) lens would be a more appropriate, albeit more complex, choice.

• A constant f/2.8 maximum aperture benefits working in low-light situations and also aids in creating a shallow depth of field
• An internal silent focusing motor allows the lens to use autofocus on Nikon bodies that do not have an AF drive gear and motor
• Two Super-Low Dispersion glass elements and two aspheric elements, as well as improved multi-coating, achieve excellent sharpness and contrast and reduce aberrations
• The One-Touch Focus Clutch Mechanism offers a simple switch from manual focus to autofocus and back again
• The focus ring snaps forward for AF and back for MF

• A Camera lens is a pre-requisite for capturing breathtaking pictures and videos. It is instrumental in capturing sharp and incredibly clear images and videos. Good news for all those who have a penchant for photography and also hard-core professionals, as Tokina brings you the gloriously rendered Tokina 11-16mm f/2.8 AT-X116 Pro DX II Digital Zoom Lens AF-S Motor for Nikon Cameras. This astounding lens from the proud Tokina family, is feature packed and comes in a sleek design, thus it is a reason enough for stimulating the buying decision of the potential customers in the market. Let’s take a quick look at the product features that will give you a better understanding of this gloriously rendered product:

• f/2.8 of maximum aperture assures sound working even in low-light conditions and also helps to create a  superficial depth of field
• Internal In-built silent focusing motor enables the operation of the auto focus of the Camera lens, on the Nikon Digital Camera that are devoid of AF drive gear and motor
• Two Super-Low Dispersion glass elements and two aspheric elements, with multi-coating provides an unmatched sharpness and contrast that minimises chances of chromatic aberrations
• One-Touch Focus Clutch Mechanism ensures easy shift from manual focus to auto focus and vice versa
• A focus ring that snaps ahead for the AF and backward for the MF

• So whether it is a wedding event, or an outdoor sports experience, or even any social gathering, you can click anything professionally that catches your fancy. With this dynamic Tokina Digital Zoom Lens AF-S Motor for Nikon Cameras, you can now rest assured that your pictures will be absolutely flawless and spectacular. The product is now also available online. So purchasing the product becomes easier as you can avail this astonishing device staying in the comforts of your own home.
