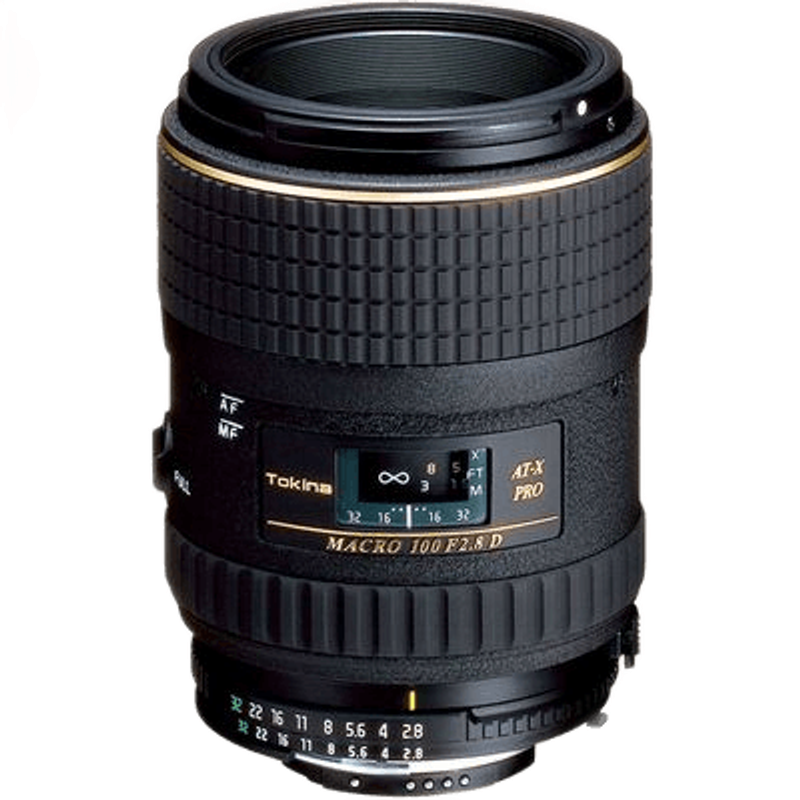

Tokina 100mm f/2.8 AT-X M100 AF Pro D [Nikon]

The Architecture of the Tokina 100mm f/2.8 AT-X M100 AF Pro D

The Tokina 100mm f/2.8 AT-X M100 AF Pro D Macro Autofocus Lens for Nikon AF-D is a specialized prime lens designed for full-frame (FX) Nikon F-mount cameras, though it remains fully compatible with DX-format sensors where it provides a 150mm equivalent focal length. This lens occupies a specific niche in the AT-X (Advanced Technology-Extra) line-up, characterized by a "Pro" designation that signifies a higher standard of mechanical build and optical precision. The "D" suffix indicates that the lens is digitally optimized, featuring multi-coatings designed to minimize reflections off the sensor, a common issue when using older film-era optical designs on modern digital bodies.

The optical formula consists of 9 elements arranged in 8 groups. Unlike many modern lenses that prioritize internal focusing to maintain a constant physical length, this Tokina utilizes an extending barrel design to achieve its 1:1 magnification ratio. At its minimum focus distance of 30cm (11.8 inches), the lens barrel extends significantly, which is a mechanical trade-off for a simplified optical path that prioritizes "flat-field" rendering. This design ensures that the focus remains sharp from the center to the extreme corners of the frame, making it an essential tool for reproduction work, document scanning, and macro photography where edge-to-edge detail is mandatory.

Optical Performance and Light Rendering

The image quality of the Tokina 100mm f/2.8 AT-X M100 AF Pro D is defined by its 9-blade diaphragm and its flat-field optical design. The 9-blade configuration is engineered to produce nearly circular out-of-focus highlights (bokeh) even when stopped down to f/5.6 or f/8, which is common in macro photography to gain necessary depth of field. This aperture design helps in creating a smooth transition between the sharp focal plane and the background, a critical requirement for portraiture and close-up nature photography.

The lens features a maximum aperture of f/2.8, allowing for a bright viewfinder image and the ability to isolate subjects in low-light conditions. However, in macro photography, the effective aperture changes as the lens extends; at 1:1 magnification, the effective aperture decreases, a physical property of light that the camera's metering system accounts for. The multi-coating applied to the glass elements is specifically formulated to handle the "ghosting" and flare that can occur when light bounces between the rear element and the digital sensor. This results in high-contrast images even when shooting in backlit conditions, such as a sunset or under heavy studio strobes.

Mechanical Handling and the One-Touch Focus Clutch

The physical handling of the Tokina 100mm f/2.8 AT-X M100 AF Pro D is centered around the One-Touch Focus Clutch mechanism. This system allows the photographer to switch between autofocus and manual focus by snapping the focus ring forward or backward. In the forward position, the lens is in AF mode; pulling the ring toward the camera body engages the manual focus gears. This is particularly useful in macro photography where the camera may struggle to find focus on a minute subject, allowing the user to take immediate manual control without looking away from the viewfinder or toggling a switch on the camera body.

As an AF-D series lens, it lacks an internal autofocus motor. It relies on the "screw-drive" mechanism found in higher-end Nikon DSLRs (such as the D7000 series, D500, D750, D850, and the D3/D4/D5/D6 series). On these bodies, the AF is driven by a motor inside the camera. On entry-level bodies like the D3000 or D5000 series, this lens will function as a manual-focus-only lens. The focus ring has a long throw of approximately 190 degrees, which provides the fine-grained control necessary for precise manual focusing at 1:1 magnification. The lens also includes a physical aperture ring, allowing it to be used on older Nikon film cameras or with manual adapters on mirrorless systems.

Video Capability and Manual Control

In a video context, the Tokina 100mm f/2.8 AT-X M100 AF Pro D is primarily a manual-focus tool. Because the autofocus is driven by a mechanical screw-drive, the AF operation is audible and can be picked up by on-camera microphones. Furthermore, the AF speed is dependent on the torque of the camera's internal motor, which is generally not optimized for the smooth, silent transitions required for professional cinematography. However, for static shots or controlled focus pulls, the lens excels due to its mechanical focus ring.

The long focus throw is a significant advantage for videographers, as it allows for very slow and precise shifts in focus that are difficult to achieve on modern "focus-by-wire" lenses. The presence of a physical aperture ring is another benefit for video, especially when using "dumb" adapters on E-mount or L-mount systems, as it allows for tactile iris control. The lens does not feature image stabilization (Vibration Reduction), so for video work, it is best utilized on a tripod or a gimbal. The extending barrel must be noted when balancing on a gimbal; as the focus moves from infinity to 1:1, the center of gravity shifts forward significantly, which may require re-balancing if the focus is pulled across a wide range during a shot.

On the Shoot: Indian Photography Scenarios

In a Mumbai-based commercial studio specializing in jewelry or product photography, the Tokina 100mm f/2.8 AT-X M100 AF Pro D is used for its 1:1 magnification and flat-field rendering. When shooting a diamond ring or a luxury watch, the lens allows the photographer to fill the frame with the subject from 30cm away. The flat-field design ensures that the facets of a gemstone or the branding on a watch face remain sharp across the entire frame, preventing the "smearing" at the edges that can occur with non-macro lenses. The 55mm filter thread allows for the easy attachment of circular polarizers to manage reflections on metallic surfaces.

During a wedding reception in Bengaluru, the lens serves a dual purpose. Initially, it is used for "detail shots"—capturing the intricate patterns of the bride's henna (mehndi), the texture of the silk saree, or the wedding rings. The 100mm focal length provides a comfortable working distance, ensuring the photographer does not cast a shadow over these small subjects. As the event progresses, the lens transitions into a portrait prime. The 100mm focal length on a full-frame body provides a flattering perspective for headshots, compressing facial features and, at f/2.8, separating the subject from the often-cluttered background of a wedding hall.

For a nature photographer exploring the Western Ghats near Goa, this lens is used for macro documentation of flora and insects. The mechanical build is robust enough to handle the humidity of the region, though it is not fully weather-sealed. The One-Touch Focus Clutch is particularly valuable here; when an insect moves slightly out of the AF point's reach, the photographer can instantly pull the ring back to manual focus to track the movement. The f/32 minimum aperture is a critical spec in this environment, allowing the photographer to maximize depth of field when shooting a subject like a dragonfly where the entire body needs to be in focus.

Pairing and Compatibility

The Tokina 100mm f/2.8 AT-X M100 AF Pro D is designed for the Nikon F-mount. To utilize autofocus, it must be paired with a Nikon DSLR that has a built-in AF motor. This includes the D70, D80, D90, D200, D300, D500, D7000, D7100, D7200, D7500, and all FX-format DSLRs like the D610, D750, D780, D800, D810, and D850. It is also compatible with the professional D-series bodies (D1 through D6). On Nikon Z-mount mirrorless cameras, this lens can be used via the FTZ or FTZ II adapter, but it will be manual focus only because the FTZ adapter does not contain a screw-drive motor.

The lens uses 55mm filters, a standard size that is shared with several other classic primes, making it easy to share filters like NDs or polarizers. For photographers needing more than 1:1 magnification, this lens pairs well with Nikon-compatible extension tubes. Because it has a physical aperture ring, it is also compatible with older manual extension tubes that lack electronic contacts. For lighting, it is frequently paired with ring flashes or twin-light macro flashes that clip onto the front 55mm thread, providing even illumination for close-up subjects.

Limitations and Alternative Choices

While the Tokina 100mm f/2.8 AT-X M100 AF Pro D is highly regarded for its sharpness, it has distinct limitations. The most significant is the lack of an internal AF motor. Users of Nikon’s D3000-series or D5000-series bodies will find themselves restricted to manual focus. For these users, a Nikon AF-S Micro-Nikkor 105mm f/2.8G VR or a Sigma 105mm f/2.8 EX DG OS HSM Macro would be a more appropriate choice, as those lenses contain internal motors and will autofocus on all modern Nikon DSLRs.

Another limitation is the absence of image stabilization. At a 100mm focal length, and especially at macro distances where camera shake is magnified, shooting handheld at shutter speeds slower than 1/160s can be challenging. Photographers who frequently shoot macro subjects in the field without a tripod may prefer the Nikon 105mm VR or the Tamron 90mm VC, both of which offer optical stabilization. Finally, the extending barrel design can be a drawback when photographing skittish insects; the physical movement of the lens as it focuses can startle subjects, and the lack of internal focusing means the front element gets very close to the subject at 1:1. For those requiring a constant lens length, an internal-focusing macro lens would be the better alternative.

ÞThe AT-X M100 PRO D is a macro lens capable of life-sized (1:1) reproduction at 11.8 inches. The lens multi-coating have been re-engineered to match the highly reflective silicon based CCD and CMOS sensors
