Raynox DCR-250 2.5x Super Macro / Close-Up Lens

The Optical Engineering of the Raynox DCR-250

The Raynox DCR-250 is a high-definition macro conversion lens designed to provide a 2.5x magnification factor relative to the host lens's native reproduction ratio. Unlike standard single-element close-up filters that often introduce significant spherical aberration, this unit is constructed using a sophisticated three-element optical formula arranged in two groups. This achromatic design is specifically engineered to maintain high resolution from the center of the frame to the periphery, a critical requirement for high-megapixel sensors. Manufactured in Japan by Yoshida Industry Co., Ltd., the lens utilizes high-index optical glass to minimize the physical profile of the elements while maximizing light transmission and refractive power.

The core specification of the DCR-250 is its 8-diopter power. In optical terms, this translates to a fixed focal length of 125mm when the conversion lens is used in isolation. When mounted to a primary lens, it effectively shifts the focus range of that lens into the macro territory. It is positioned in the Raynox lineup as the high-magnification sibling to the DCR-150 (which offers 4.8 diopters). While the DCR-150 is often preferred for larger subjects like butterflies, the DCR-250 is designed for extreme close-up work where the subject matter is measured in millimeters, such as the compound eyes of insects, the intricate facets of gemstones, or the micro-circuitry of electronic components.

Image Quality and Achromatic Correction

The primary technical advantage of the Raynox DCR-250 over budget close-up sets is its achromatic correction. Standard close-up lenses are typically simple meniscus lenses that suffer from chromatic aberration, manifesting as purple or green fringing at high-contrast edges. The three-element construction of this lens uses specific glass types with varying dispersion properties to bring different wavelengths of light into a single focal plane. This results in significantly cleaner edges and better color fidelity, which is essential when capturing the fine metallic threads of a sari or the crystalline structure of a diamond.

In practice, the image quality is heavily dependent on the host lens. Because the DCR-250 is a conversion optic, it magnifies the existing characteristics of the primary lens. When paired with high-quality prime lenses or telephoto zooms, it maintains a high degree of center sharpness. However, users will observe a significant narrowing of the depth of field. At 8 diopters, the plane of focus is razor-thin, often measured in fractions of a millimeter. This requires precise aperture control, typically stopping down to f/11 or f/16 on full-frame systems to achieve usable focus depth, though diffraction must be managed. The lens coating is designed to suppress internal reflections and flare, which is particularly useful when using macro ring flashes or off-camera LED panels in a studio environment.

Mounting Mechanics and Handling

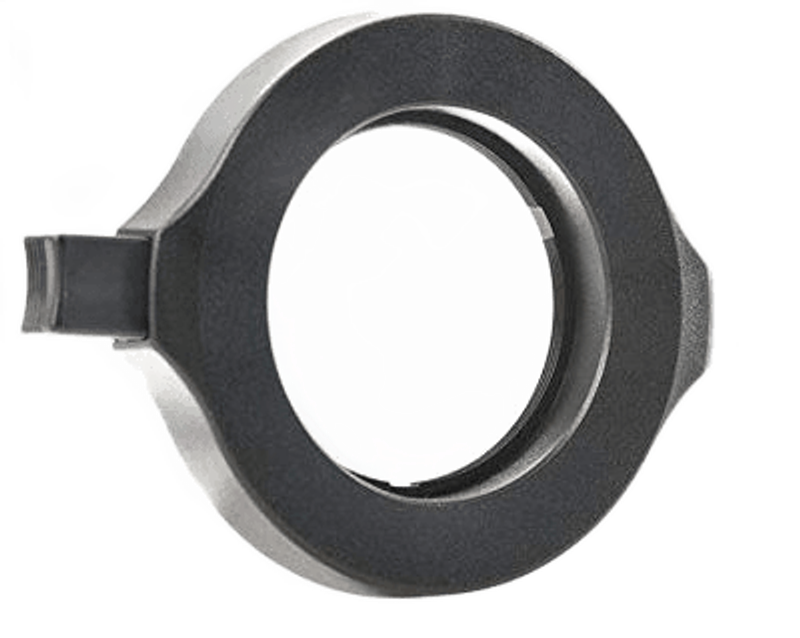

The Raynox DCR-250 features a unique mounting system centered around the UAC2000 universal snap-on adapter. This adapter uses a spring-loaded mechanism that allows the lens to be instantly attached to any primary lens with a front filter thread diameter ranging from 52mm to 67mm. This versatility eliminates the need for multiple step-up or step-down rings when switching between different lenses in a kit, such as a 50mm prime and a 70-200mm zoom. The lens itself has a rear thread of 43mm, which is what screws into the UAC2000 adapter. If a photographer is using a lens with a 43mm thread, the adapter can be bypassed entirely for a more secure, low-profile screw-on fit.

The front of the DCR-250 features a 49mm filter thread. This allows for the attachment of further accessories, such as a 49mm circular polarizer or a specialized macro lighting rig. The physical build is compact and lightweight, weighing approximately 60 grams (lens only) or 85 grams with the adapter. This low mass ensures that the lens does not strain the autofocus motors of the host lens, even those with extending front elements. The working distance—the distance between the front of the lens and the subject—is approximately 109mm (10.9cm) when the host lens is focused at infinity. This distance is relatively generous for an 8-diopter lens, providing enough room to position external lights or to avoid startling live subjects like insects.

Video Capability and Macro Cinematography

For videographers, the Raynox DCR-250 serves as a cost-effective entry into high-magnification cinematography without the light loss associated with extension tubes or the bulk of a dedicated macro cine lens. Because it is a front-mounted diopter, it does not affect the effective f-stop of the lens; an f/2.8 lens remains an f/2.8 lens in terms of light transmission. This is a significant advantage when shooting high-frame-rate slow motion for macro sequences, where light is often at a premium. In 4K or 8K video production, the achromatic glass ensures that the fine details of the subject are resolved without the "softness" common in lower-quality close-up filters.

However, the lens introduces specific challenges for video. The extremely shallow depth of field makes handheld shooting nearly impossible; a stable tripod and a geared macro rail are almost mandatory for usable footage. Focus pulling becomes incredibly sensitive; even a minute turn of the focus ring results in a massive shift in the focal plane. On cameras with high-resolution electronic viewfinders, focus peaking is an essential tool when using this lens. Additionally, because the lens is optimized for longer focal lengths, videographers using wide-angle lenses will encounter heavy vignetting (a black circular frame). To fill a 16:9 or 17:9 video frame without vignetting, the host lens typically needs to be at a focal length of 50mm or longer on APS-C sensors, and 75mm or longer on full-frame sensors.

On the Shoot: Indian Photography Scenarios

In a Mumbai-based commercial studio specializing in jewelry photography, the Raynox DCR-250 is frequently utilized to capture the "hallmark" engravings on the inside of gold rings or the intricate settings of small gemstones. When mounted on a 100mm or 105mm prime lens, it allows the photographer to fill the frame with a subject just a few millimeters wide. The 109mm working distance is sufficient to place two small LED goosenecks on either side of the jewelry to highlight the sparkle of the stones without the lens casting a shadow on the subject.

During a nature expedition in the Western Ghats during the monsoon, the lens is an invaluable tool for macro enthusiasts documenting rare amphibians or insects. The snap-on UAC2000 mount is particularly useful here, as it allows the photographer to keep a versatile 70-300mm zoom lens on the camera for birds or larger mammals, and then quickly "snap on" the DCR-250 when a Malabar Pit Viper or a unique beetle is spotted. The lightweight nature of the lens means it can be carried in a pocket, making it ideal for trekking where every gram of gear counts.

At a high-end wedding in Bengaluru, the lens finds its place during the "getting ready" shots. While the primary photographer focuses on portraits, a second shooter can use the DCR-250 to capture extreme close-ups of the bride’s henna (Mehendi) patterns, the texture of the silk in the Kanchipuram sari, or the intricate details of the Mangalsutra. The ability to turn a standard 50mm "nifty fifty" into a macro-capable lens allows for these detail shots without the need to carry a dedicated, heavy macro lens throughout the long wedding day.

Compatibility and Pairing

The Raynox DCR-250 is most effective when paired with lenses in the 50mm to 200mm focal length range. On a 50mm lens, it provides a significant boost in magnification while maintaining a manageable field of view. On a 150mm or 200mm telephoto lens, the magnification becomes extreme, allowing for "super macro" photography that exceeds the 1:1 reproduction ratio of most dedicated macro lenses. It is compatible with Full Frame, APS-C, and Micro Four Thirds systems, though the effective magnification and vignetting characteristics will vary. On Micro Four Thirds, the 2x crop factor combined with the 2.5x magnification of the Raynox results in an incredibly tight field of view, ideal for the smallest subjects.

In terms of hardware pairing, the lens works seamlessly with internal-focusing lenses where the front element does not rotate. If used with a lens that has a rotating front element, the snap-on adapter will rotate with the focus, which is generally not an issue unless a directional accessory like a petal hood or a graduated filter is attached to the front 49mm thread. For media and power, the lens has no electronic components, meaning it does not draw battery power or require specific firmware. However, because of the precision required, it is best paired with cameras that offer "Magnified View" in the EVF or LCD and "Focus Peaking" to ensure the thin slice of focus is exactly where intended.

Limitations and Alternative Choices

The Raynox DCR-250 is not a universal solution for all close-up photography. Its primary limitation is vignetting on wide-angle lenses. If you attempt to use this on a 18mm or 24mm lens, you will see the circular edges of the conversion lens in your frame. It is also not suitable for subjects that require a long working distance. While 109mm is decent, it is much shorter than the working distance provided by a dedicated 180mm macro lens, which might be necessary for skittish subjects like dragonflies or butterflies. For those subjects, the Raynox DCR-150, with its lower 4.8-diopter power, offers a longer working distance and a more forgiving depth of field.

Furthermore, while the achromatic glass is excellent, it cannot fully compensate for the optical flaws of a poor-quality host lens. If the base lens has significant distortion or softness, the DCR-250 will magnify those issues. For photographers who require a flat field of focus for document reproduction or flat-lay product work, a dedicated macro lens (like a 90mm or 100mm f/2.8 macro) is a better choice, as conversion lenses naturally introduce a slight field curvature. Finally, for those who need to maintain autofocus speed and accuracy at all costs, extension tubes with electronic contacts might be preferable, as they do not add any glass between the subject and the sensor, though they do result in light loss which the Raynox avoids.

• RAYNOX DCR-250 lens includes a snap-on universal mount
• Suitable for 52mm to 67mm filter size
• DCR-250 Super Macro lens obtains the maximum macro magnification power when set at the most telephoto position of zoom lens
• The lens includes a snap-on universal mount suitable for 52mm to 67mm filter size.
  DCR-250 Super Macro lens obtains the maximum macro magnification power when set at the most telephoto position of zoom lens. The lens is made of high index optical glass elements which produce rich and razor sharp image.

Magnification : 8-Diopter

Lens construction : 2-group/3-element, Coated optical glass elements

Front Filter thread : 49mm

Mounting thread : 43mm

Dimensions : 18mm x 53mm

Weight : 60g(2.1oz)

Accessories : UAC2000 Universal adapter, Lens case, Lens caps
