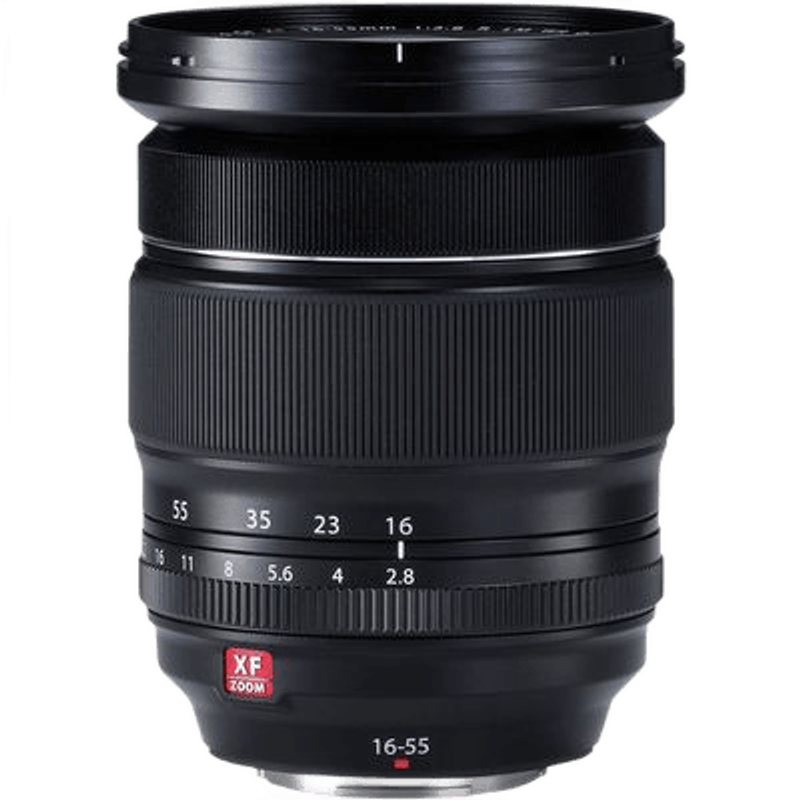

Fuji XF 16-55mm f/2.8 R LM WR

What the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens Is

The FUJIFILM XF 16-55mm f/2.8 R LM WR Lens serves as the flagship standard zoom for the X-Series mirrorless system. It provides a 35mm equivalent focal range of 24mm to 84mm, covering the most utilized perspectives in professional photography from wide-angle landscapes to short-telephoto portraiture. This lens is distinguished by its "Red Badge" designation, a classification Fujifilm reserves for its highest-performing zoom optics that prioritize image quality and mechanical durability over compact size. It was engineered specifically for professional photographers and high-end enthusiasts who require a single lens capable of replacing multiple primes without sacrificing the constant f/2.8 maximum aperture.

The optical construction is complex, featuring 17 elements arranged in 12 groups. This includes three aspherical elements to control spherical aberration and distortion throughout the zoom range, and three extra-low dispersion (ED) elements to minimize chromatic aberrations and color fringing. Unlike the more consumer-oriented 18-55mm or 16-80mm options, this lens does not include optical image stabilization (OIS). This design choice was made to prioritize the optical path and maintain the highest possible resolution across the entire frame, making it a preferred choice for users of Fujifilm bodies equipped with In-Body Image Stabilization (IBIS), such as the X-H2S, X-H2, X-T4, and X-T5.

Optical Technologies and Image Quality

The image quality of the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens is defined by its ability to resolve high-frequency details even when shooting wide open at f/2.8. To achieve this, Fujifilm utilized two proprietary coating technologies. The first is the Nano-GI (Gradient Index) coating, which alters the refractive index between glass and air to significantly reduce ghosting and flare from diagonal light sources. This is complemented by the HT-EBC (High Transmittance Electron Beam Coating) applied to the entire lens surface to ensure high contrast and color fidelity. These coatings are particularly effective when shooting into the sun or under harsh artificial lighting, maintaining deep blacks and preventing the "veiling flare" that can wash out images.

The lens features a 9-blade rounded diaphragm, which creates a circular aperture for smoother, more natural-looking bokeh. This is especially noticeable when shooting at the 55mm end at f/2.8, where the transition from the plane of focus to the background blur is gradual and free from the "onion ring" artifacts often found in lesser aspherical designs. The edge-to-edge sharpness is maintained by the three aspherical elements, which are polished to a surface precision of 0.01 microns. This level of manufacturing ensures that even at 16mm, the corners of the frame remain sharp with minimal barrel distortion, a common issue in wide-angle zooms.

Autofocus Performance and Mechanical Handling

For autofocus, the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens utilizes a Twin Linear Motor (LM) system. This internal focusing mechanism moves the smaller lens elements in the middle or rear of the lens without changing the overall length of the barrel. The linear motors operate silently and can achieve focus in as little as 0.06 seconds when paired with high-performance X-Series bodies. Because the motors move the focus group via magnetic levitation rather than gears, the movement is exceptionally smooth, which is critical for maintaining focus on moving subjects during high-speed burst shooting.

The physical build of the lens is robust, weighing approximately 655g and featuring a 77mm filter thread. The barrel is constructed from a combination of high-grade plastic and metal components, designed to withstand professional use. It features 14 distinct weather seals (WR) located at various points throughout the barrel, including the mount, the zoom ring, and the focus ring. This weather resistance allows the lens to operate in temperatures as low as -10 degrees Celsius and protects the internal optics from dust and moisture. The aperture ring provides tactile 1/3 EV clicks, allowing photographers to adjust exposure manually without looking away from the viewfinder, though it does not feature a "de-click" switch for video.

Video Capabilities and Limitations

In a video production context, the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens is often used as a primary "A-roll" lens due to its versatile focal range and constant aperture. The f/2.8 opening ensures that exposure remains consistent as the filmmaker zooms from 16mm to 55mm, preventing the distracting brightness shifts found in variable-aperture lenses. The Twin Linear Motor system is particularly beneficial for video, as it provides near-silent autofocus that is unlikely to be picked up by on-camera microphones. The lens exhibits well-controlled focus breathing, meaning the angle of view does not change significantly when shifting focus from a foreground subject to the background.

However, there are honest limitations for cinematographers. The lack of internal OIS means that when used on older bodies like the X-T3 or X-Pro3, handheld footage will be prone to micro-jitters unless a gimbal or tripod is used. On IBIS-equipped bodies, the stabilization is effective, but the lens's weight can make long handheld sessions fatiguing. Additionally, while the focus ring is smooth, it is a "focus-by-wire" system, meaning there are no physical hard stops at infinity or minimum focus, which can make repeatable manual focus pulls more challenging compared to dedicated cinema glass.

On the Shoot: Real-World Scenarios

In a Bengaluru wedding reception, the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens proves its value in unpredictable lighting. The constant f/2.8 aperture allows the photographer to maintain a fast enough shutter speed to freeze movement on the dance floor without pushing ISO to extreme levels. At the 16mm end, the lens is wide enough to capture large group shots of the extended family on stage, while a quick twist to 55mm allows for candid portraits of guests from a distance. The fast AF tracking ensures that even in the dim, colorful lighting of a typical Indian wedding hall, the lens locks onto faces and eyes reliably.

During a Goa travel and landscape shoot, the weather sealing becomes the lens's most important feature. When shooting at the coast, salt spray and humidity are constant threats to equipment. The 14 seals allow the photographer to continue shooting at the water's edge or during a monsoon drizzle without fear of internal fogging or electronic failure. The 16mm wide-angle setting is ideal for capturing the scale of the beaches, while the Nano-GI coating handles the intense midday sun by preventing flare that would otherwise ruin high-contrast landscape frames.

In a Mumbai studio product session, the lens is frequently used for its sharpness and color accuracy. When stopped down to f/5.6 or f/8, the lens reaches its peak resolving power, capturing the fine textures of fabrics or the intricate details of jewelry. The 0.3m minimum focusing distance at the wide end (and 0.4m at the telephoto end) allows for close-up shots of products without needing a dedicated macro lens. The 77mm filter thread is a standard size, making it easy to attach circular polarizers to manage reflections on glass or metallic surfaces.

Compatibility and Pairings

The FUJIFILM XF 16-55mm f/2.8 R LM WR Lens is designed for the Fujifilm X-mount and is compatible with all X-Series mirrorless cameras. However, due to its size and weight, it is best balanced on larger bodies like the X-T5, X-H2, or X-H2S. When used on smaller bodies like the X-E4 or X-T30 II, the setup becomes front-heavy, often requiring an external hand grip for ergonomic comfort. It is important to note that this lens does not have OIS, so pairing it with an IBIS-equipped body is highly recommended for anyone shooting handheld at shutter speeds slower than 1/100s.

In terms of a complete kit, this lens is frequently paired with the XF 50-140mm f/2.8 R LM OIS WR to create a professional "two-lens solution" that covers everything from 16mm to 140mm at a constant f/2.8. For media, the high resolution of this lens—especially when used on the 40.2MP sensor of the X-T5 or X-H2—demands high-speed SD cards (UHS-II V60 or V90) or CFexpress Type B cards to handle the data throughput during burst shooting or high-bitrate video recording. It uses the NP-W235 battery in newer bodies, and users should be aware that the linear motors do draw a small amount of power even when the lens is not actively focusing.

Who Should Choose Something Else

While the FUJIFILM XF 16-55mm f/2.8 R LM WR Lens is a professional workhorse, it is not the right choice for every photographer. The primary drawback is its size and weight. At 655g, it is significantly heavier than the XF 18-55mm f/2.8-4 R LM OIS (310g) or the Sigma 18-50mm f/2.8 DC DN (290g). Travel photographers who prioritize a lightweight, "all-day" setup may find the 16-55mm too cumbersome for long treks or street photography where discretion is preferred.

Furthermore, the lack of Optical Image Stabilization is a significant factor for users of non-IBIS camera bodies. If you are shooting on an X-T3 or X-T30 and do not plan to use a tripod or gimbal, the XF 16-80mm f/4 R OIS WR might be a better choice; although it has a smaller maximum aperture, its 6-stop OIS system is more effective for handheld low-light photography of static subjects. Finally, for those who exclusively shoot portraits and require the absolute shallowest depth of field, the XF 56mm f/1.2 R WR prime lens offers a significantly wider aperture and more specialized bokeh characteristics than this zoom can provide at its 55mm focal length.

The Fuji XF 16-55mm f/2.8 R LM WR is a weather resistant, fast-aperture, normal-range zoom for Fuji X-mount mirrorless cameras.
